McLaren McLaren 675LT Spider - 16 - F1 - POWER UNIT - 16.4 - 01 - POWER UNIT - WATER PUMP + COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1010CP Oetiker Clip - Engine - 24.1 Enquire To Order
Photo Part No Description Price (each) Stock
11F1012CP Hose Clamp - Oetiker - 27.1 $7.48 To Order
Photo Part No Description Price (each) Stock
11F0981CP P-Clip - Clutch Cooler Hose - Engine $7.83 To Order
Photo Part No Description Price (each) Stock
12FA004CP Water Pump - Engine $1,665.46 To Order
Photo Part No Description Price (each) Stock
11F0825CP Bolt - M6x20 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0832CP Bolt - M6x80 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $118.02 To Order
Photo Part No Description Price (each) Stock
13F0757CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $67.64 To Order
Photo Part No Description Price (each) Stock
13F0760CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $62.73 To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.06 To Order
Photo Part No Description Price (each) Stock
11F2167CP PIPE - HEATER FEED STUB $85.44 To Order
Photo Part No Description Price (each) Stock
13F0761CP TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY $71.07 To Order
Photo Part No Description Price (each) Stock
11F1468CP HOSE ASSY - ENGINE - DEGAS $111.88 To Order
Photo Part No Description Price (each) Stock
11F1004CP Oetiker Clip - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
11F0704CP Support - Engine Coolant Top Hose - Set $24.41 To Order
Photo Part No Description Price (each) Stock
11F1132CP O-ring - Radiator Hose - Inboard - Engine $28.38 To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $16.42 To Order
Photo Part No Description Price (each) Stock
11F2395CP Thermostat Assy - Engine - inc. Gasket Enquire To Order
Photo Part No Description Price (each) Stock
13F0759CP Pipe - Hose - Turbocharger Water Return - inc Clips - RH Enquire To Order
Photo Part No Description Price (each) Stock
13F0758CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $67.64 To Order
Photo Part No Description Price (each) Stock
11F0686CP Gasket - Engine Water Pump $28.24 To Order
Photo Part No Description Price (each) Stock
11F1033CP Gasket - Water Pump Cover - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1674CP T Piece - Degas $16.21 To Order
Photo Part No Description Price (each) Stock
00RB154 Hose Clamp - Oetiker - 27.1 Enquire To Order
Photo Part No Description Price (each) Stock
11F2165CP Pipe - Turbocharger Water Return - Upper - RH $53.47 To Order
Photo Part No Description Price (each) Stock
00RB093 Oetiker Clip - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
13F0762CP Bolt - Hollow - M12 $32.23 To Order
Photo Part No Description Price (each) Stock
11F1021CP RADIATOR - INBOARD LH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1022CP Top Hose - Radiator - Inboard - Engine - RH $268.35 To Order
View All

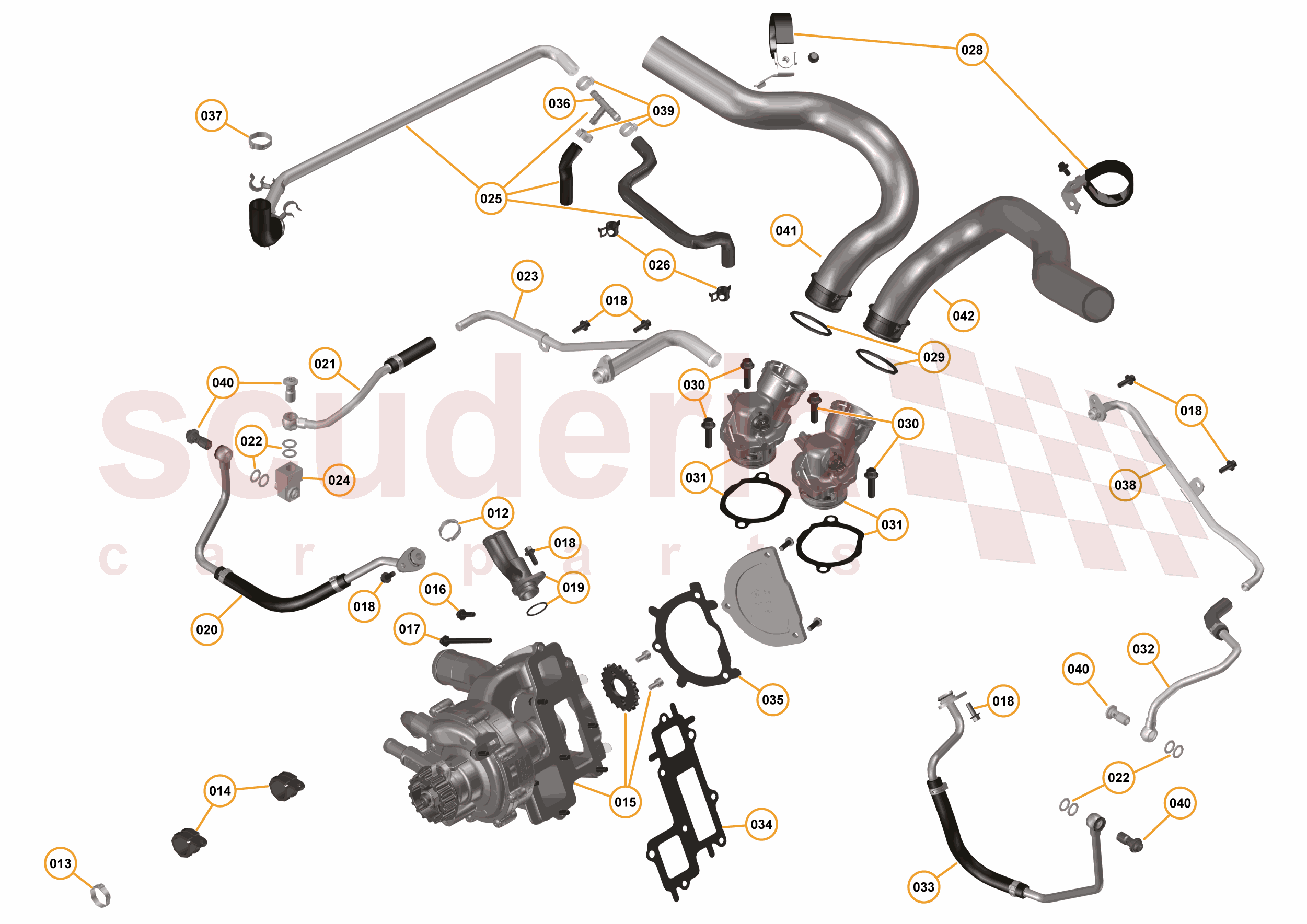

16 - F1 - POWER UNIT - 16.4 - 01 - POWER UNIT - WATER PUMP + COOLING of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
012 11F1010CP
Oetiker Clip - Engine - 24.1
Row ID: ID_E0F101H8_11F1010CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11F1012CP
Hose Clamp - Oetiker - 27.1
Row ID: ID_E0F10142_11F1012CP_ContPgHS; Resolution: Available; 		$7.48 1
014 11F0981CP
P-Clip - Clutch Cooler Hose - Engine
Row ID: ID_E0F10156_11F0981CP_ContPgHS; Resolution: Available; 		$7.83 1
015 12FA004CP
Water Pump - Engine
Row ID: ID_E0F101Y2_12FA004CP_ContPgHS; Resolution: Available; 		$1,665.46 1
016 11F0825CP
Bolt - M6x20 - Engine
Row ID: ID_E0F10181_11F0825CP_ContPgHS; Resolution: Available; 		- 1 Enquire
017 11F0832CP
Bolt - M6x80 - Engine
Row ID: ID_E0F10182_11F0832CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_E0F10183_11F0822CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 11F0802CP
Heater Return Stub - Engine - Water Pump
Row ID: ID_E0F10184_11F0802CP_ContPgHS; Resolution: Available; 		$118.02 1
020 13F0757CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Row ID: ID_E0F101Y4_13F0757CP_ContPgHS; Resolution: Available; 		$67.64 1
021 13F0760CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Row ID: ID_E0F101Y5_13F0760CP_ContPgHS; Resolution: Available; 		$62.73 1
022 11F1131CP
Banjo Washer - Turbo Oil Feed
Row ID: ID_E0F101L3_11F1131CP_ContPgHS; Resolution: Available; 		$6.06 8
023 11F2167CP
PIPE - HEATER FEED STUB
Row ID: ID_E0F10186_11F2167CP_ContPgHS; Resolution: Available; 		$85.44 1
024 13F0761CP
TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY
Row ID: ID_E0F101Y6_13F0761CP_ContPgHS; Resolution: Available; 		$71.07 1
025 11F1468CP
HOSE ASSY - ENGINE - DEGAS
Row ID: ID_E0F101Q0_11F1468CP_ContPgHS; Resolution: Available; 		$111.88 1
026 11F1004CP
Oetiker Clip - 16.6
Row ID: ID_E0F10188_11F1004CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 11F0989CP
Clip - Degas - Engine
Row ID: ID_E0F10135_11F0989CP_ContPgHS; Resolution: Available; 		$12.16 1
028 11F0704CP
Support - Engine Coolant Top Hose - Set
Row ID: ID_E0F10189_11F0704CP_ContPgHS; Resolution: Available; 		$24.41 1
029 11F1132CP
O-ring - Radiator Hose - Inboard - Engine
Row ID: ID_E0F10190_11F1132CP_ContPgHS; Resolution: Available; 		$28.38 2
030 11F0809CP
Bolt - M8x30 - Engine - Thermostat
Row ID: ID_E0F10191_11F0809CP_ContPgHS; Resolution: Available; 		$16.42 1
031 11F2395CP
Thermostat Assy - Engine - inc. Gasket
Row ID: ID_E0F10192_11F2395CP_ContPgHS; Resolution: Available; 		- 1 Enquire
032 13F0759CP
Pipe - Hose - Turbocharger Water Return - inc Clips - RH
Row ID: ID_E0F101Y7_13F0759CP_ContPgHS; Resolution: Available; 		- 1 Enquire
033 13F0758CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Row ID: ID_E0F101Y8_13F0758CP_ContPgHS; Resolution: Available; 		$67.64 1
034 11F0686CP
Gasket - Engine Water Pump
Row ID: ID_E0F10195_11F0686CP_ContPgHS; Resolution: Available; 		$28.24 1
035 11F1033CP
Gasket - Water Pump Cover - Engine
Row ID: ID_E0F10196_11F1033CP_ContPgHS; Resolution: Available; 		- 1 Enquire
036 11F1674CP
T Piece - Degas
Row ID: ID_E0F101S2_11F1674CP_ContPgHS; Resolution: Available; 		$16.21 1
037 00RB154
Hose Clamp - Oetiker - 27.1
Row ID: ID_E0F101R4_00RB154_ContPgHS; Resolution: Available; 		- 1 Enquire
038 11F2165CP
Pipe - Turbocharger Water Return - Upper - RH
Row ID: ID_E0F101Y9_11F2165CP_ContPgHS; Resolution: Available; 		$53.47 1
039 00RB093
Oetiker Clip - 16.6
Row ID: ID_E0F10119_00RB093_ContPgHS; Resolution: Available; 		- 3 Enquire
040 13F0762CP
Bolt - Hollow - M12
Row ID: ID_E0F10180_13F0762CP_ContPgHS; Resolution: Available; 		$32.23 4
041 11F1021CP
RADIATOR - INBOARD LH
Row ID: ID__11F1021CP_ContPgHS; Resolution: Available; 		$243.70 1
042 11F1022CP
Top Hose - Radiator - Inboard - Engine - RH
Row ID: ID__11F1022CP_ContPgHS; Resolution: Available; 		$268.35 1
