16 - F1 - Power Unit - 16.17 - 02 - Air Intake System

McLaren McLaren 675LT Spider

Find Your Part

McLaren McLaren 675LT Spider - 16 - F1 - POWER UNIT - 16.17 - 02 - AIR INTAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RM003 RIVET - DIA 5 X 10 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11F2661LP Duct - External Air Intake to Airbox - Spider - RH $417.16 To Order
Photo Part No Description Price (each) Stock
13F0288CP Airbox Assy - Engine - RH Enquire To Order
Photo Part No Description Price (each) Stock
11F0238CP DUCT - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE-RH $182.12 To Order
Photo Part No Description Price (each) Stock
11F0471CP SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE $23.53 To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11F0217CP AIR FILTER - ENGINE $121.84 To Order
Photo Part No Description Price (each) Stock
11F0020CP SENSOR - ENGINE MASS AIR FLOW (MAF) $572.70 To Order
Photo Part No Description Price (each) Stock
11F0470CP ISOLATOR - MASS AIR FLOW TUBE $10.22 To Order
Photo Part No Description Price (each) Stock
11F0246CP ASSY-MAF TUBE $312.01 To Order
Photo Part No Description Price (each) Stock
11F0944CP ELBOW - AIRBOX TO MAF TUBE - RH $243.70 To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F0943CP ELBOW - AIRBOX TO MAF TUBE - LH $243.70 To Order
Photo Part No Description Price (each) Stock
13F0283CP Airbox Assy - Engine - LH Enquire To Order
Photo Part No Description Price (each) Stock
11F0641CP AIRBOX SERVICE PANEL - ENGINE $156.75 To Order
Photo Part No Description Price (each) Stock
11F2659LP Duct - External Air Intake to Airbox - Spider - LH $417.16 To Order
Photo Part No Description Price (each) Stock
11F1057CP DUCT - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE - LH $182.12 To Order
Photo Part No Description Price (each) Stock
00RB068 Hose Clamp - 80-100 - Norma Torro Enquire To Order
Photo Part No Description Price (each) Stock
11F0889CP Spacer - Tophat - Airbox $17.72 To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
11F2293RP Dirty Air Duct - ISG Spigot - 675LT $104.12 To Order
Photo Part No Description Price (each) Stock
00RA314 Blind Rivet-Screw - 6.3-6.81 Enquire To Order
Photo Part No Description Price (each) Stock
00RB031 CLAMP - HOSE - 90-110 Enquire To Order
View All

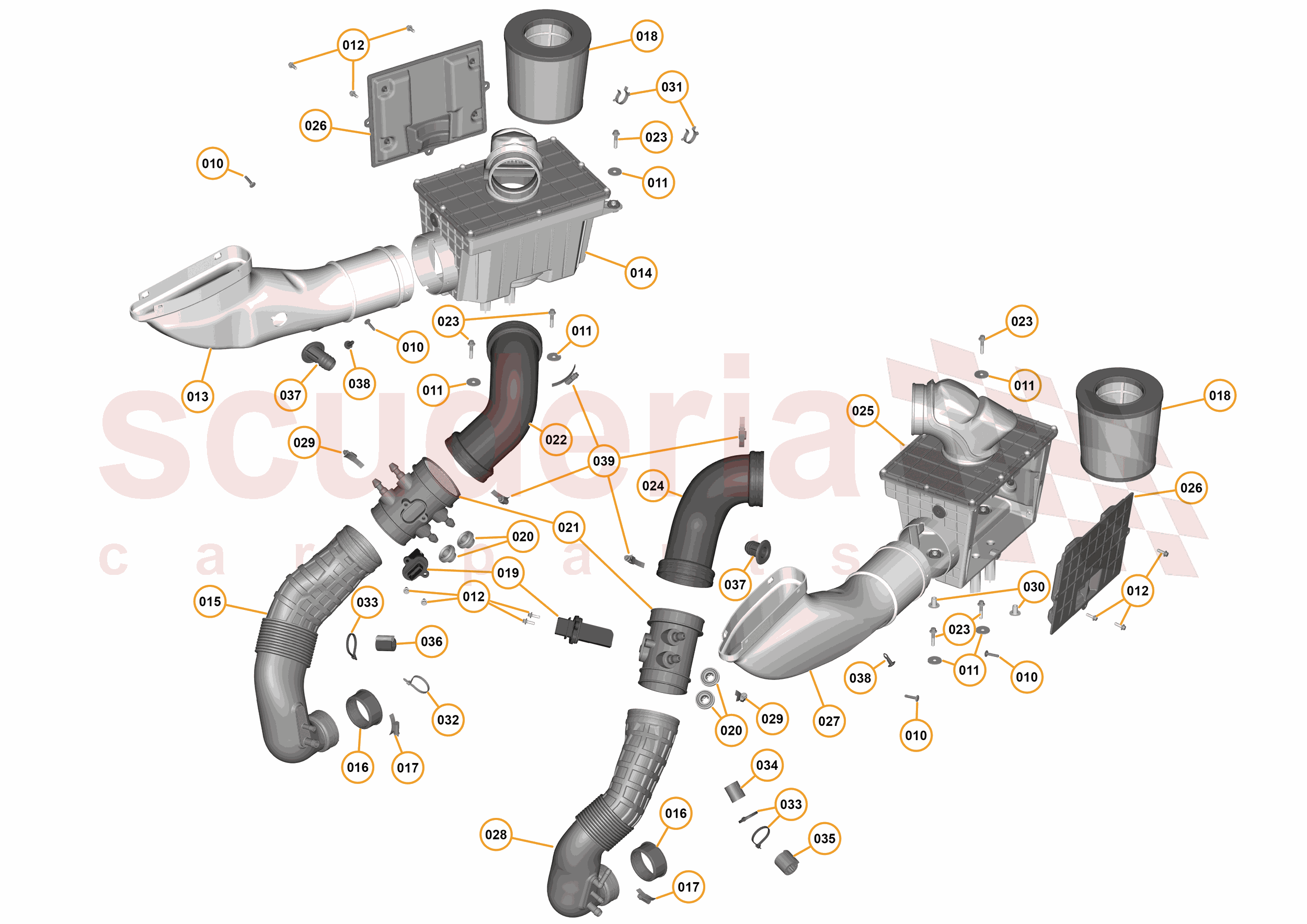

16 - F1 - POWER UNIT - 16.17 - 02 - AIR INTAKE SYSTEM of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RM003
RIVET - DIA 5 X 10 - TORX
Row ID: ID_E0F10263_00RM003_ContPgHS; Resolution: Available; 		- 4 Enquire
011 00RC043
WASHER - M6XOD25
Row ID: ID_E0F10203_00RC043_ContPgHS; Resolution: Available; 		- 6 Enquire
012 00RX001
Bolt - M5x16 - Hex
Row ID: ID_E0F10204_00RX001_ContPgHS; Resolution: Available; 		- 10 Enquire
013 11F2661LP
Duct - External Air Intake to Airbox - Spider - RH
Row ID: ID_E0F10297_11F2661LP_ContPgHS; Resolution: Available; 		$417.16 1
014 13F0288CP
Airbox Assy - Engine - RH
Row ID: ID_E0F10289_13F0288CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 11F0238CP
DUCT - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE-RH
Row ID: ID_E0F10207_11F0238CP_ContPgHS; Resolution: Available; 		$182.12 1
016 11F0471CP
SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE
Row ID: ID_E0F10208_11F0471CP_ContPgHS; Resolution: Available; 		$23.53 2
017 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO
Row ID: ID_E0F10209_00RB030_ContPgHS; Resolution: Available; 		- 2 Enquire
018 11F0217CP
AIR FILTER - ENGINE
Row ID: ID_E0F10210_11F0217CP_ContPgHS; Resolution: Available; 		$121.84 2
019 11F0020CP
SENSOR - ENGINE MASS AIR FLOW (MAF)
Row ID: ID_E0F10211_11F0020CP_ContPgHS; Resolution: Available; 		$572.70 2
020 11F0470CP
ISOLATOR - MASS AIR FLOW TUBE
Row ID: ID_E0F10212_11F0470CP_ContPgHS; Resolution: Available; 		$10.22 4
021 11F0246CP
ASSY-MAF TUBE
Row ID: ID_E0F10215_11F0246CP_ContPgHS; Resolution: Available; 		$312.01 2
022 11F0944CP
ELBOW - AIRBOX TO MAF TUBE - RH
Row ID: ID_E0F10216_11F0944CP_ContPgHS; Resolution: Available; 		$243.70 1
023 00RA073
SCREW - M6X30 - HEX
Row ID: ID_E0F10217_00RA073_ContPgHS; Resolution: Available; 		- 6 Enquire
024 11F0943CP
ELBOW - AIRBOX TO MAF TUBE - LH
Row ID: ID_E0F10230_11F0943CP_ContPgHS; Resolution: Available; 		$243.70 1
025 13F0283CP
Airbox Assy - Engine - LH
Row ID: ID_E0F10290_13F0283CP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 11F0641CP
AIRBOX SERVICE PANEL - ENGINE
Row ID: ID_E0F10232_11F0641CP_ContPgHS; Resolution: Available; 		$156.75 2
027 11F2659LP
Duct - External Air Intake to Airbox - Spider - LH
Row ID: ID_E0F10298_11F2659LP_ContPgHS; Resolution: Available; 		$417.16 1
028 11F1057CP
DUCT - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE - LH
Row ID: ID_E0F10234_11F1057CP_ContPgHS; Resolution: Available; 		$182.12 1
029 00RB068
Hose Clamp - 80-100 - Norma Torro
Row ID: ID_E0F10201_00RB068_ContPgHS; Resolution: Available; 		- 2 Enquire
030 11F0889CP
Spacer - Tophat - Airbox
Row ID: ID_E0F10202_11F0889CP_ContPgHS; Resolution: Available; 		$17.72 3
031 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25
Row ID: ID_E0F10241_00RG028_ContPgHS; Resolution: Available; 		- 2 Enquire
032 00RL023
CABLE TIE - HIGH TEMP
Row ID: ID_E0F10242_00RL023_ContPgHS; Resolution: Available; 		- 1 Enquire
033 00RL012
CABLE TIE - 300X4.6MM
Row ID: ID_E0F10244_00RL012_ContPgHS; Resolution: Available; 		- 3 Enquire
034 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID_E0F10245_00RA366_ContPgHS; Resolution: Available; 		- 1 Enquire
035 00RA367
PIPE PROTECTOR - 19MM ID
Row ID: ID_E0F10246_00RA367_ContPgHS; Resolution: Available; 		- 1 Enquire
036 00RA357
PIPE PROTECTOR
Row ID: ID_E0F10248_00RA357_ContPgHS; Resolution: Available; 		- 1 Enquire
037 11F2293RP
Dirty Air Duct - ISG Spigot - 675LT
Row ID: ID_E0F10292_11F2293RP_ContPgHS; Resolution: Available; 		$104.12 2
038 00RA314
Blind Rivet-Screw - 6.3-6.81
Row ID: ID_E0F10236_00RA314_ContPgHS; Resolution: Available; 		- 2 Enquire
039 00RB031
CLAMP - HOSE - 90-110
Row ID: ID_E0F10214_00RB031_ContPgHS; Resolution: Available; 		- 4 Enquire
