Name: 16 - F1 - POWER UNIT - 16.12 - 01 - POWER UNIT - VACUUM ASSEMBLY
Rating: 5.0 (1 reviews)

16 - F1 - POWER UNIT - 16.12 - 01 - POWER UNIT - VACUUM ASSEMBLY of McLaren McLaren McLaren 675LT Spider

View All

McLaren McLaren 675LT Spider - 16 - F1 - POWER UNIT - 16.12 - 01 - POWER UNIT - VACUUM ASSEMBLY

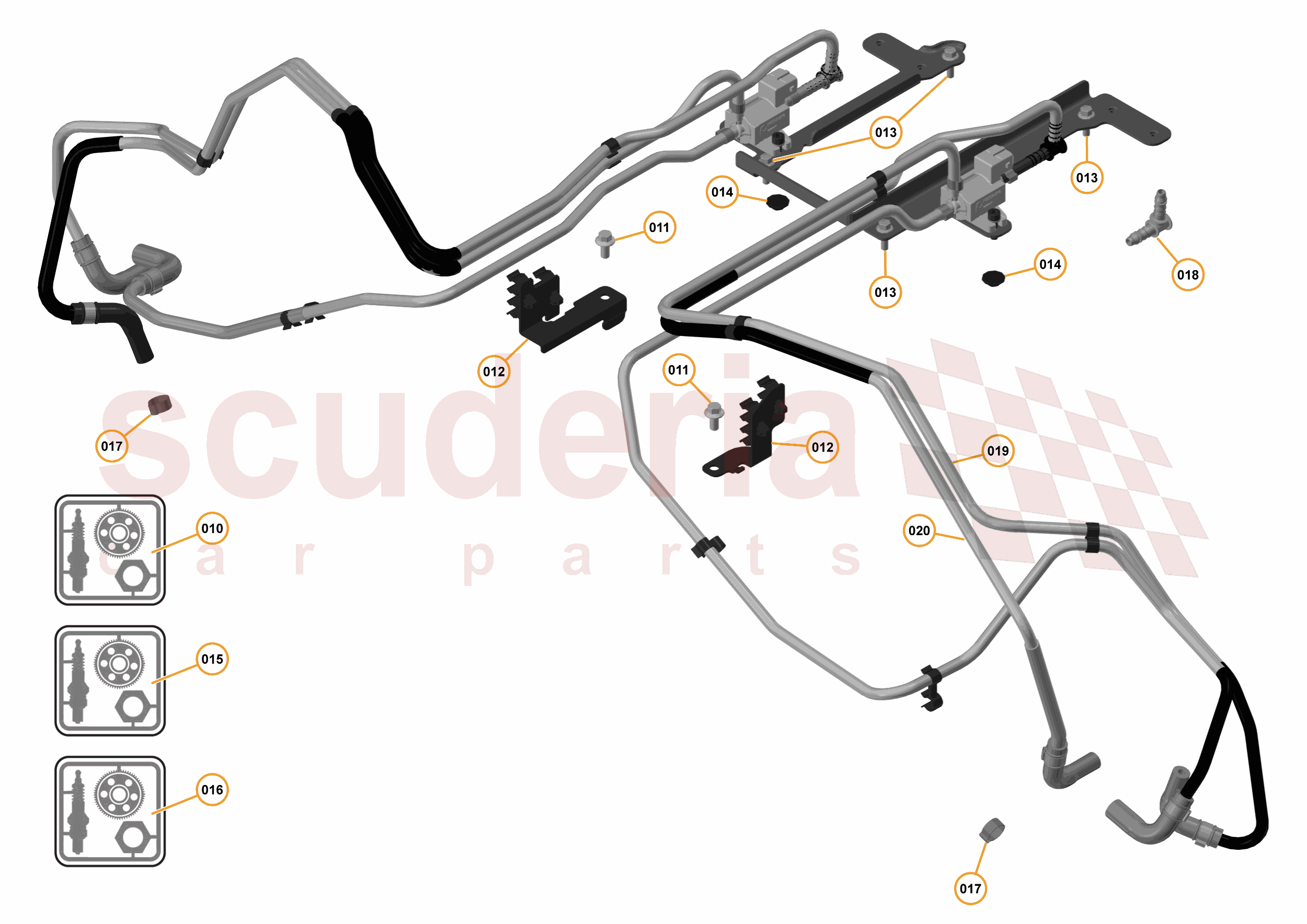

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F1083CP	Clip - Vacuum Assy - Engine - Raymond - 012440	$7.73	To Order
	11F1084CP	Clip - Vacuum Assy - Engine - Raymond - 060696	$15.75	To Order
	11F1085CP	Clip - Vacuum Assy - Engine - Raymond - 081077	$20.00	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11F0822CP	Bolt - M6x16 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0957CP	Bracket Set - Vacuum Lines - Engine	$455.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0958CP	Bolt - Bracket - Vacuum Lines - Engine	$23.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0983CP	Nut - M6 - Vacuum Bracket - Engine	$12.30	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0861CP	Vacuum Assy - Single Solenoid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0956CP	Connector Hose Set - Turbocharger to Vacuum Lines - Engine	$104.22	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB095	OETIKER CLIP - 16.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0589CP	90 Degree Connector - Vacuum Hose	$12.52	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0612CP	Vacuum Pipe - Solenoid - LH	$46.75	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0611CP	VACUUM PIPE - SOLENOID TO WASTEGATE - LH	$30.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11F1083CP	Clip - Vacuum Assy - Engine - Raymond - 012440	11F1083CP Clip - Vacuum Assy - Engine - Raymond - 012440 Row ID: ID_E0F10128_11F1083CP_ContPgHS; Resolution: Available;	$7.73	1
010	11F1084CP	Clip - Vacuum Assy - Engine - Raymond - 060696	11F1084CP Clip - Vacuum Assy - Engine - Raymond - 060696 Row ID: ID_E0F10131_11F1084CP_ContPgHS; Resolution: Available;	$15.75	1
010	11F1085CP	Clip - Vacuum Assy - Engine - Raymond - 081077	11F1085CP Clip - Vacuum Assy - Engine - Raymond - 081077 Row ID: ID_E0F10129_11F1085CP_ContPgHS; Resolution: Available;	$20.00	1
010	11F1086CP	Clip - Vacuum Assy - Engine - Raymond - 081289	11F1086CP Clip - Vacuum Assy - Engine - Raymond - 081289 Row ID: ID_E0F10132_11F1086CP_ContPgHS; Resolution: Available;	$20.50	1
010	11F1087CP	Clip - Vacuum Assy - Engine - Raymond - 017548	11F1087CP Clip - Vacuum Assy - Engine - Raymond - 017548 Row ID: ID_E0F10130_11F1087CP_ContPgHS; Resolution: Available;	$10.82	1
011	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine Row ID: ID_E0F10183_11F0822CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	11F0957CP	Bracket Set - Vacuum Lines - Engine	11F0957CP Bracket Set - Vacuum Lines - Engine Row ID: ID_E0F101H1_11F0957CP_ContPgHS; Resolution: Available;	$455.14	1
013	11F0958CP	Bolt - Bracket - Vacuum Lines - Engine	11F0958CP Bolt - Bracket - Vacuum Lines - Engine Row ID: ID_E0F101H2_11F0958CP_ContPgHS; Resolution: Available;	$23.03	1
014	11F0983CP	Nut - M6 - Vacuum Bracket - Engine	11F0983CP Nut - M6 - Vacuum Bracket - Engine Row ID: ID_E0F101H3_11F0983CP_ContPgHS; Resolution: Available;	$12.30	1
015	13F0861CP	Vacuum Assy - Single Solenoid	13F0861CP Vacuum Assy - Single Solenoid Row ID: ID_E0F101U8_13F0861CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	11F0956CP	Connector Hose Set - Turbocharger to Vacuum Lines - Engine	11F0956CP Connector Hose Set - Turbocharger to Vacuum Lines - Engine Row ID: ID_E0F101H5_11F0956CP_ContPgHS; Resolution: Available;	$104.22	1
017	00RB095	OETIKER CLIP - 16.2	00RB095 OETIKER CLIP - 16.2 Row ID: ID_E0F10121_00RB095_ContPgHS; Resolution: Available;	-	2	Enquire
018	13F0589CP	90 Degree Connector - Vacuum Hose	13F0589CP 90 Degree Connector - Vacuum Hose Row ID: ID_E0F1010Y_13F0589CP_ContPgHS; Resolution: Available;	$12.52	2
019	13F0612CP	Vacuum Pipe - Solenoid - LH	13F0612CP Vacuum Pipe - Solenoid - LH Row ID: ID_E0F1010Z_13F0612CP_ContPgHS; Resolution: Available;	$46.75	1
020	13F0611CP	VACUUM PIPE - SOLENOID TO WASTEGATE - LH	13F0611CP VACUUM PIPE - SOLENOID TO WASTEGATE - LH Row ID: ID_E0F1011A_13F0611CP_ContPgHS; Resolution: Available;	$30.73	1

16 - F1 - Power Unit - 16.12 - 01 - Power Unit - Vacuum Assembly

McLaren McLaren 675LT Spider

McLaren McLaren 675LT Spider - 16 - F1 - POWER UNIT - 16.12 - 01 - POWER UNIT - VACUUM ASSEMBLY
