15 - E1 - Heat Insulation - 15.1 - 01 - Heat Insulation

McLaren McLaren 675LT Spider

Find Your Part

McLaren McLaren 675LT Spider - 15 - E1 - HEAT INSULATION - 15.1 - 01 - HEAT INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
11E0169CP Heatshield - Oil Tank $596.39 To Order
Photo Part No Description Price (each) Stock
11E0168CP Heatshield - Bulkhead $921.55 To Order
Photo Part No Description Price (each) Stock
11E0152CP HEATSHIELD - LINK PIPE - LOWER - INNER - RH $435.92 To Order
Photo Part No Description Price (each) Stock
11E0150CP HEATSHIELD - LINK PIPE - LOWER - OUTER - RH $435.92 To Order
Photo Part No Description Price (each) Stock
11E0092CP HEATSHIELD - LAMBDA SENSOR $46.34 To Order
Photo Part No Description Price (each) Stock
00RC063 WASHER - M5X20X1 Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11E0148CP HEATSHIELD - LINK PIPE - UPPER RH INNER - LHOUTER $435.92 To Order
Photo Part No Description Price (each) Stock
11E0147CP HEATSHIELD - LINK PIPE - UPPER LH INNER - RHOUTER $435.92 To Order
Photo Part No Description Price (each) Stock
00RA074 NUT-HEX HEAD FLANGE-M5 Enquire To Order
Photo Part No Description Price (each) Stock
11E0195RP Heatshield - Muffler - Upper - 675LT $547.87 To Order
Photo Part No Description Price (each) Stock
00RC066 WASHER - M12X28X2.5 Enquire To Order
Photo Part No Description Price (each) Stock
00RC060 Washer - M5X25X1.3 Enquire To Order
Photo Part No Description Price (each) Stock
11E0194RP Heatshield - Muffler - Lower - 675LT $547.87 To Order
Photo Part No Description Price (each) Stock
11E0149CP HEATSHIELD - LINK PIPE - LOWER - OUTER-LH $435.92 To Order
Photo Part No Description Price (each) Stock
11E0151CP HEATSHIELD - LINK PIPE - LOWER - INNER-LH $435.92 To Order
Photo Part No Description Price (each) Stock
13E0111CP HEATSHIELD - AC COMPRESSOR $373.22 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11E0144CP Gasket - Bulkhead Shield $113.48 To Order
Photo Part No Description Price (each) Stock
11HA001CP Chmney Nut - M5 - Exhaust Heatshield $18.38 To Order
View All

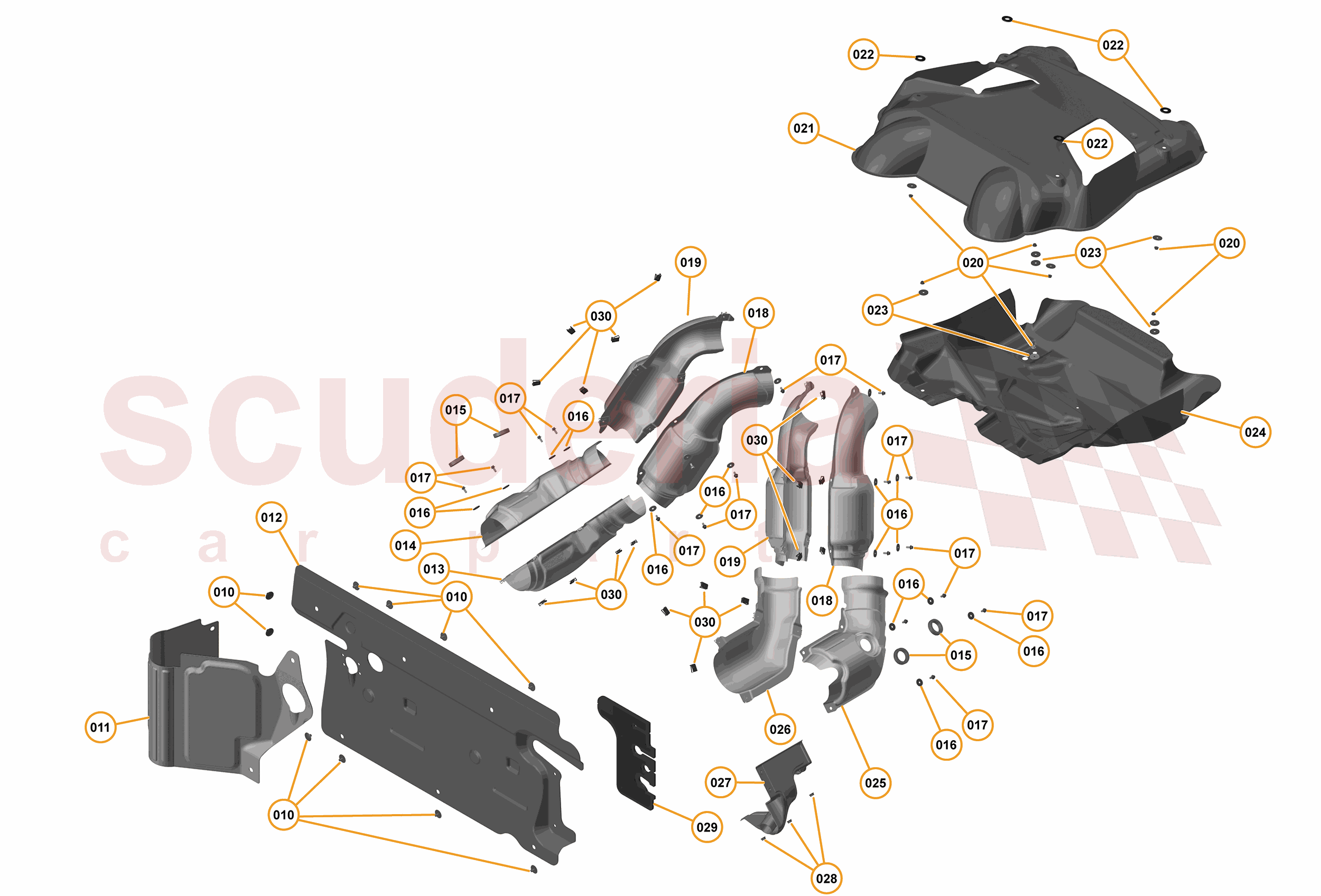

15 - E1 - HEAT INSULATION - 15.1 - 01 - HEAT INSULATION of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RG003
FIRTREE 7.2X15X24
Row ID: ID_E0E10101_00RG003_ContPgHS; Resolution: Available; 		- 10 Enquire
011 11E0169CP
Heatshield - Oil Tank
Row ID: ID_E0E10102_11E0169CP_ContPgHS; Resolution: Available; 		$596.39 1
012 11E0168CP
Heatshield - Bulkhead
Row ID: ID_E0E10103_11E0168CP_ContPgHS; Resolution: Available; 		$921.55 1
013 11E0152CP
HEATSHIELD - LINK PIPE - LOWER - INNER - RH
Row ID: ID_E0E10104_11E0152CP_ContPgHS; Resolution: Available; 		$435.92 1
014 11E0150CP
HEATSHIELD - LINK PIPE - LOWER - OUTER - RH
Row ID: ID_E0E10105_11E0150CP_ContPgHS; Resolution: Available; 		$435.92 1
015 11E0092CP
HEATSHIELD - LAMBDA SENSOR
Row ID: ID_E0E10106_11E0092CP_ContPgHS; Resolution: Available; 		$46.34 4
016 00RC063
WASHER - M5X20X1
Row ID: ID_E0E10107_00RC063_ContPgHS; Resolution: Available; 		- 18 Enquire
017 00RA064
BOLT - M5X12 - HEX
Row ID: ID_E0E10108_00RA064_ContPgHS; Resolution: Available; 		- 18 Enquire
018 11E0148CP
HEATSHIELD - LINK PIPE - UPPER RH INNER - LHOUTER
Row ID: ID_E0E10109_11E0148CP_ContPgHS; Resolution: Available; 		$435.92 2
019 11E0147CP
HEATSHIELD - LINK PIPE - UPPER LH INNER - RHOUTER
Row ID: ID_E0E10110_11E0147CP_ContPgHS; Resolution: Available; 		$435.92 2
020 00RA074
NUT-HEX HEAD FLANGE-M5
Row ID: ID_E0E10111_00RA074_ContPgHS; Resolution: Available; 		- 8 Enquire
021 11E0195RP
Heatshield - Muffler - Upper - 675LT
Row ID: ID_E0E10127_11E0195RP_ContPgHS; Resolution: Available; 		$547.87 1
022 00RC066
WASHER - M12X28X2.5
Row ID: ID_E0E10128_00RC066_ContPgHS; Resolution: Available; 		- 4 Enquire
023 00RC060
Washer - M5X25X1.3
Row ID: ID_E0E10113_00RC060_ContPgHS; Resolution: Available; 		- 10 Enquire
024 11E0194RP
Heatshield - Muffler - Lower - 675LT
Row ID: ID_E0E10129_11E0194RP_ContPgHS; Resolution: Available; 		$547.87 1
025 11E0149CP
HEATSHIELD - LINK PIPE - LOWER - OUTER-LH
Row ID: ID_E0E10121_11E0149CP_ContPgHS; Resolution: Available; 		$435.92 1
026 11E0151CP
HEATSHIELD - LINK PIPE - LOWER - INNER-LH
Row ID: ID_E0E10122_11E0151CP_ContPgHS; Resolution: Available; 		$435.92 1
027 13E0111CP
HEATSHIELD - AC COMPRESSOR
Row ID: ID_E0E10130_13E0111CP_ContPgHS; Resolution: Available; 		$373.22 1
028 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_E0E10124_00RA011_ContPgHS; Resolution: Available; 		- 3 Enquire
029 11E0144CP
Gasket - Bulkhead Shield
Row ID: ID_E0E10125_11E0144CP_ContPgHS; Resolution: Available; 		$113.48 1
030 11HA001CP
Chmney Nut - M5 - Exhaust Heatshield
Row ID: ID_E0H10163_11HA001CP_ContPgHS; Resolution: Available; 		$18.38 18
