14 - L1 - Cooling System - 14.1 - 01 - Low Temperature Circuit & Pipes

McLaren McLaren 675LT Spider

Find Your Part

McLaren McLaren 675LT Spider - 14 - L1 - COOLING SYSTEM - 14.1 - 01 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB113 Hose Clamp - 22.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA458 BOLT - M6X10 - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
11L0354CP Hose - Low Temperature Radiator - Return - Outer - MY2015 $1,115.07 To Order
Photo Part No Description Price (each) Stock
11L0285CP Pipe - LTR - Return - LH $162.72 To Order
Photo Part No Description Price (each) Stock
11L0353CP Hose - Low Temperature Radiator -Feed - MY2015 $609.09 To Order
Photo Part No Description Price (each) Stock
11L0264CP Hose - LTR - Feed - Inner - LH $121.84 To Order
Photo Part No Description Price (each) Stock
11L0283CP Pipe - LTR - Feed - LH $342.61 To Order
Photo Part No Description Price (each) Stock
11L0350CP Hose - Low Temperature Radiator - Return - MY2015 $1,115.07 To Order
Photo Part No Description Price (each) Stock
11L0286CP Pipe - LTR - Return - RH $342.61 To Order
Photo Part No Description Price (each) Stock
11L0267CP Hose - LTR - Return - Inner - LH $92.71 To Order
Photo Part No Description Price (each) Stock
11L0269CP Hose - LTR - Return - Inner - RH $100.83 To Order
Photo Part No Description Price (each) Stock
11L0351CP Hose - Low Temperature Radiator - Front - MY2015 $946.47 To Order
Photo Part No Description Price (each) Stock
11L0284CP Pipe - LTR - Feed - RH $155.26 To Order
Photo Part No Description Price (each) Stock
11L0203CP HOSE - LTR CIRCUIT - FEED - CENTRE $446.36 To Order
Photo Part No Description Price (each) Stock
11L0309CP Clip - 2 Way - LH $10.33 To Order
Photo Part No Description Price (each) Stock
11L0204CP HOSE - LTR CIRCUIT - RETURN - CENTRE $398.60 To Order
Photo Part No Description Price (each) Stock
11L0306CP Clip - 7 Way - RH $16.11 To Order
Photo Part No Description Price (each) Stock
11L0345CP CLIP - HVAC TUNNEL $44.36 To Order
Photo Part No Description Price (each) Stock
11L0525RP Hose - Water Charge Air Cooler Return - LH - 675LT $436.66 To Order
Photo Part No Description Price (each) Stock
11L0308CP Clip - Chassis Tunnel $18.40 To Order
Photo Part No Description Price (each) Stock
11L0303CP Pipe Clip - Rear - LH $13.24 To Order
Photo Part No Description Price (each) Stock
11L0305CP Pipe Clip - 5 Way $13.94 To Order
Photo Part No Description Price (each) Stock
11L0524RP Hose - Water Charge Air Cooler Return - RH - 675LT $436.66 To Order
Photo Part No Description Price (each) Stock
11L0346CP Pipe Clip - 8 Way $38.03 To Order
Photo Part No Description Price (each) Stock
11L0347CP Pipe Clip - Rear - Right $39.80 To Order
Photo Part No Description Price (each) Stock
13L0190CP Hose - Water Charge Air Cooler - Outlet $861.38 To Order
Photo Part No Description Price (each) Stock
11L0298CP Pipe - inc. Bracket - Feed - Water Charge Air Cooler $386.64 To Order
Photo Part No Description Price (each) Stock
11L0294CP Hose - Engine Front - Low Temperature Radiator - LH $104.73 To Order
Photo Part No Description Price (each) Stock
11L0297CP Hose - Header - Y-Piece - Low Temperature Radiator $100.83 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
View All

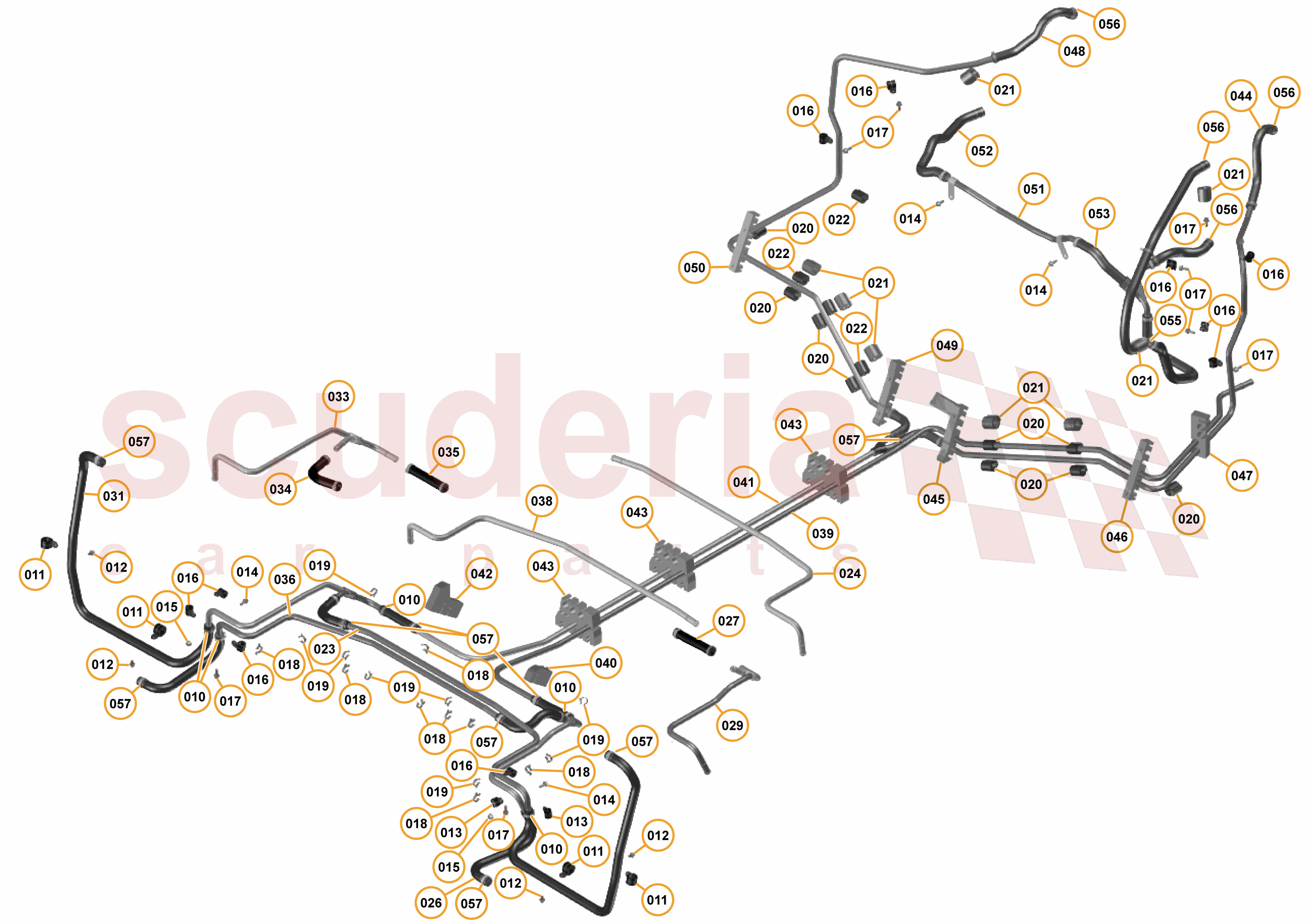

14 - L1 - COOLING SYSTEM - 14.1 - 01 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB113
Hose Clamp - 22.6-706R
Row ID: ID_B0L101G7_00RB113_ContPgHS; Resolution: Available; 		- 14 Enquire
011 00RB060
P CLIP - DIA 20
Row ID: ID_B0L10109_00RB060_ContPgHS; Resolution: Available; 		- 4 Enquire
012 00RA458
BOLT - M6X10 - FLANGED
Row ID: ID_B0L101F5_00RA458_ContPgHS; Resolution: Available; 		- 4 Enquire
013 00RB027
P-CLIP - DIAMETER 13 - M6
Row ID: ID_B0L101C1_00RB027_ContPgHS; Resolution: Available; 		- 2 Enquire
014 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_B0L10103_00RA313_ContPgHS; Resolution: Available; 		- 4 Enquire
015 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_B0L10101_00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
016 00RB003
P Clip - DIA 14
Row ID: ID_B0L10148_00RB003_ContPgHS; Resolution: Available; 		- 9 Enquire
017 00RA061
Screw - M6x16 - Flange Hex
Row ID: ID_B0L10149_00RA061_ContPgHS; Resolution: Available; 		- 10 Enquire
018 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID_B0L10142_00RB032_ContPgHS; Resolution: Available; 		- 9 Enquire
019 00RB044
SWIVEL PIPE CLIP - 16MM
Row ID: ID_B0L10143_00RB044_ContPgHS; Resolution: Available; 		- 7 Enquire
020 00RA357
PIPE PROTECTOR
Row ID: ID_B0L10104_00RA357_ContPgHS; Resolution: Available; 		- 9 Enquire
021 00RA367
PIPE PROTECTOR - 19MM ID
Row ID: ID_B0L10106_00RA367_ContPgHS; Resolution: Available; 		- 9 Enquire
022 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID_B0L10105_00RA366_ContPgHS; Resolution: Available; 		- 4 Enquire
023 11L0354CP
Hose - Low Temperature Radiator - Return - Outer - MY2015
Row ID: ID_B0L101C8_11L0354CP_ContPgHS; Resolution: Available; 		$1,115.07 1
024 11L0285CP
Pipe - LTR - Return - LH
Row ID: ID_B0L10153_11L0285CP_ContPgHS; Resolution: Available; 		$162.72 1
025 11L0266CP
Hose - LTR - Return - Outer - LH
Row ID: ID_B0L10157_11L0266CP_ContPgHS; Resolution: Available; 		$117.29 1
026 11L0353CP
Hose - Low Temperature Radiator -Feed - MY2015
Row ID: ID_B0L101C7_11L0353CP_ContPgHS; Resolution: Available; 		$609.09 1
027 11L0264CP
Hose - LTR - Feed - Inner - LH
Row ID: ID_B0L10154_11L0264CP_ContPgHS; Resolution: Available; 		$121.84 1
028 11L0276CP
Hose - LTR - Feed - Inner - RH
Row ID: ID_B0L10155_11L0276CP_ContPgHS; Resolution: Available; 		$120.83 1
029 11L0283CP
Pipe - LTR - Feed - LH
Row ID: ID_B0L10156_11L0283CP_ContPgHS; Resolution: Available; 		$342.61 1
030 11L0265CP
Hose - LTR - Feed - Outer - LH
Row ID: ID_B0L10158_11L0265CP_ContPgHS; Resolution: Available; 		$105.74 1
031 11L0350CP
Hose - Low Temperature Radiator - Return - MY2015
Row ID: ID_B0L101C5_11L0350CP_ContPgHS; Resolution: Available; 		$1,115.07 1
032 11L0268CP
Hose - LTR - Return - Outer - RH
Row ID: ID_B0L10146_11L0268CP_ContPgHS; Resolution: Available; 		$106.80 1
033 11L0286CP
Pipe - LTR - Return - RH
Row ID: ID_B0L10150_11L0286CP_ContPgHS; Resolution: Available; 		$342.61 1
034 11L0267CP
Hose - LTR - Return - Inner - LH
Row ID: ID_B0L10151_11L0267CP_ContPgHS; Resolution: Available; 		$92.71 1
035 11L0269CP
Hose - LTR - Return - Inner - RH
Row ID: ID_B0L10152_11L0269CP_ContPgHS; Resolution: Available; 		$100.83 1
036 11L0351CP
Hose - Low Temperature Radiator - Front - MY2015
Row ID: ID_B0L101C6_11L0351CP_ContPgHS; Resolution: Available; 		$946.47 1
037 11L0277CP
Hose - LTR - Feed - Outer - RH
Row ID: ID_B0L10144_11L0277CP_ContPgHS; Resolution: Available; 		$105.74 1
038 11L0284CP
Pipe - LTR - Feed - RH
Row ID: ID_B0L10145_11L0284CP_ContPgHS; Resolution: Available; 		$155.26 1
039 11L0203CP
HOSE - LTR CIRCUIT - FEED - CENTRE
Row ID: ID_B0L10183_11L0203CP_ContPgHS; Resolution: Available; 		$446.36 1
040 11L0309CP
Clip - 2 Way - LH
Row ID: ID_B0L10184_11L0309CP_ContPgHS; Resolution: Available; 		$10.33 1
041 11L0204CP
HOSE - LTR CIRCUIT - RETURN - CENTRE
Row ID: ID_B0L101A3_11L0204CP_ContPgHS; Resolution: Available; 		$398.60 1
042 11L0306CP
Clip - 7 Way - RH
Row ID: ID_B0L10182_11L0306CP_ContPgHS; Resolution: Available; 		$16.11 1
043 11L0345CP
CLIP - HVAC TUNNEL
Row ID: ID_B0L101B6_11L0345CP_ContPgHS; Resolution: Available; 		$44.36 3
044 11L0525RP
Hose - Water Charge Air Cooler Return - LH - 675LT
Row ID: ID_B0L101G8_11L0525RP_ContPgHS; Resolution: Available; 		$436.66 -
045 11L0308CP
Clip - Chassis Tunnel
Row ID: ID_B0L10186_11L0308CP_ContPgHS; Resolution: Available; 		$18.40 1
046 11L0303CP
Pipe Clip - Rear - LH
Row ID: ID_B0L101A2_11L0303CP_ContPgHS; Resolution: Available; 		$13.24 1
047 11L0305CP
Pipe Clip - 5 Way
Row ID: ID_B0L101A1_11L0305CP_ContPgHS; Resolution: Available; 		$13.94 1
048 11L0524RP
Hose - Water Charge Air Cooler Return - RH - 675LT
Row ID: ID_B0L101G9_11L0524RP_ContPgHS; Resolution: Available; 		$436.66 -
049 11L0346CP
Pipe Clip - 8 Way
Row ID: ID_B0L101B7_11L0346CP_ContPgHS; Resolution: Available; 		$38.03 1
050 11L0347CP
Pipe Clip - Rear - Right
Row ID: ID_B0L101B8_11L0347CP_ContPgHS; Resolution: Available; 		$39.80 1
051 13L0190CP
Hose - Water Charge Air Cooler - Outlet
Row ID: ID_B0L101H0_13L0190CP_ContPgHS; Resolution: Available; 		$861.38 1
052 11L0298CP
Pipe - inc. Bracket - Feed - Water Charge Air Cooler
Row ID: ID_B0L10190_11L0298CP_ContPgHS; Resolution: Available; 		$386.64 1
053 11L0294CP
Hose - Engine Front - Low Temperature Radiator - LH
Row ID: ID_B0L10135_11L0294CP_ContPgHS; Resolution: Available; 		$104.73 1
054 11L0275CP
Hose - Header to LTR Pump - Feed
Row ID: ID_B0L10126_11L0275CP_ContPgHS; Resolution: Available; 		$87.10 1
055 11L0297CP
Hose - Header - Y-Piece - Low Temperature Radiator
Row ID: ID_B0L10138_11L0297CP_ContPgHS; Resolution: Available; 		$100.83 1
056 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID_B0L101K2_00RB202_ContPgHS; Resolution: Available; 		- 4 Enquire
057 00RB201
CLAMP - SPRING BAND - 21X12
Row ID: ID_B0L101K3_00RB201_ContPgHS; Resolution: Available; 		- 10 Enquire
