12 - D1 - Steering System - 12.1 - 01 - Steering System

McLaren McLaren 675LT Spider

Find Your Part

McLaren McLaren 675LT Spider - 12 - D1 - STEERING SYSTEM - 12.1 - 01 - STEERING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11D0091CP Gaiter Kit - Steering Rack $24.11 To Order
Photo Part No Description Price (each) Stock
11D0116CP Nut & Bolt - Steering Column - Intermediate $8.71 To Order
Photo Part No Description Price (each) Stock
11D0232CP Hose - Pipe - Filter to Steering Rack - LHD - 675LT Enquire To Order
11D0233CP Hose - Pipe - Filter to Steering Rack - RHD - 675LT $352.31 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA570 BOLT - M10X1.5X75 Enquire To Order
Photo Part No Description Price (each) Stock
11D0111CP Hose - PAS Reservoir - Filter - EHPAS - LHD Enquire To Order
11D0113CP Hose - PAS Reservoir - Filter - EHPAS - RHD $453.91 To Order
Photo Part No Description Price (each) Stock
11D0249RP Heatshield - Trackrod - 675LT $56.74 To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11D0127CP Angle Bracket - Power Steering Pump $61.82 To Order
Photo Part No Description Price (each) Stock
11D0124CP MOUNT - AV - RUBBER $28.36 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11D0095CP Filter - PAS - Steering $510.55 To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
11D0100CP O-ring - Hose - EHPAS Pump $5.31 To Order
Photo Part No Description Price (each) Stock
11D0102CP Back-up Ring - Hose - EHPAS Pump $4.30 To Order
Photo Part No Description Price (each) Stock
11D0081RP Ball Joint - Steering Rack - Outer - 675LT $125.92 To Order
View All

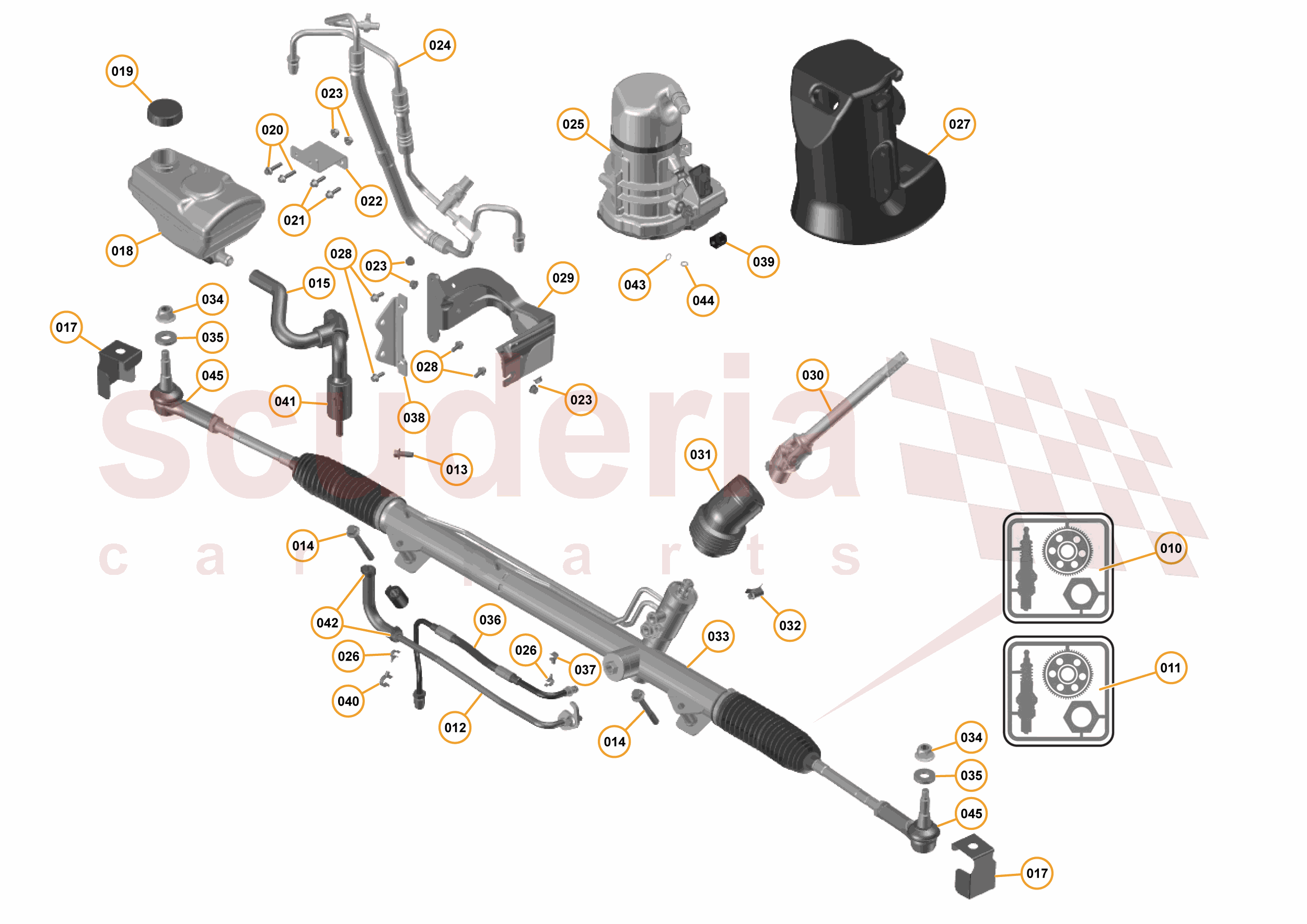

12 - D1 - STEERING SYSTEM - 12.1 - 01 - STEERING SYSTEM of McLaren McLaren McLaren 675LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11D0091CP
Gaiter Kit - Steering Rack
Row ID: ID_B0D10106_11D0091CP_ContPgHS; Resolution: Available; 		$24.11 1
011 11D0116CP
Nut & Bolt - Steering Column - Intermediate
Row ID: ID_B0D10107_11D0116CP_ContPgHS; Resolution: Available; 		$8.71 1
012 11D0232CP
Hose - Pipe - Filter to Steering Rack - LHD - 675LT
Row ID: ID_B0D10149_11D0232CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 11D0233CP
Hose - Pipe - Filter to Steering Rack - RHD - 675LT
Row ID: ID_B0D10150_11D0233CP_ContPgHS; Resolution: Available; 		$352.31 1
013 00RA002
BOLT - M8X20 - HEX
Row ID: ID_B0D10151_00RA002_ContPgHS; Resolution: Available; 		- 2 Enquire
014 00RA570
BOLT - M10X1.5X75
Row ID: ID_B0D10152_00RA570_ContPgHS; Resolution: Available; 		- 2 Enquire
015 11D0111CP
Hose - PAS Reservoir - Filter - EHPAS - LHD
Row ID: ID_B0D10113_11D0111CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 11D0113CP
Hose - PAS Reservoir - Filter - EHPAS - RHD
Row ID: ID_B0D10114_11D0113CP_ContPgHS; Resolution: Available; 		$453.91 1
016 00RB143
CLAMP - 25.6-706R
Row ID: ID_B0D10153_00RB143_ContPgHS; Resolution: Available; 		- 2 Enquire
017 11D0249RP
Heatshield - Trackrod - 675LT
Row ID: ID_B0D10154_11D0249RP_ContPgHS; Resolution: Available; 		$56.74 4
036 11D0231CP
Hose - APMU to Steering Rack - RHD - Tedrive Rack
Row ID: ID_B0D10163_11D0231CP_ContPgHS; Resolution: Available; 		$261.81 1
037 00RB046
CLIP - 8-9MM - FEMALE
Row ID: ID_B0D10139_00RB046_ContPgHS; Resolution: Available; 		- 1 Enquire
038 11D0127CP
Angle Bracket - Power Steering Pump
Row ID: ID_B0D10140_11D0127CP_ContPgHS; Resolution: Available; 		$61.82 1
039 11D0124CP
MOUNT - AV - RUBBER
Row ID: ID_B0D10141_11D0124CP_ContPgHS; Resolution: Available; 		$28.36 4
040 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID_B0D10101_00RB032_ContPgHS; Resolution: Available; 		- 1 Enquire
041 11D0095CP
Filter - PAS - Steering
Row ID: ID_B0D10102_11D0095CP_ContPgHS; Resolution: Available; 		$510.55 1
042 00RB110
OETIKER CLIP - 19.2
Row ID: ID_B0D10146_00RB110_ContPgHS; Resolution: Available; 		- 2 Enquire
043 11D0100CP
O-ring - Hose - EHPAS Pump
Row ID: ID_B0D10103_11D0100CP_ContPgHS; Resolution: Available; 		$5.31 1
044 11D0102CP
Back-up Ring - Hose - EHPAS Pump
Row ID: ID_B0D10104_11D0102CP_ContPgHS; Resolution: Available; 		$4.30 1
045 11D0081RP
Ball Joint - Steering Rack - Outer - 675LT
Row ID: ID_B0D10164_11D0081RP_ContPgHS; Resolution: Available; 		$125.92 1
