3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL of McLaren McLaren McLaren 675LT Spider

View All

McLaren McLaren 675LT Spider - 3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL

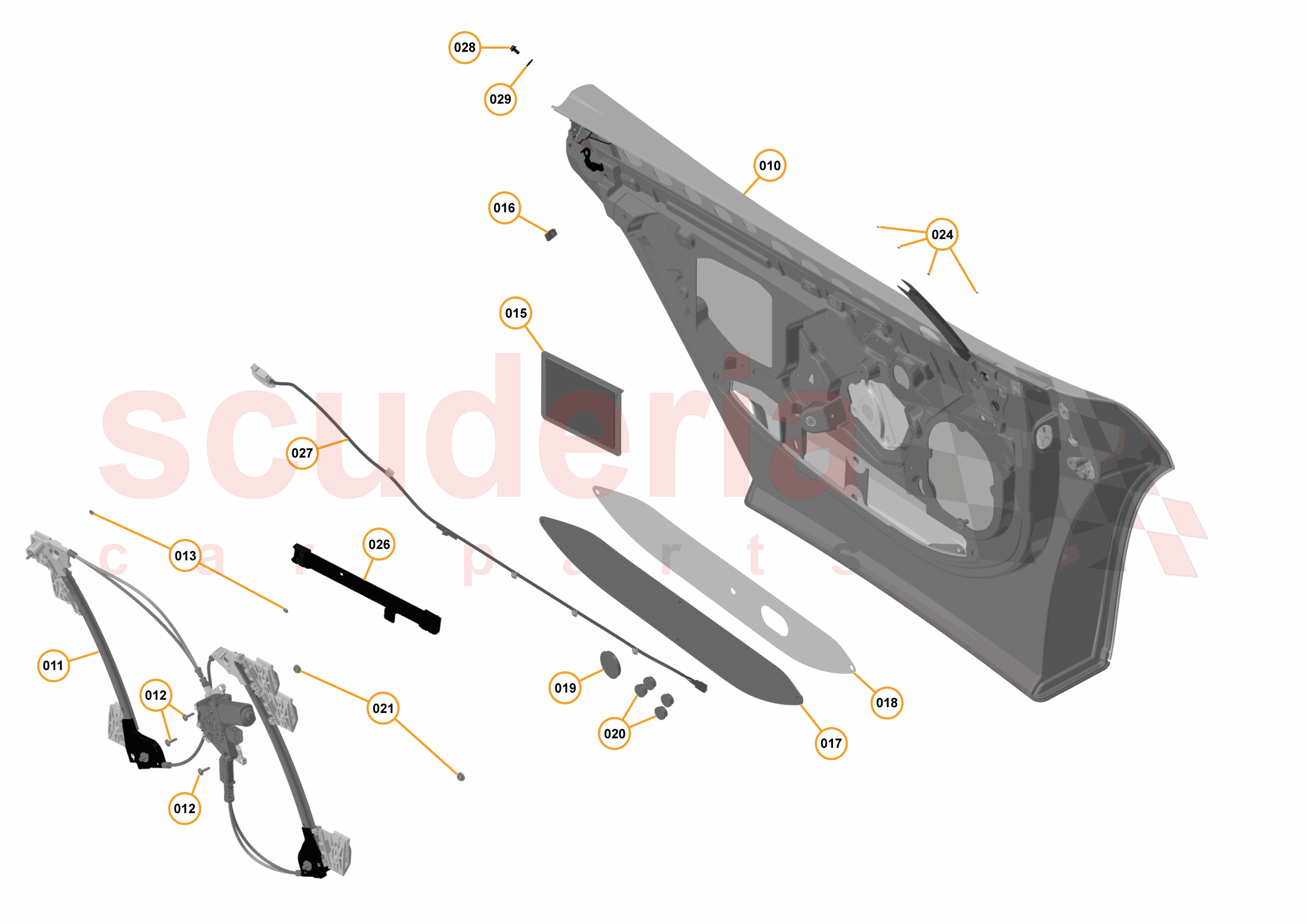

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A7397CP	Door Assy - LH - Push Button Entry	$14,550.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1565CP	Regulator & Motor Assy - Door Glass - LH	$1,025.59	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA342	TORX SCREW - PT5X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA328	Half Nut - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1947CP	Vent Plate Assy - Door	$132.03	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA329	CLIP - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3461CP	Door Access Panel - Inner - LH	$247.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4849CP	Adhesive Tape - Door Access Panel	$71.38	To Order

Photo	Part No	Description	Price (each)	Stock
	00RE002	Dome Plug - Heyco - 430 2784	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RE005	Dome Plug - Heyco - 430 2704	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA262	HALF NUT - M8 - DIN 439	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4757CP	Bond Spacer - Cheater Glass	$22.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5337CP	Bracket - Reinforcement Waist Belt - Upper - Front - LH	$144.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2414CP	Switch - Door Release - Push Button	$429.85	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	Screw - M6x12-8.8 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC064	WASHER - M6X18X1.6 - BLACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A7397CP	Door Assy - LH - Push Button Entry	11A7397CP Door Assy - LH - Push Button Entry Row ID: ID_A0A303A0_11A7397CP_ContPgHS; Resolution: Available;	$14,550.02	1
011	11A1565CP	Regulator & Motor Assy - Door Glass - LH	11A1565CP Regulator & Motor Assy - Door Glass - LH Row ID: ID_A0A30367_11A1565CP_ContPgHS; Resolution: Available;	$1,025.59	1
012	00RA342	TORX SCREW - PT5X20	00RA342 TORX SCREW - PT5X20 Row ID: ID_A0A30368_00RA342_ContPgHS; Resolution: Available;	-	3	Enquire
013	00RA328	Half Nut - M6	00RA328 Half Nut - M6 Row ID: ID_A0A30369_00RA328_ContPgHS; Resolution: Available;	-	2	Enquire
014	11A3534CP	Seal - Vent Plate - Air Evacuation - Door	11A3534CP Seal - Vent Plate - Air Evacuation - Door Row ID: ID_A0A30372_11A3534CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	11A1947CP	Vent Plate Assy - Door	11A1947CP Vent Plate Assy - Door Row ID: ID_A0A30373_11A1947CP_ContPgHS; Resolution: Available;	$132.03	1
016	00RA329	CLIP - M6	00RA329 CLIP - M6 Row ID: ID_A0A30374_00RA329_ContPgHS; Resolution: Available;	-	1	Enquire
017	11A3461CP	Door Access Panel - Inner - LH	11A3461CP Door Access Panel - Inner - LH Row ID: ID_A0A30376_11A3461CP_ContPgHS; Resolution: Available;	$247.44	1
018	11A4849CP	Adhesive Tape - Door Access Panel	11A4849CP Adhesive Tape - Door Access Panel Row ID: ID_A0A30377_11A4849CP_ContPgHS; Resolution: Available;	$71.38	1
019	00RE002	Dome Plug - Heyco - 430 2784	00RE002 Dome Plug - Heyco - 430 2784 Row ID: ID_A0A30378_00RE002_ContPgHS; Resolution: Available;	-	1	Enquire
020	00RE005	Dome Plug - Heyco - 430 2704	00RE005 Dome Plug - Heyco - 430 2704 Row ID: ID_A0A30379_00RE005_ContPgHS; Resolution: Available;	-	4	Enquire
021	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 Row ID: ID_A0A30387_00RA262_ContPgHS; Resolution: Available;	-	2	Enquire
023	11A4509CP	NVH Pad - Door - Front - LH	11A4509CP NVH Pad - Door - Front - LH Row ID: ID_A0A30310_11A4509CP_ContPgHS; Resolution: Available;	$57.16	1
024	11A4757CP	Bond Spacer - Cheater Glass	11A4757CP Bond Spacer - Cheater Glass Row ID: ID_A0A30312_11A4757CP_ContPgHS; Resolution: Available;	$22.29	4
026	11A5337CP	Bracket - Reinforcement Waist Belt - Upper - Front - LH	11A5337CP Bracket - Reinforcement Waist Belt - Upper - Front - LH Row ID: ID_A0A30317_11A5337CP_ContPgHS; Resolution: Available;	$144.97	1
027	11M2414CP	Switch - Door Release - Push Button	11M2414CP Switch - Door Release - Push Button Row ID: ID_A0A303A1_11M2414CP_ContPgHS; Resolution: Available;	$429.85	1
028	00RA065	Screw - M6x12-8.8 - Flange Hex	00RA065 Screw - M6x12-8.8 - Flange Hex Row ID: ID_A0A303D5_00RA065_ContPgHS; Resolution: Available;	-	1	Enquire
029	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID_A0A30306_00RC064_ContPgHS; Resolution: Available;	-	2	Enquire
