17 - F2 - Oil System - Engine - 17.1 - 01 - Oil System - Engine

McLaren McLaren 675LT Coupe

Find Your Part

McLaren McLaren 675LT Coupe - 17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1214CP Grub Screw - Oil Channel - Engine $9.51 To Order
11F0839CP Bolt - M8x40 - Engine - Shouldered $15.10 To Order
Photo Part No Description Price (each) Stock
11F0430CP SPACER - OIL TANK $22.92 To Order
Photo Part No Description Price (each) Stock
11F0289CP Mount - Anti-Vibration $19.22 To Order
Photo Part No Description Price (each) Stock
11F0146CP BRACKET - OIL TANK MOUNTING $75.92 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $30.44 To Order
Photo Part No Description Price (each) Stock
11F1178CP ASSY OIL TANK - ENGINE $2,368.03 To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $334.68 To Order
Photo Part No Description Price (each) Stock
11F0429CP BRACKET - SWIRL POT MOUNTING $75.92 To Order
Photo Part No Description Price (each) Stock
11F2185RP Oil Filler Tube - 675LT $732.98 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC042 Washer - Crush - Aluminium - 14x18x1.35 Enquire To Order
Photo Part No Description Price (each) Stock
11F2188RP Bracket - Oil Filler Bowl $42.47 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
View All

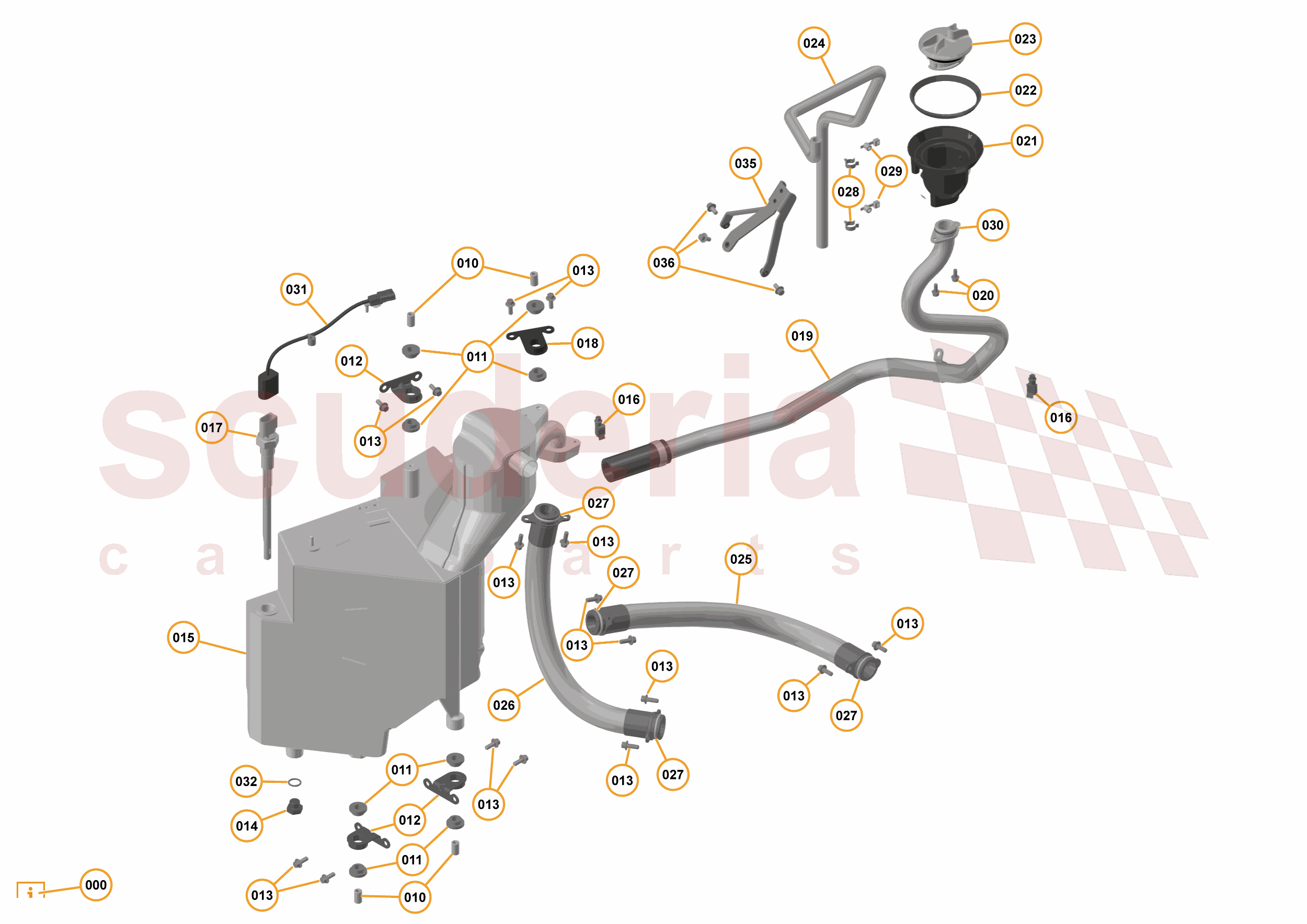

17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE of McLaren McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1214CP
Grub Screw - Oil Channel - Engine
Row ID: ID_E0F20125_11F1214CP_ContPgHS; Resolution: Available; 		$9.51 1
000 11F0839CP
Bolt - M8x40 - Engine - Shouldered
Row ID: ID_E0F20126_11F0839CP_ContPgHS; Resolution: Available; 		$15.10 1
010 11F0430CP
SPACER - OIL TANK
Row ID: ID_E0F20103_11F0430CP_ContPgHS; Resolution: Available; 		$22.92 4
011 11F0289CP
Mount - Anti-Vibration
Row ID: ID_E0F20106_11F0289CP_ContPgHS; Resolution: Available; 		$19.22 8
012 11F0146CP
BRACKET - OIL TANK MOUNTING
Row ID: ID_E0F20107_11F0146CP_ContPgHS; Resolution: Available; 		$75.92 3
013 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_E0F20134_00RA313_ContPgHS; Resolution: Available; 		- 14 Enquire
014 11F0021CP
Drain Plug - Oil Tank - M14
Row ID: ID_E0F20109_11F0021CP_ContPgHS; Resolution: Available; 		$30.44 1
015 11F1178CP
ASSY OIL TANK - ENGINE
Row ID: ID_E0F20110_11F1178CP_ContPgHS; Resolution: Available; 		$2,368.03 1
016 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO
Row ID: ID_E0F20111_00RB053_ContPgHS; Resolution: Available; 		- 2 Enquire
017 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE
Row ID: ID_E0F20112_11M0369CP_ContPgHS; Resolution: Available; 		$334.68 1
018 11F0429CP
BRACKET - SWIRL POT MOUNTING
Row ID: ID_E0F20113_11F0429CP_ContPgHS; Resolution: Available; 		$75.92 1
019 11F2185RP
Oil Filler Tube - 675LT
Row ID: ID_E0F20135_11F2185RP_ContPgHS; Resolution: Available; 		$732.98 1
020 00RA064
BOLT - M5X12 - HEX
Row ID: ID_E0F20115_00RA064_ContPgHS; Resolution: Available; 		- 2 Enquire
032 00RC042
Washer - Crush - Aluminium - 14x18x1.35
Row ID: ID_E0F20128_00RC042_ContPgHS; Resolution: Available; 		- 1 Enquire
033 00RC043
WASHER - M6XOD25
Row ID: ID_E0F20129_00RC043_ContPgHS; Resolution: Available; 		- 8 Enquire
034 00RA066
Bolt - M6x35 - Hex
Row ID: ID_E0F20130_00RA066_ContPgHS; Resolution: Available; 		- 4 Enquire
035 11F2188RP
Bracket - Oil Filler Bowl
Row ID: ID_E0F20137_11F2188RP_ContPgHS; Resolution: Available; 		$42.47 1
036 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_E0F20138_00RX003_ContPgHS; Resolution: Available; 		- 3 Enquire
