McLaren McLaren 625C Coupe - 1 - A1 - BODY STRUCTURES - 1.1 - 01 - TUB STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA500 Helicoil - M8x1.25x12 - SST - DFL Enquire To Order
00RK001 Rivnut - Bollhoff - M4 Enquire To Order
11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706 $2.92 To Order
...and 30 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11AA029CP Tub Repair Assy - Coupe - LHD - 650S Enquire To Order
11AA030CP Tub Repair Assy - Coupe - RHD - 650S $107,242.94 To Order
11A3989CP Tub Repair Assy - Coupe - LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A0489CP TUNNEL FLOOR $210.49 To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA182 SCREW - M6X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.82 To Order
Photo Part No Description Price (each) Stock
11B0799CP Tophat - Spacer - Diameter 14 - 10.2 ID $39.44 To Order
Photo Part No Description Price (each) Stock
11B0800CP TOPHAT - SPACER - DIAMETER 20 - 10.2ID $41.06 To Order
Photo Part No Description Price (each) Stock
11A5982CP Bracket - Damper Mounting - LH $1,866.06 To Order
Photo Part No Description Price (each) Stock
11A5983CP Bracket - Damper Mounting - RH $1,866.06 To Order
View All

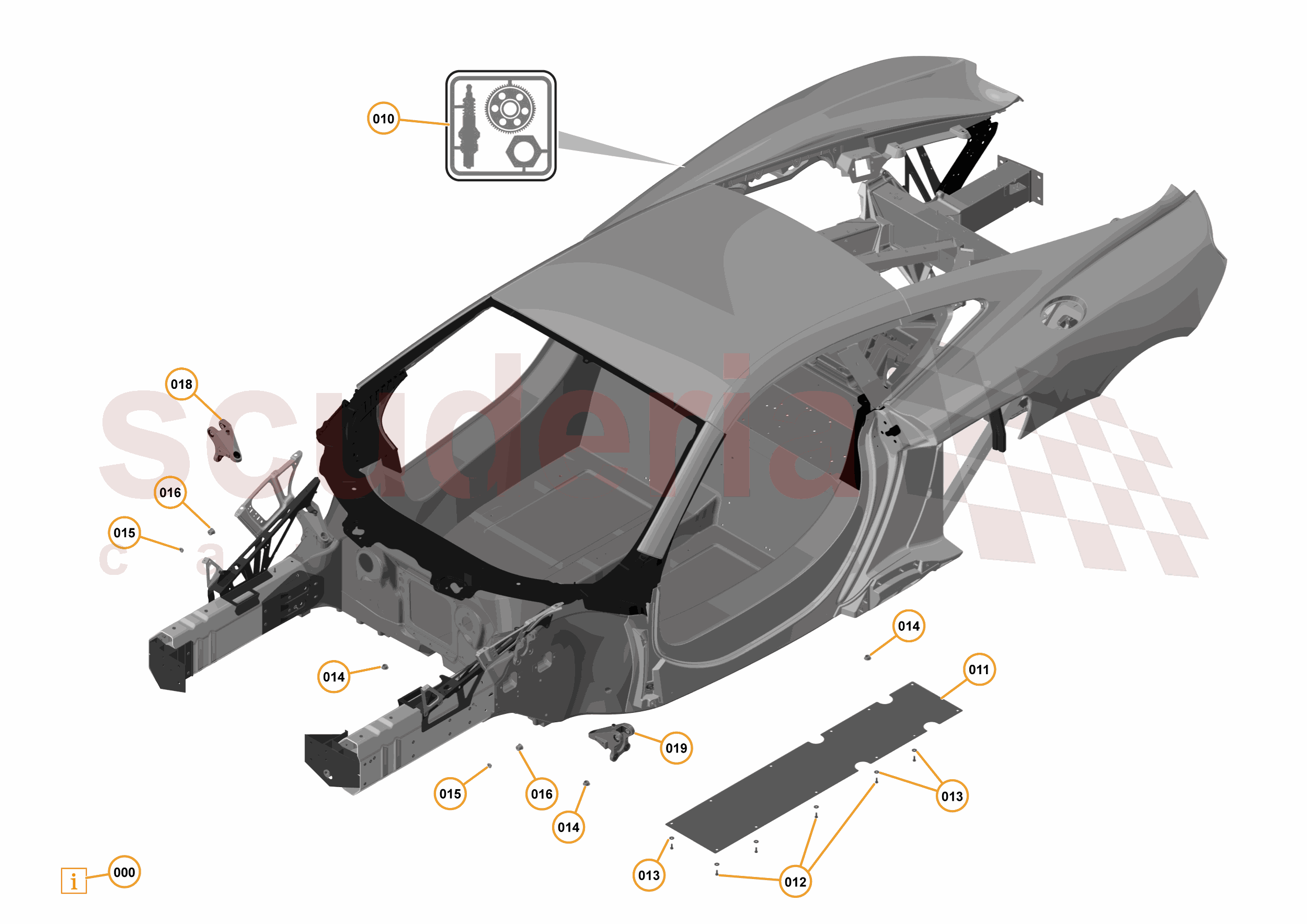

1 - A1 - BODY STRUCTURES - 1.1 - 01 - TUB STRUCTURE of McLaren McLaren McLaren 625C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA500
Helicoil - M8x1.25x12 - SST - DFL
Row ID: ID_A0A101D6_00RA500_ContPgHS; Resolution: Available; 		- 1 Enquire
000 00RK001
Rivnut - Bollhoff - M4
Row ID: ID_A0A10101_00RK001_ContPgHS; Resolution: Available; 		- 3 Enquire
000 11AA108CP
BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706
Row ID: ID__11AA108CP_ContPgHS; Resolution: Available; 		$2.92 1
000 11A4759CP
RIVNUT - M4 - 1.75-2.50 - 2330-704-0250
Row ID: ID_A0A10125_11A4759CP_ContPgHS; Resolution: Available; 		$8.47 1
000 00RK004
Rivnut - Bollhoff - M4 - 1.00-2.00 - 2330-704-0325
Row ID: ID_A0A10126_00RK004_ContPgHS; Resolution: Available; 		- 1 Enquire
000 11A4761CP
RIVNUT - M5 - 1.00-2.00 - 2330-705-0020
Row ID: ID_A0A10127_11A4761CP_ContPgHS; Resolution: Available; 		$5.01 1
000 11A4762CP
HELICOIL - M6X1D - 1084-6CNW060
Row ID: ID_A0A10128_11A4762CP_ContPgHS; Resolution: Available; 		$8.95 1
000 11A4763CP
HELICOIL - M8X1.5D - 1084-8CNW120
Row ID: ID_A0A10129_11A4763CP_ContPgHS; Resolution: Available; 		$10.17 1
000 11A4766CP
HELICOIL - M10X2D - 1084-10CNW200
Row ID: ID_A0A10132_11A4766CP_ContPgHS; Resolution: Available; 		$4.93 1
000 11A4768CP
HELICOIL - M12X2D - 1084-12CNW240
Row ID: ID_A0A10133_11A4768CP_ContPgHS; Resolution: Available; 		$10.09 1
000 11A4769CP
Rivet Stud - M5x15 - 3 15-3732-705-0115
Row ID: ID_A0A10134_11A4769CP_ContPgHS; Resolution: Available; 		$5.38 1
000 11A4770CP
HELICOIL - M16X1.5D - 3745-16CNW240
Row ID: ID_A0A10135_11A4770CP_ContPgHS; Resolution: Available; 		$14.47 1
000 11A4771CP
Rivet - 2.0-9.5 - HKLP-R8-6
Row ID: ID_A0A10136_11A4771CP_ContPgHS; Resolution: Available; 		$5.46 1
000 11A4772CP
Rivnut - M8 - 2.0-3.5 - 2330-708-0035
Row ID: ID_A0A10137_11A4772CP_ContPgHS; Resolution: Available; 		$5.28 1
000 11A4773CP
Rivnut - M5 - 3.0 - 4.0 - 2330-705-0040
Row ID: ID_A0A10138_11A4773CP_ContPgHS; Resolution: Available; 		$4.93 1
000 11A4774CP
Rivnut - M6 - 1.50-3.00 - 2330-706-0030
Row ID: ID_A0A10139_11A4774CP_ContPgHS; Resolution: Available; 		$4.93 1
000 11A4775CP
Rivnut - M6 - 3.0-4.5 - 2330.706-0045
Row ID: ID_A0A10140_11A4775CP_ContPgHS; Resolution: Available; 		$4.93 1
000 11A4776CP
Rivnut - M5 - 2.0-3.0 - 2330.705-0030
Row ID: ID_A0A10141_11A4776CP_ContPgHS; Resolution: Available; 		$5.15 1
000 11A4778CP
Clip - Jetpress - EPF233
Row ID: ID_A0A10143_11A4778CP_ContPgHS; Resolution: Available; 		$6.50 1
000 11A4779CP
Tie Base - Fir Tree - Airbrake
Row ID: ID_A0A10144_11A4779CP_ContPgHS; Resolution: Available; 		$17.48 1
000 11A4780CP
Cable Clip - Moss - 460300 - Airbrake
Row ID: ID_A0A10145_11A4780CP_ContPgHS; Resolution: Available; 		$17.90 1
000 11A4781CP
Helicoil - M8x2D - 1084-8CNW160
Row ID: ID_A0A10146_11A4781CP_ContPgHS; Resolution: Available; 		$7.00 1
000 11A4782CP
Rivet Stud - M6x20 - 3 15-3732-706-0120
Row ID: ID_A0A10147_11A4782CP_ContPgHS; Resolution: Available; 		$5.98 1
000 11A4783CP
Rivnut - M6 - 3.0-5.5 - 2330-706-0255
Row ID: ID_A0A10148_11A4783CP_ContPgHS; Resolution: Available; 		$4.93 1
000 11A4791CP
Rivnut - M6 - 0.7-1.5 - 2330.706-0015
Row ID: ID_A0A10155_11A4791CP_ContPgHS; Resolution: Available; 		$6.39 1
000 11A4792CP
Stud - M5x12 - Windscreen Surround - 512 000 050.110
Row ID: ID_A0A10156_11A4792CP_ContPgHS; Resolution: Available; 		$4.51 1
000 11A4860CP
Stud - M6x20 - Windscreen Surround - FH M6-20ZI
Row ID: ID_A0A10157_11A4860CP_ContPgHS; Resolution: Available; 		$4.35 1
000 11A4870CP
Rivnut - M4 - 1.0-2.0 - 2330-104-0020
Row ID: ID_A0A10158_11A4870CP_ContPgHS; Resolution: Available; 		$1.82 1
000 11A4871CP
Rivnut - M5 - 0.5-3.0 - 2330-105-0030
Row ID: ID_A0A10159_11A4871CP_ContPgHS; Resolution: Available; 		$1.35 1
000 11A4872CP
Rivnut - M6 - 0.5-3.0 - 2332-906-0519
Row ID: ID_A0A10160_11A4872CP_ContPgHS; Resolution: Available; 		$4.71 1
000 11A4873CP
Sealing Gasket - Windscreen Surround - 20x9.5x5
Row ID: ID_A0A10161_11A4873CP_ContPgHS; Resolution: Available; 		$4.35 1
000 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM
Row ID: ID_A0A10167_11A5734CP_ContPgHS; Resolution: Available; 		$9.85 6
000 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM
Row ID: ID_A0A10168_11A5735CP_ContPgHS; Resolution: Available; 		$9.85 4
010 11AA029CP
Tub Repair Assy - Coupe - LHD - 650S
Row ID: ID__11AA029CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 11AA030CP
Tub Repair Assy - Coupe - RHD - 650S
Row ID: ID__11AA030CP_ContPgHS; Resolution: Available; 		$107,242.94 1
010 11A3989CP
Tub Repair Assy - Coupe - LHD
Row ID: ID_A0A10162_11A3989CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 11A3991CP
Tub Repair Assy - Coupe - RHD
Row ID: ID_A0A10163_11A3991CP_ContPgHS; Resolution: Available; 		$97,492.77 1
011 11A0489CP
TUNNEL FLOOR
Row ID: ID_A0A10164_11A0489CP_ContPgHS; Resolution: Available; 		$210.49 1
012 00RC013
WASHER - M6X18X1.6
Row ID: ID_A0A10165_00RC013_ContPgHS; Resolution: Available; 		- 10 Enquire
013 00RA182
SCREW - M6X16 - HEX
Row ID: ID_A0A10166_00RA182_ContPgHS; Resolution: Available; 		- 10 Enquire
014 11A5736CP
PLUG - TUB DATUM
Row ID: ID_A0A10174_11A5736CP_ContPgHS; Resolution: Available; 		$6.82 4
015 11B0799CP
Tophat - Spacer - Diameter 14 - 10.2 ID
Row ID: ID_A0A101C2_11B0799CP_ContPgHS; Resolution: Available; 		$39.44 2
016 11B0800CP
TOPHAT - SPACER - DIAMETER 20 - 10.2ID
Row ID: ID_A0A101C3_11B0800CP_ContPgHS; Resolution: Available; 		$41.06 2
018 11A5982CP
Bracket - Damper Mounting - LH
Row ID: ID_A0A10169_11A5982CP_ContPgHS; Resolution: Available; 		$1,866.06 1
019 11A5983CP
Bracket - Damper Mounting - RH
Row ID: ID_A0A10170_11A5983CP_ContPgHS; Resolution: Available; 		$1,866.06 1
