35 - ENGINE ANCILLIARIES - 35.1 - STARTER MOTOR parts for McLaren McLaren 620R | Scuderia Car Parts

Find Your Part

35 - ENGINE ANCILLIARIES - 35.1 - STARTER MOTOR of McLaren McLaren McLaren 620R

View All

McLaren McLaren 620R - 35 - ENGINE ANCILLIARIES - 35.1 - STARTER MOTOR

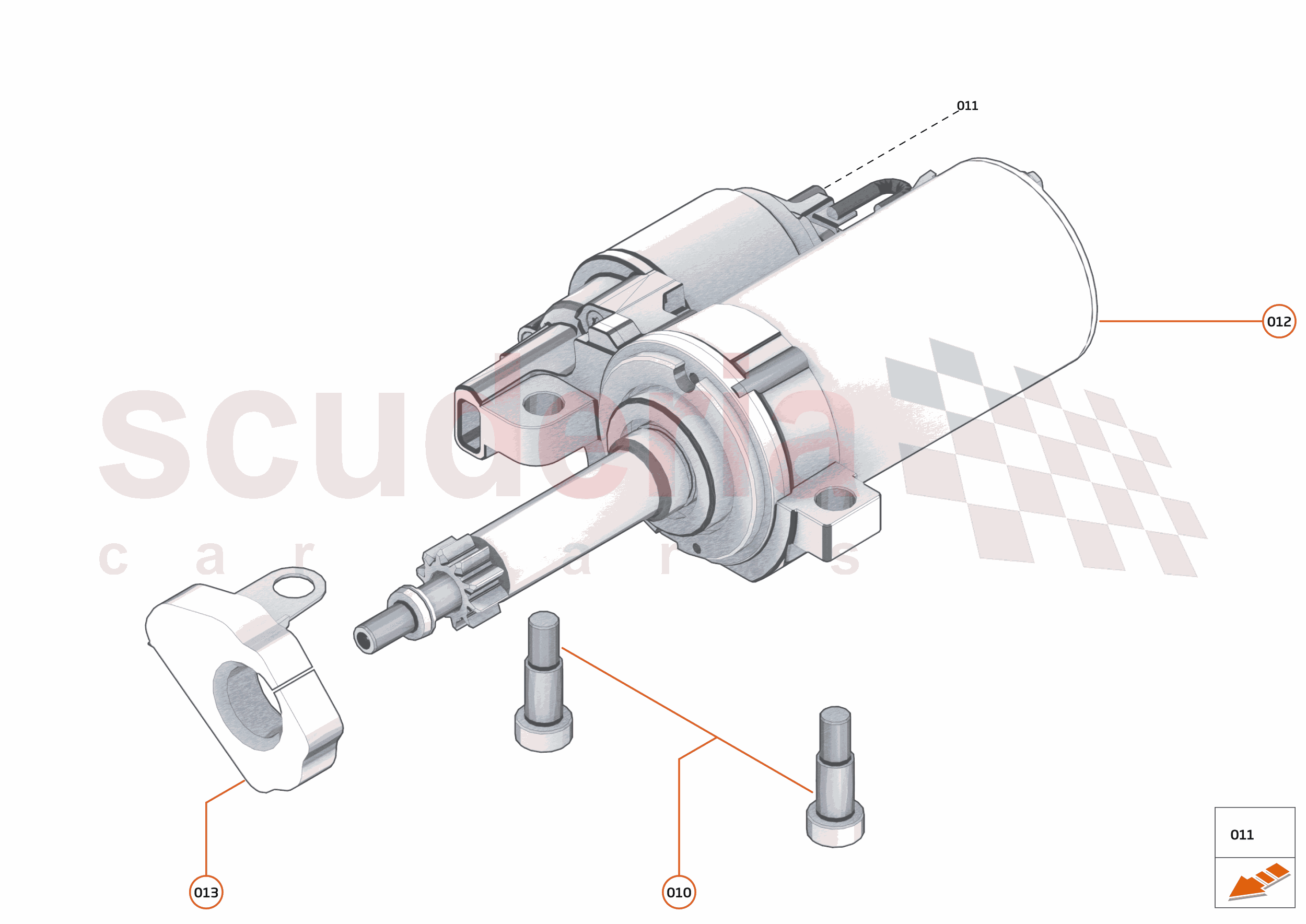

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA758	SHOULDER BOLT - M10-12X20 - CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0133CP	STARTER MOTOR - ENGINE	$1,281.42	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1092CP	Bracket - Starter Motor - NVH	$115.10	To Order

View All

35 - ENGINE ANCILLIARIES - 35.1 - STARTER MOTOR of McLaren McLaren McLaren 620R

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	00RA758	SHOULDER BOLT - M10-12X20 - CAP	00RA758 SHOULDER BOLT - M10-12X20 - CAP Row ID: ID__00RA758_ContPgHS; Resolution: Available;	-	2		Enquire
	011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	1		Enquire
	012	11F0133CP	STARTER MOTOR - ENGINE	11F0133CP STARTER MOTOR - ENGINE Row ID: ID__11F0133CP_ContPgHS; Resolution: Available;	$1,281.42	1
	013	11F1092CP	Bracket - Starter Motor - NVH	11F1092CP Bracket - Starter Motor - NVH Row ID: ID__11F1092CP_ContPgHS; Resolution: Available;	$115.10	1
