41 - WIRING HARNESS - 41.1 - POWER AND GROUND DISTRIBUTION of McLaren McLaren McLaren 620R

View All

McLaren McLaren 620R - 41 - WIRING HARNESS - 41.1 - POWER AND GROUND DISTRIBUTION

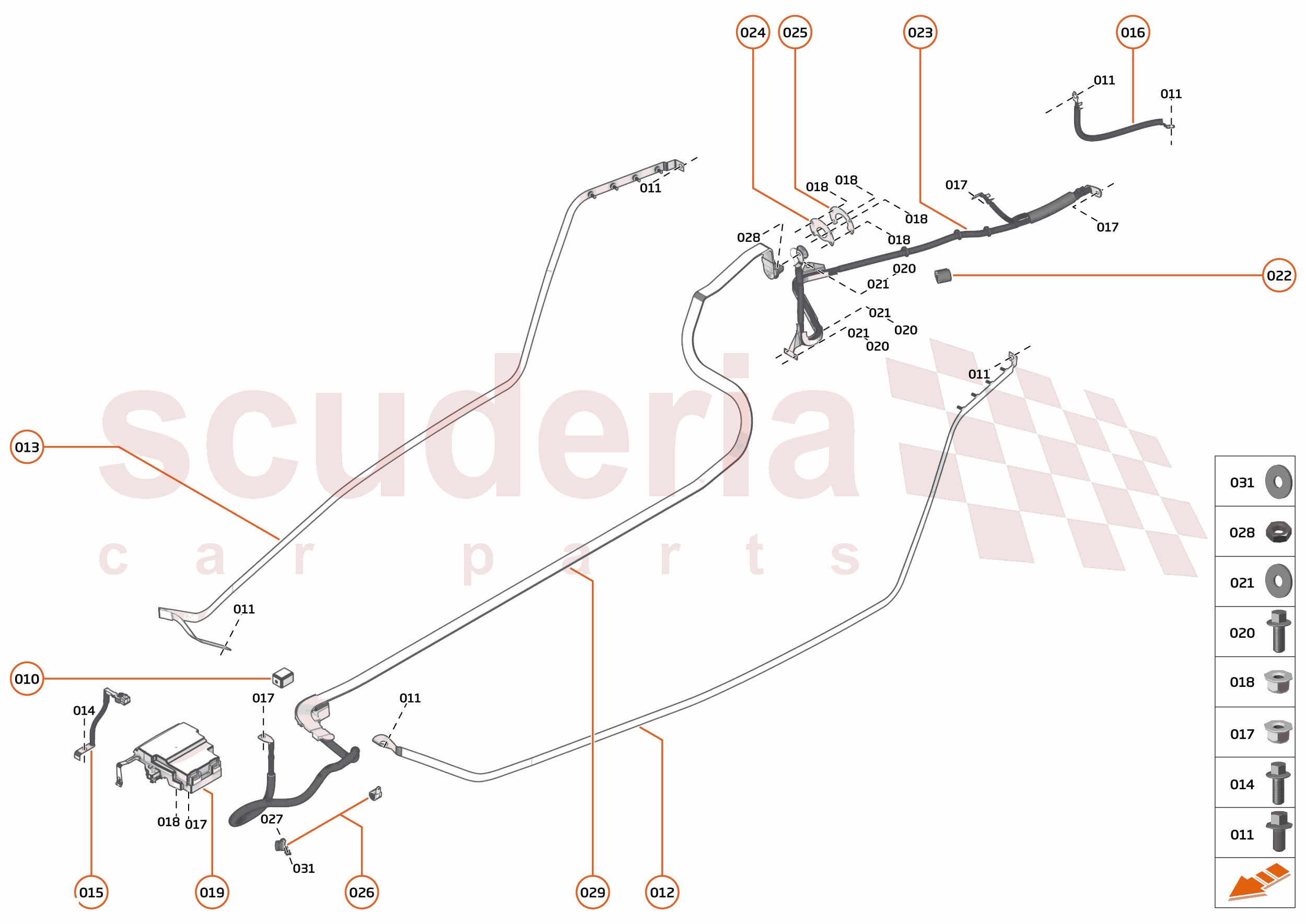

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA344	SCREW - HEX - FLANGE - M8X16-8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2412CP	WIRING HARNESS - GROUND LOOP - LH	$908.87	To Order

Photo	Part No	Description	Price (each)	Stock
	11M2413CP	WIRING HARNESS - GROUND LOOP - RH	$908.87	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13M0773CP	BATTERY CABLE - NEGATIVE	$166.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13MA183CP	ENGINE-GROUND STRAP	$253.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13M0771CP	Fusebox - Battery - Front - H7	$361.64	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC008	WASHER - M6X12.5X0.9	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA344	SCREW - HEX - FLANGE - M8X16-8.8	00RA344 SCREW - HEX - FLANGE - M8X16-8.8 Row ID: ID__00RA344_ContPgHS; Resolution: Available;	-	2	Enquire
012	11M2412CP	WIRING HARNESS - GROUND LOOP - LH	11M2412CP WIRING HARNESS - GROUND LOOP - LH Row ID: ID__11M2412CP_ContPgHS; Resolution: Available;	$908.87	1
013	11M2413CP	WIRING HARNESS - GROUND LOOP - RH	11M2413CP WIRING HARNESS - GROUND LOOP - RH Row ID: ID__11M2413CP_ContPgHS; Resolution: Available;	$908.87	1
014	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS; Resolution: Available;	-	1	Enquire
015	13M0773CP	BATTERY CABLE - NEGATIVE	13M0773CP BATTERY CABLE - NEGATIVE Row ID: ID__13M0773CP_ContPgHS; Resolution: Available;	$166.55	1
016	13MA183CP	ENGINE-GROUND STRAP	13MA183CP ENGINE-GROUND STRAP Row ID: ID__13MA183CP_ContPgHS; Resolution: Available;	$253.78	1
017	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS; Resolution: Available;	-	2	Enquire
018	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS; Resolution: Available;	-	1	Enquire
019	13M0771CP	Fusebox - Battery - Front - H7	13M0771CP Fusebox - Battery - Front - H7 Row ID: ID__13M0771CP_ContPgHS; Resolution: Available;	$361.64	1
020	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	3	Enquire
029	11M1124CP	BUSBAR - RHD	11M1124CP BUSBAR - RHD Row ID: ID__11M1124CP_ContPgHS; Resolution: Available;	$1,609.31	1
031	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9 Row ID: ID__00RC008_ContPgHS; Resolution: Available;	-	1	Enquire
