McLaren McLaren 620R - 28 - COOLING - HIGH TEMP - 28.1 - HIGH TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB199 CLAMP - SPRING BAND - 14X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB200 CLAMP - SPRING BAND - 17X12 Enquire To Order
Photo Part No Description Price (each) Stock
11L0367CP HOSE - RADIATOR WATER BLEED - LH $366.13 To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
11L0368CP HOSE - RADIATOR WATER BLEED - RH $367.80 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB056 SPRING BAND CLAMP - DIA 40 Enquire To Order
Photo Part No Description Price (each) Stock
11L0355CP DUCT - COOLING - RADIATOR TO HVAC $126.25 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB206 Clamp - Spring Band - 47x12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB212 CLAMP - SPRING BAND - 42X12 Enquire To Order
Photo Part No Description Price (each) Stock
13L0241CP HOSE - RADIATOR FROM ENGINE - LH $173.17 To Order
Photo Part No Description Price (each) Stock
13L0248CP HOSE - RADIATOR FROM ENGINE - RH $173.17 To Order
Photo Part No Description Price (each) Stock
00RB205 CLAMP - SPRING BAND - 43X12 Enquire To Order
Photo Part No Description Price (each) Stock
13L0242CP HOSE - RADIATOR OUTBOARD - RH $149.32 To Order
Photo Part No Description Price (each) Stock
11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE $114.21 To Order
Photo Part No Description Price (each) Stock
13L0243CP HOSE - RADIATOR OUTBOARD - LH $149.32 To Order
Photo Part No Description Price (each) Stock
00RB057 CLIP - 39-45MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13LA010MP DK PIPE RAD UPR INBOARD RH $3,239.48 To Order
Photo Part No Description Price (each) Stock
00RG020 SWIVEL CLIP - 20-24.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13LA008MP DK HOSE RAD UPR OUTBOARD $274.69 To Order
View All

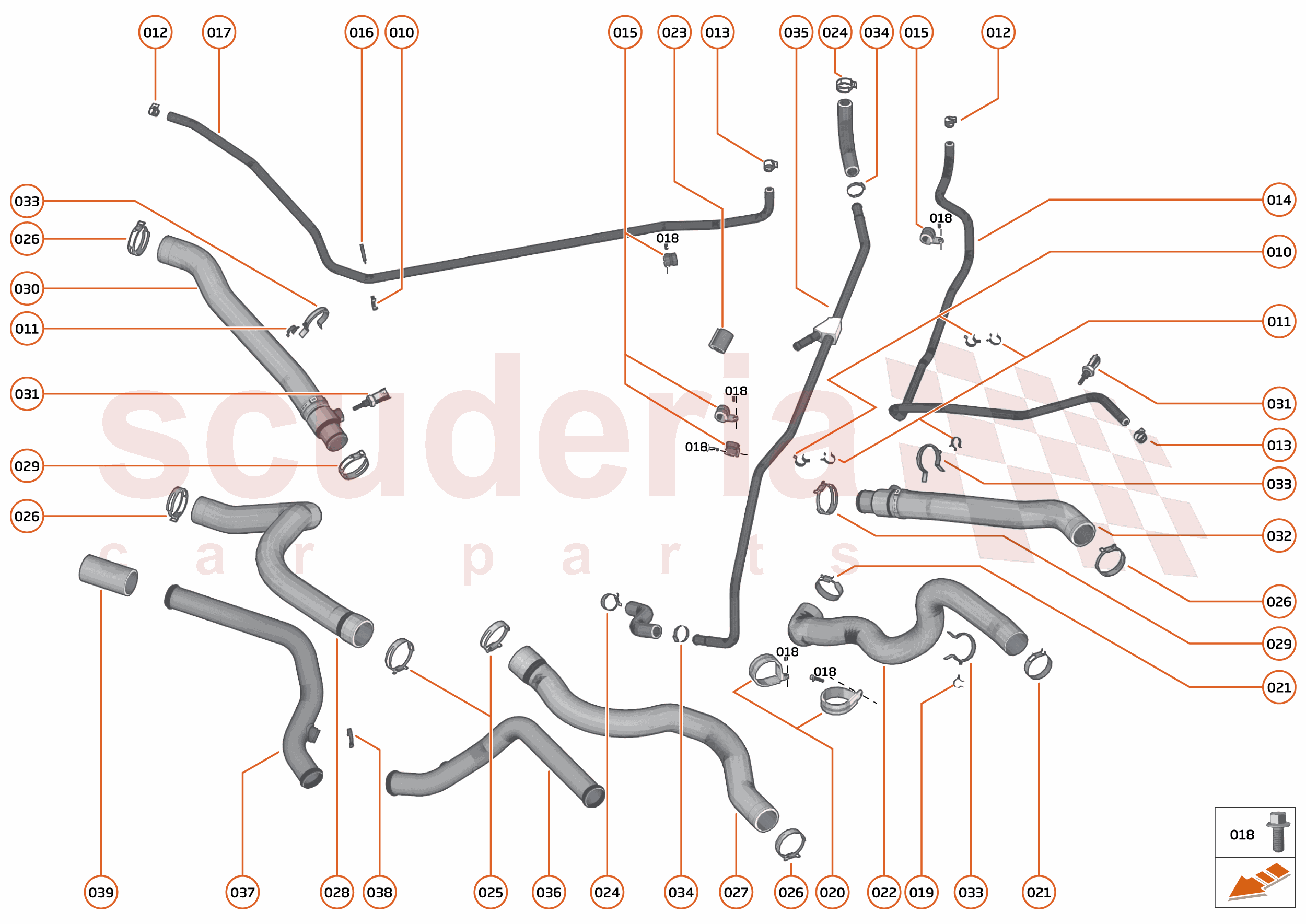

28 - COOLING - HIGH TEMP - 28.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID__00RB032_ContPgHS; Resolution: Available; 		- 2 Enquire
011 00RB044
SWIVEL PIPE CLIP - 16MM
Row ID: ID__00RB044_ContPgHS; Resolution: Available; 		- 2 Enquire
012 00RB199
CLAMP - SPRING BAND - 14X12
Row ID: ID__00RB199_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RB200
CLAMP - SPRING BAND - 17X12
Row ID: ID__00RB200_ContPgHS; Resolution: Available; 		- 1 Enquire
014 11L0367CP
HOSE - RADIATOR WATER BLEED - LH
Row ID: ID__11L0367CP_ContPgHS; Resolution: Available; 		$366.13 1
015 00RB005
P CLIP - DIA 16
Row ID: ID__00RB005_ContPgHS; Resolution: Available; 		- 1 Enquire
016 00RB008
CLIP - 18-20MM - MALE
Row ID: ID__00RB008_ContPgHS; Resolution: Available; 		- 1 Enquire
017 11L0368CP
HOSE - RADIATOR WATER BLEED - RH
Row ID: ID__11L0368CP_ContPgHS; Resolution: Available; 		$367.80 1
018 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
019 00RB018
CLIP - 11-13MM - MALE
Row ID: ID__00RB018_ContPgHS; Resolution: Available; 		- 1 Enquire
020 00RB029
P CLIP - DIA 45-M6
Row ID: ID__00RB029_ContPgHS; Resolution: Available; 		- 2 Enquire
021 00RB056
SPRING BAND CLAMP - DIA 40
Row ID: ID__00RB056_ContPgHS; Resolution: Available; 		- 2 Enquire
022 11L0355CP
DUCT - COOLING - RADIATOR TO HVAC
Row ID: ID__11L0355CP_ContPgHS; Resolution: Available; 		$126.25 1
023 00RA357
PIPE PROTECTOR
Row ID: ID__00RA357_ContPgHS; Resolution: Available; 		- 1 Enquire
024 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID__00RB202_ContPgHS; Resolution: Available; 		- 2 Enquire
025 00RB206
Clamp - Spring Band - 47x12
Row ID: ID__00RB206_ContPgHS; Resolution: Available; 		- 1 Enquire
026 00RB212
CLAMP - SPRING BAND - 42X12
Row ID: ID__00RB212_ContPgHS; Resolution: Available; 		- 1 Enquire
027 13L0241CP
HOSE - RADIATOR FROM ENGINE - LH
Row ID: ID__13L0241CP_ContPgHS; Resolution: Available; 		$173.17 1
028 13L0248CP
HOSE - RADIATOR FROM ENGINE - RH
Row ID: ID__13L0248CP_ContPgHS; Resolution: Available; 		$173.17 1
029 00RB205
CLAMP - SPRING BAND - 43X12
Row ID: ID__00RB205_ContPgHS; Resolution: Available; 		- 1 Enquire
030 13L0242CP
HOSE - RADIATOR OUTBOARD - RH
Row ID: ID__13L0242CP_ContPgHS; Resolution: Available; 		$149.32 1
031 11L0247CP
SENSOR - COOLANT TEMPERATURE - ENGINE
Row ID: ID__11L0247CP_ContPgHS; Resolution: Available; 		$114.21 1
032 13L0243CP
HOSE - RADIATOR OUTBOARD - LH
Row ID: ID__13L0243CP_ContPgHS; Resolution: Available; 		$149.32 1
033 00RB057
CLIP - 39-45MM - FEMALE
Row ID: ID__00RB057_ContPgHS; Resolution: Available; 		- 1 Enquire
035 11L0208CP
HOSE-HEADER TANK TO ENGINE
Row ID: ID__11L0208CP_ContPgHS; Resolution: Available; 		$916.80 1
036 13LA009MP
DK PIPE RAD UPR INBOARD LH
Row ID: ID__13LA009MP_ContPgHS; Resolution: Available; 		$3,239.48 1
037 13LA010MP
DK PIPE RAD UPR INBOARD RH
Row ID: ID__13LA010MP_ContPgHS; Resolution: Available; 		$3,239.48 1
038 00RG020
SWIVEL CLIP - 20-24.5MM - FEMALE
Row ID: ID__00RG020_ContPgHS; Resolution: Available; 		- 1 Enquire
039 13LA008MP
DK HOSE RAD UPR OUTBOARD
Row ID: ID__13LA008MP_ContPgHS; Resolution: Available; 		$274.69 2
