23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM of McLaren McLaren McLaren 620R

View All

McLaren McLaren 620R - 23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM

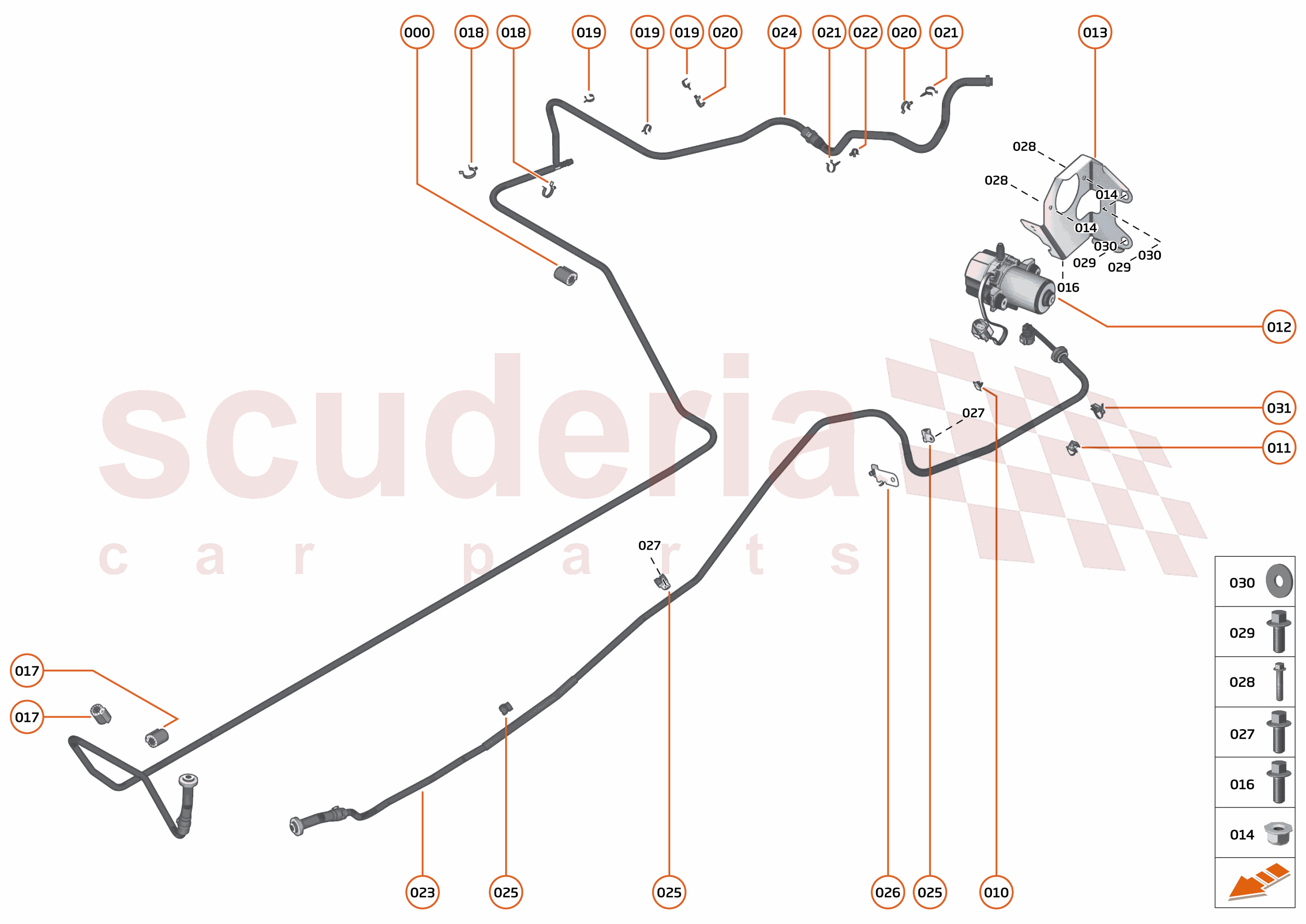

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW Row ID: ID__00RB059_ContPgHS; Resolution: Available;	-	1	Enquire
011	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS; Resolution: Available;	-	1	Enquire
012	15CA134CP	EVAC PUMP	15CA134CP EVAC PUMP Row ID: ID__15CA134CP_ContPgHS; Resolution: Available;	$539.30	1
013	31CA013CP	BRKT-EVAC PUMP	31CA013CP BRKT-EVAC PUMP Row ID: ID__31CA013CP_ContPgHS; Resolution: Available;	$80.59	1
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	2	Enquire
016	00RX001	Bolt - M5x16 - Hex	00RX001 Bolt - M5x16 - Hex Row ID: ID__00RX001_ContPgHS; Resolution: Available;	-	2	Enquire
017	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS; Resolution: Available;	-	3	Enquire
018	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS; Resolution: Available;	-	2	Enquire
019	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS; Resolution: Available;	-	2	Enquire
020	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS; Resolution: Available;	-	1	Enquire
021	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS; Resolution: Available;	-	2	Enquire
022	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID__00RB046_ContPgHS; Resolution: Available;	-	1	Enquire
023	13CA163RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD	13CA163RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - LHD Row ID: ID__13CA163RP_ContPgHS; Resolution: Available;	-	1	Enquire
023	13CA165RP	VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD	13CA165RP VACUUM PIPE - BRAKE BOOSTER - INTAKE MANIFOLD - RHD Row ID: ID__13CA165RP_ContPgHS; Resolution: Available;	$182.12	1
024	31CA018CP	HOSE-VACUUM-PUMP	31CA018CP HOSE-VACUUM-PUMP Row ID: ID__31CA018CP_ContPgHS; Resolution: Available;	$148.67	1
025	00RB127	P-Clip - 12/13 - EPDM	00RB127 P-Clip - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS; Resolution: Available;	-	4	Enquire
026	13CA206RP	BRACKET - VAC HOSE TO - CROSS BRACE	13CA206RP BRACKET - VAC HOSE TO - CROSS BRACE Row ID: ID__13CA206RP_ContPgHS; Resolution: Available;	$38.14	1
027	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	-	Enquire
028	00RA631	BLT-HX-FL-PPT-M6X1X45-8.8-72	00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72 Row ID: ID__00RA631_ContPgHS; Resolution: Available;	-	2	Enquire
029	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS; Resolution: Available;	-	2	Enquire
030	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 Row ID: ID__00RC015_ContPgHS; Resolution: Available;	-	2	Enquire
031	00RB259	CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK	00RB259 CAB TIE-EDGE-SIDE-1-3X45-NYL-BLK Row ID: ID__00RB259_ContPgHS; Resolution: Available;	-	1	Enquire
