McLaren McLaren 620R - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

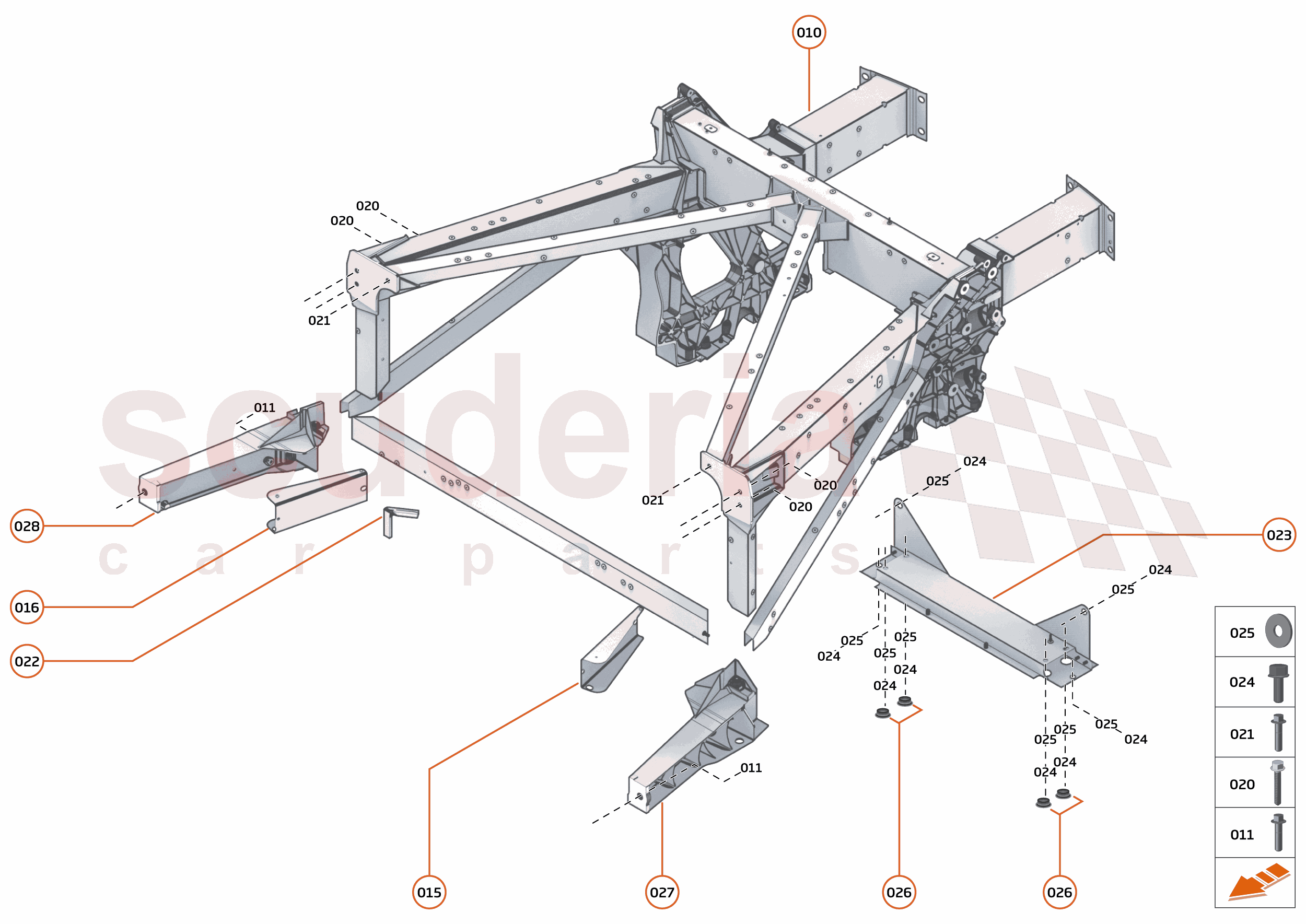

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13AB420RP	FRAME ASSY - REAR	$46,978.06	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA164	BOLT - M16X80 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA559	BOLT - HEX HEAD - M10X1.5X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4205CP	FOAM - REAR FRAME - LOWER	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA457	SCREW - M10X30-10.9 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4284CP	PLUG - DOME - 25 DIAMETER	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0989CP	FRAME-BULKHEAD MNTG LWR-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0990CP	FRAME-BULKHEAD MNTG LWR-RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13AB420RP	FRAME ASSY - REAR	13AB420RP FRAME ASSY - REAR Row ID: ID__13AB420RP_ContPgHS; Resolution: Available;	$46,978.06	1
011	00RA164	BOLT - M16X80 - HEX	00RA164 BOLT - M16X80 - HEX Row ID: ID__00RA164_ContPgHS; Resolution: Available;	-	2	Enquire
015	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	11A3817CP COVER - REAR FRAME TO FUEL CELL - LH Row ID: ID__11A3817CP_ContPgHS; Resolution: Available;	$93.52	1
016	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	11A3816CP COVER - REAR FRAME TO FUEL CELL - RH Row ID: ID__11A3816CP_ContPgHS; Resolution: Available;	$93.52	1
020	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Row ID: ID__00RA400_ContPgHS; Resolution: Available;	-	4	Enquire
021	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40 Row ID: ID__00RA559_ContPgHS; Resolution: Available;	-	2	Enquire
022	13A4205CP	FOAM - REAR FRAME - LOWER	13A4205CP FOAM - REAR FRAME - LOWER Row ID: ID__13A4205CP_ContPgHS; Resolution: Available;	$4.55	1
023	11A4416CP	CROSS BEAM - TRANSMISSION FLOOR	11A4416CP CROSS BEAM - TRANSMISSION FLOOR Row ID: ID__11A4416CP_ContPgHS; Resolution: Available;	$1,203.89	1
024	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID__00RA457_ContPgHS; Resolution: Available;	-	8	Enquire
025	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID__00RC065_ContPgHS; Resolution: Available;	-	8	Enquire
026	11A4284CP	PLUG - DOME - 25 DIAMETER	11A4284CP PLUG - DOME - 25 DIAMETER Row ID: ID__11A4284CP_ContPgHS; Resolution: Available;	$1.67	4
027	11A0989CP	FRAME-BULKHEAD MNTG LWR-LH	11A0989CP FRAME-BULKHEAD MNTG LWR-LH Row ID: ID__11A0989CP_ContPgHS; Resolution: Available;	-	1	Enquire
028	11A0990CP	FRAME-BULKHEAD MNTG LWR-RH	11A0990CP FRAME-BULKHEAD MNTG LWR-RH Row ID: ID__11A0990CP_ContPgHS; Resolution: Available;	-	1	Enquire
