2 - Mid Structures - 2.1 - Monocoque

McLaren McLaren 620R

Find Your Part

McLaren McLaren 620R - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.82 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $194.06 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $194.06 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $43.28 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $44.59 To Order
Photo Part No Description Price (each) Stock
11A8382RP CONDUCTIVITY LINK - ROLL HOOP - LH $59.70 To Order
Photo Part No Description Price (each) Stock
11A8383RP CONDUCTIVITY LINK - ROLL HOOP - RH $59.70 To Order
View All

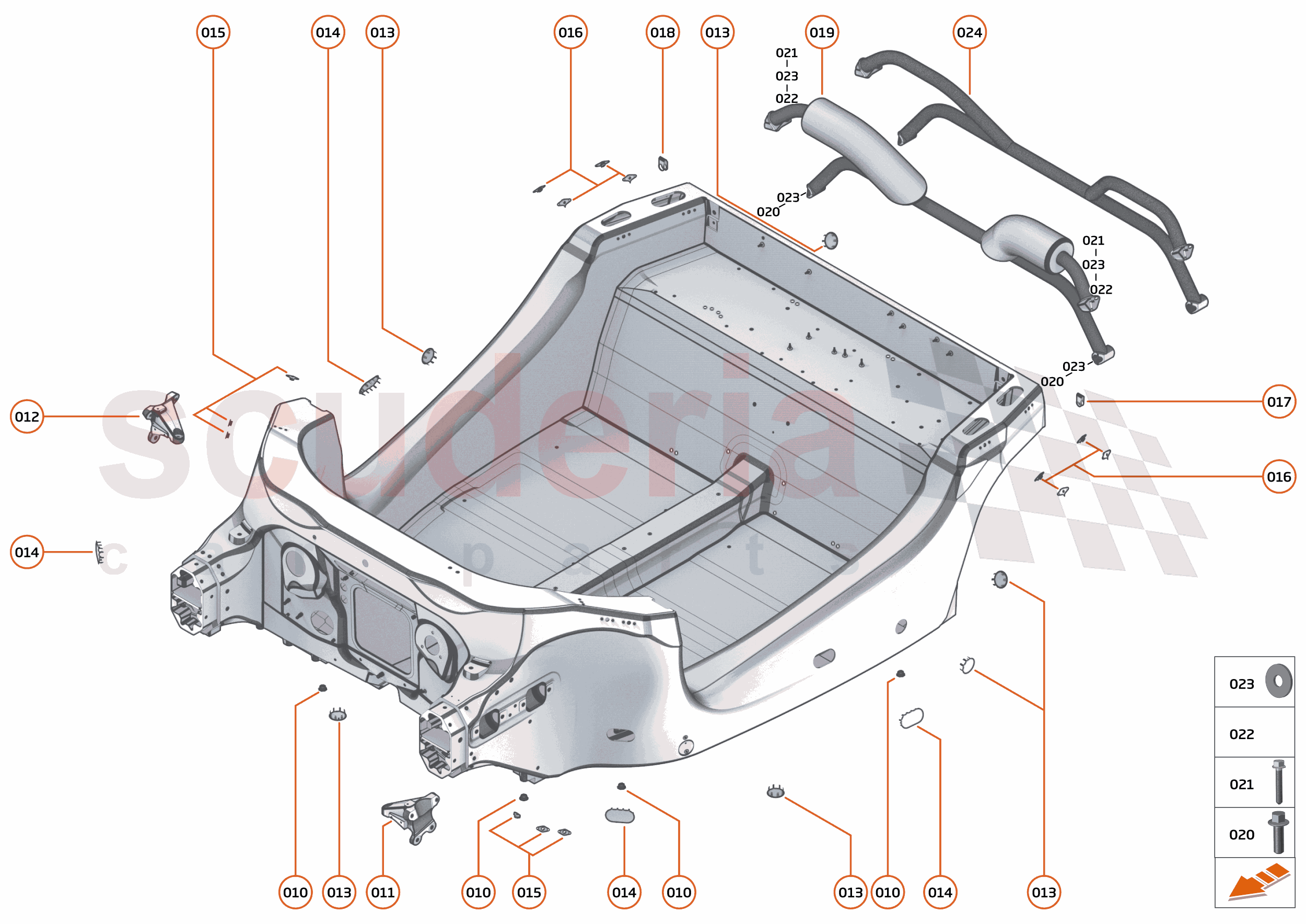

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11AA108CP
BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706
Row ID: ID__11AA108CP_ContPgHS; Resolution: Available; 		$2.92 -
010 11A5736CP
PLUG - TUB DATUM
Row ID: ID__11A5736CP_ContPgHS; Resolution: Available; 		$6.82 4
011 11A7142CP
BRACKET - DAMPER MOUNTING - LH
Row ID: ID__11A7142CP_ContPgHS; Resolution: Available; 		$194.06 1
012 11A7143CP
BRACKET - DAMPER MOUNTING - RH
Row ID: ID__11A7143CP_ContPgHS; Resolution: Available; 		$194.06 1
013 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM
Row ID: ID__11A5734CP_ContPgHS; Resolution: Available; 		$9.85 6
014 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM
Row ID: ID__11A5735CP_ContPgHS; Resolution: Available; 		$9.85 4
015 11A7572CP
NUT PLATE - A-POST - M8
Row ID: ID__11A7572CP_ContPgHS; Resolution: Available; 		$43.28 6
016 11A7573CP
NUT PLATE - B-POST - M8
Row ID: ID__11A7573CP_ContPgHS; Resolution: Available; 		$44.59 -
017 11A8382RP
CONDUCTIVITY LINK - ROLL HOOP - LH
Row ID: ID__11A8382RP_ContPgHS; Resolution: Available; 		$59.70 1
018 11A8383RP
CONDUCTIVITY LINK - ROLL HOOP - RH
Row ID: ID__11A8383RP_ContPgHS; Resolution: Available; 		$59.70 1
