McLaren McLaren 620R - 5 - PANELS - 5.3 - BODYSIDE ASSEMBLED

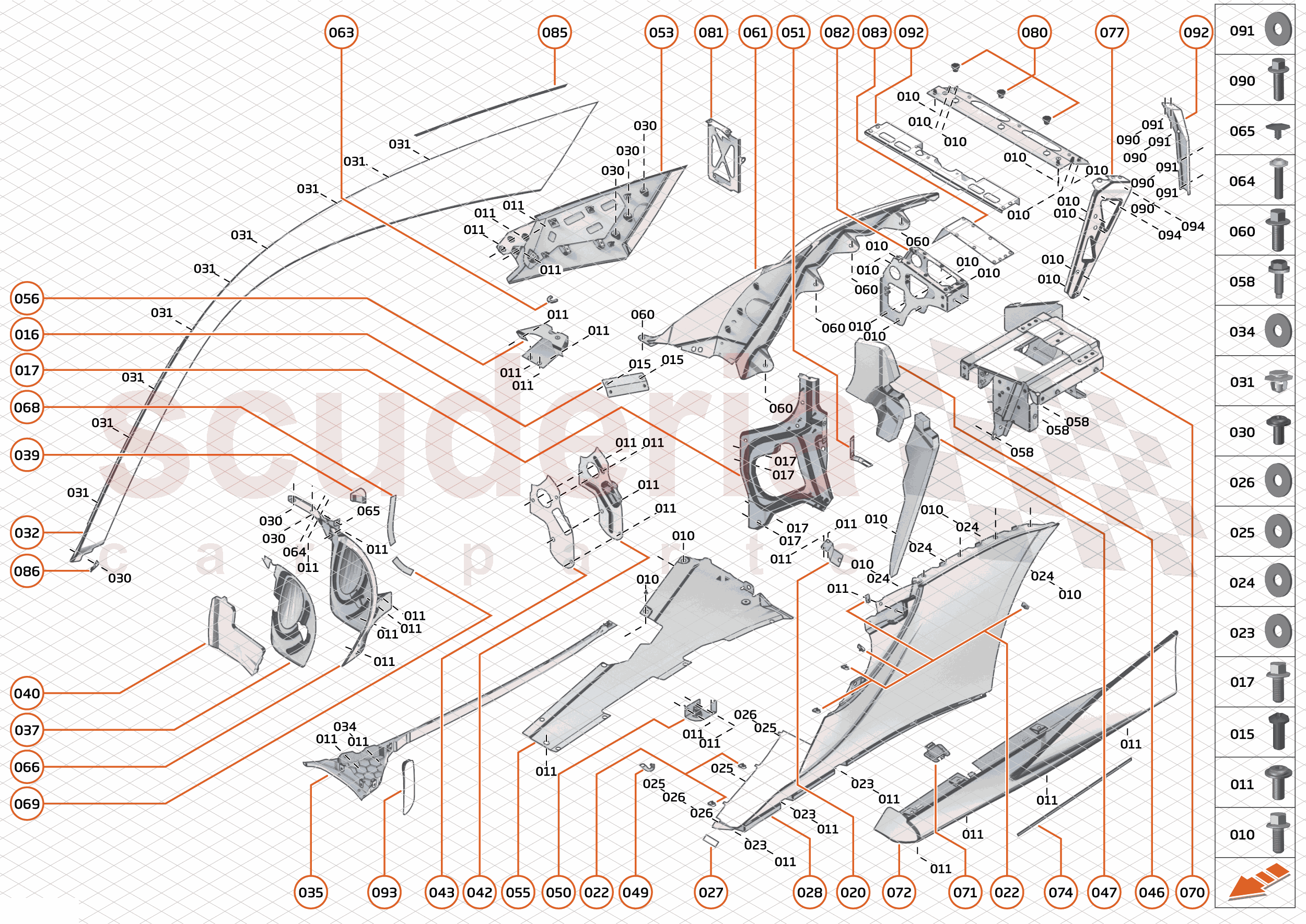

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
00RA694 BLT-HX HD-FL-M6X1X40-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A4144CP BRACKET - CANTRAIL FINISHER $16.59 To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
13A4893CP BRACKET - FENDER SUPPORT - LH $40.60 To Order
13A4894CP BRACKET - FENDER SUPPORT - RH $40.60 To Order
Photo Part No Description Price (each) Stock
00RA329 CLIP - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC113 SPACER - NYLON - 6.6X17.45X1.05 Enquire To Order
Photo Part No Description Price (each) Stock
00RC114 SPACER - NYLON - 6.6X17.45X0.54 Enquire To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
13AA970CP PNL BODYSIDE RR LWR LH $723.08 To Order
13AA971CP PNL BODYSIDE RR LWR RH $735.97 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 Clip - Cantrail Capping Panel Enquire To Order
Photo Part No Description Price (each) Stock
13A4665CP CAPPING PANEL - CANTRAIL - LH $623.54 To Order
13A4662CP CAPPING PANEL - CANTRAIL - RH $623.54 To Order
13AA686MP ASSY CAPPING CANTRAIL CARBON - LH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock

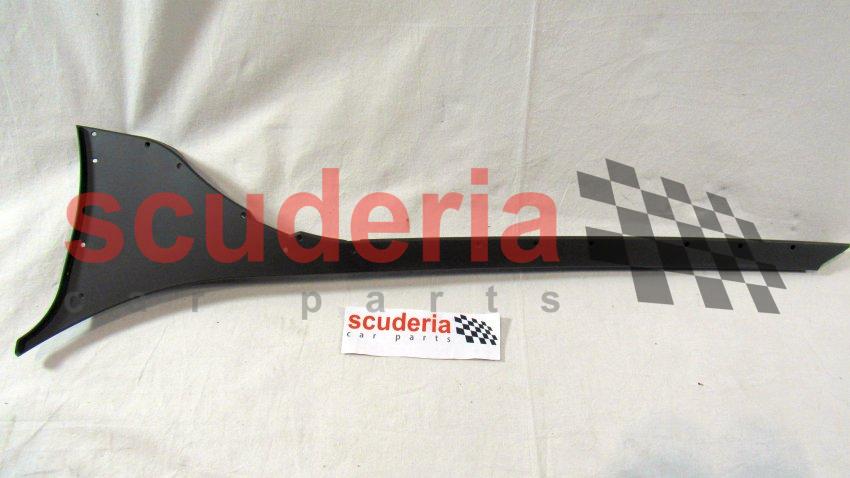

13A3855CP Floor Trim - LH $203.03 To Order
13A3856CP Floor Trim - RH $203.03 To Order
Photo Part No Description Price (each) Stock
13A5498CP NVH PAD - WHEEL ARCH LINER COVER PANEL - LH $32.92 To Order
13A5500CP NVH PAD - WHEEL ARCH LINER COVER PANEL - RH $32.92 To Order
Photo Part No Description Price (each) Stock
13A5541CP NVH FRONT SUPPORT - A POST - LOWER $3.24 To Order
Photo Part No Description Price (each) Stock
13A5544CP NVH FRONT SUPPORT - FLOOR FINISHER - LH $20.89 To Order
13A5545CP NVH FRONT SUPPORT - FLOOR FINISHER - RH $20.89 To Order
Photo Part No Description Price (each) Stock
13A5572CP Service Panel - Door Latch - LH $43.32 To Order
13A5575CP Service Panel - Door Latch - RH $43.32 To Order
Photo Part No Description Price (each) Stock
13A5573CP Gasket - Service Panel - Door Latch - LH $19.02 To Order
13A5576CP Gasket - Service Panel - Door Latch - RH $19.02 To Order
Photo Part No Description Price (each) Stock
13A5582CP NVH REAR SUPPORT - BODYSIDE - UPPER - LH $41.92 To Order
13A5583CP NVH REAR SUPPORT - BODYSIDE - UPPER - RH $41.92 To Order
Photo Part No Description Price (each) Stock
13A5533CP NVH REAR SUPPORT - BODYSIDE - LOWER $16.36 To Order
Photo Part No Description Price (each) Stock
13AA681CP Lever - External Key Barrel $30.21 To Order
Photo Part No Description Price (each) Stock
13A6053CP Bracket - Key Barrel - External $17.28 To Order
Photo Part No Description Price (each) Stock
13A6352CP BRACKET - FENDER ADJUSTMENT - REAR - LH $18.45 To Order
13A6353CP BRACKET - FENDER ADJUSTMENT - REAR - RH $18.45 To Order
Photo Part No Description Price (each) Stock
13AA869CP BODYSIDE EXTENSION - REAR - LOWER - LH $139.44 To Order
Photo Part No Description Price (each) Stock
13A6672CP BRACKET - BULKHEAD TO DECK - LH $28.22 To Order
13A6675CP BRACKET - BULKHEAD TO DECK - RH $28.22 To Order
Photo Part No Description Price (each) Stock
00RA429 SCREW - WASHER - M8X24 - BUTTON-HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
13A6753CP PANEL - BODYSIDE TO REAR DECK - LH $314.06 To Order
13A6754CP PANEL - BODYSIDE TO REAR DECK - RH $314.06 To Order
31AA096CP ASSY PNL BDY SD TO DECK MACH - LH $513.92 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A3489CP GROMMET - BULKHEAD TO DECK BRACKET $2.19 To Order
Photo Part No Description Price (each) Stock
00RA305 SCREW - M6X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RG032 Fir Tree Clip - Anixter - 066 6053 Enquire To Order
Photo Part No Description Price (each) Stock
13A5717CP PANEL - ARCH COVER - LH - CARBON $2,323.82 To Order
13A5720CP PANEL - WHEEL ARCH COVER - RH - CARBON $2,323.87 To Order
13A5731CP PANEL - WHEEL ARCH COVER - LH $256.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A6133CP NVH - Wheel Arch Cover Panel to DOP - Upper $9.66 To Order
Photo Part No Description Price (each) Stock
13A6134CP NVH - Wheel Arch Cover Panel to DOP - Lower $5.66 To Order
Photo Part No Description Price (each) Stock
13AA889CP OUTRIGGER - REAR - RH $386.64 To Order
13AA890CP OUTRIGGER - REAR - LH $386.64 To Order
Photo Part No Description Price (each) Stock
13AA632CP COVER - EMERGENCY KEY BARREL $31.27 To Order
Photo Part No Description Price (each) Stock
13AA594CP SKIRT - BODY - 570S - 570GT - LH $644.51 To Order
13AA597CP SKIRT - BODY - 570S - 570GT - RH $644.51 To Order
13A6315CP SKIRT - BODY - 570S - 570GT - CARBON - LH $2,433.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13AA851CP BRKT - CROSS BRACE - REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA542 CLIP - SNAPLOC - 16X8 Enquire To Order
Photo Part No Description Price (each) Stock
13A5615CP CROSS BRACE - CENTRE - UPRIGHT $32.89 To Order
Photo Part No Description Price (each) Stock
13AA020CP BRACKET - CENTRE - CROSS BRACE $86.74 To Order
Photo Part No Description Price (each) Stock
13A5362CP SEAL - CANTRAIL CAPPING PANEL - LH $8.23 To Order
13A5365CP SEAL - CANTRAIL CAPPING PANEL - RH $8.23 To Order
Photo Part No Description Price (each) Stock
13A4063CP Bracket - Cantrail to Door Hinge - LH $19.34 To Order
13A4066CP Bracket - Cantrail to Door Hinge - RH $19.34 To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
13A6307CP COMPLETE - CROSS BRACE - CENTRE $212.01 To Order
Photo Part No Description Price (each) Stock
13AA968MP ASSY AIS INTAKE INFILL PANEL LH $155.26 To Order
13AA969MP ASSY AIS INTAKE INFILL PANEL RH $155.26 To Order
View All
5 - PANELS - 5.3 - BODYSIDE ASSEMBLED of McLaren McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
010 00RA694
BLT-HX HD-FL-M6X1X40-8.8-78
Row ID: ID__00RA694_ContPgHS; Resolution: Available; 		- 10 Enquire
011 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID__00RA409_ContPgHS; Resolution: Available; 		- 1 Enquire
012 13AA868CP
BODYSIDE EXTENSION - REAR - LOWER - RH
Row ID: ID__13AA868CP_ContPgHS; Resolution: Available; 		$139.44 1
014 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID__00RX003_ContPgHS; Resolution: Available; 		- 4 Enquire
015 00RA019
SCREW - M6X12-10.9 - HEX
Row ID: ID__00RA019_ContPgHS; Resolution: Available; 		- 2 Enquire
016 13A4144CP
BRACKET - CANTRAIL FINISHER
Row ID: ID__13A4144CP_ContPgHS; Resolution: Available; 		$16.59 1
017
Row ID: ID__00RA083_ContPgHS; Resolution: Available; 		- 3 Enquire
018 13AA891CP
SUPPORT BRACKET - FENDER - REAR - LH
Row ID: ID__13AA891CP_ContPgHS; Resolution: Available; 		$145.09 1
018 13AA892CP
SUPPORT BRACKET - FENDER - REAR - RH
Row ID: ID__13AA892CP_ContPgHS; Resolution: Available; 		$126.68 1
020 13A4893CP
BRACKET - FENDER SUPPORT - LH
Row ID: ID__13A4893CP_ContPgHS; Resolution: Available; 		$40.60 1
020 13A4894CP
BRACKET - FENDER SUPPORT - RH
Row ID: ID__13A4894CP_ContPgHS; Resolution: Available; 		$40.60 1
022 00RA329
CLIP - M6
Row ID: ID__00RA329_ContPgHS; Resolution: Available; 		- 7 Enquire
023 00RC053
WASHER - M6X2.0MM
Row ID: ID__00RC053_ContPgHS; Resolution: Available; 		- 3 Enquire
024 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID__00RC064_ContPgHS; Resolution: Available; 		- 4 Enquire
025 00RC113
SPACER - NYLON - 6.6X17.45X1.05
Row ID: ID__00RC113_ContPgHS; Resolution: Available; 		- 3 Enquire
026 00RC114
SPACER - NYLON - 6.6X17.45X0.54
Row ID: ID__00RC114_ContPgHS; Resolution: Available; 		- 3 Enquire
027 00RL004
FELT TAPE
Row ID: ID__00RL004_ContPgHS; Resolution: Available; 		- 1 Enquire
028 13AA970CP
PNL BODYSIDE RR LWR LH
Row ID: ID__13AA970CP_ContPgHS; Resolution: Available; 		$723.08 1
028 13AA971CP
PNL BODYSIDE RR LWR RH
Row ID: ID__13AA971CP_ContPgHS; Resolution: Available; 		$735.97 1
030 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 1 Enquire
031 00RB185
Clip - Cantrail Capping Panel
Row ID: ID__00RB185_ContPgHS; Resolution: Available; 		- 7 Enquire
032 13A4665CP
CAPPING PANEL - CANTRAIL - LH
Row ID: ID__13A4665CP_ContPgHS; Resolution: Available; 		$623.54 1
032 13A4662CP
CAPPING PANEL - CANTRAIL - RH
Row ID: ID__13A4662CP_ContPgHS; Resolution: Available; 		$623.54 1
032 13AA686MP
ASSY CAPPING CANTRAIL CARBON - LH
Row ID: ID__13AA686MP_ContPgHS; 		- 1 Enquire
032 13AA693MP
ASSY CAPPING CANTRAIL CARBON - RH
Row ID: ID__13AA693MP_ContPgHS; 		- 1 Enquire
034 00RC043
WASHER - M6XOD25
Row ID: ID__00RC043_ContPgHS; Resolution: Available; 		- 6 Enquire
035 13A3855CP
Floor Trim - LH
Row ID: ID__13A3855CP_ContPgHS; Resolution: Available; 		$203.03 1
035 13A3856CP
Floor Trim - RH
Row ID: ID__13A3856CP_ContPgHS; Resolution: Available; 		$203.03 1
037 13A5498CP
NVH PAD - WHEEL ARCH LINER COVER PANEL - LH
Row ID: ID__13A5498CP_ContPgHS; Resolution: Available; 		$32.92 1
037 13A5500CP
NVH PAD - WHEEL ARCH LINER COVER PANEL - RH
Row ID: ID__13A5500CP_ContPgHS; Resolution: Available; 		$32.92 1
039 13A5541CP
NVH FRONT SUPPORT - A POST - LOWER
Row ID: ID__13A5541CP_ContPgHS; Resolution: Available; 		$3.24 1
040 13A5544CP
NVH FRONT SUPPORT - FLOOR FINISHER - LH
Row ID: ID__13A5544CP_ContPgHS; Resolution: Available; 		$20.89 1
040 13A5545CP
NVH FRONT SUPPORT - FLOOR FINISHER - RH
Row ID: ID__13A5545CP_ContPgHS; Resolution: Available; 		$20.89 1
042 13A5572CP
Service Panel - Door Latch - LH
Row ID: ID__13A5572CP_ContPgHS; Resolution: Available; 		$43.32 1
042 13A5575CP
Service Panel - Door Latch - RH
Row ID: ID__13A5575CP_ContPgHS; Resolution: Available; 		$43.32 1
043 13A5573CP
Gasket - Service Panel - Door Latch - LH
Row ID: ID__13A5573CP_ContPgHS; Resolution: Available; 		$19.02 1
043 13A5576CP
Gasket - Service Panel - Door Latch - RH
Row ID: ID__13A5576CP_ContPgHS; Resolution: Available; 		$19.02 1
046 13A5582CP
NVH REAR SUPPORT - BODYSIDE - UPPER - LH
Row ID: ID__13A5582CP_ContPgHS; Resolution: Available; 		$41.92 1
046 13A5583CP
NVH REAR SUPPORT - BODYSIDE - UPPER - RH
Row ID: ID__13A5583CP_ContPgHS; Resolution: Available; 		$41.92 1
047 13A5533CP
NVH REAR SUPPORT - BODYSIDE - LOWER
Row ID: ID__13A5533CP_ContPgHS; Resolution: Available; 		$16.36 1
049 13AA681CP
Lever - External Key Barrel
Row ID: ID__13AA681CP_ContPgHS; Resolution: Available; 		$30.21 1
050 13A6053CP
Bracket - Key Barrel - External
Row ID: ID__13A6053CP_ContPgHS; Resolution: Available; 		$17.28 1
051 13A6352CP
BRACKET - FENDER ADJUSTMENT - REAR - LH
Row ID: ID__13A6352CP_ContPgHS; Resolution: Available; 		$18.45 1
051 13A6353CP
BRACKET - FENDER ADJUSTMENT - REAR - RH
Row ID: ID__13A6353CP_ContPgHS; Resolution: Available; 		$18.45 1
053 13A6456CP
PANEL - INNER - D POST - LH
Row ID: ID__13A6456CP_ContPgHS; Resolution: Available; 		$183.99 1
053 13A6459CP
PANEL - INNER - D POST - RH
Row ID: ID__13A6459CP_ContPgHS; Resolution: Available; 		$183.99 1
055 13AA869CP
BODYSIDE EXTENSION - REAR - LOWER - LH
Row ID: ID__13AA869CP_ContPgHS; Resolution: Available; 		$139.44 1
056 13A6672CP
BRACKET - BULKHEAD TO DECK - LH
Row ID: ID__13A6672CP_ContPgHS; Resolution: Available; 		$28.22 1
056 13A6675CP
BRACKET - BULKHEAD TO DECK - RH
Row ID: ID__13A6675CP_ContPgHS; Resolution: Available; 		$28.22 1
058 00RA429
SCREW - WASHER - M8X24 - BUTTON-HEX
Row ID: ID__00RA429_ContPgHS; Resolution: Available; 		- 3 Enquire
060 00RA556
BOLT - HEX - FLANGED - M6X16
Row ID: ID__00RA556_ContPgHS; Resolution: Available; 		- 4 Enquire
061 13A6753CP
PANEL - BODYSIDE TO REAR DECK - LH
Row ID: ID__13A6753CP_ContPgHS; Resolution: Available; 		$314.06 1
061 13A6754CP
PANEL - BODYSIDE TO REAR DECK - RH
Row ID: ID__13A6754CP_ContPgHS; Resolution: Available; 		$314.06 1
061 31AA096CP
ASSY PNL BDY SD TO DECK MACH - LH
Row ID: ID__31AA096CP_ContPgHS; Resolution: Available; 		$513.92 1
061 31AA097CP
ASSY PNL BDY SD TO DECK MACH - RH
Row ID: ID__31AA097CP_ContPgHS; Resolution: Available; 		$513.92 1
063 13A3489CP
GROMMET - BULKHEAD TO DECK BRACKET
Row ID: ID__13A3489CP_ContPgHS; Resolution: Available; 		$2.19 2
064 00RA305
SCREW - M6X25 - BUTTON
Row ID: ID__00RA305_ContPgHS; Resolution: Available; 		- 1 Enquire
065 00RG032
Fir Tree Clip - Anixter - 066 6053
Row ID: ID__00RG032_ContPgHS; Resolution: Available; 		- 1 Enquire
066 13A5717CP
PANEL - ARCH COVER - LH - CARBON
Row ID: ID__13A5717CP_ContPgHS; Resolution: Available; 		$2,323.82 1
066 13A5720CP
PANEL - WHEEL ARCH COVER - RH - CARBON
Row ID: ID__13A5720CP_ContPgHS; Resolution: Available; 		$2,323.87 1
066 13A5731CP
PANEL - WHEEL ARCH COVER - LH
Row ID: ID__13A5731CP_ContPgHS; Resolution: Available; 		$256.95 1
066 13A5733CP
PANEL - WHEEL ARCH COVER - RH
Row ID: ID__13A5733CP_ContPgHS; Resolution: Available; 		$256.95 1
068 13A6133CP
NVH - Wheel Arch Cover Panel to DOP - Upper
Row ID: ID__13A6133CP_ContPgHS; Resolution: Available; 		$9.66 1
069 13A6134CP
NVH - Wheel Arch Cover Panel to DOP - Lower
Row ID: ID__13A6134CP_ContPgHS; Resolution: Available; 		$5.66 1
070 13AA889CP
OUTRIGGER - REAR - RH
Row ID: ID__13AA889CP_ContPgHS; Resolution: Available; 		$386.64 1
070 13AA890CP
OUTRIGGER - REAR - LH
Row ID: ID__13AA890CP_ContPgHS; Resolution: Available; 		$386.64 1
071 13AA632CP
COVER - EMERGENCY KEY BARREL
Row ID: ID__13AA632CP_ContPgHS; Resolution: Available; 		$31.27 1
072 13AA594CP
SKIRT - BODY - 570S - 570GT - LH
Row ID: ID__13AA594CP_ContPgHS; Resolution: Available; 		$644.51 1
072 13AA597CP
SKIRT - BODY - 570S - 570GT - RH
Row ID: ID__13AA597CP_ContPgHS; Resolution: Available; 		$644.51 1
072 13A6315CP
SKIRT - BODY - 570S - 570GT - CARBON - LH
Row ID: ID__13A6315CP_ContPgHS; Resolution: Available; 		$2,433.34 1
072 13A6317CP
SKIRT - BODY - 570S - 570GT - CARBON - RH
Row ID: ID__13A6317CP_ContPgHS; Resolution: Available; 		$2,433.34 1
073 00RB194
CLIP - U NUT NPT - M6X0.5-4-MS-78
Row ID: ID__00RB194_ContPgHS; Resolution: Available; 		- 1 Enquire
073 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 4 Enquire
077 13AA851CP
BRKT - CROSS BRACE - REAR - LH
Row ID: ID__13AA851CP_ContPgHS; Resolution: Available; 		- 1 Enquire
079 13A5623CP
COMPLETE CROSS BRACE - REAR - CENTRE
Row ID: ID__13A5623CP_ContPgHS; Resolution: Available; 		$55.27 1
080 00RA542
CLIP - SNAPLOC - 16X8
Row ID: ID__00RA542_ContPgHS; Resolution: Available; 		- 3 Enquire
081 13A5615CP
CROSS BRACE - CENTRE - UPRIGHT
Row ID: ID__13A5615CP_ContPgHS; Resolution: Available; 		$32.89 1
082 13AA020CP
BRACKET - CENTRE - CROSS BRACE
Row ID: ID__13AA020CP_ContPgHS; Resolution: Available; 		$86.74 2
085 13A5362CP
SEAL - CANTRAIL CAPPING PANEL - LH
Row ID: ID__13A5362CP_ContPgHS; Resolution: Available; 		$8.23 1
085 13A5365CP
SEAL - CANTRAIL CAPPING PANEL - RH
Row ID: ID__13A5365CP_ContPgHS; Resolution: Available; 		$8.23 1
086 13A4063CP
Bracket - Cantrail to Door Hinge - LH
Row ID: ID__13A4063CP_ContPgHS; Resolution: Available; 		$19.34 1
086 13A4066CP
Bracket - Cantrail to Door Hinge - RH
Row ID: ID__13A4066CP_ContPgHS; Resolution: Available; 		$19.34 1
091 00RC015
WASHER - M8X24X2
Row ID: ID__00RC015_ContPgHS; Resolution: Available; 		- 2 Enquire
092 13A6307CP
COMPLETE - CROSS BRACE - CENTRE
Row ID: ID__13A6307CP_ContPgHS; Resolution: Available; 		$212.01 1
093 13AA968MP
ASSY AIS INTAKE INFILL PANEL LH
Row ID: ID__13AA968MP_ContPgHS; Resolution: Available; 		$155.26 1
093 13AA969MP
ASSY AIS INTAKE INFILL PANEL RH
Row ID: ID__13AA969MP_ContPgHS; Resolution: Available; 		$155.26 1
094 00RA481
BOLT - HEX HEAD - FLANGED - M8X45
Row ID: ID__00RA481_ContPgHS; Resolution: Available; 		- 4 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
