5 - Panels - 5.2 - Bodyside Bonded

McLaren McLaren 620R

Find Your Part

McLaren McLaren 620R - 5 - PANELS - 5.2 - BODYSIDE BONDED

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13AA987CP BAFFLE MOULDING - B-POST - LH $40.60 To Order
Photo Part No Description Price (each) Stock
13AA988CP BAFFLE MOULDING - B-POST - RH $40.60 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
13AB013CP FENDER - REAR - LH $1,256.23 To Order
Photo Part No Description Price (each) Stock
13AB016CP FENDER - REAR - RH $1,256.23 To Order
Photo Part No Description Price (each) Stock
00RA392 BOLT - HEX HEAD - TUFLOK - M6X20-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
13AA791CP PANEL - DOP - LH $1,538.56 To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL - BODYSIDE REAR LOWER $14.76 To Order
Photo Part No Description Price (each) Stock
13AA793CP PANEL - DOP - RH $1,538.56 To Order
Photo Part No Description Price (each) Stock
13AB076CP PNL CANTRAIL INR FRT LH $80.59 To Order
Photo Part No Description Price (each) Stock
13AB077CP PNL CANTRAIL INR FRT RH $80.59 To Order
View All

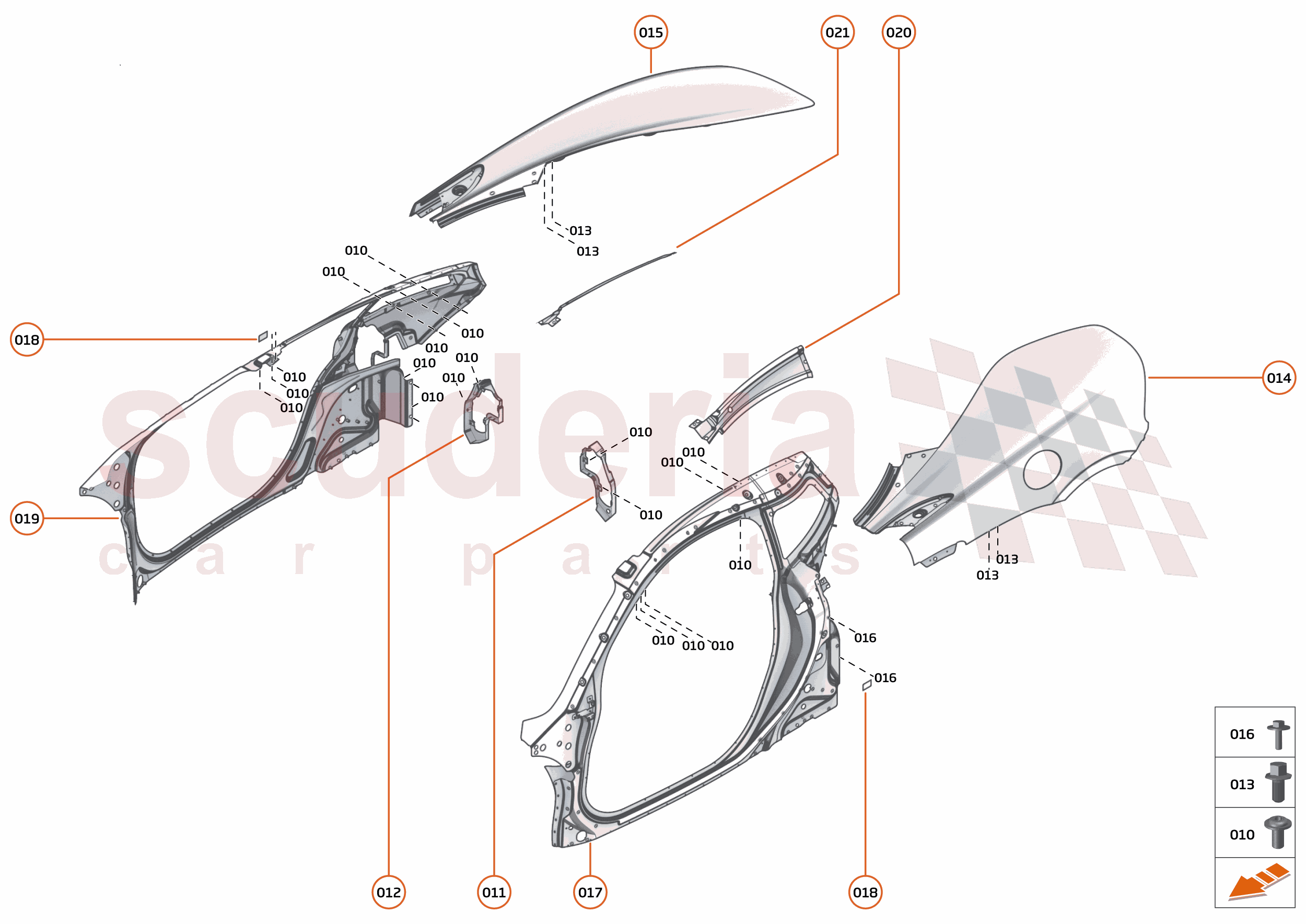

5 - PANELS - 5.2 - BODYSIDE BONDED of McLaren McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 2 Enquire
011 13AA987CP
BAFFLE MOULDING - B-POST - LH
Row ID: ID__13AA987CP_ContPgHS; Resolution: Available; 		$40.60 1
012 13AA988CP
BAFFLE MOULDING - B-POST - RH
Row ID: ID__13AA988CP_ContPgHS; Resolution: Available; 		$40.60 1
013 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
014 13AB013CP
FENDER - REAR - LH
Row ID: ID__13AB013CP_ContPgHS; Resolution: Available; 		$1,256.23 1
015 13AB016CP
FENDER - REAR - RH
Row ID: ID__13AB016CP_ContPgHS; Resolution: Available; 		$1,256.23 1
016 00RA392
BOLT - HEX HEAD - TUFLOK - M6X20-8.8
Row ID: ID__00RA392_ContPgHS; Resolution: Available; 		- 2 Enquire
017 13AA791CP
PANEL - DOP - LH
Row ID: ID__13AA791CP_ContPgHS; Resolution: Available; 		$1,538.56 1
018 11A4758CP
BLACK DECAL - BODYSIDE REAR LOWER
Row ID: ID__11A4758CP_ContPgHS; Resolution: Available; 		$14.76 1
019 13AA793CP
PANEL - DOP - RH
Row ID: ID__13AA793CP_ContPgHS; Resolution: Available; 		$1,538.56 1
020 13AB076CP
PNL CANTRAIL INR FRT LH
Row ID: ID__13AB076CP_ContPgHS; Resolution: Available; 		$80.59 1
021 13AB077CP
PNL CANTRAIL INR FRT RH
Row ID: ID__13AB077CP_ContPgHS; Resolution: Available; 		$80.59 1
