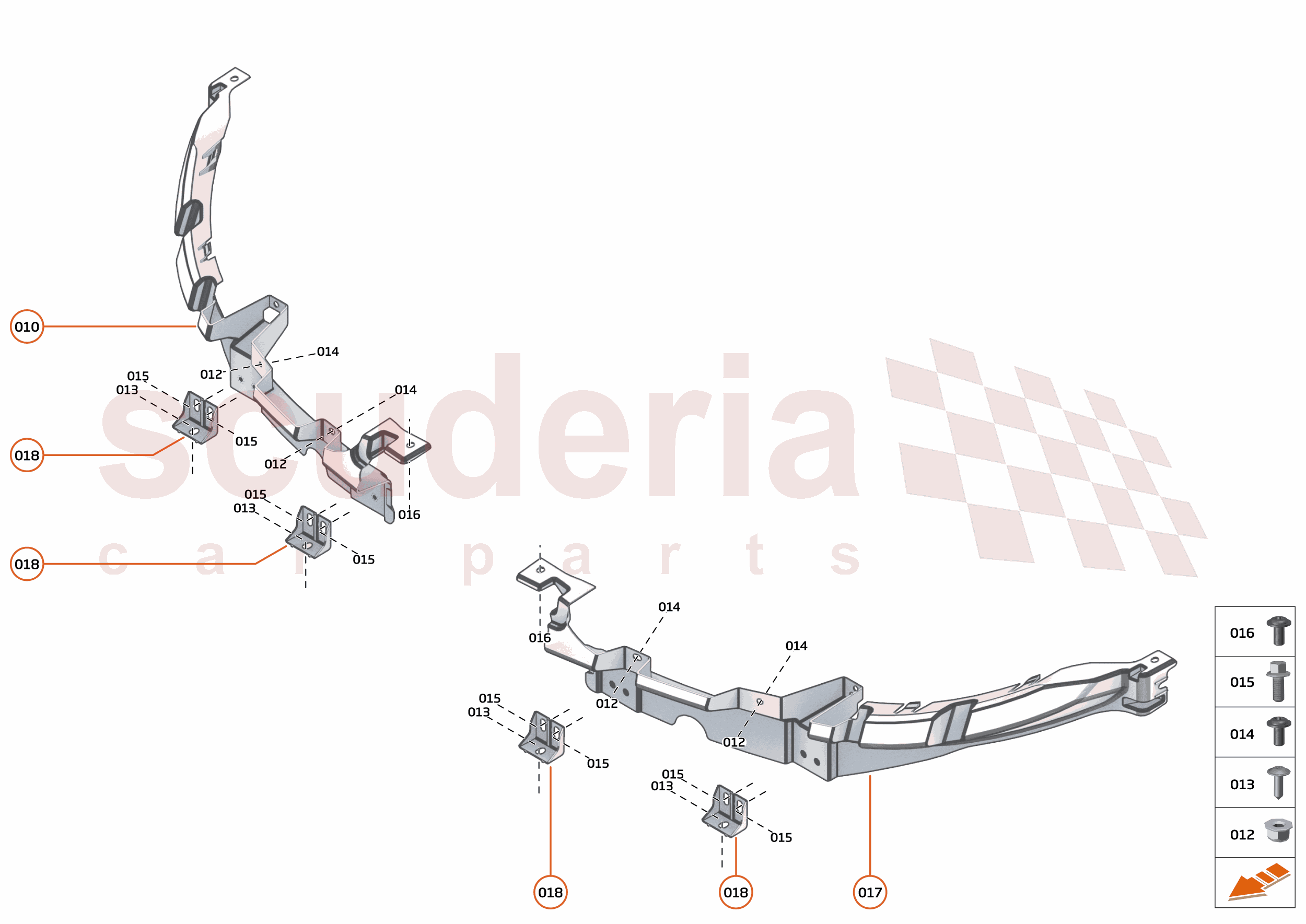

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A6494CP	REAR GRILLE - LH	$84.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA584	SCREW - BUTTON - TORX - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA263	SCREW - M6X20 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6495CP	REAR GRILLE - RH	$84.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6647CP	BRACKET - REAR GRILLE - MOUNTING	$52.87	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13A6494CP	REAR GRILLE - LH	13A6494CP REAR GRILLE - LH Row ID: ID__13A6494CP_ContPgHS; Resolution: Available;	$84.78	1
012	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	2	Enquire
013	00RA584	SCREW - BUTTON - TORX - M6X16	00RA584 SCREW - BUTTON - TORX - M6X16 Row ID: ID__00RA584_ContPgHS; Resolution: Available;	-	2	Enquire
014	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	2	Enquire
015	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID__00RA556_ContPgHS; Resolution: Available;	-	4	Enquire
016	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON Row ID: ID__00RA263_ContPgHS; Resolution: Available;	-	1	Enquire
017	13A6495CP	REAR GRILLE - RH	13A6495CP REAR GRILLE - RH Row ID: ID__13A6495CP_ContPgHS; Resolution: Available;	$84.78	1
018	13A6647CP	BRACKET - REAR GRILLE - MOUNTING	13A6647CP BRACKET - REAR GRILLE - MOUNTING Row ID: ID__13A6647CP_ContPgHS; Resolution: Available;	$52.87	2
