8 - EXTERIOR ORNAMENTATION - 8.4 - FILLER BOWLS AND COVERS of McLaren McLaren McLaren 620R

View All

McLaren McLaren 620R - 8 - EXTERIOR ORNAMENTATION - 8.4 - FILLER BOWLS AND COVERS

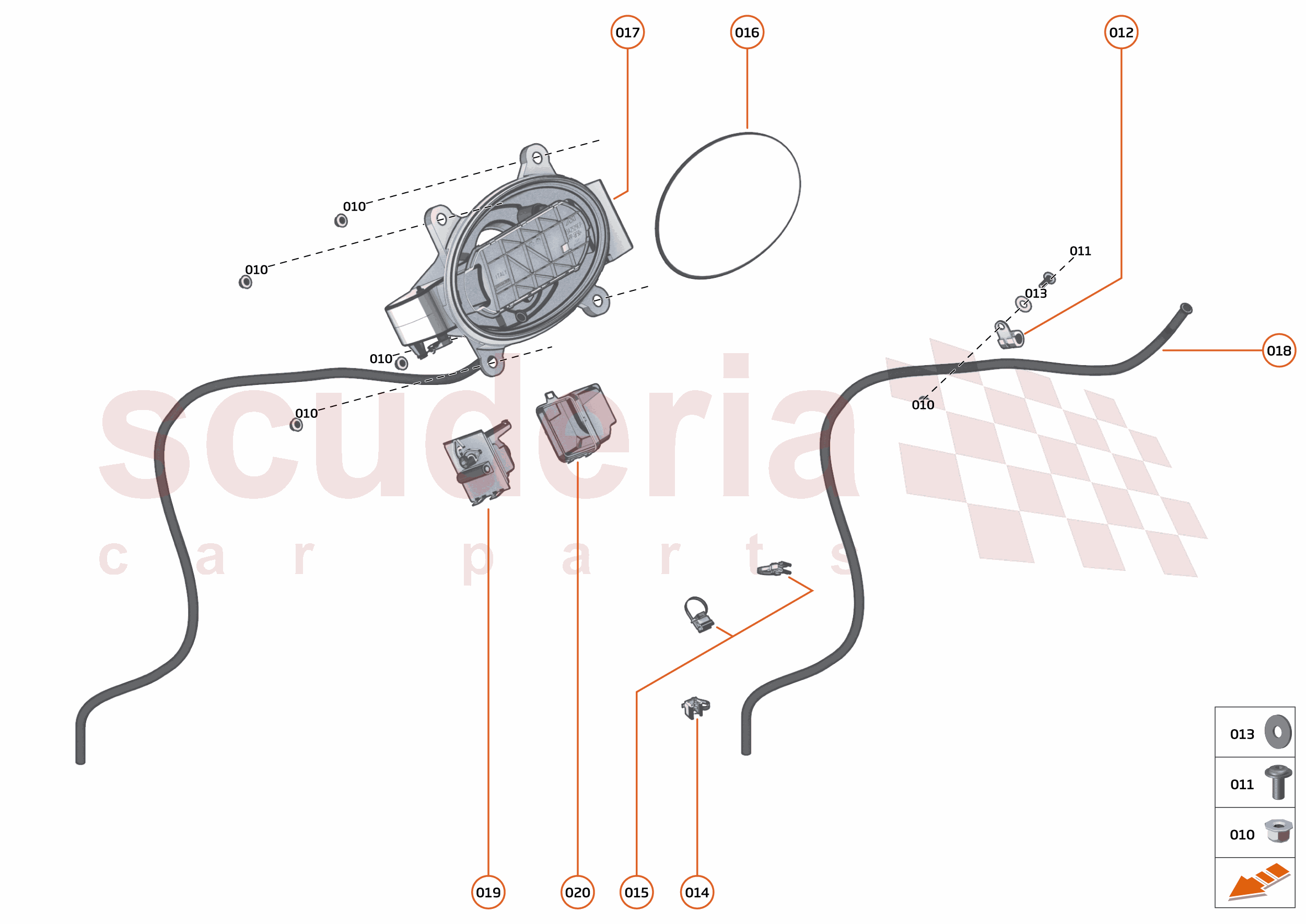

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL022	EDGE CLIP - 202X4.6MM - INLINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A2531CP	FLAP - FUEL FILLER	$82.92	To Order

Photo	Part No	Description	Price (each)	Stock
	13AB064CP	ASSY - FUEL FILLER	$258.26	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5198CP	FUEL FILLER DRAINAGE HOSE	$177.65	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3932CP	ACTUATOR - FUEL FILLER	$79.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3933CP	HEATSHIELD - ACTUATOR HELLA	$55.28	To Order
	13A5208CP	HEATSHIELD - ACTUATOR HELLA	$44.52	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	5	Enquire
011	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6 Row ID: ID__00RB027_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RL022	EDGE CLIP - 202X4.6MM - INLINE	00RL022 EDGE CLIP - 202X4.6MM - INLINE Row ID: ID__00RL022_ContPgHS; Resolution: Available;	-	2	Enquire
016	13A2531CP	FLAP - FUEL FILLER	13A2531CP FLAP - FUEL FILLER Row ID: ID__13A2531CP_ContPgHS; Resolution: Available;	$82.92	1
017	13AB064CP	ASSY - FUEL FILLER	13AB064CP ASSY - FUEL FILLER Row ID: ID__13AB064CP_ContPgHS; Resolution: Available;	$258.26	1
018	13A5198CP	FUEL FILLER DRAINAGE HOSE	13A5198CP FUEL FILLER DRAINAGE HOSE Row ID: ID__13A5198CP_ContPgHS; Resolution: Available;	$177.65	1
019	13A3932CP	ACTUATOR - FUEL FILLER	13A3932CP ACTUATOR - FUEL FILLER Row ID: ID__13A3932CP_ContPgHS; Resolution: Available;	$79.95	1
020	13A3933CP	HEATSHIELD - ACTUATOR HELLA	13A3933CP HEATSHIELD - ACTUATOR HELLA Row ID: ID__13A3933CP_ContPgHS; Resolution: Available;	$55.28	1
020	13A5208CP	HEATSHIELD - ACTUATOR HELLA	13A5208CP HEATSHIELD - ACTUATOR HELLA Row ID: ID__13A5208CP_ContPgHS; Resolution: Available;	$44.52	1
021	00RC113	SPACER - NYLON - 6.6X17.45X1.05	00RC113 SPACER - NYLON - 6.6X17.45X1.05 Row ID: ID__00RC113_ContPgHS; Resolution: Available;	-	4	Enquire
