8 - EXTERIOR ORNAMENTATION - 8.1 - FRONT BUMPER of McLaren McLaren McLaren 620R

View All

McLaren McLaren 620R - 8 - EXTERIOR ORNAMENTATION - 8.1 - FRONT BUMPER

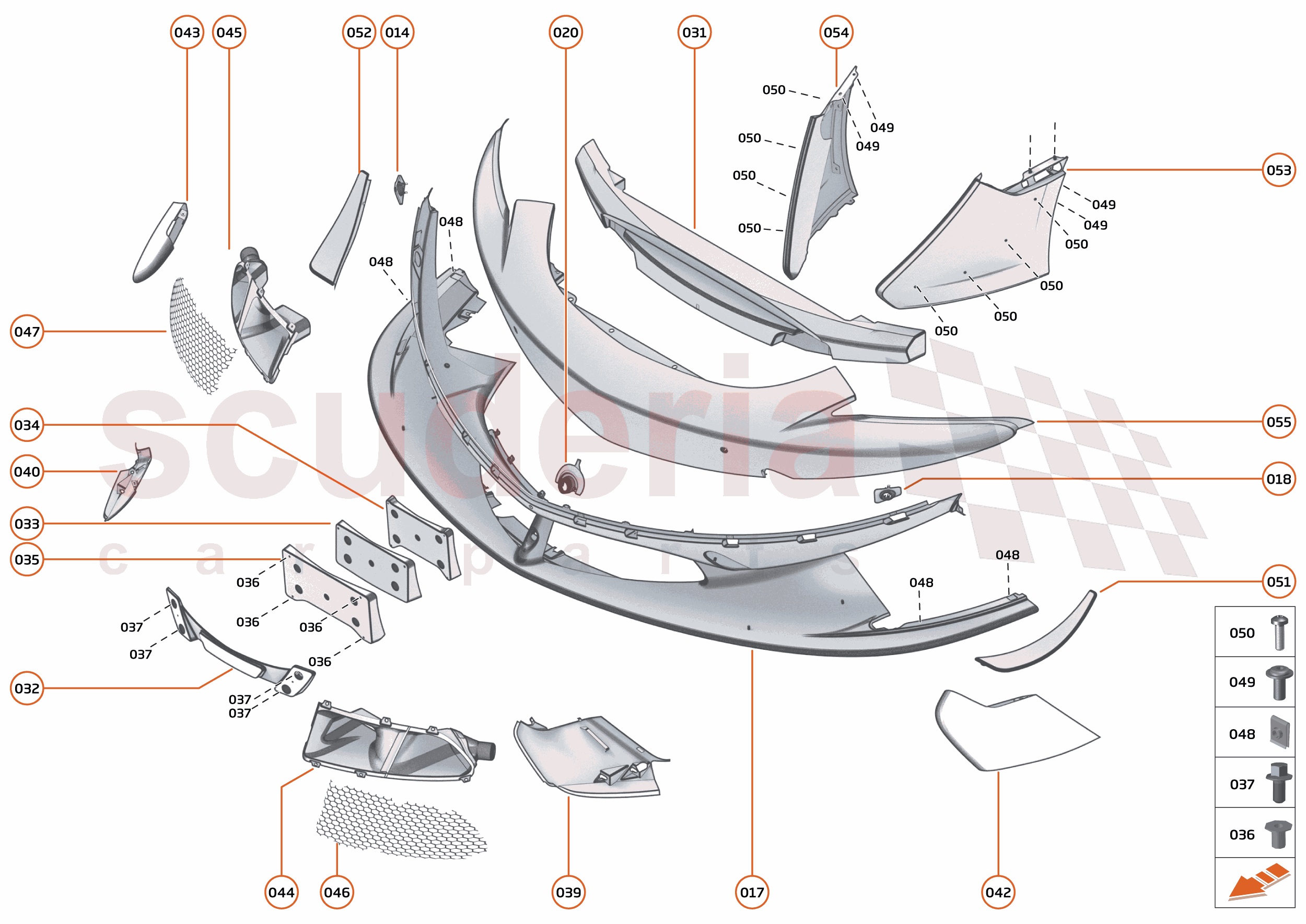

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A6106CP	BRACKET - PARKING SENSOR - FRONT - 4 - 540C	$43.57	To Order

Photo	Part No	Description	Price (each)	Stock
	31AA027CP	ASSY FRONT SPLITTER	$42,926.60	To Order
	31AA171CP	ASSY PANEL FRONT SPLITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6105CP	BRACKET - PARKING SENSOR - FRONT - 1 - 540C	$43.57	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3198CP	BRACKET - CAMERA - 540C	$28.15	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA112	TORX SCREW-WASHER 4.2X16	00RA112 TORX SCREW-WASHER 4.2X16 Row ID: ID__00RA112_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Row ID: ID__00RB006_ContPgHS; Resolution: Available;	-	-	Enquire
013	00RA263	SCREW - M6X20 - BUTTON	00RA263 SCREW - M6X20 - BUTTON Row ID: ID__00RA263_ContPgHS; Resolution: Available;	-	2	Enquire
014	13A6106CP	BRACKET - PARKING SENSOR - FRONT - 4 - 540C	13A6106CP BRACKET - PARKING SENSOR - FRONT - 4 - 540C Row ID: ID__13A6106CP_ContPgHS; Resolution: Available;	$43.57	1
017	31AA027CP	ASSY FRONT SPLITTER	31AA027CP ASSY FRONT SPLITTER Row ID: ID__31AA027CP_ContPgHS; Resolution: Available;	$42,926.60	1
017	31AA171CP	ASSY PANEL FRONT SPLITTER	31AA171CP ASSY PANEL FRONT SPLITTER Row ID: ID__31AA171CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	13A6105CP	BRACKET - PARKING SENSOR - FRONT - 1 - 540C	13A6105CP BRACKET - PARKING SENSOR - FRONT - 1 - 540C Row ID: ID__13A6105CP_ContPgHS; Resolution: Available;	$43.57	1
020	13A3198CP	BRACKET - CAMERA - 540C	13A3198CP BRACKET - CAMERA - 540C Row ID: ID__13A3198CP_ContPgHS; Resolution: Available;	$28.15	1
027	00RB174	CLIP - U-NUT - M6	00RB174 CLIP - U-NUT - M6 Row ID: ID__00RB174_ContPgHS; Resolution: Available;	-	2	Enquire
027	00RB194	CLIP - U NUT NPT - M6X0.5-4-MS-78	00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Row ID: ID__00RB194_ContPgHS; Resolution: Available;	-	1	Enquire
