34 - Engine - 34.3 - Inlet Manifold

McLaren McLaren 600LT Spider

Find Your Part

McLaren McLaren 600LT Spider - 34 - ENGINE - 34.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1776CP Bolt - M6x30 - Engine $9.55 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
13F0654CP HOSE - BRAKE VACUUM $77.30 To Order
Photo Part No Description Price (each) Stock
13F0741CP CLIP - BRAKE VACUUM - FEMALE 030252 $2.85 To Order
Photo Part No Description Price (each) Stock
13F0742CP CLIP - BRAKE VACUUM - MALE 030398 $1.94 To Order
Photo Part No Description Price (each) Stock
11F1794CP Screw - M6x25 Hex $7.37 To Order
Photo Part No Description Price (each) Stock
11F1798CP SCREW - M5X25 - SELF TAPPING $4.28 To Order
Photo Part No Description Price (each) Stock
11F1799CP Bolt - M6x60 - Engine $3.98 To Order
Photo Part No Description Price (each) Stock
11F2298CP INTAKE SOUND GENERATOR - THROTTLE $1,024.09 To Order
Photo Part No Description Price (each) Stock
13F0729CP BRACKET - ISG THROTTLE $387.02 To Order
Photo Part No Description Price (each) Stock
13F0862CP TUBE - INTAKE SOUND GENERATOR TO - INTAKE MANIFOLD $48.56 To Order
Photo Part No Description Price (each) Stock
13F0865CP O-RING - ISG TUBE $6.13 To Order
Photo Part No Description Price (each) Stock
11F0967CP Seal Set - Inlet Manifold - Engine $171.68 To Order
Photo Part No Description Price (each) Stock
11F1740CP Throttle Body - Engine $752.39 To Order
Photo Part No Description Price (each) Stock
11F2289CP Seal - Throttle Body - Engine $33.23 To Order
Photo Part No Description Price (each) Stock
11F0820CP Bolt Set - M6x45 - Engine - Throttle Body Enquire To Order
Photo Part No Description Price (each) Stock
11F2290CP Seal - Intake Sound Generator - Throttle Body - Engine $24.93 To Order
Photo Part No Description Price (each) Stock
13F0791CP Blanking Plug - Intake Sound Generator $25.96 To Order
View All

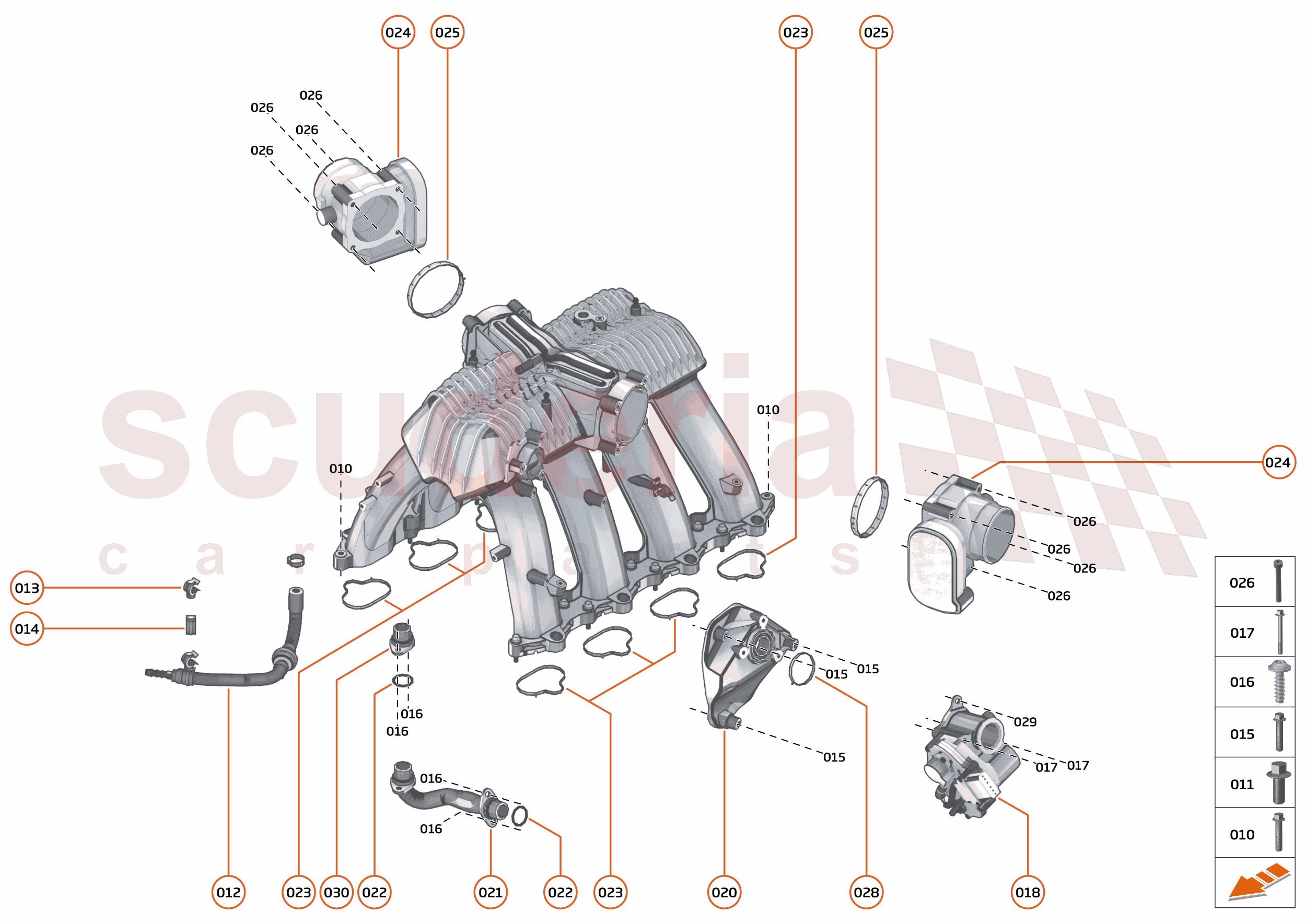

34 - ENGINE - 34.3 - INLET MANIFOLD of McLaren McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1776CP
Bolt - M6x30 - Engine
Row ID: ID_CEFA0109_11F1776CP_ContPgHS; Resolution: Available; 		$9.55 18
011 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_CEFA0139_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 11
012 13F0654CP
HOSE - BRAKE VACUUM
Row ID: ID_CEFA0149_13F0654CP_ContPgHS; Resolution: Available; 		$77.30 1
013 13F0741CP
CLIP - BRAKE VACUUM - FEMALE 030252
Row ID: ID_CEFA01E0_13F0741CP_ContPgHS; Resolution: Available; 		$2.85 1
014 13F0742CP
CLIP - BRAKE VACUUM - MALE 030398
Row ID: ID_CEFA01E1_13F0742CP_ContPgHS; Resolution: Available; 		$1.94 1
015 11F1794CP
Screw - M6x25 Hex
Row ID: ID_CEFA0148_11F1794CP_ContPgHS; Resolution: Available; 		$7.37 3
016 11F1798CP
SCREW - M5X25 - SELF TAPPING
Row ID: ID_CEFA0145_11F1798CP_ContPgHS; Resolution: Available; 		$4.28 4
017 11F1799CP
Bolt - M6x60 - Engine
Row ID: ID_CEFA01F3_11F1799CP_ContPgHS; Resolution: Available; 		$3.98 2
018 11F2298CP
INTAKE SOUND GENERATOR - THROTTLE
Row ID: ID_CEFA0140_11F2298CP_ContPgHS; Resolution: Available; 		$1,024.09 1
019 13F0664CP
INLET MANIFOLD - ASSEMBLY
Row ID: ID_CEFA0133_13F0664CP_ContPgHS; Resolution: Available; 		$607.59 1
020 13F0729CP
BRACKET - ISG THROTTLE
Row ID: ID_CEFA0147_13F0729CP_ContPgHS; Resolution: Available; 		$387.02 1
021 13F0862CP
TUBE - INTAKE SOUND GENERATOR TO - INTAKE MANIFOLD
Row ID: ID_CEFA0143_13F0862CP_ContPgHS; Resolution: Available; 		$48.56 1
022 13F0865CP
O-RING - ISG TUBE
Row ID: ID_CEFA0144_13F0865CP_ContPgHS; Resolution: Available; 		$6.13 2
023 11F0967CP
Seal Set - Inlet Manifold - Engine
Row ID: ID_CEFA0134_11F0967CP_ContPgHS; Resolution: Available; 		$171.68 1
024 11F1740CP
Throttle Body - Engine
Row ID: ID_CEFA0135_11F1740CP_ContPgHS; Resolution: Available; 		$752.39 2
025 11F2289CP
Seal - Throttle Body - Engine
Row ID: ID_CEFA0136_11F2289CP_ContPgHS; Resolution: Available; 		$33.23 2
026 11F0820CP
Bolt Set - M6x45 - Engine - Throttle Body
Row ID: ID_CEFA0137_11F0820CP_ContPgHS; Resolution: Available; 		- 8 Enquire
028 11F2290CP
Seal - Intake Sound Generator - Throttle Body - Engine
Row ID: ID_CEFA0141_11F2290CP_ContPgHS; Resolution: Available; 		$24.93 1
030 13F0791CP
Blanking Plug - Intake Sound Generator
Row ID: ID_CEFA0146_13F0791CP_ContPgHS; Resolution: Available; 		$25.96 1
031 13FA043SP
NVH COVER - PLENUM
Row ID: ID__13FA043SP_ContPgHS; Resolution: Available; 		$299.78 1
