34 - Engine - 34.11 - Engine Oil Pump & Circuit

McLaren McLaren 600LT Spider

Find Your Part

McLaren McLaren 600LT Spider - 34 - ENGINE - 34.11 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11FA008CP OIL PUMP - ENGINE $2,061.56 To Order
Photo Part No Description Price (each) Stock
11F2804CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $174.67 To Order
Photo Part No Description Price (each) Stock
11F2806CP O -RING - OIL DRAIN - TURBO - 16X2 $7.09 To Order
Photo Part No Description Price (each) Stock
11F2805CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH $395.60 To Order
Photo Part No Description Price (each) Stock
13F0754CP DRAIN TUBE - OIL TANK $306.04 To Order
Photo Part No Description Price (each) Stock
13F0756CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $131.26 To Order
Photo Part No Description Price (each) Stock
13F0825CP Gasket - Turbocharger - Oil Return Hose $7.05 To Order
Photo Part No Description Price (each) Stock
00RB091 OETIKER CLIP - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.06 To Order
Photo Part No Description Price (each) Stock
11F1030CP Seal Kit - Oil Pump to Block - Engine $75.95 To Order
Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $24.37 To Order
Photo Part No Description Price (each) Stock
13F0762CP Bolt - Hollow - M12 $32.23 To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
View All

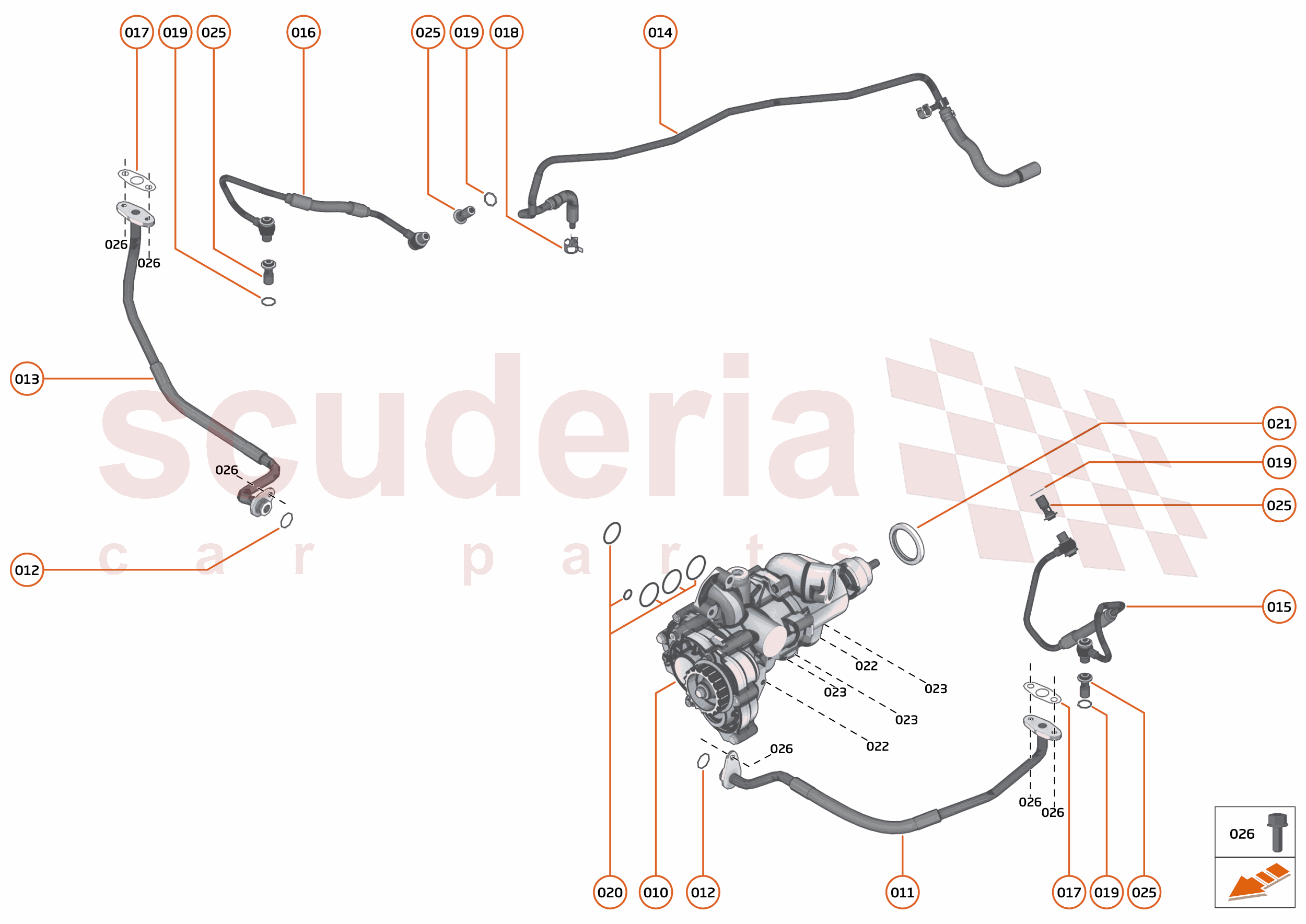

34 - ENGINE - 34.11 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11FA008CP
OIL PUMP - ENGINE
Row ID: ID_CEFC0414_11FA008CP_ContPgHS; Resolution: Available; 		$2,061.56 1
011 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Row ID: ID_CEFC0413_11F2804CP_ContPgHS; Resolution: Available; 		$174.67 1
012 11F2806CP
O -RING - OIL DRAIN - TURBO - 16X2
Row ID: ID_CEFC0402_11F2806CP_ContPgHS; Resolution: Available; 		$7.09 1
013 11F2805CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Row ID: ID_CEFC0403_11F2805CP_ContPgHS; Resolution: Available; 		$395.60 1
014 13F0754CP
DRAIN TUBE - OIL TANK
Row ID: ID_CEFC0406_13F0754CP_ContPgHS; Resolution: Available; 		$306.04 1
015 13F0755CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH
Row ID: ID_CEFC0412_13F0755CP_ContPgHS; Resolution: Available; 		$213.24 1
016 13F0756CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH
Row ID: ID_CEFC0404_13F0756CP_ContPgHS; Resolution: Available; 		$131.26 1
017 13F0825CP
Gasket - Turbocharger - Oil Return Hose
Row ID: ID_CEFC0401_13F0825CP_ContPgHS; Resolution: Available; 		$7.05 2
018 00RB091
OETIKER CLIP - 18.5
Row ID: ID_CEFC0407_00RB091_ContPgHS; Resolution: Available; 		- 2 Enquire
019 11F1131CP
Banjo Washer - Turbo Oil Feed
Row ID: ID_CEFC0405_11F1131CP_ContPgHS; Resolution: Available; 		$6.06 8
020 11F1030CP
Seal Kit - Oil Pump to Block - Engine
Row ID: ID_CEFC0408_11F1030CP_ContPgHS; Resolution: Available; 		$75.95 1
021 11F0690CP
Seal - Engine Oil Pump
Row ID: ID_CEFC0409_11F0690CP_ContPgHS; Resolution: Available; 		$24.37 1
025 13F0762CP
Bolt - Hollow - M12
Row ID: ID_CEFD0137_13F0762CP_ContPgHS; Resolution: Available; 		$32.23 4
026 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID_CEFA0118_11F1792CP_ContPgHS; Resolution: Available; 		$12.08 6
