McLaren McLaren 600LT Spider - 32 - FLUIDS - HVAC - 32.1 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $410.54 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4262CP HOSE - RECEIVER DRIER TO HVAC - FRONT - HVAC $346.34 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13A4103CP HOSE - CONDENSER TO RECEIVER DRIER $241.84 To Order
Photo Part No Description Price (each) Stock
13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR $306.04 To Order
Photo Part No Description Price (each) Stock
13A3613CP HOSE - CONDENSER LATERAL - LH - HVAC $219.44 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A3619CP HOSE - COMPRESSOR TO CONDENSER - HVAC $171.68 To Order
13A5948CP HOSE - COMPRESSOR TO CONDENSER - HVAC - R1234YF $171.68 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
13AA233CP HOSE - COMPRESSOR - REAR - HVAC $253.78 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
13A4880CP HOSE - CONDENSER LATERAL - RH - HVAC $223.93 To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A4593CP SPACER - PIPE - HVAC $23.87 To Order
Photo Part No Description Price (each) Stock
13A6118CP HOSE - HEATER TO PUMP - HVAC $295.58 To Order
Photo Part No Description Price (each) Stock
13AA400CP HOSE - HEATER TO ENGINE - INCLUDING VALVE $223.93 To Order
View All

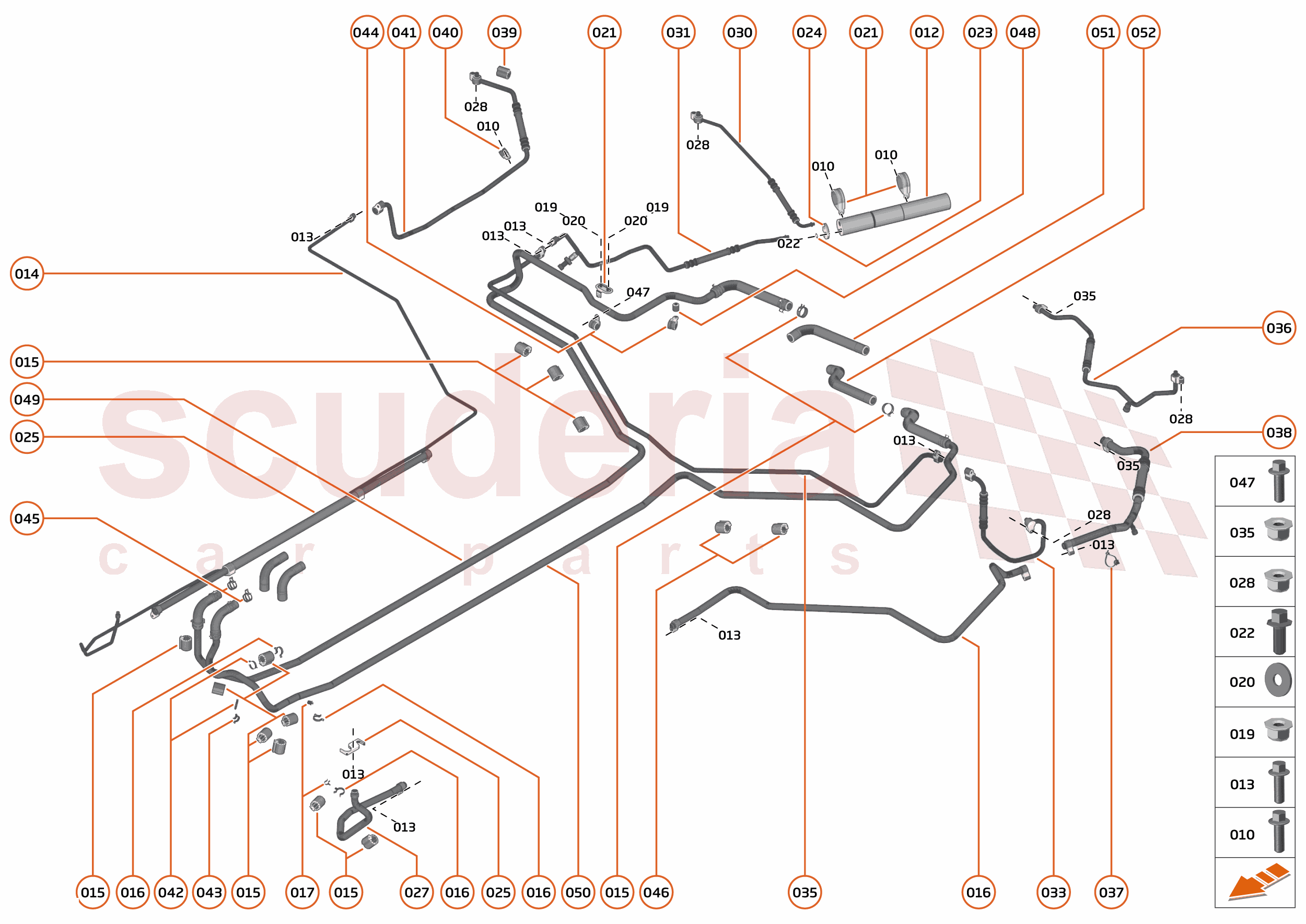

32 - FLUIDS - HVAC - 32.1 - HVAC FLUIDS CIRCUIT of McLaren McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A5906CP
O-Ring - HVAC - PA439-D0250 - 6.7 x 1.8
Row ID: ID__11A5906CP_ContPgHS; Resolution: Available; 		$7.63 1
000 11A5909CP
O-Ring - HVAC - PA439-D0160 - 7.65 x 1.78
Row ID: ID__11A5909CP_ContPgHS; Resolution: Available; 		$6.79 1
000 11A5911CP
O-Ring - HVAC - PA439-D0051 - 13.4 x 2.4
Row ID: ID__11A5911CP_ContPgHS; Resolution: Available; 		$6.79 1
000 11A5912CP
O-Ring - HVAC - PA439-D1290 - 13.75 x 2.50
Row ID: ID__11A5912CP_ContPgHS; Resolution: Available; 		$8.74 1
- 00RA075
NUT - M8-8 - HEX
Row ID: ID_CDLC0127_00RA075_ContPgHS; Resolution: Available; 		- 1 Enquire
010 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_CDCC0205_00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
011 00RB029
P CLIP - DIA 45-M6
Row ID: ID_CDKA0307_00RB029_ContPgHS; Resolution: Available; 		- 2 Enquire
012 12A2757CP
RECEIVER DRIER - HVAC
Row ID: ID_CDLC0120_12A2757CP_ContPgHS; Resolution: Available; 		$410.54 1
013 00RA120
SCREW - M6X25 - HEX
Row ID: ID_CDDA0102_00RA120_ContPgHS; Resolution: Available; 		- 1 Enquire
014 11A4262CP
HOSE - RECEIVER DRIER TO HVAC - FRONT - HVAC
Row ID: ID_CDLC0115_11A4262CP_ContPgHS; Resolution: Available; 		$346.34 1
015 00RA367
PIPE PROTECTOR - 19MM ID
Row ID: ID_CDDA0125_00RA367_ContPgHS; Resolution: Available; 		- 2 Enquire
016 00RB007
CLIP - 18-20MM - FEMALE
Row ID: ID_CDCC0306_00RB007_ContPgHS; Resolution: Available; 		- 1 Enquire
029 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID_CDCC0304_00RA366_ContPgHS; Resolution: Available; 		- 1 Enquire
030 13A4103CP
HOSE - CONDENSER TO RECEIVER DRIER
Row ID: ID_CDLC0126_13A4103CP_ContPgHS; Resolution: Available; 		$241.84 1
031 13A4104CP
HOSE - RECEIVER DRIER - HVAC - REAR
Row ID: ID_CDLC0119_13A4104CP_ContPgHS; Resolution: Available; 		$306.04 1
032 11A6627CP
SENSOR - PRESSURE - HVAC
Row ID: ID__11A6627CP_ContPgHS; Resolution: Available; 		$283.92 1
033 13A3613CP
HOSE - CONDENSER LATERAL - LH - HVAC
Row ID: ID_CDLC0141_13A3613CP_ContPgHS; Resolution: Available; 		$219.44 1
034 13A3615CP
HOSE - CONDENSER LATERAL - CENTRE - HVAC
Row ID: ID_CDLC0140_13A3615CP_ContPgHS; Resolution: Available; 		$126.61 1
035 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_CDLC0146_00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
036 13A3619CP
HOSE - COMPRESSOR TO CONDENSER - HVAC
Row ID: ID_CDLC0148_13A3619CP_ContPgHS; Resolution: Available; 		$171.68 1
036 13A5948CP
HOSE - COMPRESSOR TO CONDENSER - HVAC - R1234YF
Row ID: ID_CDLC0153_13A5948CP_ContPgHS; Resolution: Available; 		$171.68 1
037 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID_CDLC0147_00RL001_ContPgHS; Resolution: Available; 		- 1 Enquire
038 13AA233CP
HOSE - COMPRESSOR - REAR - HVAC
Row ID: ID_CDLC0145_13AA233CP_ContPgHS; Resolution: Available; 		$253.78 1
039 00RA357
PIPE PROTECTOR
Row ID: ID_CDLB0106_00RA357_ContPgHS; Resolution: Available; 		- 1 Enquire
040 00RB005
P CLIP - DIA 16
Row ID: ID_CDLA0114_00RB005_ContPgHS; Resolution: Available; 		- 1 Enquire
041 13A4880CP
HOSE - CONDENSER LATERAL - RH - HVAC
Row ID: ID_CDLC0142_13A4880CP_ContPgHS; Resolution: Available; 		$223.93 1
042 00RB008
CLIP - 18-20MM - MALE
Row ID: ID_CDDA0121_00RB008_ContPgHS; Resolution: Available; 		- 2 Enquire
043 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID_CDCC0309_00RB032_ContPgHS; Resolution: Available; 		- 1 Enquire
044 00RB060
P CLIP - DIA 20
Row ID: ID_CDLC0134_00RB060_ContPgHS; Resolution: Available; 		- 2 Enquire
045 00RB130
CLIP - SPRING BAND - 22/12
Row ID: ID_CDLC0130_00RB130_ContPgHS; Resolution: Available; 		- 1 Enquire
046 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID_CDLA0116_00RB202_ContPgHS; Resolution: Available; 		- 1 Enquire
046 00RB145
CLAMP - SPRING BAND - 26/12
Row ID: ID_CDLC0131_00RB145_ContPgHS; Resolution: Available; 		- 1 Enquire
047 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CDBB0312_00RX001_ContPgHS; Resolution: Available; 		- 1 Enquire
048 11A4593CP
SPACER - PIPE - HVAC
Row ID: ID_CDLC0139_11A4593CP_ContPgHS; Resolution: Available; 		$23.87 1
049 13A6118CP
HOSE - HEATER TO PUMP - HVAC
Row ID: ID_CDLC0129_13A6118CP_ContPgHS; Resolution: Available; 		$295.58 1
050 13AA400CP
HOSE - HEATER TO ENGINE - INCLUDING VALVE
Row ID: ID_CDLC0158_13AA400CP_ContPgHS; Resolution: Available; 		$223.93 1
