29 - Fuel System - 29.2 - Fuel Delivery

McLaren McLaren 600LT Spider

Find Your Part

McLaren McLaren 600LT Spider - 29 - FUEL SYSTEM - 29.2 - FUEL DELIVERY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13K0026CP PIPE - FUEL FEED - TANK TO BAY $61.10 To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB141 Swivel Clip - Female CSC9 Enquire To Order
Photo Part No Description Price (each) Stock
13K0027CP PIPE - FUEL FEED - BAY TO ENGINE $73.53 To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
13K0109CP CONTROLLER - DUAL FUEL PUMP $361.64 To Order
View All

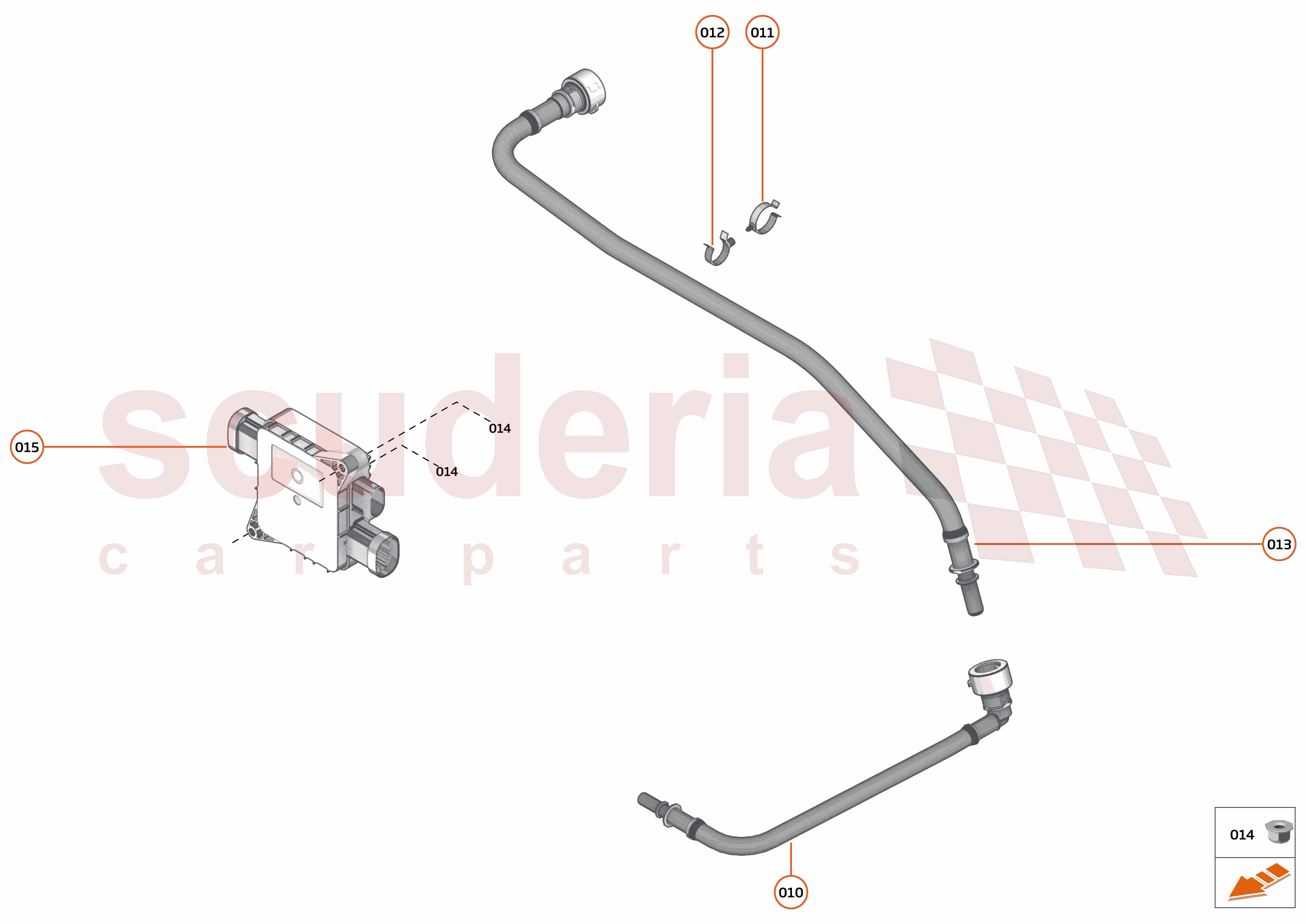

29 - FUEL SYSTEM - 29.2 - FUEL DELIVERY of McLaren McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13K0026CP
PIPE - FUEL FEED - TANK TO BAY
Row ID: ID_CDKB0204_13K0026CP_ContPgHS; Resolution: Available; 		$61.10 1
011 00RB008
CLIP - 18-20MM - MALE
Row ID: ID_CDDA0121_00RB008_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RB141
Swivel Clip - Female CSC9
Row ID: ID_CDKB0202_00RB141_ContPgHS; Resolution: Available; 		- 1 Enquire
013 13K0027CP
PIPE - FUEL FEED - BAY TO ENGINE
Row ID: ID_CDKB0201_13K0027CP_ContPgHS; Resolution: Available; 		$73.53 1
014 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID_CDBC0104_00RA555_ContPgHS; Resolution: Available; 		- 2 Enquire
015 13K0109CP
CONTROLLER - DUAL FUEL PUMP
Row ID: ID_CDKB0205_13K0109CP_ContPgHS; Resolution: Available; 		$361.64 1
