27 - STEERING - 27.4 - STEERING COLUMN of McLaren McLaren McLaren 600LT Spider

View All

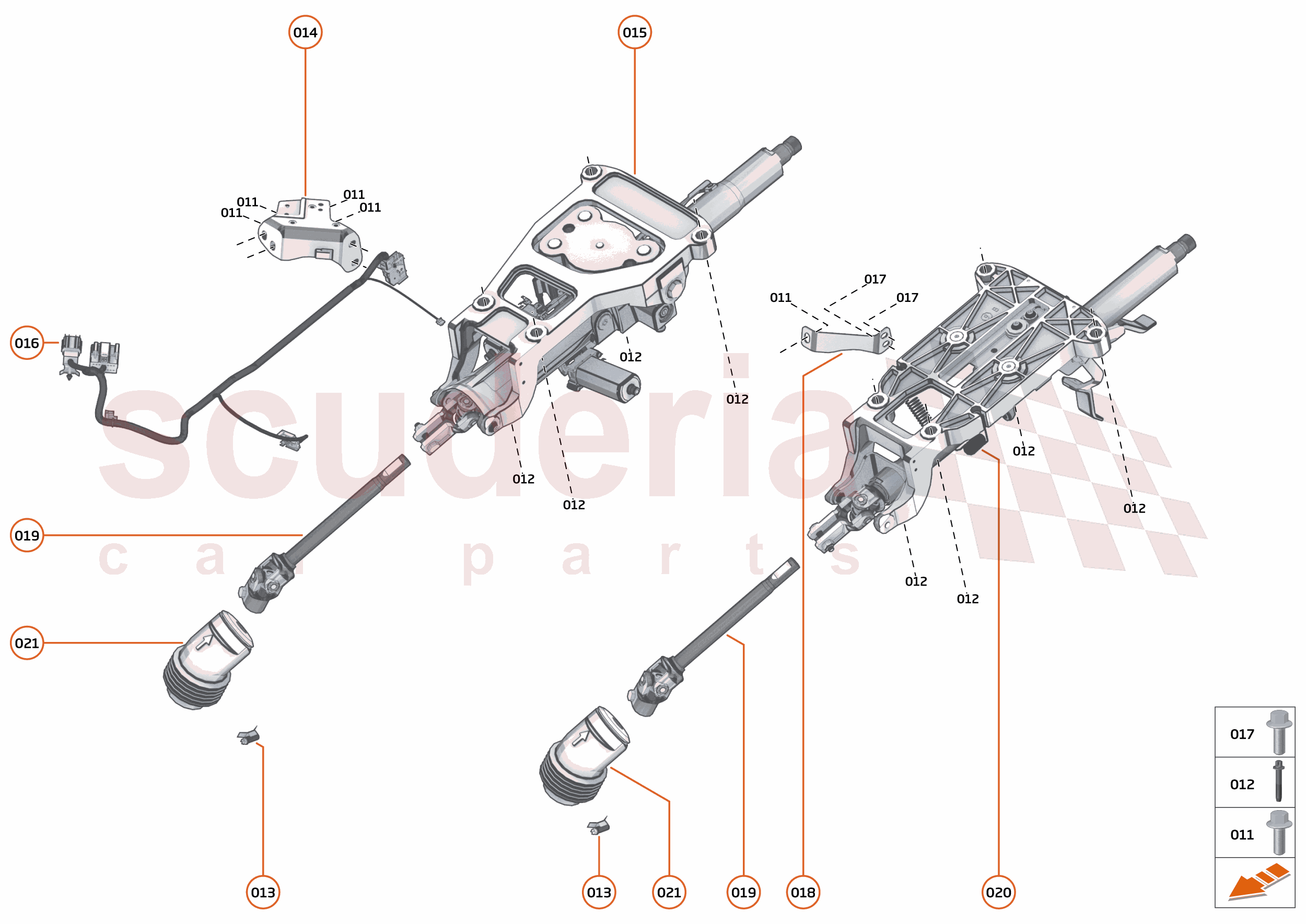

McLaren McLaren 600LT Spider - 27 - STEERING - 27.4 - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA510	Bolt - Torx Head - Flange - M8X1.25X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB049	Hose Clamp - 40-60mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0192CP	Bracket - Electric Steering Column - NVH - LH	$176.15	To Order
	11D0193CP	Bracket - Electric Steering Column - NVH - RH	$176.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0083RP	STEERING COLUMN - UPPER - ELECTRIC - LHD	Enquire	To Order
	11D0138RP	STEERING COLUMN - UPPER - ELECTRIC - RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M3065CP	WIRING HARNESS - ELECTRIC STEERING COLUMN	$675.70	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11N3514CP	BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN	Enquire	To Order
	11N3515CP	BRACKET - FACIA NVH SUPPORT - RHD - MANUALCOLUMN	$146.64	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0244RP	STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S	$266.91	To Order
	11D0245RP	STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S-540C-720S	$238.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13DA023RP	STEERING COLUMN - MANUAL - UPPER	Enquire	To Order
	13DA001CP	Steering Column - Manual - Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0254CP	Gaiter - Steering Column - Joint	$21.18	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID_CDDA0102_00RA120_ContPgHS; Resolution: Available;	-	2	Enquire
011	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID_CDCC0205_00RA313_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RA510	Bolt - Torx Head - Flange - M8X1.25X45	00RA510 Bolt - Torx Head - Flange - M8X1.25X45 Row ID: ID_CDDA0403_00RA510_ContPgHS; Resolution: Available;	-	4	Enquire
013	00RB049	Hose Clamp - 40-60mm	00RB049 Hose Clamp - 40-60mm Row ID: ID_CDDA0411_00RB049_ContPgHS; Resolution: Available;	-	1	Enquire
014	11D0192CP	Bracket - Electric Steering Column - NVH - LH	11D0192CP Bracket - Electric Steering Column - NVH - LH Row ID: ID_CDDA0404_11D0192CP_ContPgHS; Resolution: Available;	$176.15	1
014	11D0193CP	Bracket - Electric Steering Column - NVH - RH	11D0193CP Bracket - Electric Steering Column - NVH - RH Row ID: ID_CDDA0405_11D0193CP_ContPgHS; Resolution: Available;	$176.15	1
015	11D0083RP	STEERING COLUMN - UPPER - ELECTRIC - LHD	11D0083RP STEERING COLUMN - UPPER - ELECTRIC - LHD Row ID: ID_CDDA0426_11D0083RP_ContPgHS; Resolution: Available;	-	1	Enquire
015	11D0138RP	STEERING COLUMN - UPPER - ELECTRIC - RHD	11D0138RP STEERING COLUMN - UPPER - ELECTRIC - RHD Row ID: ID_CDDA0428_11D0138RP_ContPgHS; Resolution: Available;	-	1	Enquire
016	11M3065CP	WIRING HARNESS - ELECTRIC STEERING COLUMN	11M3065CP WIRING HARNESS - ELECTRIC STEERING COLUMN Row ID: ID_CDDA0427_11M3065CP_ContPgHS; Resolution: Available;	$675.70	1
017	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_CDBC0112_00RA064_ContPgHS; Resolution: Available;	-	2	Enquire
018	11N3514CP	BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN	11N3514CP BRACKET - FACIA NVH SUPPORT - LHD - MANUALCOLUMN Row ID: ID_CDDA0413_11N3514CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	11N3515CP	BRACKET - FACIA NVH SUPPORT - RHD - MANUALCOLUMN	11N3515CP BRACKET - FACIA NVH SUPPORT - RHD - MANUALCOLUMN Row ID: ID_CDDA0414_11N3515CP_ContPgHS; Resolution: Available;	$146.64	1
019	11D0244RP	STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S	11D0244RP STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S-540C-720S Row ID: ID_CDDA0408_11D0244RP_ContPgHS; Resolution: Available;	$266.91	1
019	11D0245RP	STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S-540C-720S	11D0245RP STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S-540C-720S Row ID: ID_CDDA0409_11D0245RP_ContPgHS; Resolution: Available;	$238.85	1
020	13DA023RP	STEERING COLUMN - MANUAL - UPPER	13DA023RP STEERING COLUMN - MANUAL - UPPER Row ID: ID_CDDA0430_13DA023RP_ContPgHS; Resolution: Available;	-	1	Enquire
020	13DA001CP	Steering Column - Manual - Upper	13DA001CP Steering Column - Manual - Upper Row ID: ID_CDDA0412_13DA001CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	11D0254CP	Gaiter - Steering Column - Joint	11D0254CP Gaiter - Steering Column - Joint Row ID: ID_CDDA0410_11D0254CP_ContPgHS; Resolution: Available;	$21.18	1
