2 - Mid Structures - 2.1 - Monocoque

McLaren McLaren 600LT Spider

Find Your Part

McLaren McLaren 600LT Spider - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A4205CP FOAM - REAR FRAME - LOWER $4.55 To Order
Photo Part No Description Price (each) Stock
11A5734CP BLANKING PLUG - CIRCULAR - 42MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM $9.85 To Order
Photo Part No Description Price (each) Stock
11A5736CP PLUG - TUB DATUM $6.82 To Order
Photo Part No Description Price (each) Stock
11A7142CP BRACKET - DAMPER MOUNTING - LH $194.06 To Order
Photo Part No Description Price (each) Stock
11A7143CP BRACKET - DAMPER MOUNTING - RH $194.06 To Order
Photo Part No Description Price (each) Stock
11A7572CP NUT PLATE - A-POST - M8 $43.28 To Order
Photo Part No Description Price (each) Stock
11A7573CP NUT PLATE - B-POST - M8 $44.59 To Order
Photo Part No Description Price (each) Stock
11A8382RP CONDUCTIVITY LINK - ROLL HOOP - LH $59.70 To Order
Photo Part No Description Price (each) Stock
11A8383RP CONDUCTIVITY LINK - ROLL HOOP - RH $59.70 To Order
View All

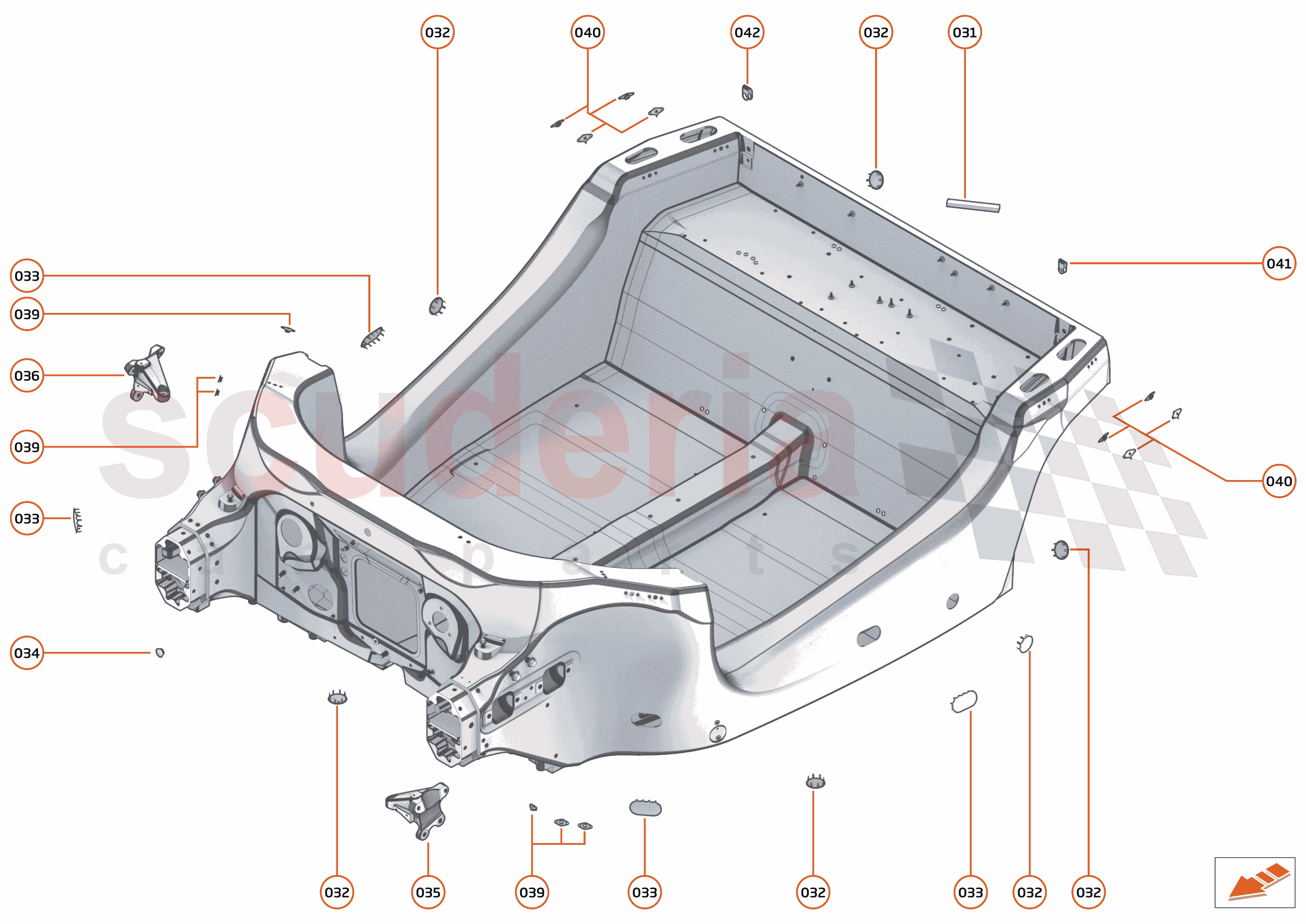

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
031 13A4205CP
FOAM - REAR FRAME - LOWER
Row ID: ID_CAAC0113_13A4205CP_ContPgHS; Resolution: Available; 		$4.55 1
032 11A5734CP
BLANKING PLUG - CIRCULAR - 42MM
Row ID: ID_CAAB0137_11A5734CP_ContPgHS; Resolution: Available; 		$9.85 6
033 11A5735CP
BLANKING PLUG - OVAL - 74MM X 37MM
Row ID: ID_CAAB0138_11A5735CP_ContPgHS; Resolution: Available; 		$9.85 4
034 11A5736CP
PLUG - TUB DATUM
Row ID: ID_CAAB0145_11A5736CP_ContPgHS; Resolution: Available; 		$6.82 4
035 11A7142CP
BRACKET - DAMPER MOUNTING - LH
Row ID: ID_CAAB0146_11A7142CP_ContPgHS; Resolution: Available; 		$194.06 1
036 11A7143CP
BRACKET - DAMPER MOUNTING - RH
Row ID: ID_CAAB0147_11A7143CP_ContPgHS; Resolution: Available; 		$194.06 1
039 11A7572CP
NUT PLATE - A-POST - M8
Row ID: ID_CAAB0148_11A7572CP_ContPgHS; Resolution: Available; 		$43.28 6
040 11A7573CP
NUT PLATE - B-POST - M8
Row ID: ID_CAAB0149_11A7573CP_ContPgHS; Resolution: Available; 		$44.59 6
041 11A8382RP
CONDUCTIVITY LINK - ROLL HOOP - LH
Row ID: ID_CAAB0150_11A8382RP_ContPgHS; Resolution: Available; 		$59.70 1
042 11A8383RP
CONDUCTIVITY LINK - ROLL HOOP - RH
Row ID: ID_CAAB0151_11A8383RP_ContPgHS; Resolution: Available; 		$59.70 1
