9 - GLAZING - 9.2 - DOOR GLAZING - DYNAMIC of McLaren McLaren McLaren 600LT Spider

View All

McLaren McLaren 600LT Spider - 9 - GLAZING - 9.2 - DOOR GLAZING - DYNAMIC

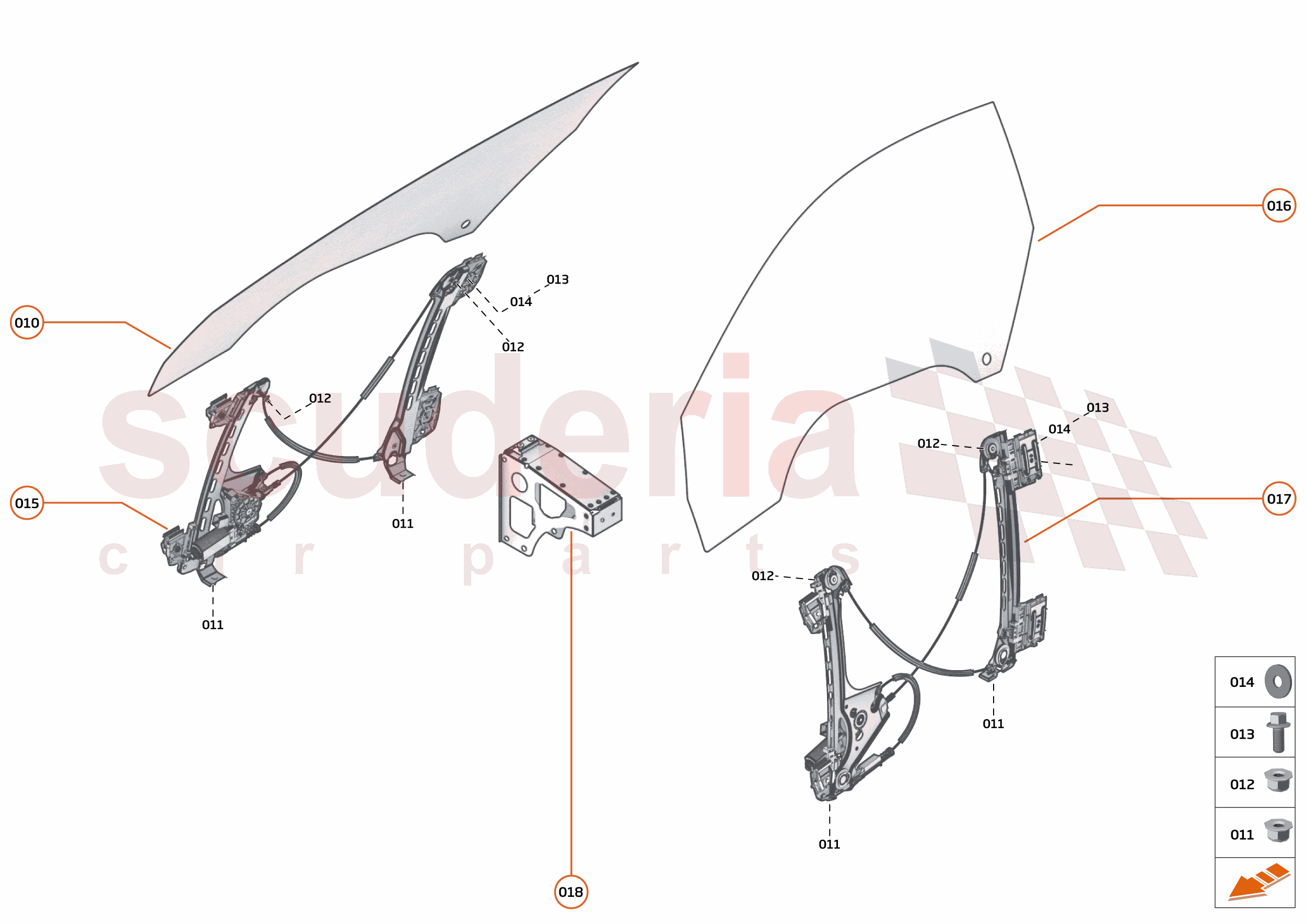

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A0376CP	Door - Glass - RH	$299.78	To Order
	13A9961SP	DOOR - GLASS - SPIDER - RH	$1,151.83	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA262	HALF NUT - M8 - DIN 439	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA752	BOLT - HEX HEAD - M8X1.25X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A2053CP	Regulator & Motor Assy - Door Glass - RH	$546.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13A0431CP	Door - Glass - LH	$299.78	To Order
	13A9960SP	DOOR - GLASS - SPIDER - LH	$1,151.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13A2047CP	Regulator & Motor Assy - Door Glass - LH	$546.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA020CP	BRACKET - CENTRE - CROSS BRACE	$86.74	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13A0376CP	Door - Glass - RH	13A0376CP Door - Glass - RH Row ID: ID_CBAK0402_13A0376CP_ContPgHS; Resolution: Available;	$299.78	1
010	13A9961SP	DOOR - GLASS - SPIDER - RH	13A9961SP DOOR - GLASS - SPIDER - RH Row ID: ID_CBAK0409_13A9961SP_ContPgHS; Resolution: Available;	$1,151.83	1
011	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Row ID: ID_CBAE0506_00RA056_ContPgHS; Resolution: Available;	-	2	Enquire
012	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 Row ID: ID_CBAK0410_00RA262_ContPgHS; Resolution: Available;	-	2	Enquire
013	00RA752	BOLT - HEX HEAD - M8X1.25X25	00RA752 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID_CBAK0406_00RA752_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID_CBAK0407_00RC048_ContPgHS; Resolution: Available;	-	3	Enquire
015	13A2053CP	Regulator & Motor Assy - Door Glass - RH	13A2053CP Regulator & Motor Assy - Door Glass - RH Row ID: ID_CBAK0404_13A2053CP_ContPgHS; Resolution: Available;	$546.39	1
016	13A0431CP	Door - Glass - LH	13A0431CP Door - Glass - LH Row ID: ID_CBAK0401_13A0431CP_ContPgHS; Resolution: Available;	$299.78	1
016	13A9960SP	DOOR - GLASS - SPIDER - LH	13A9960SP DOOR - GLASS - SPIDER - LH Row ID: ID_CBAK0408_13A9960SP_ContPgHS; Resolution: Available;	$1,151.83	1
017	13A2047CP	Regulator & Motor Assy - Door Glass - LH	13A2047CP Regulator & Motor Assy - Door Glass - LH Row ID: ID_CBAK0403_13A2047CP_ContPgHS; Resolution: Available;	$546.39	1
018	13AA020CP	BRACKET - CENTRE - CROSS BRACE	13AA020CP BRACKET - CENTRE - CROSS BRACE Row ID: ID_CBAE0359_13AA020CP_ContPgHS; Resolution: Available;	$86.74	2
