Name: 8 - OPENING ROOF SYSTEMS - 8.2 - CONVERTIBLE ROOF - BACKLIGHT & HYDRAULICS
Rating: 4.7 (1 reviews)

8 - OPENING ROOF SYSTEMS - 8.2 - CONVERTIBLE ROOF - BACKLIGHT & HYDRAULICS of McLaren McLaren McLaren 600LT Spider

View All

McLaren McLaren 600LT Spider - 8 - OPENING ROOF SYSTEMS - 8.2 - CONVERTIBLE ROOF - BACKLIGHT & HYDRAULICS

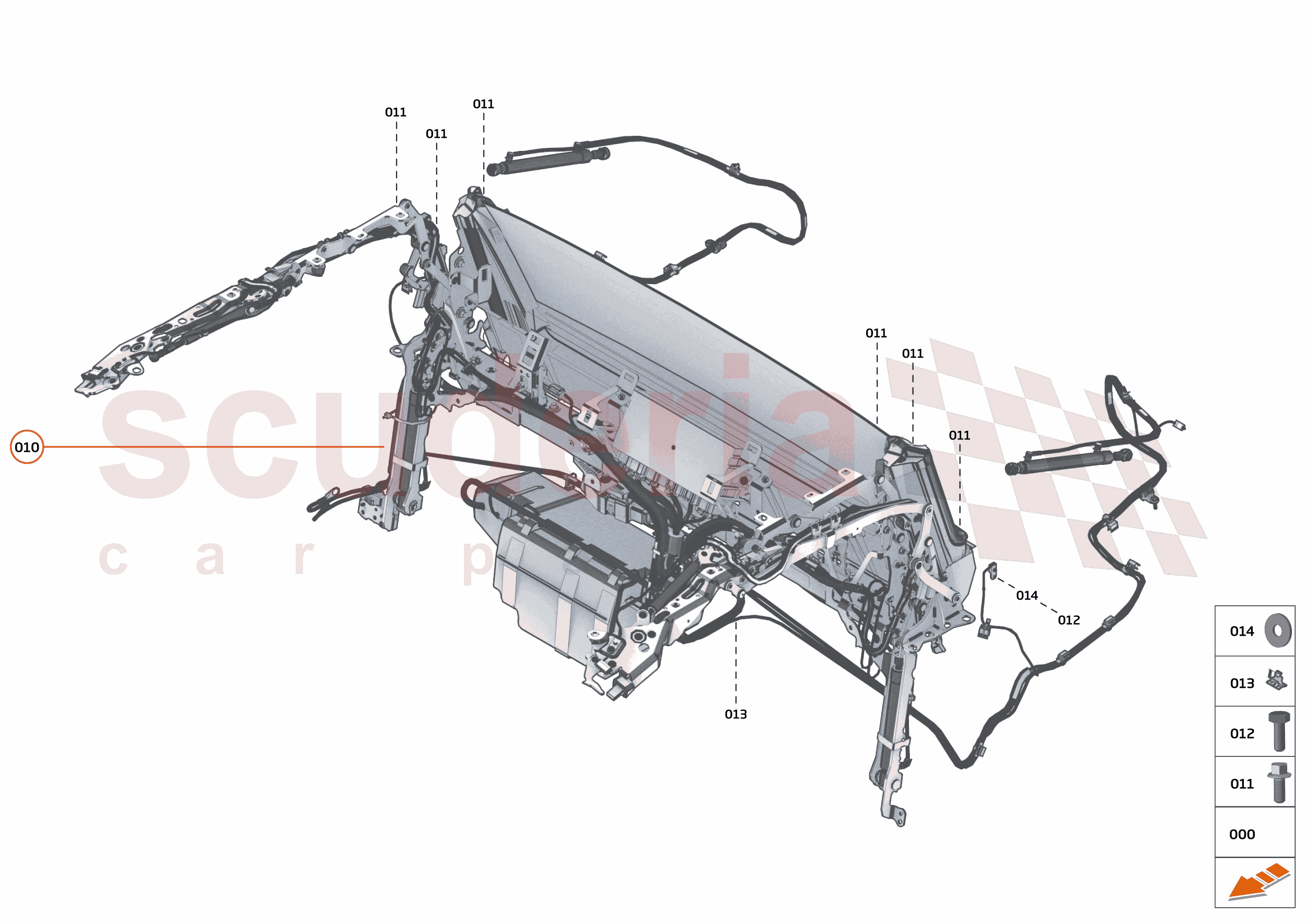

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A4036SP	RHT - Back Light Kinematic Assy - inc.Shims/Screws	$1,582.66	To Order
	11A4037SP	RHT - Back Light Glass Assy	$1,004.04	To Order
	11A4038SP	RHT - Backlight Slider Carrier Kit	$15.65	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A8269SP	ROOF KINEMATIC	$30,454.10	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA302	SCREW - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA480	SCREW - M4X0.7X8MM - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB128	CLIP - EDGE - 90 DEG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC030	WASHER - M4X12X1	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11A4036SP	RHT - Back Light Kinematic Assy - inc.Shims/Screws	11A4036SP RHT - Back Light Kinematic Assy - inc.Shims/Screws Row ID: ID_CBAJ0144_11A4036SP_ContPgHS; Resolution: Available;	$1,582.66	1
000	11A4037SP	RHT - Back Light Glass Assy	11A4037SP RHT - Back Light Glass Assy Row ID: ID_CBAJ0145_11A4037SP_ContPgHS; Resolution: Available;	$1,004.04	1
000	11A4038SP	RHT - Backlight Slider Carrier Kit	11A4038SP RHT - Backlight Slider Carrier Kit Row ID: ID_CBAJ0146_11A4038SP_ContPgHS; Resolution: Available;	$15.65	1
000	11A4039SP	Motor - RHT - Back Light E-drive	11A4039SP Motor - RHT - Back Light E-drive Row ID: ID_CBAJ0147_11A4039SP_ContPgHS; Resolution: Available;	$229.99	1
000	11A4040SP	RHT - Drive Cable Kit	11A4040SP RHT - Drive Cable Kit Row ID: ID_CBAJ0148_11A4040SP_ContPgHS; Resolution: Available;	$62.48	1
000	11A6683SP	RHT - Backlight Waterbag Kit	11A6683SP RHT - Backlight Waterbag Kit Row ID: ID_CBAJ01B3_11A6683SP_ContPgHS; Resolution: Available;	$1,448.14	1
000	11A4050SP	RHT - Hydraulic Union Clip kit	11A4050SP RHT - Hydraulic Union Clip kit Row ID: ID_CBAJ0179_11A4050SP_ContPgHS; Resolution: Available;	$200.05	1
000	11A4609SP	RHT - Gasket Kit - Hydraulic Lines	11A4609SP RHT - Gasket Kit - Hydraulic Lines Row ID: ID_CBAJ0180_11A4609SP_ContPgHS; Resolution: Available;	$161.23	1
000	11A4024SP	RHT - Hydraulic Cylinder Kit (pair) - Tonneau	11A4024SP RHT - Hydraulic Cylinder Kit (pair) - Tonneau Row ID: ID_CBAJ0182_11A4024SP_ContPgHS; Resolution: Available;	$1,298.78	1
000	11A4025SP	RHT - Hydraulic Cylinder Kit (pair) - Roof	11A4025SP RHT - Hydraulic Cylinder Kit (pair) - Roof Row ID: ID_CBAJ0183_11A4025SP_ContPgHS; Resolution: Available;	$1,298.78	1
000	11A4026SP	RHT - Hydraulic Cylinder Kit (pair) - Latch	11A4026SP RHT - Hydraulic Cylinder Kit (pair) - Latch Row ID: ID_CBAJ0184_11A4026SP_ContPgHS; Resolution: Available;	$1,298.78	1
000	11A4027SP	RHT - Hydraulic Lines Kit - Tonneau Cylinders	11A4027SP RHT - Hydraulic Lines Kit - Tonneau Cylinders Row ID: ID_CBAJ0185_11A4027SP_ContPgHS; Resolution: Available;	$1,821.27	1
000	11A4033SP	RHT - Hydraulic Powerpack	11A4033SP RHT - Hydraulic Powerpack Row ID: ID_CBAJ0188_11A4033SP_ContPgHS; Resolution: Available;	$6,952.94	1
010	11A8269SP	ROOF KINEMATIC	11A8269SP ROOF KINEMATIC Row ID: ID__11A8269SP_ContPgHS; Resolution: Available;	$30,454.10	1
011	00RA302	SCREW - M8X20 - HEX	00RA302 SCREW - M8X20 - HEX Row ID: ID__00RA302_ContPgHS; Resolution: Available;	-	6	Enquire
012	00RA480	SCREW - M4X0.7X8MM - HEX	00RA480 SCREW - M4X0.7X8MM - HEX Row ID: ID_CBAJ01A8_00RA480_ContPgHS; Resolution: Available;	-	2	Enquire
013	00RB128	CLIP - EDGE - 90 DEG	00RB128 CLIP - EDGE - 90 DEG Row ID: ID_CBAJ0104_00RB128_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RC030	WASHER - M4X12X1	00RC030 WASHER - M4X12X1 Row ID: ID__00RC030_ContPgHS; Resolution: Available;	-	2	Enquire
015	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS; Resolution: Available;	-	2	Enquire
016	11AA052SP	ASSY-RHT BACKLIGHT MODULE - INC. GLASS	11AA052SP ASSY-RHT BACKLIGHT MODULE - INC. GLASS Row ID: ID__11AA052SP_ContPgHS; Resolution: Available;	-	1	Enquire
017	11AA053SP	ASSY-RHT BACKLIGHT MODULE - EXC. GLASS	11AA053SP ASSY-RHT BACKLIGHT MODULE - EXC. GLASS Row ID: ID__11AA053SP_ContPgHS; Resolution: Available;	-	1	Enquire
018	00RB127	P-Clip - 12/13 - EPDM	00RB127 P-Clip - 12/13 - EPDM Row ID: ID_CBAJ0164_00RB127_ContPgHS; Resolution: Available;	-	2	Enquire
019	00RA099	SCREW - M4X25 - HEX	00RA099 SCREW - M4X25 - HEX Row ID: ID_CBAJ0102_00RA099_ContPgHS; Resolution: Available;	-	1	Enquire
