5 - PANELS - 5.5 - UPPER STRUCTURE of McLaren McLaren McLaren 600LT Spider

View All

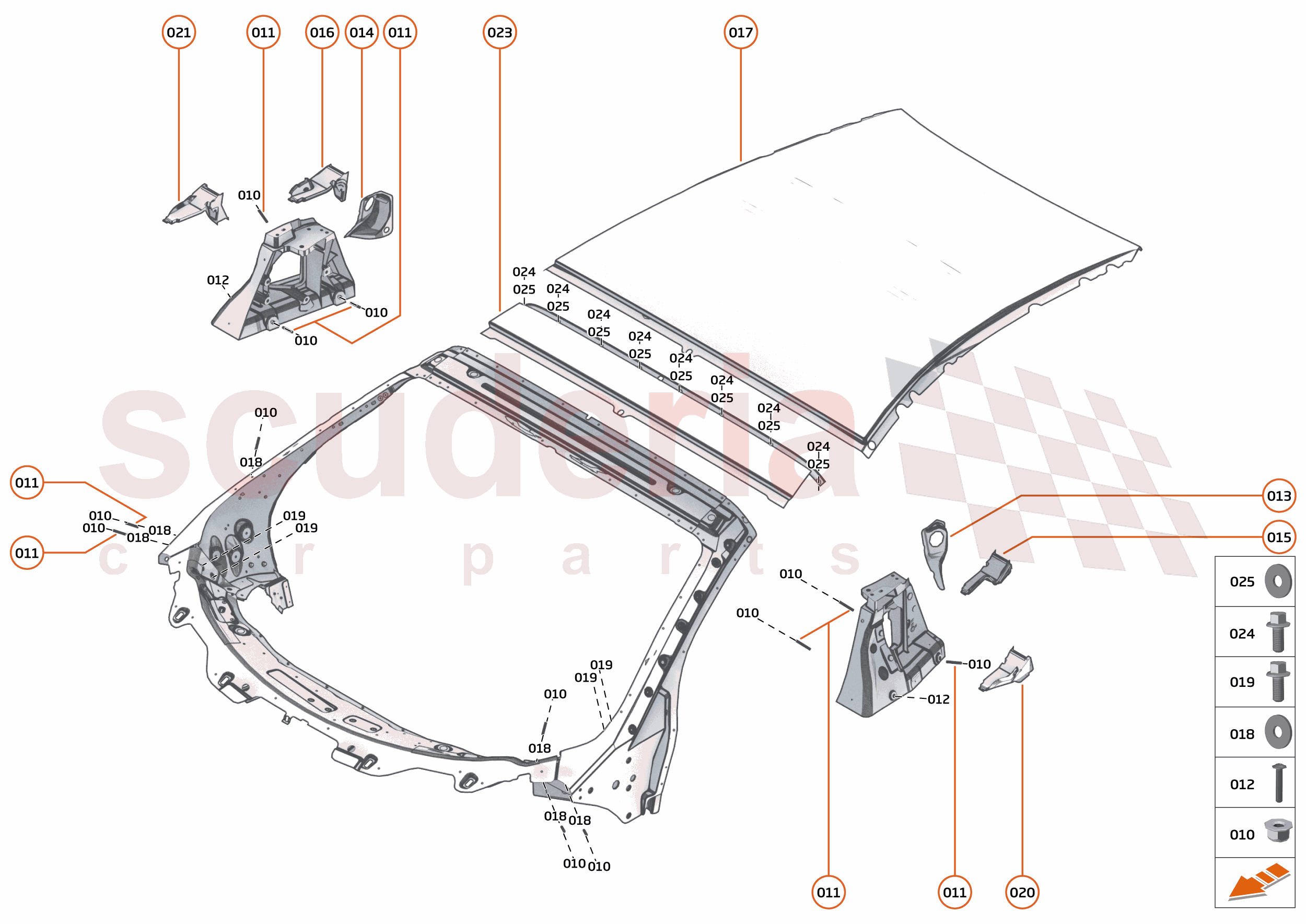

McLaren McLaren 600LT Spider - 5 - PANELS - 5.5 - UPPER STRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA242	STUD - M8X1.25X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA289	BOLT - BUTTON - FLANGE - M8X35-10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0541CP	COVER - B POST - LATCH - LH	$53.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11A0540CP	COVER - B POST - LATCH - RH	$53.05	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3152CP	AIR EVACUATION VENT - LH	$53.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3154CP	AIR EVACUATION VENT - RH	$53.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13A6360CP	ROOF PANEL - CARBON	$7,658.31	To Order
	13AA197CP	ROOF PANEL - STANDARD	Enquire	To Order
	13A5808CP	ROOF PANEL - STANDARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC015	WASHER - M8X24X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4934SP	AIR EVACUATION VENT - LH	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5173SP	AIR EVACUATION VENT - RH	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA531SP	CAPPING PANEL - HEADER	$509.15	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC056	Washer - M5x12.5x1 Form C	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX Row ID: ID_CBAE0506_00RA056_ContPgHS; Resolution: Available;	-	3	Enquire
011	00RA242	STUD - M8X1.25X35	00RA242 STUD - M8X1.25X35 Row ID: ID_CBAE0505_00RA242_ContPgHS; Resolution: Available;	-	3	Enquire
012	00RA289	BOLT - BUTTON - FLANGE - M8X35-10.9	00RA289 BOLT - BUTTON - FLANGE - M8X35-10.9 Row ID: ID_CBAE0507_00RA289_ContPgHS; Resolution: Available;	-	1	Enquire
013	11A0541CP	COVER - B POST - LATCH - LH	11A0541CP COVER - B POST - LATCH - LH Row ID: ID_CBAE0503_11A0541CP_ContPgHS; Resolution: Available;	$53.05	1
014	11A0540CP	COVER - B POST - LATCH - RH	11A0540CP COVER - B POST - LATCH - RH Row ID: ID_CBAE0504_11A0540CP_ContPgHS; Resolution: Available;	$53.05	1
015	13A3152CP	AIR EVACUATION VENT - LH	13A3152CP AIR EVACUATION VENT - LH Row ID: ID_CBAE0509_13A3152CP_ContPgHS; Resolution: Available;	$53.19	1
016	13A3154CP	AIR EVACUATION VENT - RH	13A3154CP AIR EVACUATION VENT - RH Row ID: ID_CBAE0510_13A3154CP_ContPgHS; Resolution: Available;	$53.19	1
017	13A6360CP	ROOF PANEL - CARBON	13A6360CP ROOF PANEL - CARBON Row ID: ID_CBAE0502_13A6360CP_ContPgHS; Resolution: Available;	$7,658.31	1
017	13AA197CP	ROOF PANEL - STANDARD	13AA197CP ROOF PANEL - STANDARD Row ID: ID_CBAE0501_13AA197CP_ContPgHS; Resolution: Available;	-	1	Enquire
017	13A5808CP	ROOF PANEL - STANDARD	13A5808CP ROOF PANEL - STANDARD Row ID: ID_CBAE0514_13A5808CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 Row ID: ID_CBAE0733_00RC015_ContPgHS; Resolution: Available;	-	2	Enquire
019	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_CBAE0513_00RA002_ContPgHS; Resolution: Available;	-	4	Enquire
020	13A4934SP	AIR EVACUATION VENT - LH	13A4934SP AIR EVACUATION VENT - LH Row ID: ID_CBAE0516_13A4934SP_ContPgHS; Resolution: Available;	$54.81	1
021	13A5173SP	AIR EVACUATION VENT - RH	13A5173SP AIR EVACUATION VENT - RH Row ID: ID_CBAE0517_13A5173SP_ContPgHS; Resolution: Available;	$54.81	1
023	13AA531SP	CAPPING PANEL - HEADER	13AA531SP CAPPING PANEL - HEADER Row ID: ID_CBAE0512_13AA531SP_ContPgHS; Resolution: Available;	$509.15	1
024	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Row ID: ID_CBAF1831_00RA522_ContPgHS; Resolution: Available;	-	8	Enquire
025	00RC056	Washer - M5x12.5x1 Form C	00RC056 Washer - M5x12.5x1 Form C Row ID: ID_CBAE0511_00RC056_ContPgHS; Resolution: Available;	-	8	Enquire
