McLaren McLaren 600LT - 33 - ENGINE - 33.12 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F1468CP HOSE ASSY - ENGINE - DEGAS $111.88 To Order
Photo Part No Description Price (each) Stock
11F1674CP T Piece - Degas $16.21 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.09 To Order
Photo Part No Description Price (each) Stock
14FA182CP Water Pump - Engine $1,602.02 To Order
Photo Part No Description Price (each) Stock
13F0761CP TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY $71.07 To Order
Photo Part No Description Price (each) Stock
13F0762CP Bolt - Hollow - M12 $32.23 To Order
Photo Part No Description Price (each) Stock
13F0866CP Coolant Hose - Feed - Clutch Cooler $114.20 To Order
Photo Part No Description Price (each) Stock
13F0901CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $53.19 To Order
13F0760CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $62.73 To Order
Photo Part No Description Price (each) Stock
13F0902CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $62.73 To Order
Photo Part No Description Price (each) Stock
13F0904CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $57.58 To Order
13F0758CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $67.64 To Order
Photo Part No Description Price (each) Stock
00RB091 OETIKER CLIP - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
11F0981CP P-Clip - Clutch Cooler Hose - Engine $7.83 To Order
Photo Part No Description Price (each) Stock
11F1784CP Bolt - M6x80 - Engine $17.38 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $118.02 To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.06 To Order
Photo Part No Description Price (each) Stock
00RB093 Oetiker Clip - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
11F0989CP Clip - Degas - Engine $12.16 To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $16.42 To Order
Photo Part No Description Price (each) Stock
13FA050CP Thermostat Assy - Engine - inc. Gasket $240.35 To Order
Photo Part No Description Price (each) Stock
11F0686CP Gasket - Engine Water Pump $28.24 To Order
Photo Part No Description Price (each) Stock
11F2434CP Gasket - Water Pump Cover - Engine $14.53 To Order
Photo Part No Description Price (each) Stock
11F1012CP Hose Clamp - Oetiker - 27.1 $7.48 To Order
Photo Part No Description Price (each) Stock
11F2165CP Pipe - Turbocharger Water Return - Upper - RH $53.47 To Order
Photo Part No Description Price (each) Stock
11F1021CP Top Hose - Radiator - Inboard - Engine - LH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1022CP Top Hose - Radiator - Inboard - Engine - RH $268.35 To Order
Photo Part No Description Price (each) Stock
11F1017CP Spring Clip - Engine - Thermostat Enquire To Order
Photo Part No Description Price (each) Stock
11F1859CP Oetiker Clip - Engine - 24.1 $11.31 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $23.03 To Order
View All

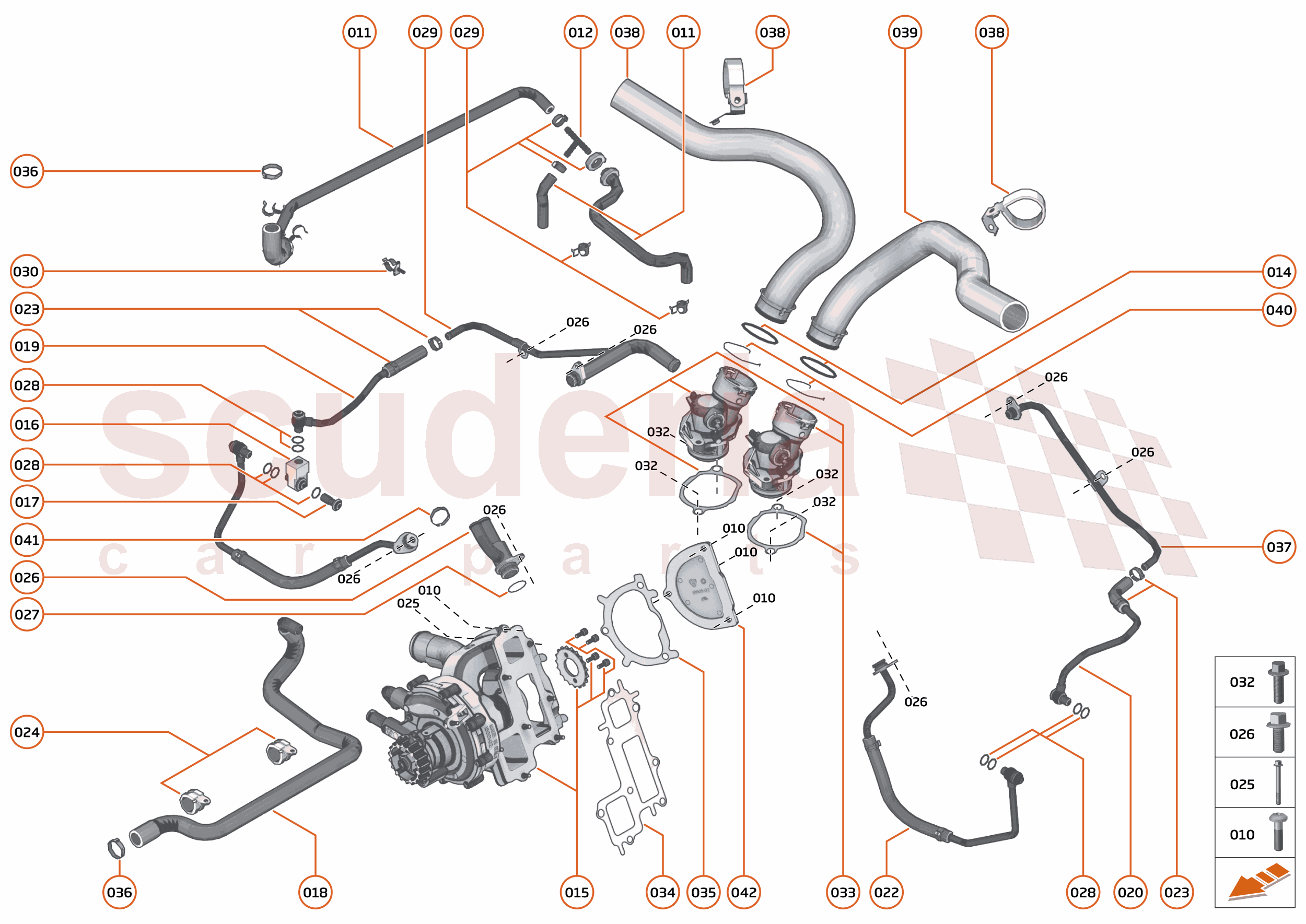

33 - ENGINE - 33.12 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_CEFA0139_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 4
011 11F1468CP
HOSE ASSY - ENGINE - DEGAS
Row ID: ID_CEFD0116_11F1468CP_ContPgHS; Resolution: Available; 		$111.88 1
012 11F1674CP
T Piece - Degas
Row ID: ID_CEFD0127_11F1674CP_ContPgHS; Resolution: Available; 		$16.21 1
013 11F2167CP
PIPE - HEATER FEED STUB
Row ID: ID_CEFD0114_11F2167CP_ContPgHS; Resolution: Available; 		$85.44 1
014 11F1954CP
O-RING - 16-0X2-0
Row ID: ID_CEFA01E6_11F1954CP_ContPgHS; Resolution: Available; 		$5.09 2
015 14FA182CP
Water Pump - Engine
Row ID: ID_CEFD0106_14FA182CP_ContPgHS; Resolution: Available; 		$1,602.02 1
016 13F0761CP
TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY
Row ID: ID_CEFD0115_13F0761CP_ContPgHS; Resolution: Available; 		$71.07 1
017 13F0762CP
Bolt - Hollow - M12
Row ID: ID_CEFD0137_13F0762CP_ContPgHS; Resolution: Available; 		$32.23 1
018 13F0866CP
Coolant Hose - Feed - Clutch Cooler
Row ID: ID_CEFD0102_13F0866CP_ContPgHS; Resolution: Available; 		$114.20 1
019 13F0901CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Row ID: ID_CEFD0112_13F0901CP_ContPgHS; Resolution: Available; 		$53.19 1
019 13F0760CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Row ID: ID_CEFA01E9_13F0760CP_ContPgHS; Resolution: Available; 		$62.73 1
020 13F0902CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID_CEFD0123_13F0902CP_ContPgHS; Resolution: Available; 		$62.73 1
021 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Row ID: ID_CEFD0111_13F0903CP_ContPgHS; Resolution: Available; 		$53.19 1
021 13F0757CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Row ID: ID_CEFA01E7_13F0757CP_ContPgHS; Resolution: Available; 		$67.64 1
022 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Row ID: ID_CEFD0124_13F0904CP_ContPgHS; Resolution: Available; 		$57.58 1
022 13F0758CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Row ID: ID_CEFA01E8_13F0758CP_ContPgHS; Resolution: Available; 		$67.64 1
023 00RB091
OETIKER CLIP - 18.5
Row ID: ID_CEFC0407_00RB091_ContPgHS; Resolution: Available; 		- 4 Enquire
024 11F0981CP
P-Clip - Clutch Cooler Hose - Engine
Row ID: ID_CEFD0105_11F0981CP_ContPgHS; Resolution: Available; 		$7.83 2
025 11F1784CP
Bolt - M6x80 - Engine
Row ID: ID_CEFD0108_11F1784CP_ContPgHS; Resolution: Available; 		$17.38 1
026 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_CEFA0118_11F0822CP_ContPgHS; Resolution: Available; 		- 7 Enquire
027 11F0802CP
Heater Return Stub - Engine - Water Pump
Row ID: ID_CEFD0110_11F0802CP_ContPgHS; Resolution: Available; 		$118.02 1
028 11F1131CP
Banjo Washer - Turbo Oil Feed
Row ID: ID_CEFC0405_11F1131CP_ContPgHS; Resolution: Available; 		$6.06 9
029 00RB093
Oetiker Clip - 16.6
Row ID: ID_CEFD0117_00RB093_ContPgHS; Resolution: Available; 		- 4 Enquire
030 11F0989CP
Clip - Degas - Engine
Row ID: ID_CEFD0118_11F0989CP_ContPgHS; Resolution: Available; 		$12.16 1
031 11F0704CP
Support - Engine Coolant Top Hose - Set
Row ID: ID_CEFD0119_11F0704CP_ContPgHS; Resolution: Available; 		$24.41 1
032 11F0809CP
Bolt - M8x30 - Engine - Thermostat
Row ID: ID_CEFA01B5_11F0809CP_ContPgHS; Resolution: Available; 		$16.42 1
033 13FA050CP
Thermostat Assy - Engine - inc. Gasket
Row ID: ID_CEFD0122_13FA050CP_ContPgHS; Resolution: Available; 		$240.35 1
034 11F0686CP
Gasket - Engine Water Pump
Row ID: ID_CEFD0125_11F0686CP_ContPgHS; Resolution: Available; 		$28.24 1
035 11F2434CP
Gasket - Water Pump Cover - Engine
Row ID: ID_CEFD0126_11F2434CP_ContPgHS; Resolution: Available; 		$14.53 1
036 11F1012CP
Hose Clamp - Oetiker - 27.1
Row ID: ID_CEFD0104_11F1012CP_ContPgHS; Resolution: Available; 		$7.48 2
037 11F2165CP
Pipe - Turbocharger Water Return - Upper - RH
Row ID: ID_CEFD0129_11F2165CP_ContPgHS; Resolution: Available; 		$53.47 1
038 11F1021CP
Top Hose - Radiator - Inboard - Engine - LH
Row ID: ID_CEFD0131_11F1021CP_ContPgHS; Resolution: Available; 		$243.70 1
039 11F1022CP
Top Hose - Radiator - Inboard - Engine - RH
Row ID: ID_CEFD0132_11F1022CP_ContPgHS; Resolution: Available; 		$268.35 1
040 11F1017CP
Spring Clip - Engine - Thermostat
Row ID: ID_CEFD0101_11F1017CP_ContPgHS; Resolution: Available; 		- 1 Enquire
041 11F1859CP
Oetiker Clip - Engine - 24.1
Row ID: ID_CEFA01A3_11F1859CP_ContPgHS; Resolution: Available; 		$11.31 1
042 11F2433CP
COVER - WATER PUMP - ENGINE
Row ID: ID_CEFA01F1_11F2433CP_ContPgHS; Resolution: Available; 		$23.03 1
