5 - Panels - 5.4 - Bulkhead

McLaren McLaren 600LT

Find Your Part

McLaren McLaren 600LT - 5 - PANELS - 5.4 - BULKHEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
13A0588CP NVH - BULKHEAD - UPPER - REAR - CENTRE $129.08 To Order
Photo Part No Description Price (each) Stock
13A4004CP NVH - BULKHEAD - UPPER - REAR - LH $24.60 To Order
Photo Part No Description Price (each) Stock
13A4005CP NVH - BULKHEAD - UPPER - REAR - RH $24.60 To Order
Photo Part No Description Price (each) Stock
13A6466CP NVH - BULKHEAD HATCH - REAR - UPPER $155.49 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13A6468CP HATCH - BULKHEAD $78.33 To Order
Photo Part No Description Price (each) Stock
13AA674RP BULKHEAD - UPPER - ESG $430.53 To Order
Photo Part No Description Price (each) Stock
13A6253CP GASKET - FOAM $11.51 To Order
Photo Part No Description Price (each) Stock
13AA670RP ADAPTER - ESG - LH $27.86 To Order
Photo Part No Description Price (each) Stock
13AA671RP ADAPTER - ESG - RH $27.86 To Order
View All

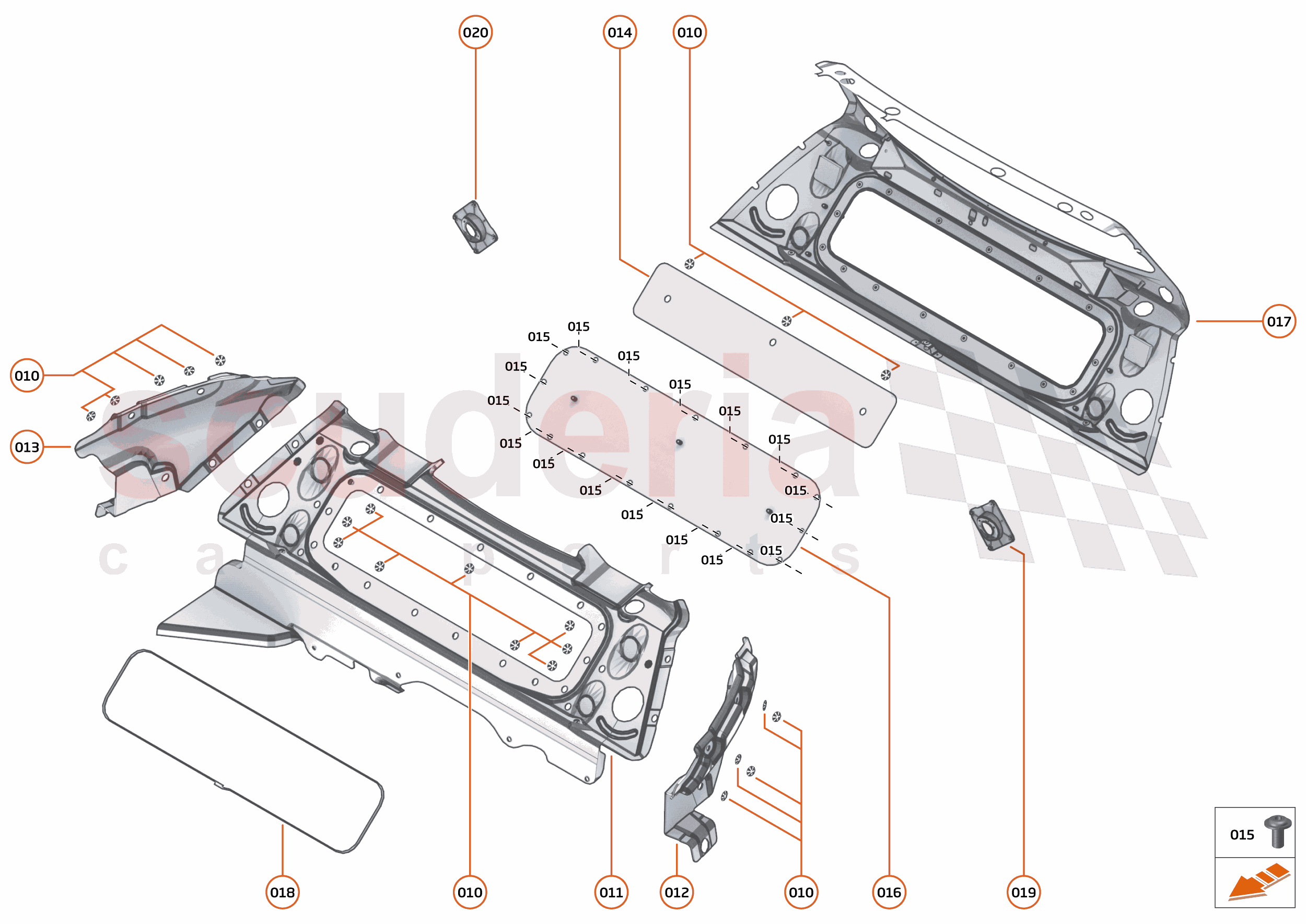

5 - PANELS - 5.4 - BULKHEAD of McLaren McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RC039
WASHER - M6 - STAR LOCK
Row ID: ID_CBAE0406_00RC039_ContPgHS; Resolution: Available; 		- 22 Enquire
011 13A0588CP
NVH - BULKHEAD - UPPER - REAR - CENTRE
Row ID: ID_CBAE0401_13A0588CP_ContPgHS; Resolution: Available; 		$129.08 1
012 13A4004CP
NVH - BULKHEAD - UPPER - REAR - LH
Row ID: ID_CBAE0442_13A4004CP_ContPgHS; Resolution: Available; 		$24.60 1
013 13A4005CP
NVH - BULKHEAD - UPPER - REAR - RH
Row ID: ID_CBAE0443_13A4005CP_ContPgHS; Resolution: Available; 		$24.60 1
014 13A6466CP
NVH - BULKHEAD HATCH - REAR - UPPER
Row ID: ID_CBAE0403_13A6466CP_ContPgHS; Resolution: Available; 		$155.49 1
015 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID_CBAE0106_00RA468_ContPgHS; Resolution: Available; 		- 17 Enquire
016 13A6468CP
HATCH - BULKHEAD
Row ID: ID_CBAE0402_13A6468CP_ContPgHS; Resolution: Available; 		$78.33 1
017 13AA674RP
BULKHEAD - UPPER - ESG
Row ID: ID_CBAE0444_13AA674RP_ContPgHS; Resolution: Available; 		$430.53 1
018 13A6253CP
GASKET - FOAM
Row ID: ID_CBAE0404_13A6253CP_ContPgHS; Resolution: Available; 		$11.51 1
019 13AA670RP
ADAPTER - ESG - LH
Row ID: ID_CBAE0445_13AA670RP_ContPgHS; Resolution: Available; 		$27.86 1
020 13AA671RP
ADAPTER - ESG - RH
Row ID: ID_CBAE0446_13AA671RP_ContPgHS; Resolution: Available; 		$27.86 1
