34 - ENGINE AIR SYSTEMS - 34.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM of McLaren McLaren McLaren 570S Spider

View All

McLaren McLaren 570S Spider - 34 - ENGINE AIR SYSTEMS - 34.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM

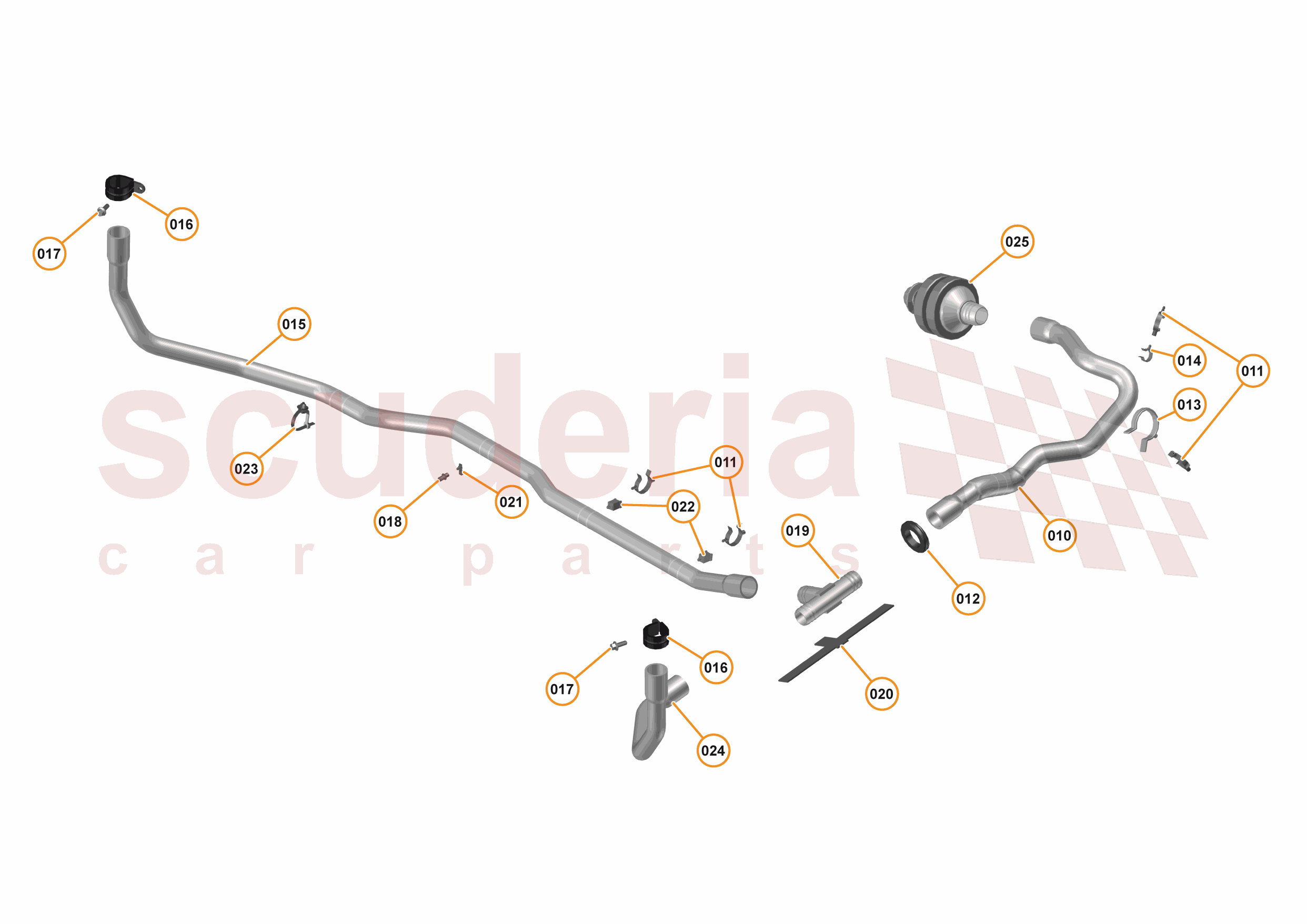

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13FA006SP	Hose - Primary - Intake Sound Generator	$91.35	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG047	Grommet - Open - 38.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB044	SWIVEL PIPE CLIP - 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13FA003SP	Hose - Intake Sound Generator - Outlet - RH	$76.91	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB100	P-Clip - Dia 30 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0419CP	Adaptor - Intake Sound Generator - Hose to Service Panel - LH	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG029	Cabel Tie - Male - Dia 10-52	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB144	Adaptor Base - M6 - Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13FA002SP	Hose - Intake Sound Generator - Outlet - LH	$76.91	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0839CP	Intake Sound Generator	$307.52	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13FA006SP	Hose - Primary - Intake Sound Generator	13FA006SP Hose - Primary - Intake Sound Generator Row ID: ID_CEFB0415_13FA006SP_ContPgHS; Resolution: Available;	$91.35	1
011	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Row ID: ID_CEFB0416_00RG028_ContPgHS; Resolution: Available;	-	4	Enquire
012	00RG047	Grommet - Open - 38.1	00RG047 Grommet - Open - 38.1 Row ID: ID_CEFB0408_00RG047_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID_CEFB0411_00RB057_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID_CEFB0417_00RB044_ContPgHS; Resolution: Available;	-	1	Enquire
015	13FA003SP	Hose - Intake Sound Generator - Outlet - RH	13FA003SP Hose - Intake Sound Generator - Outlet - RH Row ID: ID_CEFB0418_13FA003SP_ContPgHS; Resolution: Available;	$76.91	1
016	00RB100	P-Clip - Dia 30 - M6	00RB100 P-Clip - Dia 30 - M6 Row ID: ID_CEFB0419_00RB100_ContPgHS; Resolution: Available;	-	2	Enquire
017	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID_CEFB0420_00RA313_ContPgHS; Resolution: Available;	-	2	Enquire
018	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID_CEFB0413_00RG019_ContPgHS; Resolution: Available;	-	1	Enquire
019	12F0419CP	Adaptor - Intake Sound Generator - Hose to Service Panel - LH	12F0419CP Adaptor - Intake Sound Generator - Hose to Service Panel - LH Row ID: ID_CEFB0421_12F0419CP_ContPgHS; Resolution: Available;	$30.44	1
021	00RG029	Cabel Tie - Male - Dia 10-52	00RG029 Cabel Tie - Male - Dia 10-52 Row ID: ID_CEFB0423_00RG029_ContPgHS; Resolution: Available;	-	1	Enquire
022	00RB144	Adaptor Base - M6 - Stud	00RB144 Adaptor Base - M6 - Stud Row ID: ID_CEFB0424_00RB144_ContPgHS; Resolution: Available;	-	2	Enquire
023	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_CEFB0425_00RL001_ContPgHS; Resolution: Available;	-	1	Enquire
024	13FA002SP	Hose - Intake Sound Generator - Outlet - LH	13FA002SP Hose - Intake Sound Generator - Outlet - LH Row ID: ID_CEFB0426_13FA002SP_ContPgHS; Resolution: Available;	$76.91	1
025	13F0839CP	Intake Sound Generator	13F0839CP Intake Sound Generator Row ID: ID_CEFB0404_13F0839CP_ContPgHS; Resolution: Available;	$307.52	1
