33 - Engine - 33.9 - Electrical System

McLaren McLaren 570S Spider

Find Your Part

McLaren McLaren 570S Spider - 33 - ENGINE - 33.9 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1150CP Cable Tie - Engine $0.81 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $16.42 To Order
Photo Part No Description Price (each) Stock
11F2791CP Sensor - Engine - Knock - Coated $161.11 To Order
Photo Part No Description Price (each) Stock
11F1893CP Spark Plug - Engine $39.97 To Order
Photo Part No Description Price (each) Stock
11F1892CP Ignition Coil - Engine $223.40 To Order
Photo Part No Description Price (each) Stock
11F1035CP Repair Flylead - Ignition Coil $66.25 To Order
Photo Part No Description Price (each) Stock
11F1019CP Connector Housing - Ignition Coil $51.66 To Order
Photo Part No Description Price (each) Stock
11F0817CP Bracket - Engine - Harness Support $92.72 To Order
Photo Part No Description Price (each) Stock
11F2418CP Sensor - Engine - Head Temp $82.15 To Order
Photo Part No Description Price (each) Stock
13F0768CP HARNESS - INTAKE $73.71 To Order
Photo Part No Description Price (each) Stock
13F0769CP HARNESS - ENGINE LINK - INJECTORS - RH $278.56 To Order
Photo Part No Description Price (each) Stock
13F0770CP HARNESS - ENGINE LINK - INJECTORS - LH $278.56 To Order
Photo Part No Description Price (each) Stock
13F0771CP Harness - Vee Link - LH $207.92 To Order
13FA018SP Harness - Vee Link - LH $207.92 To Order
Photo Part No Description Price (each) Stock
13F0772CP Harness - Vee Link - RH $207.92 To Order
13FA019SP Harness - Vee Link - RH $207.92 To Order
Photo Part No Description Price (each) Stock
13F0418CP Wiring Harness - Engine $3,627.62 To Order
Photo Part No Description Price (each) Stock
11F2191CP Sensor - Engine - Crank Position $54.19 To Order
Photo Part No Description Price (each) Stock
13M1178CP Sensor - Engine - Ambient Air Temperature $123.52 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
View All

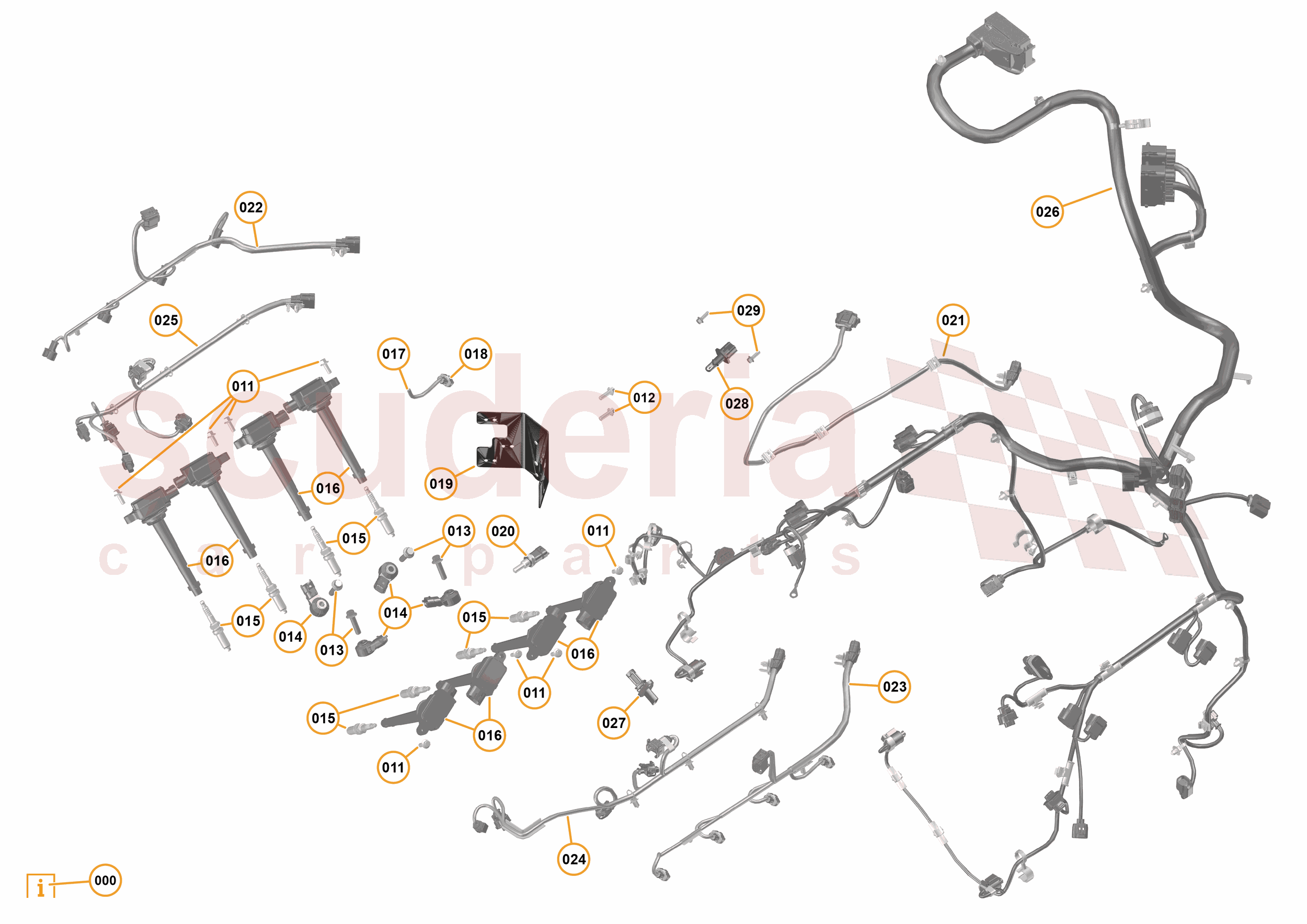

33 - ENGINE - 33.9 - ELECTRICAL SYSTEM of McLaren McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1150CP
Cable Tie - Engine
Row ID: ID_CEFA01B4_11F1150CP_ContPgHS; Resolution: Available; 		$0.81 1
011 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_CEFA0139_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 8
012 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_CEFA0118_11F0822CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11F0809CP
Bolt - M8x30 - Engine - Thermostat
Row ID: ID_CEFA01B5_11F0809CP_ContPgHS; Resolution: Available; 		$16.42 1
014 11F2791CP
Sensor - Engine - Knock - Coated
Row ID: ID_CEFA01B6_11F2791CP_ContPgHS; Resolution: Available; 		$161.11 4
015 11F1893CP
Spark Plug - Engine
Row ID: ID_CEFA01B7_11F1893CP_ContPgHS; Resolution: Available; 		$39.97 8
016 11F1892CP
Ignition Coil - Engine
Row ID: ID_CEFA01B8_11F1892CP_ContPgHS; Resolution: Available; 		$223.40 8
017 11F1035CP
Repair Flylead - Ignition Coil
Row ID: ID_CEFA01B9_11F1035CP_ContPgHS; Resolution: Available; 		$66.25 1
018 11F1019CP
Connector Housing - Ignition Coil
Row ID: ID_CEFA01C0_11F1019CP_ContPgHS; Resolution: Available; 		$51.66 1
019 11F0817CP
Bracket - Engine - Harness Support
Row ID: ID_CEFA01C1_11F0817CP_ContPgHS; Resolution: Available; 		$92.72 1
020 11F2418CP
Sensor - Engine - Head Temp
Row ID: ID_CEFA01C2_11F2418CP_ContPgHS; Resolution: Available; 		$82.15 1
021 13F0768CP
HARNESS - INTAKE
Row ID: ID_CEFA01C3_13F0768CP_ContPgHS; Resolution: Available; 		$73.71 1
022 13F0769CP
HARNESS - ENGINE LINK - INJECTORS - RH
Row ID: ID_CEFA01C4_13F0769CP_ContPgHS; Resolution: Available; 		$278.56 1
023 13F0770CP
HARNESS - ENGINE LINK - INJECTORS - LH
Row ID: ID_CEFA01C5_13F0770CP_ContPgHS; Resolution: Available; 		$278.56 1
024 13F0771CP
Harness - Vee Link - LH
Row ID: ID_CEFA01C6_13F0771CP_ContPgHS; Resolution: Available; 		$207.92 1
024 13FA018SP
Harness - Vee Link - LH
Row ID: ID__13FA018SP_ContPgHS; Resolution: Available; 		$207.92 1
025 13F0772CP
Harness - Vee Link - RH
Row ID: ID_CEFA01C7_13F0772CP_ContPgHS; Resolution: Available; 		$207.92 1
025 13FA019SP
Harness - Vee Link - RH
Row ID: ID__13FA019SP_ContPgHS; Resolution: Available; 		$207.92 1
026 13F0418CP
Wiring Harness - Engine
Row ID: ID_CEFA01C8_13F0418CP_ContPgHS; Resolution: Available; 		$3,627.62 1
027 11F2191CP
Sensor - Engine - Crank Position
Row ID: ID_CEFA01C9_11F2191CP_ContPgHS; Resolution: Available; 		$54.19 1
028 13M1178CP
Sensor - Engine - Ambient Air Temperature
Row ID: ID_CEFA01D0_13M1178CP_ContPgHS; Resolution: Available; 		$123.52 1
029 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CEFA01D1_00RX001_ContPgHS; Resolution: Available; 		- 2 Enquire
