Name: 33 - ENGINE - 33.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE
Rating: 5.0 (1 reviews)

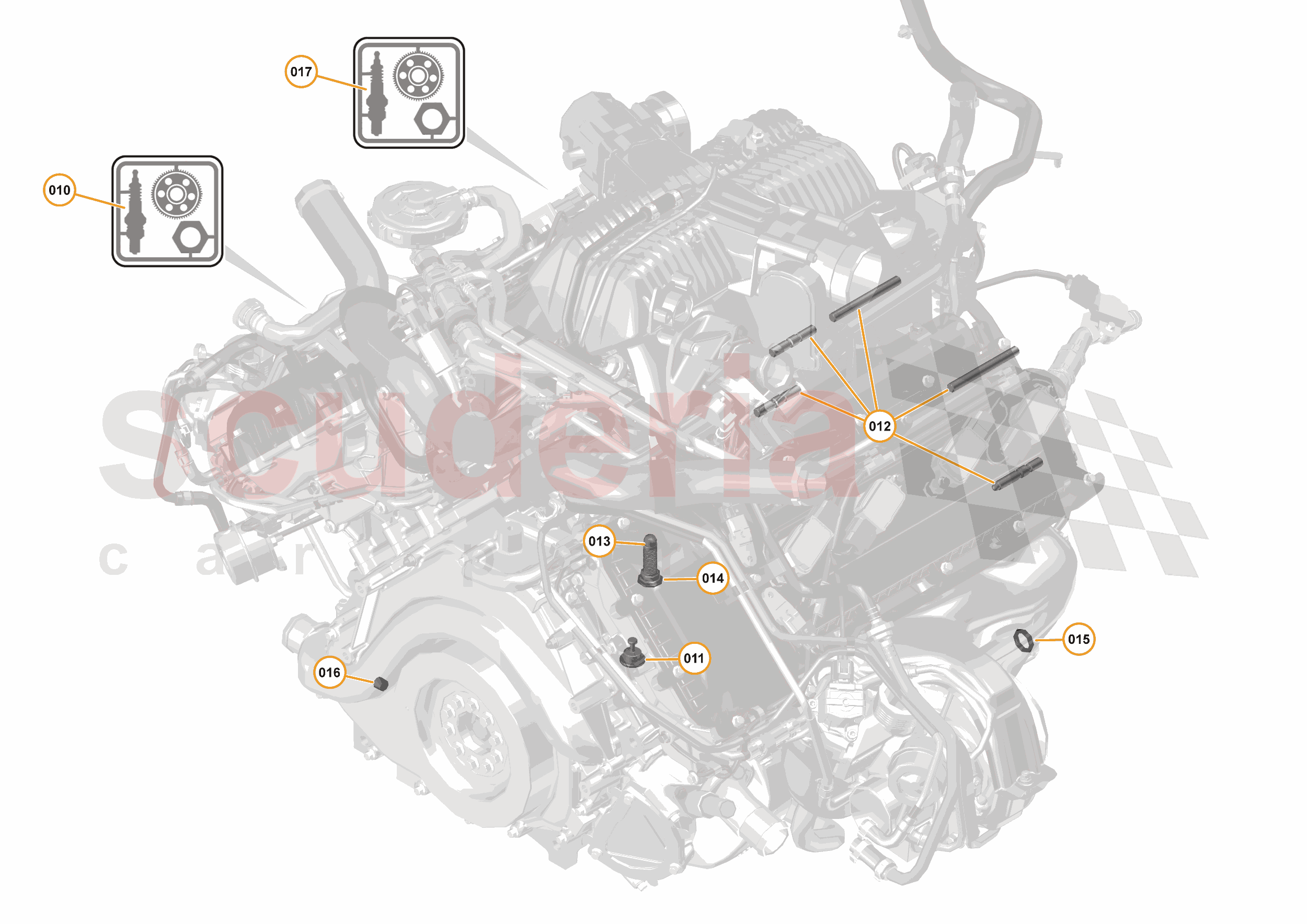

33 - ENGINE - 33.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE of McLaren McLaren McLaren 570S Spider

View All

McLaren McLaren 570S Spider - 33 - ENGINE - 33.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13F0819CP	Engine - 3.8 litre V8 Twin Turbo - Non ISG	$60,758.41	To Order
	13FA026SP	Engine - 3.8 litre V8 Twin Turbo - Non ISG	$67,531.91	To Order
	13FA015CP	Engine - 3.8 litre V8 Twin Turbo - Non ISG - China	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11F0799CP	Plug - Engine - Bed Plate - inc. Washer	$25.37	To Order
	11F1942CP	Washer - Ladderframe - M18 - Copper	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0798CP	Stud Kit - Engine to Transmission	$20.62	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0800CP	Over Pressure - Oil Relief Valve - Engine - Assy	$99.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2209CP	Crank Timing Plug - Engine - inc. O-ring	$13.18	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1018CP	Seal - Clutch Cooler Pipe Connection	$23.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2577CP	GRUB SCREW - OIL CHANNEL - ENGINE	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1917CP	BOLT- LADDERFRAME - M12X115	$13.60	To Order
	11F1918CP	BOLT- LADDERFRAME- M10X110	$13.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F1191CP	ENGINE LADDERFRAME WATER PASSAGE SEAL SOP	11F1191CP ENGINE LADDERFRAME WATER PASSAGE SEAL SOP Row ID: ID__11F1191CP_ContPgHS; Resolution: Available;	$14.51	1
000	11F1192CP	ENGINE LADDERFRAME COLD START OIL SEAL SOP	11F1192CP ENGINE LADDERFRAME COLD START OIL SEAL SOP Row ID: ID__11F1192CP_ContPgHS; Resolution: Available;	$14.51	1
010	13F0819CP	Engine - 3.8 litre V8 Twin Turbo - Non ISG	13F0819CP Engine - 3.8 litre V8 Twin Turbo - Non ISG Row ID: ID_CEFA01D2_13F0819CP_ContPgHS; Resolution: Available;	$60,758.41	1
010	13FA026SP	Engine - 3.8 litre V8 Twin Turbo - Non ISG	13FA026SP Engine - 3.8 litre V8 Twin Turbo - Non ISG Row ID: ID__13FA026SP_ContPgHS; Resolution: Available;	$67,531.91	1
010	13FA015CP	Engine - 3.8 litre V8 Twin Turbo - Non ISG - China	13FA015CP Engine - 3.8 litre V8 Twin Turbo - Non ISG - China Row ID: ID_CEFA01E4_13FA015CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	13F0816CP	Engine - 3.8 litre V8 Twin Turbo - ISG	13F0816CP Engine - 3.8 litre V8 Twin Turbo - ISG Row ID: ID_CEFA01D3_13F0816CP_ContPgHS; Resolution: Available;	$50,641.76	1
010	13FA016CP	Engine - 3.8 litre V8 Twin Turbo - ISG - China	13FA016CP Engine - 3.8 litre V8 Twin Turbo - ISG - China Row ID: ID_CEFA01E5_13FA016CP_ContPgHS; Resolution: Available;	-	1	Enquire
010	13FA024SP	Engine - 3.8 litre V8 Twin Turbo - ISG	13FA024SP Engine - 3.8 litre V8 Twin Turbo - ISG Row ID: ID_CEFA01F0_13FA024SP_ContPgHS; Resolution: Available;	$67,533.60	1
011	11F0799CP	Plug - Engine - Bed Plate - inc. Washer	11F0799CP Plug - Engine - Bed Plate - inc. Washer Row ID: ID_CEFA01D4_11F0799CP_ContPgHS; Resolution: Available;	$25.37	1
011	11F1942CP	Washer - Ladderframe - M18 - Copper	11F1942CP Washer - Ladderframe - M18 - Copper Row ID: ID_CEFA01E3_11F1942CP_ContPgHS; Resolution: Available;	$10.14	1
012	11F0798CP	Stud Kit - Engine to Transmission	11F0798CP Stud Kit - Engine to Transmission Row ID: ID_CEFA01D5_11F0798CP_ContPgHS; Resolution: Available;	$20.62	1
013	11F0800CP	Over Pressure - Oil Relief Valve - Engine - Assy	11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy Row ID: ID_CEFA01D6_11F0800CP_ContPgHS; Resolution: Available;	$99.59	1
014	11F2209CP	Crank Timing Plug - Engine - inc. O-ring	11F2209CP Crank Timing Plug - Engine - inc. O-ring Row ID: ID_CEFA01D7_11F2209CP_ContPgHS; Resolution: Available;	$13.18	1
015	11F1018CP	Seal - Clutch Cooler Pipe Connection	11F1018CP Seal - Clutch Cooler Pipe Connection Row ID: ID_CEFA01D8_11F1018CP_ContPgHS; Resolution: Available;	$23.39	1
016	11F2577CP	GRUB SCREW - OIL CHANNEL - ENGINE	11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE Row ID: ID_CEFA01D9_11F2577CP_ContPgHS; Resolution: Available;	$9.51	1
017	11F1917CP	BOLT- LADDERFRAME - M12X115	11F1917CP BOLT- LADDERFRAME - M12X115 Row ID: ID__11F1917CP_ContPgHS; Resolution: Available;	$13.60	1
017	11F1918CP	BOLT- LADDERFRAME- M10X110	11F1918CP BOLT- LADDERFRAME- M10X110 Row ID: ID__11F1918CP_ContPgHS; Resolution: Available;	$13.60	1

33 - Engine - 33.10 - Power Unit Assembly, Short Block & Hardware

McLaren McLaren 570S Spider

McLaren McLaren 570S Spider - 33 - ENGINE - 33.10 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE
