48 - Infotainment - 48.2 - Sound System - 8 Channel - Tier 1 & 2 - Low & Mid-Line

McLaren McLaren 570S Spider

Find Your Part

McLaren McLaren 570S Spider - 48 - INFOTAINMENT - 48.2 - SOUND SYSTEM - 8 CHANNEL - TIER 1 & 2 - LOW & MID-LINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M1271CP Link Harness - Audio Amplifier to Head Unit - Low-Line $314.06 To Order
Photo Part No Description Price (each) Stock
00RA185 HEX NUT - M4 - PLAIN Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 SEAT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
13M1028CP Speaker - 25mm $36.10 To Order
Photo Part No Description Price (each) Stock
13M1029CP Speaker - 165mm $99.40 To Order
Photo Part No Description Price (each) Stock
00RA574 SCREW - M5X25 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13M1079CP Speaker Bracket - Door - LH - 165mm $131.89 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
13M1081CP Speaker Bracket - Door - RH - 165mm $131.89 To Order
Photo Part No Description Price (each) Stock
13MA091CP Audio Amplifier - Mid-Line $528.19 To Order
Photo Part No Description Price (each) Stock
00RA586 Screw - M5x12 - Torx Enquire To Order
Photo Part No Description Price (each) Stock
13M1551CP Bracket - Audio Amplifier - Mid-Line $55.47 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1026CP Speaker - 80mm - Facia High-Line - Spider Rear Enquire To Order
Photo Part No Description Price (each) Stock
00RA267 Pozi Screw- 3.5X1.57-13mm Enquire To Order
Photo Part No Description Price (each) Stock
13M1626SP Speaker Mounting Bracket - Rear - LH $32.67 To Order
Photo Part No Description Price (each) Stock
13M1624SP Speaker Bracket - Rear - LH $33.56 To Order
Photo Part No Description Price (each) Stock
13M1652SP Mount - 25mm Speaker $32.23 To Order
Photo Part No Description Price (each) Stock
13M1627SP Speaker Mounting Bracket - Rear - RH $32.67 To Order
Photo Part No Description Price (each) Stock
13M1625SP Speaker Bracket - Rear - RH $33.56 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
View All

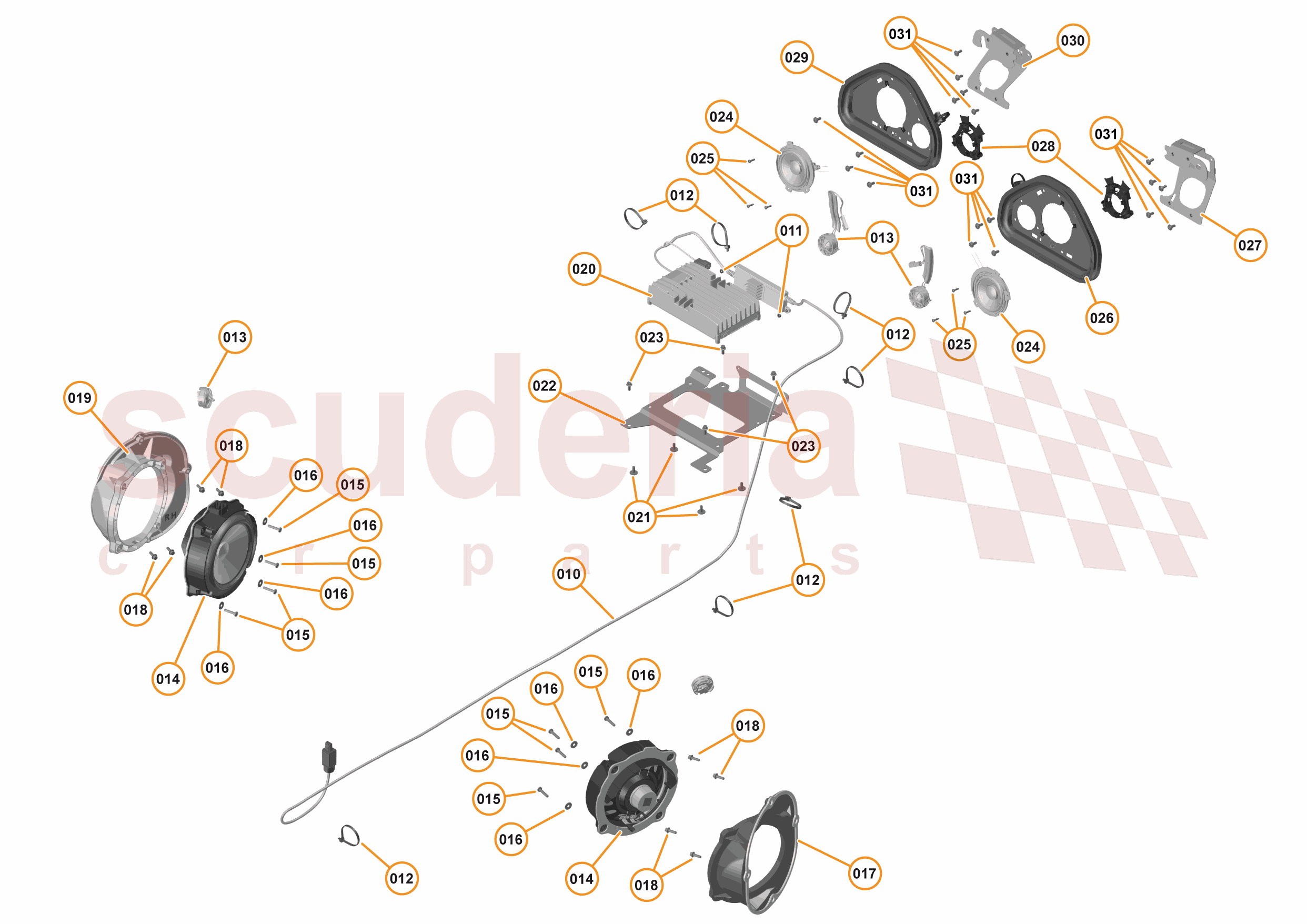

48 - INFOTAINMENT - 48.2 - SOUND SYSTEM - 8 CHANNEL - TIER 1 & 2 - LOW & MID-LINE of McLaren McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M1271CP
Link Harness - Audio Amplifier to Head Unit - Low-Line
Row ID: ID_CGME0201_13M1271CP_ContPgHS; Resolution: Available; 		$314.06 1
011 00RA185
HEX NUT - M4 - PLAIN
Row ID: ID_CGME0202_00RA185_ContPgHS; Resolution: Available; 		- 2 Enquire
012 00RL010
SEAT ASSY
Row ID: ID_CGME0203_00RL010_ContPgHS; Resolution: Available; 		- 7 Enquire
013 13M1028CP
Speaker - 25mm
Row ID: ID_CGME0204_13M1028CP_ContPgHS; Resolution: Available; 		$36.10 4
014 13M1029CP
Speaker - 165mm
Row ID: ID_CGME0205_13M1029CP_ContPgHS; Resolution: Available; 		$99.40 2
015 00RA574
SCREW - M5X25 - TORX
Row ID: ID_CGME0206_00RA574_ContPgHS; Resolution: Available; 		- 8 Enquire
016 00RC017
WASHER - M5X15X1.2
Row ID: ID_CGME0207_00RC017_ContPgHS; Resolution: Available; 		- 8 Enquire
017 13M1079CP
Speaker Bracket - Door - LH - 165mm
Row ID: ID_CGME0208_13M1079CP_ContPgHS; Resolution: Available; 		$131.89 1
018 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CGME0209_00RX001_ContPgHS; Resolution: Available; 		- 12 Enquire
019 13M1081CP
Speaker Bracket - Door - RH - 165mm
Row ID: ID_CGME0210_13M1081CP_ContPgHS; Resolution: Available; 		$131.89 1
020 13MA091CP
Audio Amplifier - Mid-Line
Row ID: ID_CGME0211_13MA091CP_ContPgHS; Resolution: Available; 		$528.19 1
021 00RA586
Screw - M5x12 - Torx
Row ID: ID_CGME0212_00RA586_ContPgHS; Resolution: Available; 		- 4 Enquire
022 13M1551CP
Bracket - Audio Amplifier - Mid-Line
Row ID: ID_CGME0213_13M1551CP_ContPgHS; Resolution: Available; 		$55.47 1
023 00RA064
BOLT - M5X12 - HEX
Row ID: ID_CGME0214_00RA064_ContPgHS; Resolution: Available; 		- 4 Enquire
024 13M1026CP
Speaker - 80mm - Facia High-Line - Spider Rear
Row ID: ID_CGME0220_13M1026CP_ContPgHS; Resolution: Available; 		- 2 Enquire
025 00RA267
Pozi Screw- 3.5X1.57-13mm
Row ID: ID_CGME0234_00RA267_ContPgHS; Resolution: Available; 		- 6 Enquire
026 13M1626SP
Speaker Mounting Bracket - Rear - LH
Row ID: ID_CGME0235_13M1626SP_ContPgHS; Resolution: Available; 		$32.67 1
027 13M1624SP
Speaker Bracket - Rear - LH
Row ID: ID_CGME0236_13M1624SP_ContPgHS; Resolution: Available; 		$33.56 1
028 13M1652SP
Mount - 25mm Speaker
Row ID: ID_CGME0237_13M1652SP_ContPgHS; Resolution: Available; 		$32.23 2
029 13M1627SP
Speaker Mounting Bracket - Rear - RH
Row ID: ID_CGME0238_13M1627SP_ContPgHS; Resolution: Available; 		$32.67 1
030 13M1625SP
Speaker Bracket - Rear - RH
Row ID: ID_CGME0239_13M1625SP_ContPgHS; Resolution: Available; 		$33.56 1
031 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID_CGME0240_00RA432_ContPgHS; Resolution: Available; 		- 18 Enquire
