McLaren McLaren 570S Spider - 6 - CLOSURES - 6.4 - DOOR STRUCTURE

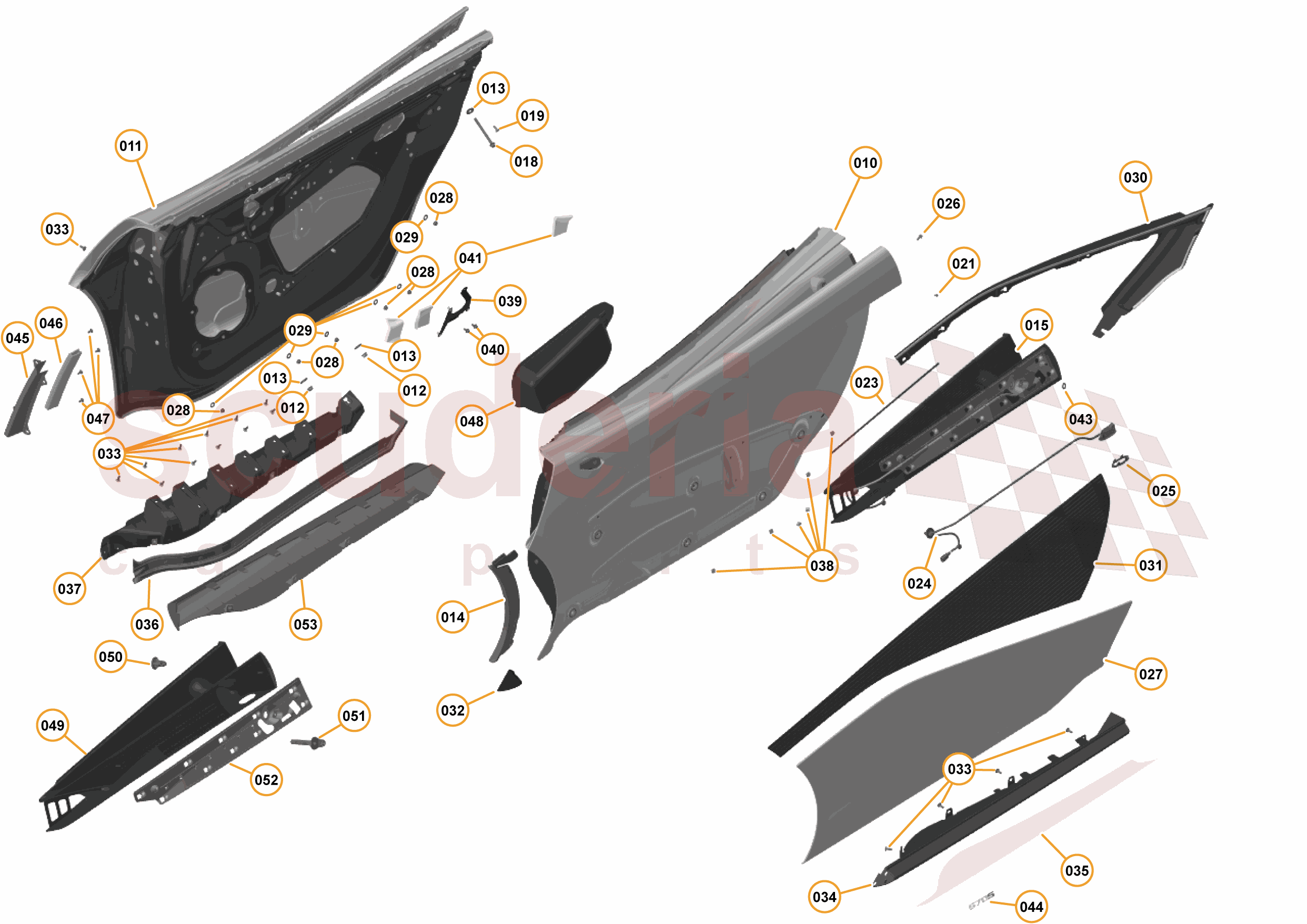

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA674CP Door Assy - LH Enquire To Order
Photo Part No Description Price (each) Stock
13AA673CP Door Assy - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
13A5676CP Deflector - Stone Chip - LH $102.79 To Order
13A5675CP Deflector - Stone Chip - RH $102.79 To Order
Photo Part No Description Price (each) Stock
13A6563CP Assy - Winglet - Carbon - LH Enquire To Order
13A6567CP Assy - Winglet - Carbon - RH $9,276.97 To Order
Photo Part No Description Price (each) Stock
00RA544 Bolt - Hex Head - Flanged - M8x100 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RA256 SCREW - M4X8 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13A6253CP Gasket - Foam $11.51 To Order
Photo Part No Description Price (each) Stock
13A4087CP Switch - Door Release - Push Button $88.48 To Order
Photo Part No Description Price (each) Stock
13A4126CP MLDG DOOR SWITCH CARRIER $17.52 To Order
Photo Part No Description Price (each) Stock
00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Enquire To Order
Photo Part No Description Price (each) Stock
13AA200CP Applique - Door - LH Enquire To Order
13AA203CP Applique - Door - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC070 WASHER - FORM A - M8 Enquire To Order
Photo Part No Description Price (each) Stock
13A6337CP Applique Finisher - Door - LH $684.01 To Order
13A6342CP Applique Finisher - Door - RH $684.01 To Order
Photo Part No Description Price (each) Stock
13A5926CP Decal Panel - Door outer - LH - Carbon $2,418.42 To Order
13A5924CP Decal Panel - Door outer - RH - Carbon $2,821.54 To Order
Photo Part No Description Price (each) Stock
13A5677CP Stone Chip Deflector - Door Skirt - LH - 570S - 570GT Enquire To Order
13A5680CP Stone Chip Deflector - Door Skirt - RH - 570S - 570GT Enquire To Order
Photo Part No Description Price (each) Stock
00RA238 SCREW - M6X16 - LOCK BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13AA588CP Door Skirt - Outer - 570S - 570GT - LH $1,147.09 To Order
13A7039CP Door Skirt - Outer - 570S - 570GT - Carbon - LH $2,471.51 To Order
13AA591CP Door Skirt - Outer - 570S - 570GT - RH $1,147.09 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A4091CP Tape - Stone Protection - Door - LH - 570S $46.03 To Order
13A4093CP Tape - Stone Protection - Door - RH - 570S $46.03 To Order
Photo Part No Description Price (each) Stock
13A6334CP Seal - Door Skirt - LH $342.99 To Order
13A6339CP Seal - Door Skirt - RH $342.99 To Order
Photo Part No Description Price (each) Stock
13A6741CP Door Skirt - Inner - LH $158.61 To Order
13A6743CP Door Skirt - Inner - RH $158.61 To Order
Photo Part No Description Price (each) Stock
00RB167 Clip - Panel - Door Skirt Inner Enquire To Order
Photo Part No Description Price (each) Stock
13A5910CP Bracket - Door ECU - LH $46.81 To Order
13A5911CP Bracket - Door ECU - RH $46.81 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A5635CP NVH FOAM - DOOR INNER - GT BULKHEAD $3.34 To Order
Photo Part No Description Price (each) Stock
13AA431CP Shim - Door Winglet - 0.25mm $18.94 To Order
13AA432CP Shim - Door Winglet - 0.6mm $18.67 To Order
13AA439CP Shim - Door Winglet - 1.0mm $18.83 To Order
Photo Part No Description Price (each) Stock
13A4789CP Badge - Side - 570S $129.98 To Order
Photo Part No Description Price (each) Stock
13A1225CP Moulding - Glass Guide - LH $154.15 To Order
13A1241CP Moulding - Glass Guide - RH $154.15 To Order
Photo Part No Description Price (each) Stock
13A6371CP Seal - Glass Guide $46.81 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13A3861CP Moulding - Door Pocket - LH $54.45 To Order
13A3862CP Moulding - Door Pocket - RH $54.45 To Order
Photo Part No Description Price (each) Stock
13A2743CP Insert Cover - Winglet - Door LH Enquire To Order
13A2734CP Insert Cover - Winglet - Door RH Enquire To Order
Photo Part No Description Price (each) Stock
13A2915CP Brace - Winglet - Door Side - LH $128.46 To Order
13A2914CP Brace - Winglet - Door Side - RH $128.46 To Order
Photo Part No Description Price (each) Stock
13A4121CP Brace - Winglet - Tendon Side $128.46 To Order
Photo Part No Description Price (each) Stock
13A6554CP Cover Support - Door Winglet - LH $33.79 To Order
13A6566CP Cover Support - Door Winglet - RH $33.79 To Order
View All
6 - CLOSURES - 6.4 - DOOR STRUCTURE of McLaren McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA674CP
Door Assy - LH
Row ID: ID_CBAF0501_13AA674CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 13AA673CP
Door Assy - RH
Row ID: ID_CBAF0502_13AA673CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RA075
NUT - M8-8 - HEX
Row ID: ID_CBAF0503_00RA075_ContPgHS; Resolution: Available; 		- 4 Enquire
013 00RC015
WASHER - M8X24X2
Row ID: ID_CBAF0504_00RC015_ContPgHS; Resolution: Available; 		- 6 Enquire
014 13A5676CP
Deflector - Stone Chip - LH
Row ID: ID_CBAF0505_13A5676CP_ContPgHS; Resolution: Available; 		$102.79 1
014 13A5675CP
Deflector - Stone Chip - RH
Row ID: ID_CBAF0506_13A5675CP_ContPgHS; Resolution: Available; 		$102.79 1
015 13A6563CP
Assy - Winglet - Carbon - LH
Row ID: ID_CBAF0561_13A6563CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 13A6567CP
Assy - Winglet - Carbon - RH
Row ID: ID_CBAF0562_13A6567CP_ContPgHS; Resolution: Available; 		$9,276.97 1
018 00RA544
Bolt - Hex Head - Flanged - M8x100
Row ID: ID_CBAF0512_00RA544_ContPgHS; Resolution: Available; 		- 2 Enquire
019 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID_CBAF0513_00RA409_ContPgHS; Resolution: Available; 		- 2 Enquire
021 00RA256
SCREW - M4X8 - BUTTON
Row ID: ID_CBAF0516_00RA256_ContPgHS; Resolution: Available; 		- 2 Enquire
022 00RA427
Starlock - Diameter 6mm Shaft - 8024
Row ID: ID_CBAF0517_00RA427_ContPgHS; Resolution: Available; 		- 8 Enquire
023 13A6253CP
Gasket - Foam
Row ID: ID_CBAF0518_13A6253CP_ContPgHS; Resolution: Available; 		$11.51 2
024 13A4087CP
Switch - Door Release - Push Button
Row ID: ID_CBAF0519_13A4087CP_ContPgHS; Resolution: Available; 		$88.48 2
025 13A4126CP
MLDG DOOR SWITCH CARRIER
Row ID: ID_CBAF0520_13A4126CP_ContPgHS; Resolution: Available; 		$17.52 2
026 00RA565
BOLT - HEX HEAD - FLANGE - M6X12
Row ID: ID_CBAF0521_00RA565_ContPgHS; Resolution: Available; 		- 2 Enquire
027 13AA200CP
Applique - Door - LH
Row ID: ID_CBAF0522_13AA200CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 13AA203CP
Applique - Door - RH
Row ID: ID_CBAF0523_13AA203CP_ContPgHS; Resolution: Available; 		- 1 Enquire
028 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_CBAF0524_00RA011_ContPgHS; Resolution: Available; 		- 12 Enquire
029 00RC070
WASHER - FORM A - M8
Row ID: ID_CBAF0525_00RC070_ContPgHS; Resolution: Available; 		- 12 Enquire
030 13A6337CP
Applique Finisher - Door - LH
Row ID: ID_CBAF0526_13A6337CP_ContPgHS; Resolution: Available; 		$684.01 1
030 13A6342CP
Applique Finisher - Door - RH
Row ID: ID_CBAF0527_13A6342CP_ContPgHS; Resolution: Available; 		$684.01 1
031 13A5926CP
Decal Panel - Door outer - LH - Carbon
Row ID: ID_CBAF0528_13A5926CP_ContPgHS; Resolution: Available; 		$2,418.42 1
031 13A5924CP
Decal Panel - Door outer - RH - Carbon
Row ID: ID_CBAF0529_13A5924CP_ContPgHS; Resolution: Available; 		$2,821.54 1
032 13A5677CP
Stone Chip Deflector - Door Skirt - LH - 570S - 570GT
Row ID: ID_CBAF0530_13A5677CP_ContPgHS; Resolution: Available; 		- 1 Enquire
032 13A5680CP
Stone Chip Deflector - Door Skirt - RH - 570S - 570GT
Row ID: ID_CBAF0533_13A5680CP_ContPgHS; Resolution: Available; 		- 1 Enquire
033 00RA238
SCREW - M6X16 - LOCK BUTTON
Row ID: ID_CBAF0534_00RA238_ContPgHS; Resolution: Available; 		- 32 Enquire
034 13AA588CP
Door Skirt - Outer - 570S - 570GT - LH
Row ID: ID_CBAF0535_13AA588CP_ContPgHS; Resolution: Available; 		$1,147.09 1
034 13A7039CP
Door Skirt - Outer - 570S - 570GT - Carbon - LH
Row ID: ID_CBAF0536_13A7039CP_ContPgHS; Resolution: Available; 		$2,471.51 1
034 13AA591CP
Door Skirt - Outer - 570S - 570GT - RH
Row ID: ID_CBAF0538_13AA591CP_ContPgHS; Resolution: Available; 		$1,147.09 1
034 13A7050CP
Door Skirt - Outer - 570S - 570GT - Carbon - RH
Row ID: ID_CBAF0539_13A7050CP_ContPgHS; Resolution: Available; 		$1,970.56 1
035 13A4091CP
Tape - Stone Protection - Door - LH - 570S
Row ID: ID_CBAF0541_13A4091CP_ContPgHS; Resolution: Available; 		$46.03 1
035 13A4093CP
Tape - Stone Protection - Door - RH - 570S
Row ID: ID_CBAF0543_13A4093CP_ContPgHS; Resolution: Available; 		$46.03 1
036 13A6334CP
Seal - Door Skirt - LH
Row ID: ID_CBAF0545_13A6334CP_ContPgHS; Resolution: Available; 		$342.99 1
036 13A6339CP
Seal - Door Skirt - RH
Row ID: ID_CBAF0546_13A6339CP_ContPgHS; Resolution: Available; 		$342.99 1
037 13A6741CP
Door Skirt - Inner - LH
Row ID: ID_CBAF0547_13A6741CP_ContPgHS; Resolution: Available; 		$158.61 1
037 13A6743CP
Door Skirt - Inner - RH
Row ID: ID_CBAF0548_13A6743CP_ContPgHS; Resolution: Available; 		$158.61 1
038 00RB167
Clip - Panel - Door Skirt Inner
Row ID: ID_CBAF0549_00RB167_ContPgHS; Resolution: Available; 		- 2 Enquire
039 13A5910CP
Bracket - Door ECU - LH
Row ID: ID_CBAF0550_13A5910CP_ContPgHS; Resolution: Available; 		$46.81 1
039 13A5911CP
Bracket - Door ECU - RH
Row ID: ID_CBAF0551_13A5911CP_ContPgHS; Resolution: Available; 		$46.81 1
040 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_CBAF0552_00RX003_ContPgHS; Resolution: Available; 		- 4 Enquire
041 13A5635CP
NVH FOAM - DOOR INNER - GT BULKHEAD
Row ID: ID_CBAF0553_13A5635CP_ContPgHS; Resolution: Available; 		$3.34 6
043 13AA431CP
Shim - Door Winglet - 0.25mm
Row ID: ID_CBAF0554_13AA431CP_ContPgHS; Resolution: Available; 		$18.94 1
043 13AA432CP
Shim - Door Winglet - 0.6mm
Row ID: ID_CBAF0555_13AA432CP_ContPgHS; Resolution: Available; 		$18.67 1
043 13AA439CP
Shim - Door Winglet - 1.0mm
Row ID: ID_CBAF0556_13AA439CP_ContPgHS; Resolution: Available; 		$18.83 1
044 13A4789CP
Badge - Side - 570S
Row ID: ID_CBAF0559_13A4789CP_ContPgHS; Resolution: Available; 		$129.98 1
045 13A1225CP
Moulding - Glass Guide - LH
Row ID: ID_CBAF0563_13A1225CP_ContPgHS; Resolution: Available; 		$154.15 1
045 13A1241CP
Moulding - Glass Guide - RH
Row ID: ID_CBAF0564_13A1241CP_ContPgHS; Resolution: Available; 		$154.15 1
046 13A6371CP
Seal - Glass Guide
Row ID: ID_CBAF0565_13A6371CP_ContPgHS; Resolution: Available; 		$46.81 2
047 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID_CBAF0566_00RA468_ContPgHS; Resolution: Available; 		- 4 Enquire
048 13A3861CP
Moulding - Door Pocket - LH
Row ID: ID_CBAF0567_13A3861CP_ContPgHS; Resolution: Available; 		$54.45 1
048 13A3862CP
Moulding - Door Pocket - RH
Row ID: ID_CBAF0568_13A3862CP_ContPgHS; Resolution: Available; 		$54.45 1
049 13A2743CP
Insert Cover - Winglet - Door LH
Row ID: ID_CBAF0507_13A2743CP_ContPgHS; 		- 1 Enquire
049 13A2734CP
Insert Cover - Winglet - Door RH
Row ID: ID_CBAF0508_13A2734CP_ContPgHS; 		- 1 Enquire
050 13A2915CP
Brace - Winglet - Door Side - LH
Row ID: ID_CBAF0569_13A2915CP_ContPgHS; Resolution: Available; 		$128.46 1
050 13A2914CP
Brace - Winglet - Door Side - RH
Row ID: ID_CBAF0570_13A2914CP_ContPgHS; Resolution: Available; 		$128.46 1
051 13A4121CP
Brace - Winglet - Tendon Side
Row ID: ID_CBAF0571_13A4121CP_ContPgHS; Resolution: Available; 		$128.46 2
052 13A6554CP
Cover Support - Door Winglet - LH
Row ID: ID_CBAF0572_13A6554CP_ContPgHS; Resolution: Available; 		$33.79 1
052 13A6566CP
Cover Support - Door Winglet - RH
Row ID: ID_CBAF0573_13A6566CP_ContPgHS; Resolution: Available; 		$33.79 1

Haven't found what you're looking for?

More: McLaren Doors Tuning Parts Need help? Call us

View Cart / Checkout
