5 - Panels - 5.4 - Bulkhead

McLaren McLaren 570S Spider

Find Your Part

McLaren McLaren 570S Spider - 5 - PANELS - 5.4 - BULKHEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA655SP Bulkhead Liner - Spider - Centre $483.69 To Order
13AA216SP Liner - Bulkhead - Centre - ESG Enquire To Order
Photo Part No Description Price (each) Stock
13AA287SP Liner - Bulkhead - RH $149.09 To Order
Photo Part No Description Price (each) Stock
13AA285SP Liner - Bulkhead - LH $149.09 To Order
Photo Part No Description Price (each) Stock
11A5307SP HATCH - BULKHEAD $491.71 To Order
Photo Part No Description Price (each) Stock
12N1282CP ADHESIVE TAPE - ACCESS PANEL - BULKHEAD $312.91 To Order
Photo Part No Description Price (each) Stock
00RA399 SCREW - M4X12 Enquire To Order
Photo Part No Description Price (each) Stock
11A5842SP WASHER - TINNERMANN - M4 $12.41 To Order
Photo Part No Description Price (each) Stock
13AA192SP Support - Bulkhead - RH $58.13 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 CONVERTIBLE ROOF Enquire To Order
Photo Part No Description Price (each) Stock
13AA188SP Support - Bulkhead - LH $58.13 To Order
Photo Part No Description Price (each) Stock
13AA161SP Heatshield - Bulkhead - Non ESG $217.96 To Order
13AA154SP Heatshield - Bulkhead - ESG Enquire To Order
Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
11AA018SP Heatshield - Hatch - Bulkhead $276.00 To Order
Photo Part No Description Price (each) Stock
13AA275SP Heatshield - Bulkhead - Rear - Upper - RH $128.96 To Order
View All

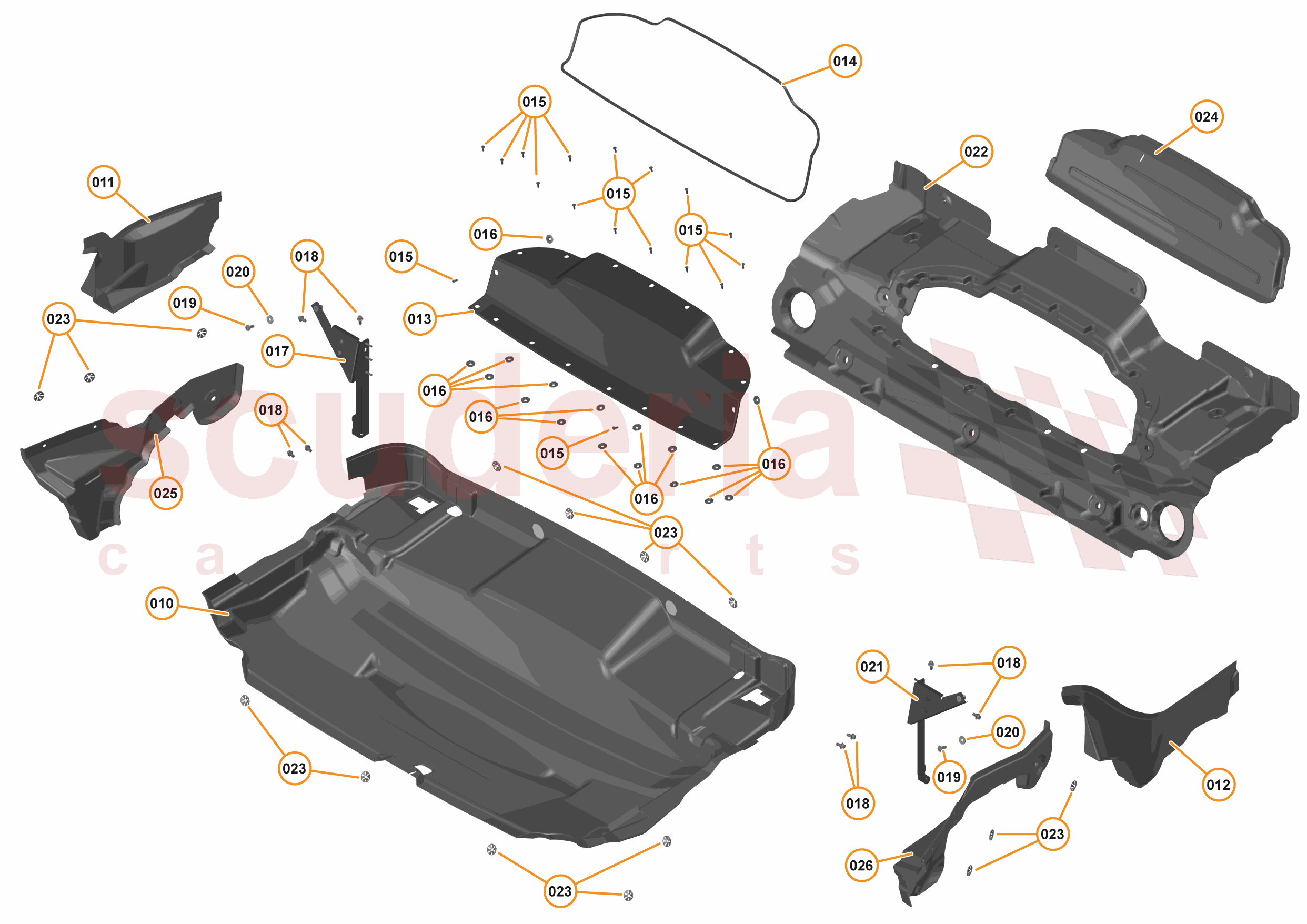

5 - PANELS - 5.4 - BULKHEAD of McLaren McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA655SP
Bulkhead Liner - Spider - Centre
Row ID: ID_CBAE0417_13AA655SP_ContPgHS; Resolution: Available; 		$483.69 1
010 13AA216SP
Liner - Bulkhead - Centre - ESG
Row ID: ID_CBAE0418_13AA216SP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 13AA287SP
Liner - Bulkhead - RH
Row ID: ID_CBAE0419_13AA287SP_ContPgHS; Resolution: Available; 		$149.09 1
012 13AA285SP
Liner - Bulkhead - LH
Row ID: ID_CBAE0420_13AA285SP_ContPgHS; Resolution: Available; 		$149.09 1
013 11A5307SP
HATCH - BULKHEAD
Row ID: ID_CBAE0421_11A5307SP_ContPgHS; Resolution: Available; 		$491.71 1
014 12N1282CP
ADHESIVE TAPE - ACCESS PANEL - BULKHEAD
Row ID: ID_CBAE0422_12N1282CP_ContPgHS; Resolution: Available; 		$312.91 1
015 00RA399
SCREW - M4X12
Row ID: ID_CBAE0423_00RA399_ContPgHS; Resolution: Available; 		- 17 Enquire
016 11A5842SP
WASHER - TINNERMANN - M4
Row ID: ID_CBAE0424_11A5842SP_ContPgHS; Resolution: Available; 		$12.41 17
017 13AA192SP
Support - Bulkhead - RH
Row ID: ID_CBAE0425_13AA192SP_ContPgHS; Resolution: Available; 		$58.13 1
018 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_CBAE0426_00RX003_ContPgHS; Resolution: Available; 		- 6 Enquire
019 00RA310
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID_CBAE0427_00RA310_ContPgHS; Resolution: Available; 		- 2 Enquire
020 00RC077
CONVERTIBLE ROOF
Row ID: ID_CBAE0428_00RC077_ContPgHS; Resolution: Available; 		- 2 Enquire
021 13AA188SP
Support - Bulkhead - LH
Row ID: ID_CBAE0429_13AA188SP_ContPgHS; Resolution: Available; 		$58.13 1
022 13AA161SP
Heatshield - Bulkhead - Non ESG
Row ID: ID_CBAE0430_13AA161SP_ContPgHS; Resolution: Available; 		$217.96 1
022 13AA154SP
Heatshield - Bulkhead - ESG
Row ID: ID_CBAE0431_13AA154SP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 00RC039
WASHER - M6 - STAR LOCK
Row ID: ID_CBAE0406_00RC039_ContPgHS; Resolution: Available; 		- 15 Enquire
024 11AA018SP
Heatshield - Hatch - Bulkhead
Row ID: ID_CBAE0432_11AA018SP_ContPgHS; Resolution: Available; 		$276.00 1
025 13AA275SP
Heatshield - Bulkhead - Rear - Upper - RH
Row ID: ID_CBAE0433_13AA275SP_ContPgHS; Resolution: Available; 		$128.96 1
026 13AA273SP
Heatshield - Bulkhead - Rear - Upper - LH
Row ID: ID_CBAE0434_13AA273SP_ContPgHS; Resolution: Available; 		$128.96 1
