43 - Wiring Harness - 43.2 - Body Wiring Harness

McLaren McLaren 570GT

Find Your Part

McLaren McLaren 570GT - 43 - WIRING HARNESS - 43.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M1603GP Wiring Harness - Body - Mid-Line - GT - LHD - Upto MY17 Enquire To Order
13M1604GP Wiring Harness - Body - High-Line - GT - LHD - Upto MY17 Enquire To Order
13M1607GP Wiring Harness - Body - Mid-Line - GT - RHD - Upto MY17 $3,896.34 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA555 NUT - M5X0.8 - HEX LOCKED Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB097 P-Clip - Dia 25 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB100 P-Clip - Dia 30 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M1285CP NVH Pad - Grommet - Upper $34.79 To Order
Photo Part No Description Price (each) Stock
11M2517CP NVH Pad - Grommet - Lower - LHD $16.19 To Order
11M2530CP NVH Pad - Grommet - Lower - RHD $16.19 To Order
Photo Part No Description Price (each) Stock
11M0503CP Bracket - Harness Carrier - Rear $191.08 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0502CP BRACKET - INTERIOR FUSEBOX - REAR $272.82 To Order
Photo Part No Description Price (each) Stock
13M1482CP Blank - Electric Connector - No Reverse Camera - Signal - MB270 $10.90 To Order
Photo Part No Description Price (each) Stock
13M1483CP Blank - Electric Connector - No Reverse Camera - Power - MB225 $2.00 To Order
View All

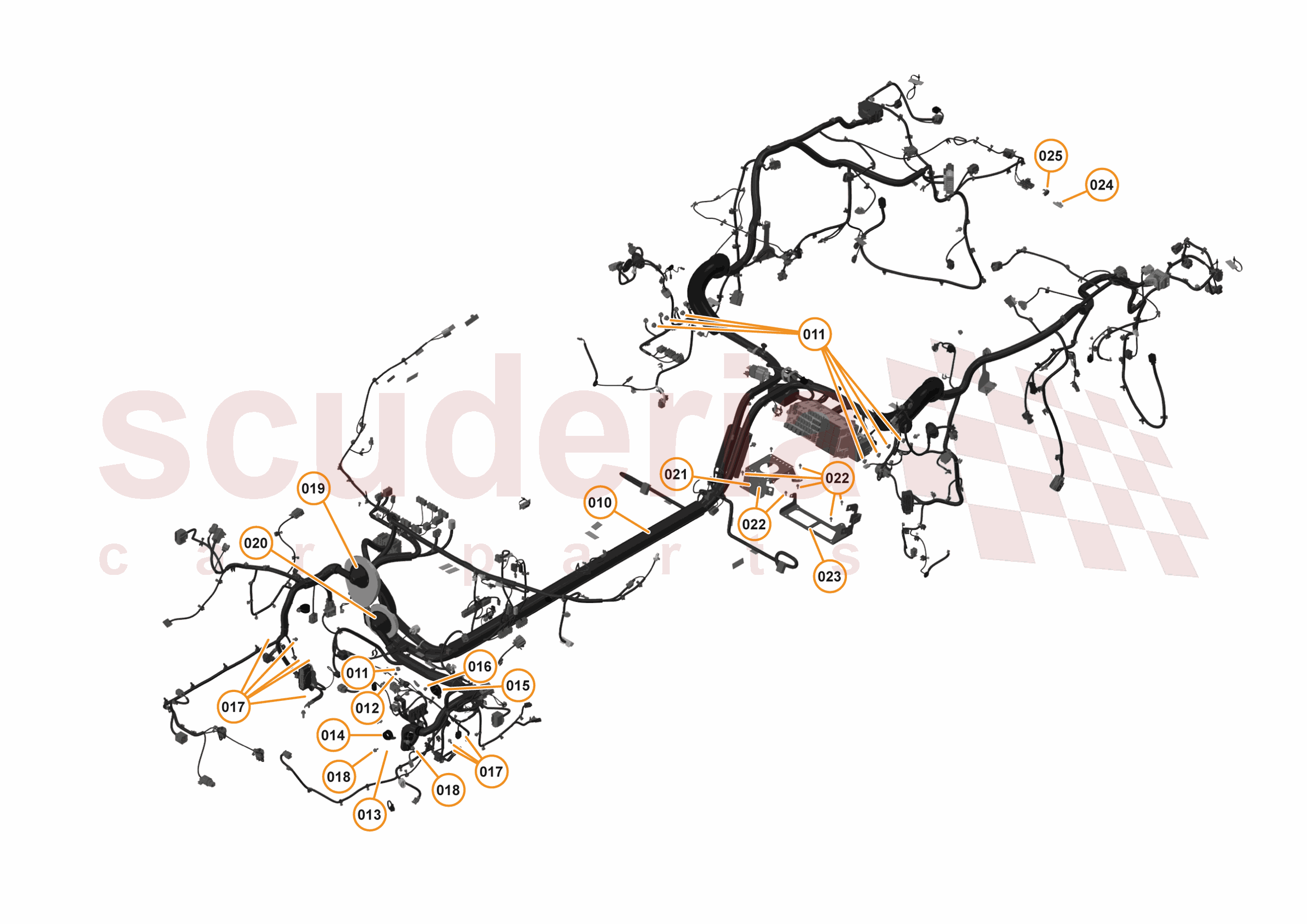

43 - WIRING HARNESS - 43.2 - BODY WIRING HARNESS of McLaren McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M1603GP
Wiring Harness - Body - Mid-Line - GT - LHD - Upto MY17
Row ID: ID_CGMA0222_13M1603GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13M1604GP
Wiring Harness - Body - High-Line - GT - LHD - Upto MY17
Row ID: ID_CGMA0223_13M1604GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13M1607GP
Wiring Harness - Body - Mid-Line - GT - RHD - Upto MY17
Row ID: ID_CGMA0224_13M1607GP_ContPgHS; Resolution: Available; 		$3,896.34 1
010 13M1608GP
Wiring Harness - Body - High-Line - GT - RHD - Upto MY17
Row ID: ID_CGMA0225_13M1608GP_ContPgHS; Resolution: Available; 		$4,836.82 1
010 13M1605GP
Wiring Harness - Body - Mid-Line - GT - Federal - Upto MY17
Row ID: ID_CGMA0226_13M1605GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13M1606GP
Wiring Harness - Body - High-Line - GT - Federal - Upto MY17
Row ID: ID_CGMA0227_13M1606GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13MA027GP
Wiring Harness - Body - Mid-Line - GT - LHD
Row ID: ID_CGMA0236_13MA027GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13MA028GP
Wiring Harness - Body - High-Line - GT - LHD
Row ID: ID_CGMA0237_13MA028GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13MA031GP
Wiring Harness - Body - Mid-Line - GT - RHD
Row ID: ID_CGMA0238_13MA031GP_ContPgHS; Resolution: Available; 		$15,227.99 1
010 13MA032GP
Wiring Harness - Body - High-Line - GT - RHD
Row ID: ID_CGMA0239_13MA032GP_ContPgHS; Resolution: Available; 		$15,245.71 1
010 13MA029GP
Wiring Harness - Body - Mid-Line - GT - Federal
Row ID: ID_CGMA0240_13MA029GP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13MA030GP
Wiring Harness - Body - High-Line - GT - Federal
Row ID: ID_CGMA0241_13MA030GP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 00RA075
NUT - M8-8 - HEX
Row ID: ID_CGMA0208_00RA075_ContPgHS; Resolution: Available; 		- 8 Enquire
012 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID_CGMA0209_00RA555_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RB060
P CLIP - DIA 20
Row ID: ID_CGMA0210_00RB060_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RB097
P-Clip - Dia 25 - M6
Row ID: ID_CGMA0211_00RB097_ContPgHS; Resolution: Available; 		- 1 Enquire
015 00RB100
P-Clip - Dia 30 - M6
Row ID: ID_CGMA0212_00RB100_ContPgHS; Resolution: Available; 		- 1 Enquire
016 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_CGMA0213_00RA055_ContPgHS; Resolution: Available; 		- 1 Enquire
017 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_CGMA0214_00RA313_ContPgHS; Resolution: Available; 		- 7 Enquire
018 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_CGMA0215_00RX003_ContPgHS; Resolution: Available; 		- 2 Enquire
019 11M1285CP
NVH Pad - Grommet - Upper
Row ID: ID_CGMA0216_11M1285CP_ContPgHS; Resolution: Available; 		$34.79 1
020 11M2517CP
NVH Pad - Grommet - Lower - LHD
Row ID: ID_CGMA0217_11M2517CP_ContPgHS; Resolution: Available; 		$16.19 1
020 11M2530CP
NVH Pad - Grommet - Lower - RHD
Row ID: ID_CGMA0218_11M2530CP_ContPgHS; Resolution: Available; 		$16.19 1
021 11M0503CP
Bracket - Harness Carrier - Rear
Row ID: ID_CGMA0219_11M0503CP_ContPgHS; Resolution: Available; 		$191.08 1
022 00RA064
BOLT - M5X12 - HEX
Row ID: ID_CGMA0220_00RA064_ContPgHS; Resolution: Available; 		- 8 Enquire
023 11M0502CP
BRACKET - INTERIOR FUSEBOX - REAR
Row ID: ID_CGMA0221_11M0502CP_ContPgHS; Resolution: Available; 		$272.82 1
024 13M1482CP
Blank - Electric Connector - No Reverse Camera - Signal - MB270
Row ID: ID_CGMA0228_13M1482CP_ContPgHS; Resolution: Available; 		$10.90 1
025 13M1483CP
Blank - Electric Connector - No Reverse Camera - Power - MB225
Row ID: ID_CGMA0229_13M1483CP_ContPgHS; Resolution: Available; 		$2.00 1
