McLaren McLaren 570GT - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

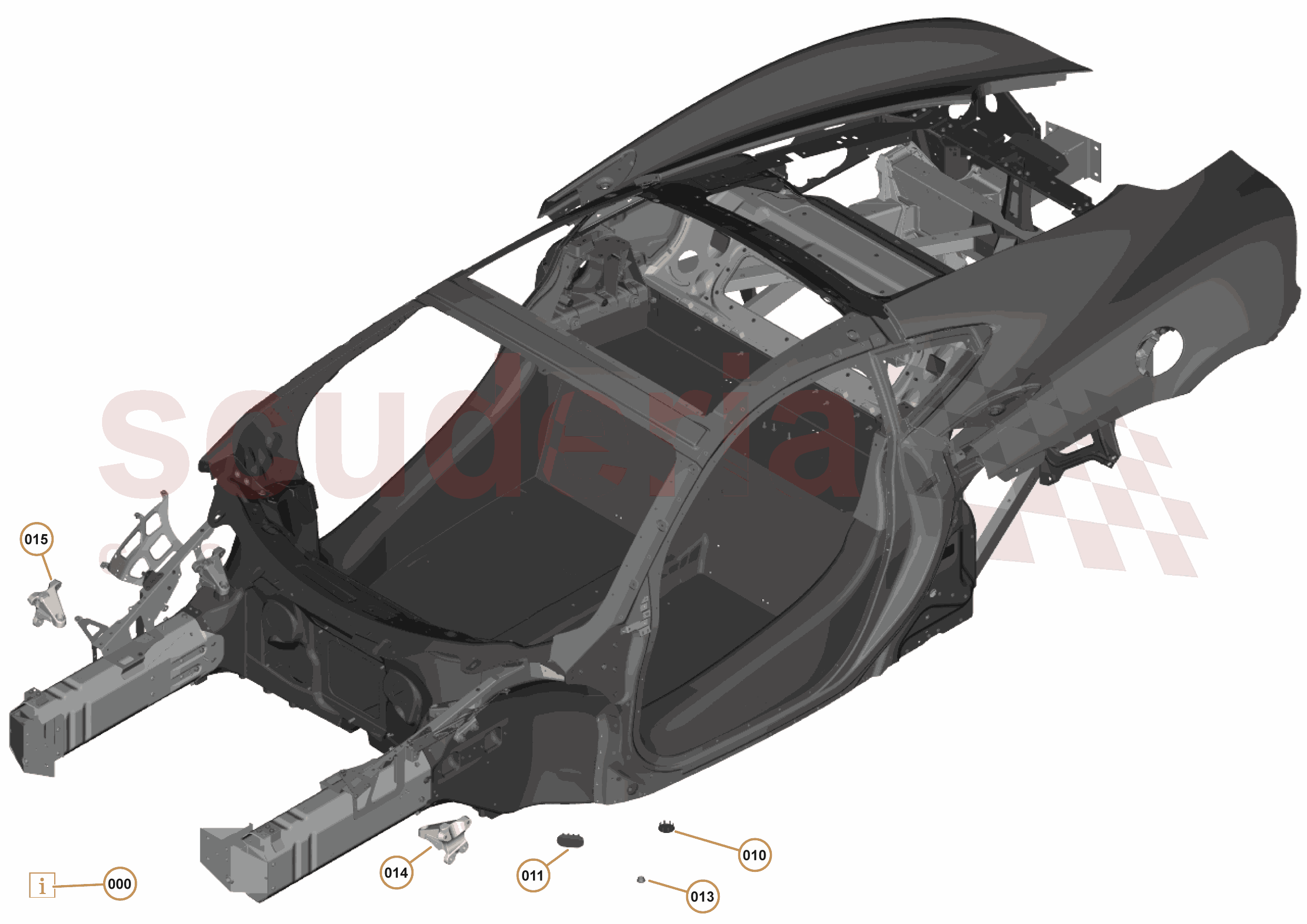

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A4759CP	RIVNUT - M4 - 1.75-2.50 - 2330-704-0250	$8.47	To Order
	11A4761CP	RIVNUT - M5 - 1.00-2.00 - 2330-705-0020	$5.01	To Order
	11A4762CP	HELICOIL - M6X1D - 1084-6CNW060	$8.95	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	$9.85	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	$9.85	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5736CP	PLUG - TUB DATUM	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7142CP	BRACKET - DAMPER MOUNTING - LH	$194.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7143CP	BRACKET - DAMPER MOUNTING - RH	$194.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
000	11A4759CP	RIVNUT - M4 - 1.75-2.50 - 2330-704-0250	11A4759CP RIVNUT - M4 - 1.75-2.50 - 2330-704-0250 Row ID: ID_CAAB0103_11A4759CP_ContPgHS; Resolution: Available;	$8.47	1
000	11A4761CP	RIVNUT - M5 - 1.00-2.00 - 2330-705-0020	11A4761CP RIVNUT - M5 - 1.00-2.00 - 2330-705-0020 Row ID: ID_CAAB0105_11A4761CP_ContPgHS; Resolution: Available;	$5.01	1
000	11A4762CP	HELICOIL - M6X1D - 1084-6CNW060	11A4762CP HELICOIL - M6X1D - 1084-6CNW060 Row ID: ID_CAAB0106_11A4762CP_ContPgHS; Resolution: Available;	$8.95	1
000	11A4763CP	HELICOIL - M8X1.5D - 1084-8CNW120	11A4763CP HELICOIL - M8X1.5D - 1084-8CNW120 Row ID: ID_CAAB0107_11A4763CP_ContPgHS; Resolution: Available;	$10.17	1
000	11A4766CP	HELICOIL - M10X2D - 1084-10CNW200	11A4766CP HELICOIL - M10X2D - 1084-10CNW200 Row ID: ID_CAAB0110_11A4766CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4768CP	HELICOIL - M12X2D - 1084-12CNW240	11A4768CP HELICOIL - M12X2D - 1084-12CNW240 Row ID: ID_CAAB0111_11A4768CP_ContPgHS; Resolution: Available;	$10.09	1
000	11A4769CP	Rivet Stud - M5x15 - 3 15-3732-705-0115	11A4769CP Rivet Stud - M5x15 - 3 15-3732-705-0115 Row ID: ID_CAAB0112_11A4769CP_ContPgHS; Resolution: Available;	$5.38	1
000	11A4770CP	HELICOIL - M16X1.5D - 3745-16CNW240	11A4770CP HELICOIL - M16X1.5D - 3745-16CNW240 Row ID: ID_CAAB0113_11A4770CP_ContPgHS; Resolution: Available;	$14.47	1
000	11A4771CP	Rivet - 2.0-9.5 - HKLP-R8-6	11A4771CP Rivet - 2.0-9.5 - HKLP-R8-6 Row ID: ID_CAAB0114_11A4771CP_ContPgHS; Resolution: Available;	$5.46	1
000	11A4772CP	Rivnut - M8 - 2.0-3.5 - 2330-708-0035	11A4772CP Rivnut - M8 - 2.0-3.5 - 2330-708-0035 Row ID: ID_CAAB0115_11A4772CP_ContPgHS; Resolution: Available;	$5.28	1
000	11A4773CP	Rivnut - M5 - 3.0 - 4.0 - 2330-705-0040	11A4773CP Rivnut - M5 - 3.0 - 4.0 - 2330-705-0040 Row ID: ID_CAAB0116_11A4773CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4774CP	Rivnut - M6 - 1.50-3.00 - 2330-706-0030	11A4774CP Rivnut - M6 - 1.50-3.00 - 2330-706-0030 Row ID: ID_CAAB0117_11A4774CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4775CP	Rivnut - M6 - 3.0-4.5 - 2330.706-0045	11A4775CP Rivnut - M6 - 3.0-4.5 - 2330.706-0045 Row ID: ID_CAAB0118_11A4775CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4776CP	Rivnut - M5 - 2.0-3.0 - 2330.705-0030	11A4776CP Rivnut - M5 - 2.0-3.0 - 2330.705-0030 Row ID: ID_CAAB0119_11A4776CP_ContPgHS; Resolution: Available;	$5.15	1
000	11A4778CP	Clip - Jetpress - EPF233	11A4778CP Clip - Jetpress - EPF233 Row ID: ID_CAAB0120_11A4778CP_ContPgHS; Resolution: Available;	$6.50	1
000	11A4781CP	Helicoil - M8x2D - 1084-8CNW160	11A4781CP Helicoil - M8x2D - 1084-8CNW160 Row ID: ID_CAAB0122_11A4781CP_ContPgHS; Resolution: Available;	$7.00	1
000	11A4782CP	Rivet Stud - M6x20 - 3 15-3732-706-0120	11A4782CP Rivet Stud - M6x20 - 3 15-3732-706-0120 Row ID: ID_CAAB0123_11A4782CP_ContPgHS; Resolution: Available;	$5.98	1
000	11A4783CP	Rivnut - M6 - 3.0-5.5 - 2330-706-0255	11A4783CP Rivnut - M6 - 3.0-5.5 - 2330-706-0255 Row ID: ID_CAAB0124_11A4783CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4791CP	Rivnut - M6 - 0.7-1.5 - 2330.706-0015	11A4791CP Rivnut - M6 - 0.7-1.5 - 2330.706-0015 Row ID: ID_CAAB0130_11A4791CP_ContPgHS; Resolution: Available;	$6.39	1
000	11A4870CP	Rivnut - M4 - 1.0-2.0 - 2330-104-0020	11A4870CP Rivnut - M4 - 1.0-2.0 - 2330-104-0020 Row ID: ID_CAAB0133_11A4870CP_ContPgHS; Resolution: Available;	$1.82	1
000	11A4871CP	Rivnut - M5 - 0.5-3.0 - 2330-105-0030	11A4871CP Rivnut - M5 - 0.5-3.0 - 2330-105-0030 Row ID: ID_CAAB0134_11A4871CP_ContPgHS; Resolution: Available;	$1.35	1
000	11A4872CP	Rivnut - M6 - 0.5-3.0 - 2332-906-0519	11A4872CP Rivnut - M6 - 0.5-3.0 - 2332-906-0519 Row ID: ID_CAAB0135_11A4872CP_ContPgHS; Resolution: Available;	$4.71	1
010	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	11A5734CP BLANKING PLUG - CIRCULAR - 42MM Row ID: ID_CAAB0137_11A5734CP_ContPgHS; Resolution: Available;	$9.85	6
011	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM Row ID: ID_CAAB0138_11A5735CP_ContPgHS; Resolution: Available;	$9.85	4
013	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM Row ID: ID__11A5736CP_ContPgHS; Resolution: Available;	$6.82	1
014	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Row ID: ID_CAAB0146_11A7142CP_ContPgHS; Resolution: Available;	$194.06	1
015	11A7143CP	BRACKET - DAMPER MOUNTING - RH	11A7143CP BRACKET - DAMPER MOUNTING - RH Row ID: ID_CAAB0147_11A7143CP_ContPgHS; Resolution: Available;	$194.06	1
