6 - Closures - 6.7 - Side Mirrors

McLaren McLaren 570S Coupe

Find Your Part

McLaren McLaren 570S Coupe - 6 - CLOSURES - 6.7 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A8451CP SCALP - PAINTED - LH $67.06 To Order
11A8452CP SCALP - CARBON - LH Enquire To Order
11A8449CP SCALP - PAINTED - RH $67.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8454CP FRAME - DOOR MIRROR GLASS - LH $89.77 To Order
11A8453CP FRAME - DOOR MIRROR GLASS - RH $89.77 To Order
Photo Part No Description Price (each) Stock
11A8456CP MOTOR - DOOR MIRROR GLASS - LH $119.41 To Order
11A8455CP MOTOR - DOOR MIRROR GLASS - RH $119.41 To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
11A8446CP ACTUATOR - DOOR MIRROR GLASS $123.42 To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
Photo Part No Description Price (each) Stock
11A8434CP MIRROR GLASS ASSEMBLY - CONVEX - LH $393.73 To Order
11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH $351.17 To Order
11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A6480CP SIDE REPEATER - MIRROR MOUNTED - LH $616.57 To Order
11A6479CP SIDE REPEATER - MIRROR MOUNTED - RH $1,324.14 To Order
Photo Part No Description Price (each) Stock
00RA525 SCREW - POZI - 2.5X8MM Enquire To Order
Photo Part No Description Price (each) Stock
11A8417CP SCALP - LOWER - UNPAINTED - LH $52.61 To Order
11A8416CP SCALP - LOWER - UNPAINTED - RH $52.61 To Order
Photo Part No Description Price (each) Stock
13A4869CP SEAL - DOOR MIRROR - MOUNT - LH $35.68 To Order
13A4871CP Seal - Door Mirror - Mount - RH $35.68 To Order
Photo Part No Description Price (each) Stock
13A4872CP Base Cover - Door Mirror - Upper - LH $44.17 To Order
13A4873CP Base Cover - Door Mirror - Upper - RH $44.17 To Order
Photo Part No Description Price (each) Stock
13A4912CP Internal Arm - Door Mirror - LH $153.07 To Order
13A4911CP Internal Arm - Door Mirror - RH $153.07 To Order
Photo Part No Description Price (each) Stock
13A2052CP Wiring Harness - Door Mirror - LH $110.62 To Order
13A2058CP a6685 $110.62 To Order
Photo Part No Description Price (each) Stock
13A2049CP Cover - Door Mirror Base - Lower - LH $31.27 To Order
13A2055CP Cover - Door Mirror Base - Lower - RH $31.27 To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
13A4868CP SEAL - DOOR MIRROR - GASKET - LOWER-LH $27.73 To Order
13A4870CP SEAL - DOOR MIRROR - GASKET - LOWER-RH $27.73 To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RA374 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
13AA552CP Door Mirror - Complete - Unpainted - China Only - RH Enquire To Order
13AA558CP Door Mirror - Complete - Unpainted - China Only - LH $573.83 To Order
13AA564CP DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-RH Enquire To Order
...and 2 more part variants. See table on right for more details.
View All

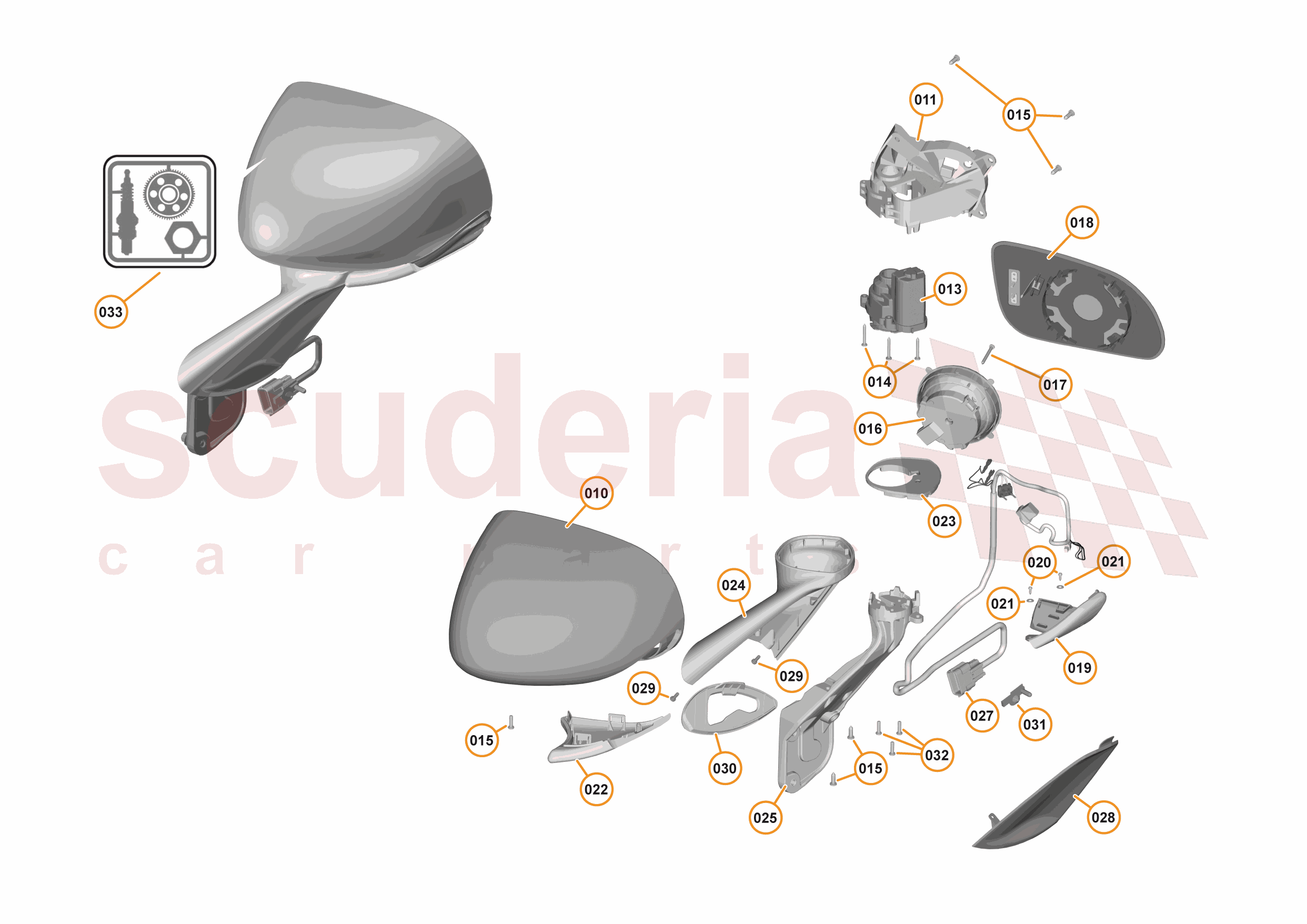

6 - CLOSURES - 6.7 - SIDE MIRRORS of McLaren McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A8451CP
SCALP - PAINTED - LH
Row ID: ID_CBAF0901_11A8451CP_ContPgHS; Resolution: Available; 		$67.06 1
010 11A8452CP
SCALP - CARBON - LH
Row ID: ID_CBAF0902_11A8452CP_ContPgHS; 		- 1 Enquire

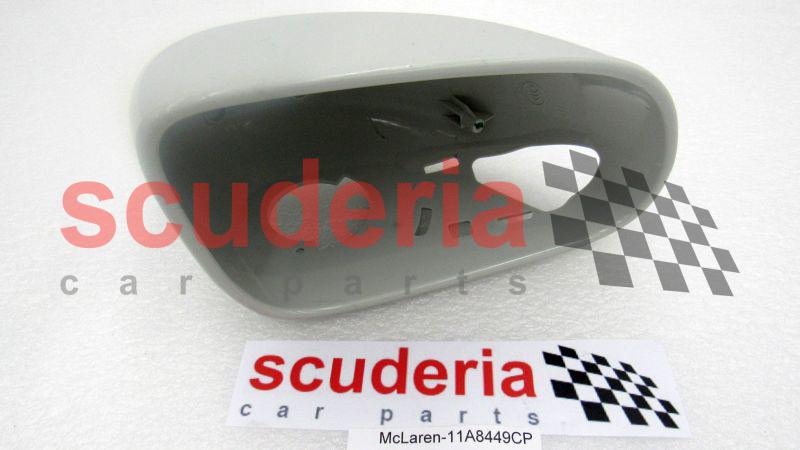

010 11A8449CP
SCALP - PAINTED - RH
Row ID: ID_CBAF0903_11A8449CP_ContPgHS; Resolution: Available; 		$67.06 1
010 11A8450CP
SCALP - CARBON - RH
Row ID: ID_CBAF0904_11A8450CP_ContPgHS; 		- 1 Enquire
011 11A8454CP
FRAME - DOOR MIRROR GLASS - LH
Row ID: ID_CBAF0905_11A8454CP_ContPgHS; Resolution: Available; 		$89.77 1
011 11A8453CP
FRAME - DOOR MIRROR GLASS - RH
Row ID: ID_CBAF0906_11A8453CP_ContPgHS; Resolution: Available; 		$89.77 1
013 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH
Row ID: ID_CBAF0908_11A8456CP_ContPgHS; Resolution: Available; 		$119.41 1
013 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH
Row ID: ID_CBAF0909_11A8455CP_ContPgHS; Resolution: Available; 		$119.41 1
014 00RA491
SCREW - TORX - 3X20
Row ID: ID_CBAF0910_00RA491_ContPgHS; Resolution: Available; 		- 6 Enquire
015 00RA363
SCREW - TORX - 4X12
Row ID: ID_CBAF0911_00RA363_ContPgHS; Resolution: Available; 		- 12 Enquire
016 11A8446CP
ACTUATOR - DOOR MIRROR GLASS
Row ID: ID_CBAF0912_11A8446CP_ContPgHS; Resolution: Available; 		$123.42 2
017 00RA442
SCREW - TORX - 3X38
Row ID: ID_CBAF0913_00RA442_ContPgHS; Resolution: Available; 		- 2 Enquire
018 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH
Row ID: ID_CBAF0914_11A8434CP_ContPgHS; Resolution: Available; 		$393.73 1
018 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH
Row ID: ID_CBAF0915_11A8438CP_ContPgHS; Resolution: Available; 		$351.17 1
018 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH
Row ID: ID_CBAF0916_11A8442CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 16AF882CP
GLASS DOOR MIRROR EU-CVX-LH
Row ID: ID__16AF882CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH
Row ID: ID_CBAF0917_11A8422CP_ContPgHS; Resolution: Available; 		$393.73 1
018 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH
Row ID: ID_CBAF0918_11A8426CP_ContPgHS; Resolution: Available; 		$310.64 1
018 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH
Row ID: ID_CBAF0919_11A8430CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 11A6480CP
SIDE REPEATER - MIRROR MOUNTED - LH
Row ID: ID_CBAF0920_11A6480CP_ContPgHS; Resolution: Available; 		$616.57 1
019 11A6479CP
SIDE REPEATER - MIRROR MOUNTED - RH
Row ID: ID_CBAF0921_11A6479CP_ContPgHS; Resolution: Available; 		$1,324.14 1
020 00RA525
SCREW - POZI - 2.5X8MM
Row ID: ID_CBAF0922_00RA525_ContPgHS; Resolution: Available; 		- 4 Enquire
022 11A8417CP
SCALP - LOWER - UNPAINTED - LH
Row ID: ID_CBAF0924_11A8417CP_ContPgHS; Resolution: Available; 		$52.61 1
022 11A8416CP
SCALP - LOWER - UNPAINTED - RH
Row ID: ID_CBAF0925_11A8416CP_ContPgHS; Resolution: Available; 		$52.61 1
023 13A4869CP
SEAL - DOOR MIRROR - MOUNT - LH
Row ID: ID_CBAF0926_13A4869CP_ContPgHS; Resolution: Available; 		$35.68 1
023 13A4871CP
Seal - Door Mirror - Mount - RH
Row ID: ID_CBAF0927_13A4871CP_ContPgHS; Resolution: Available; 		$35.68 1
024 13A4872CP
Base Cover - Door Mirror - Upper - LH
Row ID: ID_CBAF0928_13A4872CP_ContPgHS; Resolution: Available; 		$44.17 1

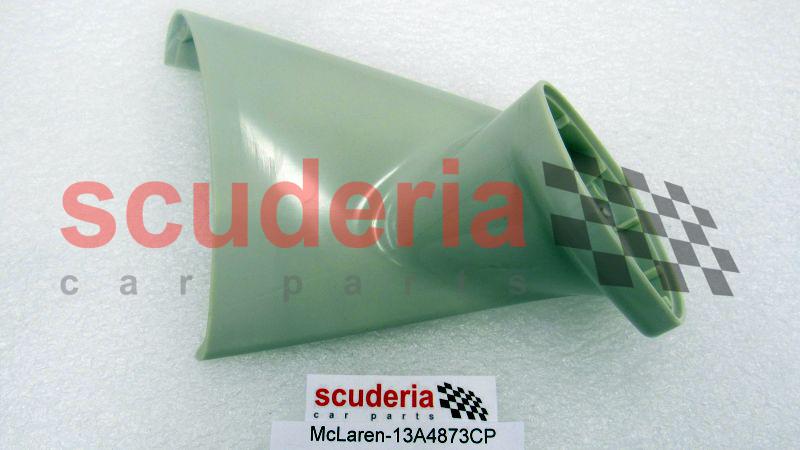

024 13A4873CP
Base Cover - Door Mirror - Upper - RH
Row ID: ID_CBAF0929_13A4873CP_ContPgHS; Resolution: Available; 		$44.17 1
025 13A4912CP
Internal Arm - Door Mirror - LH
Row ID: ID_CBAF0930_13A4912CP_ContPgHS; Resolution: Available; 		$153.07 1

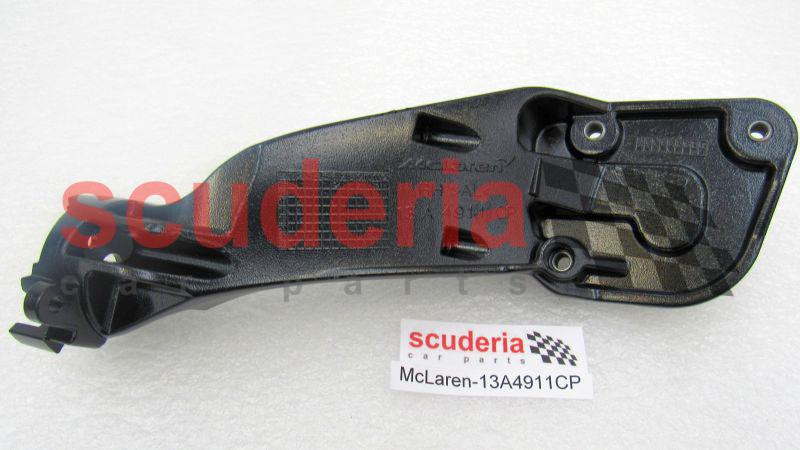

025 13A4911CP
Internal Arm - Door Mirror - RH
Row ID: ID_CBAF0931_13A4911CP_ContPgHS; Resolution: Available; 		$153.07 1
027 13A2052CP
Wiring Harness - Door Mirror - LH
Row ID: ID_CBAF0933_13A2052CP_ContPgHS; Resolution: Available; 		$110.62 1
027 13A2058CP
a6685
Row ID: ID_CBAF0934_13A2058CP_ContPgHS; Resolution: Available; 		$110.62 1
028 13A2049CP
Cover - Door Mirror Base - Lower - LH
Row ID: ID_CBAF0935_13A2049CP_ContPgHS; Resolution: Available; 		$31.27 1
028 13A2055CP
Cover - Door Mirror Base - Lower - RH
Row ID: ID_CBAF0936_13A2055CP_ContPgHS; Resolution: Available; 		$31.27 1
029 00RA140
SCREW - 3X8 - TORX
Row ID: ID_CBAF0937_00RA140_ContPgHS; Resolution: Available; 		- 4 Enquire
030 13A4868CP
SEAL - DOOR MIRROR - GASKET - LOWER-LH
Row ID: ID_CBAF0938_13A4868CP_ContPgHS; Resolution: Available; 		$27.73 1
030 13A4870CP
SEAL - DOOR MIRROR - GASKET - LOWER-RH
Row ID: ID_CBAF0939_13A4870CP_ContPgHS; Resolution: Available; 		$27.73 1
031 00RB059
CLIP CONNECTOR - TRW
Row ID: ID_CBAF0940_00RB059_ContPgHS; Resolution: Available; 		- 2 Enquire
032 00RA374
SCREW - TORX - 3.5X12
Row ID: ID_CBAF0941_00RA374_ContPgHS; Resolution: Available; 		- 6 Enquire
033 13AA552CP
Door Mirror - Complete - Unpainted - China Only - RH
Row ID: ID_CBAF0942_13AA552CP_ContPgHS; Resolution: Available; 		- 1 Enquire
033 13AA558CP
Door Mirror - Complete - Unpainted - China Only - LH
Row ID: ID_CBAF0943_13AA558CP_ContPgHS; Resolution: Available; 		$573.83 1
033 13AA564CP
DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-RH
Row ID: ID_CBAF0944_13AA564CP_ContPgHS; Resolution: Available; 		- 1 Enquire
033 13AA570CP
DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-LH
Row ID: ID_CBAF0945_13AA570CP_ContPgHS; Resolution: Available; 		$4,108.14 1
033 13AA568CP
DOOR MIRROR RH SAS CF MEM - COMPLETE - CARBON
Row ID: ID__13AA568CP_ContPgHS; Resolution: Available; 		- 1 Enquire
