30 - Fluids - Hvac - 30.2 - Hvac Fluids Circuit - R1234Yf

McLaren McLaren 540C Coupe

Find Your Part

McLaren McLaren 540C Coupe - 30 - FLUIDS - HVAC - 30.2 - HVAC FLUIDS CIRCUIT - R1234YF

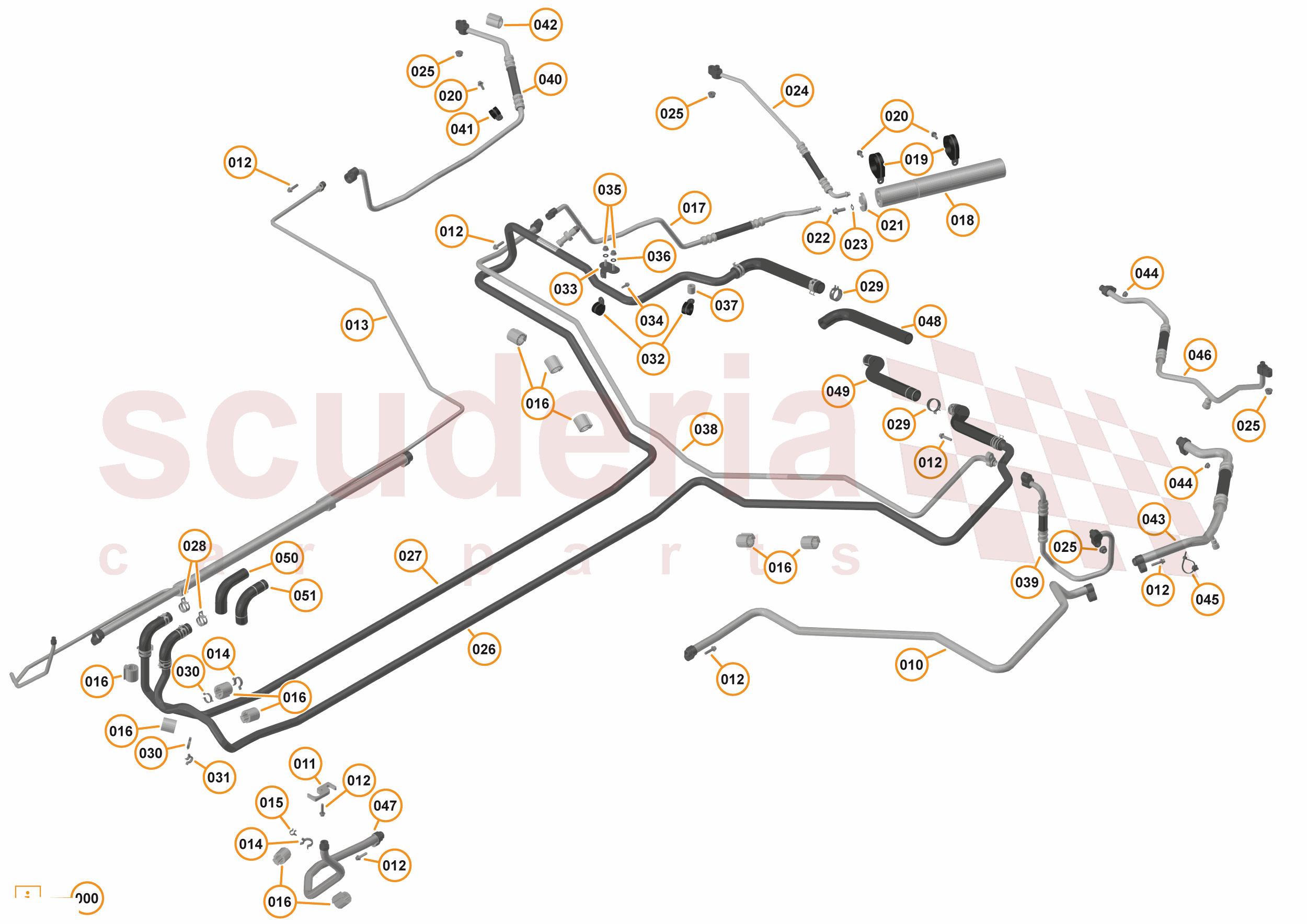

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A5906CP O-Ring - HVAC - PA439-D0250 - 6.7 x 1.8 $7.63 To Order
11A5907CP O-Ring - HVAC - PS439-D0041 - 10.8 x 2.4 $5.98 To Order
11A5908CP O-Ring - HVAC - PS439-D0250 - 9.19 x 2.62 $6.79 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A3309CP Pipe - Internal Heat Exchanger to Compressor $130.14 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $71.09 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A2974CP Internal Heat Exchanger Unit $329.92 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR $306.04 To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $410.54 To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $59.61 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
13A4103CP Hose - Condenser to Receiver Drier $241.84 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A6119CP Hose - Heater to Engine - Upto MY17 $306.04 To Order
13AA400CP Hose - Heater to Engine - Including Valve $223.93 To Order
Photo Part No Description Price (each) Stock
13A6118CP Hose - Heater to Pump - HVAC $295.58 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
11A4587CP BRACKET - HEATER PIPE - SUPPORT - NON-FEDERAL $33.32 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A4593CP SPACER - PIPE - HVAC $23.87 To Order
Photo Part No Description Price (each) Stock
13A3615CP Hose - Condenser Lateral - Centre - HVAC $126.61 To Order
Photo Part No Description Price (each) Stock
13A3613CP Hose - Condenser Lateral - LH - HVAC $219.44 To Order
Photo Part No Description Price (each) Stock
13A4880CP Hose - Condenser Lateral - RH - HVAC $223.93 To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
13AA234CP Hose - Compressor - Rear - HVAC - R1234yf Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
13A5948CP Hose - Compressor to Condenser - HVAC - R1234yf $171.68 To Order
Photo Part No Description Price (each) Stock
13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $86.09 To Order
Photo Part No Description Price (each) Stock
11A4541CP HOSE - HEATER MATRIX - FEED $57.38 To Order
Photo Part No Description Price (each) Stock
11A4544CP HOSE - HEATER MATRIX - RETURN $57.38 To Order
Photo Part No Description Price (each) Stock
11A4542CP Hose - Heater - Engine - Feed Enquire To Order
Photo Part No Description Price (each) Stock
11A4545CP Hose - Heater - Engine - Return $66.28 To Order
View All
30 - FLUIDS - HVAC - 30.2 - HVAC FLUIDS CIRCUIT - R1234YF of McLaren McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A5906CP
O-Ring - HVAC - PA439-D0250 - 6.7 x 1.8
Row ID: ID_CDLC0101_11A5906CP_ContPgHS; Resolution: Available; 		$7.63 1
000 11A5907CP
O-Ring - HVAC - PS439-D0041 - 10.8 x 2.4
Row ID: ID_CDLC0102_11A5907CP_ContPgHS; Resolution: Available; 		$5.98 1
000 11A5908CP
O-Ring - HVAC - PS439-D0250 - 9.19 x 2.62
Row ID: ID_CDLC0103_11A5908CP_ContPgHS; Resolution: Available; 		$6.79 1
000 11A5909CP
O-Ring - HVAC - PA439-D0160 - 7.65 x 1.78
Row ID: ID_CDLC0104_11A5909CP_ContPgHS; Resolution: Available; 		$6.79 1
000 11A5910CP
O-Ring - HVAC - P1439-D01300 - 16.25 x 2.5
Row ID: ID_CDLC0105_11A5910CP_ContPgHS; Resolution: Available; 		$8.74 1
000 11A5911CP
O-Ring - HVAC - PA439-D0051 - 13.4 x 2.4
Row ID: ID_CDLC0106_11A5911CP_ContPgHS; Resolution: Available; 		$6.79 1
000 11A5912CP
O-Ring - HVAC - PA439-D1290 - 13.75 x 2.50
Row ID: ID_CDLC0107_11A5912CP_ContPgHS; Resolution: Available; 		$8.74 1
000 11A4061CP
Connection O-ring Kit - HVAC
Row ID: ID_CDLC0108_11A4061CP_ContPgHS; Resolution: Available; 		$239.91 1
010 13A3309CP
Pipe - Internal Heat Exchanger to Compressor
Row ID: ID_CDLC0150_13A3309CP_ContPgHS; Resolution: Available; 		$130.14 1
011 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION
Row ID: ID_CDLC0113_11A4434CP_ContPgHS; Resolution: Available; 		$71.09 1
012 00RA120
SCREW - M6X25 - HEX
Row ID: ID_CDLC0114_00RA120_ContPgHS; Resolution: Available; 		- 7 Enquire
013 13A2974CP
Internal Heat Exchanger Unit
Row ID: ID_CDLC0151_13A2974CP_ContPgHS; Resolution: Available; 		$329.92 1
014 00RB007
CLIP - 18-20MM - FEMALE
Row ID: ID_CDLC0116_00RB007_ContPgHS; Resolution: Available; 		- 1 Enquire
015 00RB045
CLIP - 9.5-10MM - MALE
Row ID: ID_CDLC0117_00RB045_ContPgHS; Resolution: Available; 		- 1 Enquire
016 00RA367
PIPE PROTECTOR - 19MM ID
Row ID: ID_CDLC0118_00RA367_ContPgHS; Resolution: Available; 		- 11 Enquire
017 13A4104CP
HOSE - RECEIVER DRIER - HVAC - REAR
Row ID: ID_CDLC0119_13A4104CP_ContPgHS; Resolution: Available; 		$306.04 1
018 12A2757CP
RECEIVER DRIER - HVAC
Row ID: ID_CDLC0120_12A2757CP_ContPgHS; Resolution: Available; 		$410.54 1
019 00RB029
P CLIP - DIA 45-M6
Row ID: ID_CDLC0121_00RB029_ContPgHS; Resolution: Available; 		- 2 Enquire
020 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_CDLC0122_00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
021 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC
Row ID: ID_CDLC0123_11A4433CP_ContPgHS; Resolution: Available; 		$59.61 1
022 00RA002
BOLT - M8X20 - HEX
Row ID: ID_CDLC0124_00RA002_ContPgHS; Resolution: Available; 		- 1 Enquire
023 00RC038
WASHER - WAVE M8
Row ID: ID_CDLC0125_00RC038_ContPgHS; Resolution: Available; 		- 1 Enquire
024 13A4103CP
Hose - Condenser to Receiver Drier
Row ID: ID_CDLC0126_13A4103CP_ContPgHS; Resolution: Available; 		$241.84 1
025 00RA075
NUT - M8-8 - HEX
Row ID: ID_CDLC0127_00RA075_ContPgHS; Resolution: Available; 		- 4 Enquire
026 13A6119CP
Hose - Heater to Engine - Upto MY17
Row ID: ID_CDLC0128_13A6119CP_ContPgHS; Resolution: Available; 		$306.04 1
026 13AA400CP
Hose - Heater to Engine - Including Valve
Row ID: ID_CDLC0158_13AA400CP_ContPgHS; Resolution: Available; 		$223.93 1
027 13A6118CP
Hose - Heater to Pump - HVAC
Row ID: ID_CDLC0129_13A6118CP_ContPgHS; Resolution: Available; 		$295.58 1
028 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID_CDLC0130_00RB202_ContPgHS; Resolution: Available; 		- 2 Enquire
029 00RB145
CLAMP - SPRING BAND - 26/12
Row ID: ID_CDLC0131_00RB145_ContPgHS; Resolution: Available; 		- 6 Enquire
030 00RB008
CLIP - 18-20MM - MALE
Row ID: ID_CDLC0132_00RB008_ContPgHS; Resolution: Available; 		- 2 Enquire
031 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID_CDLC0133_00RB032_ContPgHS; Resolution: Available; 		- 1 Enquire
032 00RB060
P CLIP - DIA 20
Row ID: ID_CDLC0134_00RB060_ContPgHS; Resolution: Available; 		- 2 Enquire
033 11A4587CP
BRACKET - HEATER PIPE - SUPPORT - NON-FEDERAL
Row ID: ID_CDLC0135_11A4587CP_ContPgHS; Resolution: Available; 		$33.32 1
034 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CDLC0136_00RX001_ContPgHS; Resolution: Available; 		- 1 Enquire
035 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_CDLC0137_00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
036 00RC008
WASHER - M6X12.5X0.9
Row ID: ID_CDLC0138_00RC008_ContPgHS; Resolution: Available; 		- 2 Enquire
037 11A4593CP
SPACER - PIPE - HVAC
Row ID: ID_CDLC0139_11A4593CP_ContPgHS; Resolution: Available; 		$23.87 1
038 13A3615CP
Hose - Condenser Lateral - Centre - HVAC
Row ID: ID_CDLC0140_13A3615CP_ContPgHS; Resolution: Available; 		$126.61 1
039 13A3613CP
Hose - Condenser Lateral - LH - HVAC
Row ID: ID_CDLC0141_13A3613CP_ContPgHS; Resolution: Available; 		$219.44 1
040 13A4880CP
Hose - Condenser Lateral - RH - HVAC
Row ID: ID_CDLC0142_13A4880CP_ContPgHS; Resolution: Available; 		$223.93 1
041 00RB005
P CLIP - DIA 16
Row ID: ID_CDLC0143_00RB005_ContPgHS; Resolution: Available; 		- 1 Enquire
042 00RA357
PIPE PROTECTOR
Row ID: ID_CDLC0144_00RA357_ContPgHS; Resolution: Available; 		- 1 Enquire
043 13AA234CP
Hose - Compressor - Rear - HVAC - R1234yf
Row ID: ID_CDLC0152_13AA234CP_ContPgHS; Resolution: Available; 		- 1 Enquire
044 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID_CDLC0146_00RA011_ContPgHS; Resolution: Available; 		- 2 Enquire
045 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID_CDLC0147_00RL001_ContPgHS; Resolution: Available; 		- 1 Enquire
046 13A5948CP
Hose - Compressor to Condenser - HVAC - R1234yf
Row ID: ID_CDLC0153_13A5948CP_ContPgHS; Resolution: Available; 		$171.68 1
047 13A3307CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER
Row ID: ID_CDLC0149_13A3307CP_ContPgHS; Resolution: Available; 		$86.09 1
048 11A4541CP
HOSE - HEATER MATRIX - FEED
Row ID: ID_CDLC0154_11A4541CP_ContPgHS; Resolution: Available; 		$57.38 1
049 11A4544CP
HOSE - HEATER MATRIX - RETURN
Row ID: ID_CDLC0155_11A4544CP_ContPgHS; Resolution: Available; 		$57.38 1
050 11A4542CP
Hose - Heater - Engine - Feed
Row ID: ID_CDLC0156_11A4542CP_ContPgHS; Resolution: Available; 		- 1 Enquire
051 11A4545CP
Hose - Heater - Engine - Return
Row ID: ID_CDLC0157_11A4545CP_ContPgHS; Resolution: Available; 		$66.28 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
