McLaren McLaren 540C Coupe - 5 - PANELS - 5.3 - BODYSIDE ASSEMBLED

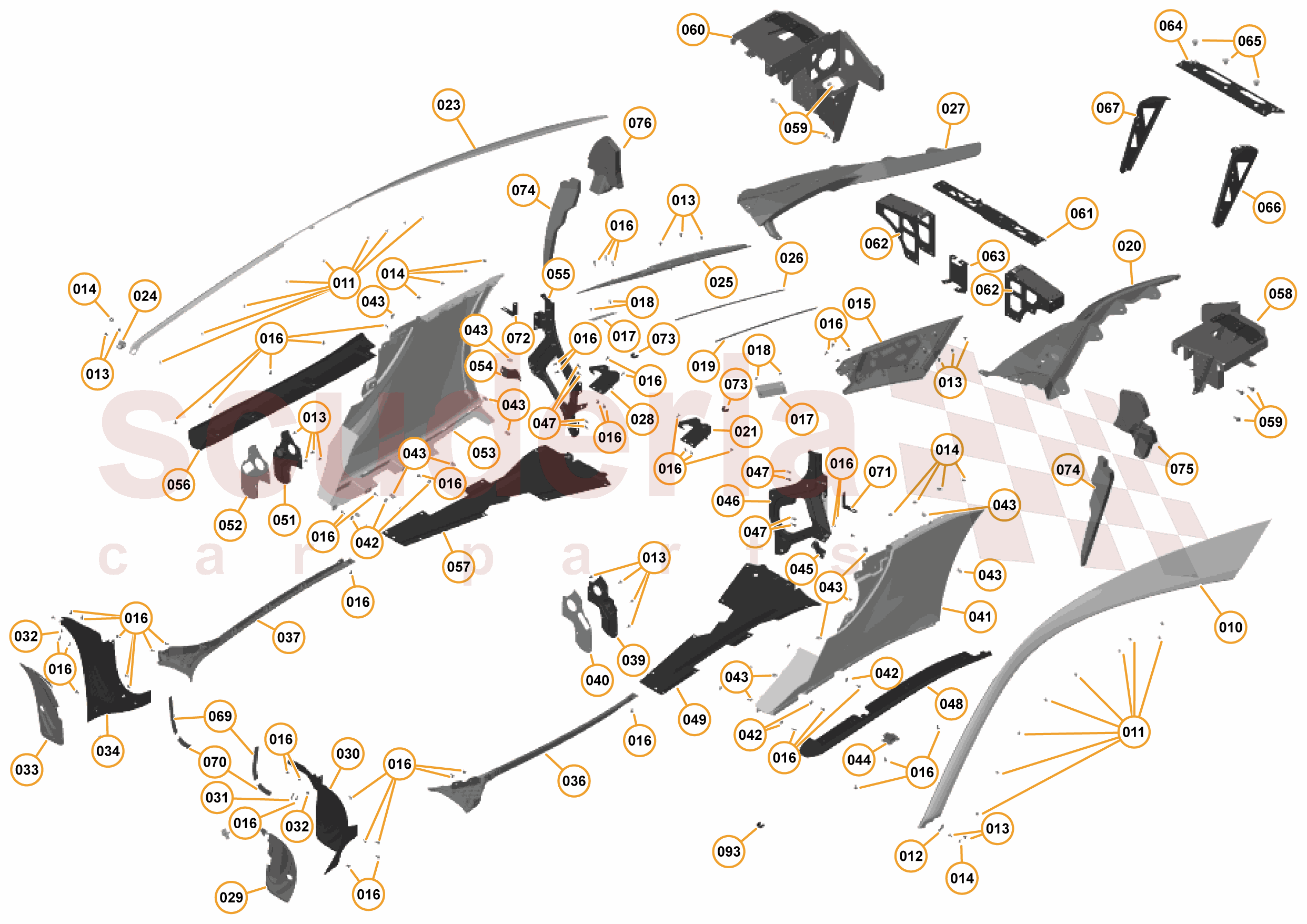

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A4665CP Capping Panel - Cantrail - LH $623.54 To Order
Photo Part No Description Price (each) Stock
00RB185 Clip - Cantrail Capping Panel Enquire To Order
Photo Part No Description Price (each) Stock
13A4063CP Bracket - Cantrail to Door Hinge - LH $19.34 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13A6456CP Panel - Inner - D Post - LH $183.99 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
13A4144CP Bracket - Cantrail Finisher $16.59 To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A5362CP Seal - Cantrail Capping Panel - LH $8.23 To Order
Photo Part No Description Price (each) Stock
13A6753CP Panel - Bodyside to Deck - LH $314.06 To Order
13AA275MP MSO Panel - BODYSIDE TO REAR DECK - LH $355.29 To Order
Photo Part No Description Price (each) Stock
13A6672CP Bracket - Bulkhead to Deck - LH $28.22 To Order
Photo Part No Description Price (each) Stock
13A4662CP Capping Panel - Cantrail - RH $623.54 To Order
Photo Part No Description Price (each) Stock
13A4066CP Bracket - Cantrail to Door Hinge - RH $19.34 To Order
Photo Part No Description Price (each) Stock
13A6459CP Panel - Inner - D Post - RH $183.99 To Order
Photo Part No Description Price (each) Stock
13A5365CP Seal - Cantrail Capping Panel - RH $8.23 To Order
Photo Part No Description Price (each) Stock
13A6754CP Panel - Bodyside to Deck - RH $314.06 To Order
13AA278MP MSO Panel - BODYSIDE TO REAR DECK - RH $355.29 To Order
Photo Part No Description Price (each) Stock
13A6675CP Bracket - Bulkhead to Deck - RH $28.22 To Order
Photo Part No Description Price (each) Stock
13A5498CP NVH Pad - Wheel Arch Liner Cover Panel - LH $32.92 To Order
Photo Part No Description Price (each) Stock
13A5731CP Panel - Wheel Arch Cover - LH $256.95 To Order
13A5717CP Panel - Wheel Arch Cover - LH - Carbon $2,323.82 To Order
Photo Part No Description Price (each) Stock
00RA305 SCREW - M6X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RG032 Fir Tree Clip - Anixter - 066 6053 Enquire To Order
Photo Part No Description Price (each) Stock
13A5500CP NVH Pad - Wheel Arch Liner Cover Panel - RH $32.92 To Order
Photo Part No Description Price (each) Stock
13A5733CP Panel - Wheel Arch Cover - RH $256.95 To Order
13A5720CP Panel - Wheel Arch Cover - RH - Carbon $2,323.87 To Order
Photo Part No Description Price (each) Stock
13A3855CP Floor Trim - LH $203.03 To Order
Photo Part No Description Price (each) Stock
13A3856CP Floor Trim - RH $203.03 To Order
Photo Part No Description Price (each) Stock
13A5572CP Service Panel - Door Latch - LH $43.32 To Order
Photo Part No Description Price (each) Stock
13A5573CP Gasket - Service Panel - Door Latch - LH $19.02 To Order
Photo Part No Description Price (each) Stock
13A5314CP Bodyside Rear - Lower - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RC053 WASHER - M6X2.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA329 CLIP - M6 Enquire To Order
Photo Part No Description Price (each) Stock
13A6323CP Cover - Emergency Key Barrel Enquire To Order
Photo Part No Description Price (each) Stock
13A4893CP Bracket - Fender Support - LH $40.60 To Order
Photo Part No Description Price (each) Stock
13AA767CP Support Bracket - Fender - Rear - LH Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
13A5693CP Skirt - Body - 540C - LH $82.92 To Order
13AA594CP Skirt - Body - 570S - 570GT - LH $644.51 To Order
13A6315CP Skirt - Body - 570S - 570GT - Carbon - LH $2,433.34 To Order
Photo Part No Description Price (each) Stock
13AA771CP Bodyside Extension - Rear - Lower - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A5575CP Service Panel - Door Latch - RH $43.32 To Order
Photo Part No Description Price (each) Stock
13A5576CP Gasket - Service Panel - Door Latch - RH $19.02 To Order
Photo Part No Description Price (each) Stock
13A5326CP Bodyside Rear - Lower - RH Enquire To Order
Photo Part No Description Price (each) Stock
13A4894CP Bracket - Fender Support - RH $40.60 To Order
Photo Part No Description Price (each) Stock
13AA769CP Support Bracket - Fender - Rear - RH Enquire To Order
Photo Part No Description Price (each) Stock
13A5694CP Skirt - Body - 540C - RH $82.92 To Order
13AA597CP Skirt - Body - 570S - 570GT - RH $644.51 To Order
13A6317CP Skirt - Body - 570S - 570GT - Carbon - RH $2,433.34 To Order
Photo Part No Description Price (each) Stock
13AA868CP Bodyside Extension - Rear - Lower - RH $139.44 To Order
Photo Part No Description Price (each) Stock
13AA763CP Outrigger - Rear - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA429 SCREW - WASHER - M8X24 - BUTTON-HEX Enquire To Order
Photo Part No Description Price (each) Stock
13AA765CP Outrigger - Rear - RH Enquire To Order
Photo Part No Description Price (each) Stock
13A6307CP Complete - Cross brace - Centre $212.01 To Order
Photo Part No Description Price (each) Stock
13AA020CP Bracket - Outrigger to Cross Brace - Centre $86.74 To Order
Photo Part No Description Price (each) Stock
13A5615CP Cross brace - Centre - Upright $32.89 To Order
Photo Part No Description Price (each) Stock
13A5623CP Complete Cross Brace - Rear - Centre $55.27 To Order
Photo Part No Description Price (each) Stock
00RA542 Clip - Snaploc - 16x8 Enquire To Order
Photo Part No Description Price (each) Stock
13A3512CP Bracket - Cross Brace - Rear - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A3514CP Bracket - Cross Brace - Rear - RH Enquire To Order
Photo Part No Description Price (each) Stock
13A6133CP NVH - Wheel Arch Cover Panel to DOP - Upper $9.66 To Order
Photo Part No Description Price (each) Stock
13A6134CP NVH - Wheel Arch Cover Panel to DOP - Lower $5.66 To Order
Photo Part No Description Price (each) Stock
13A6352CP Bracket - Fender Adjustment - Rear - LH $18.45 To Order
Photo Part No Description Price (each) Stock
13A6353CP Bracket - Fender Adjustment - Rear - RH $18.45 To Order
Photo Part No Description Price (each) Stock
13A3489CP Grommet - Bulkhead To Deck Bracket $2.19 To Order
Photo Part No Description Price (each) Stock
13A5533CP NVH Rear Support - Bodyside - Lower $16.36 To Order
Photo Part No Description Price (each) Stock
13A5582CP NVH Rear Support - Bodyside - Upper - LH $41.92 To Order
Photo Part No Description Price (each) Stock
13A5583CP NVH Rear Support - Bodyside - Upper - RH $41.92 To Order
