McLaren McLaren 540C Coupe - 12 - DUCTS, VENTS & FLOORS - 12.2 - SIDE DUCTS & VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA684CP Bodyside Panel - Radiator Intake Upper - LH $437.44 To Order
13A5502CP Bodyside Panel - Radiator Intake Upper - Carbon - LH $1,368.26 To Order
13AA650MP ASSY PNL BODYSIDE RAD INLET UPPER - LH - BLACK $197.05 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U-NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
13AA685CP Bodyside Panel - Radiator Intake Upper - RH $276.00 To Order
13A5501CP Bodyside Panel - Radiator Intake Upper - Carbon - RH $1,368.26 To Order
Photo Part No Description Price (each) Stock
13A5386CP Bodyside Panel - Radiator Intake - LH $369.57 To Order
13A6055CP Bodyside Panel - Radiator Intake - Carbon - LH $2,093.34 To Order
Photo Part No Description Price (each) Stock
13A5388CP Bodyside Panel - Radiator Intake - RH $369.57 To Order
13A6058CP Bodyside Panel - Radiator Intake - Carbon - RH $1,642.13 To Order
Photo Part No Description Price (each) Stock
13A6527CP Side Intake Duct - Outer - Lower - LH $188.47 To Order
Photo Part No Description Price (each) Stock
13A6486CP Side Intake Duct - Outer - Upper - LH - For Lock Sensor $109.82 To Order
13AA327CP Side Intake Duct - Outer - Upper - LH - For Lock Switch $95.84 To Order
Photo Part No Description Price (each) Stock
13A6166CP Grille - Side Intake Duct - LH $239.51 To Order
Photo Part No Description Price (each) Stock
11AA037CP Foam - Duct - Radiator - HVAC Pipe - LH - MY2015 $13.07 To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX-FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RB166 Clip - Panel - Side Duct Enquire To Order
Photo Part No Description Price (each) Stock
00RB194 CLIP - U NUT NPT - M6X0.5-4-MS-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
13A6528CP Side Intake Duct - Outer - Lower - RH $160.20 To Order
Photo Part No Description Price (each) Stock
13A6487CP Side Intake Duct - Outer - Upper - RH - For Lock Sensor $109.82 To Order
13AA328CP Side Intake Duct - Outer - Upper - RH - For Lock Switch $95.84 To Order
Photo Part No Description Price (each) Stock
13A6169CP Grille - Side Intake Duct - RH $239.51 To Order
Photo Part No Description Price (each) Stock
13A6586CP Side Intake Duct - Inner - LH $314.06 To Order
13A4613CP Side Intake Duct - Inner - LH - Carbon $2,466.99 To Order
Photo Part No Description Price (each) Stock
13A6587CP Side Intake Duct - Inner - RH $314.06 To Order
13A4622CP Side Intake Duct - Inner - RH - Carbon $2,466.99 To Order
Photo Part No Description Price (each) Stock
13A6488CP Seal - Side Duct - Upper $3.63 To Order
Photo Part No Description Price (each) Stock
13A4156CP Foam - Side Duct Upper - Rear $4.84 To Order
Photo Part No Description Price (each) Stock
13A4307CP Foam - Side Duct Outer - Lower $15.84 To Order
Photo Part No Description Price (each) Stock
13A3570CP Foam - Seal - Side Duct $15.20 To Order
Photo Part No Description Price (each) Stock
13A3568CP Foam - Side Duct Outer - Rear $12.28 To Order
View All

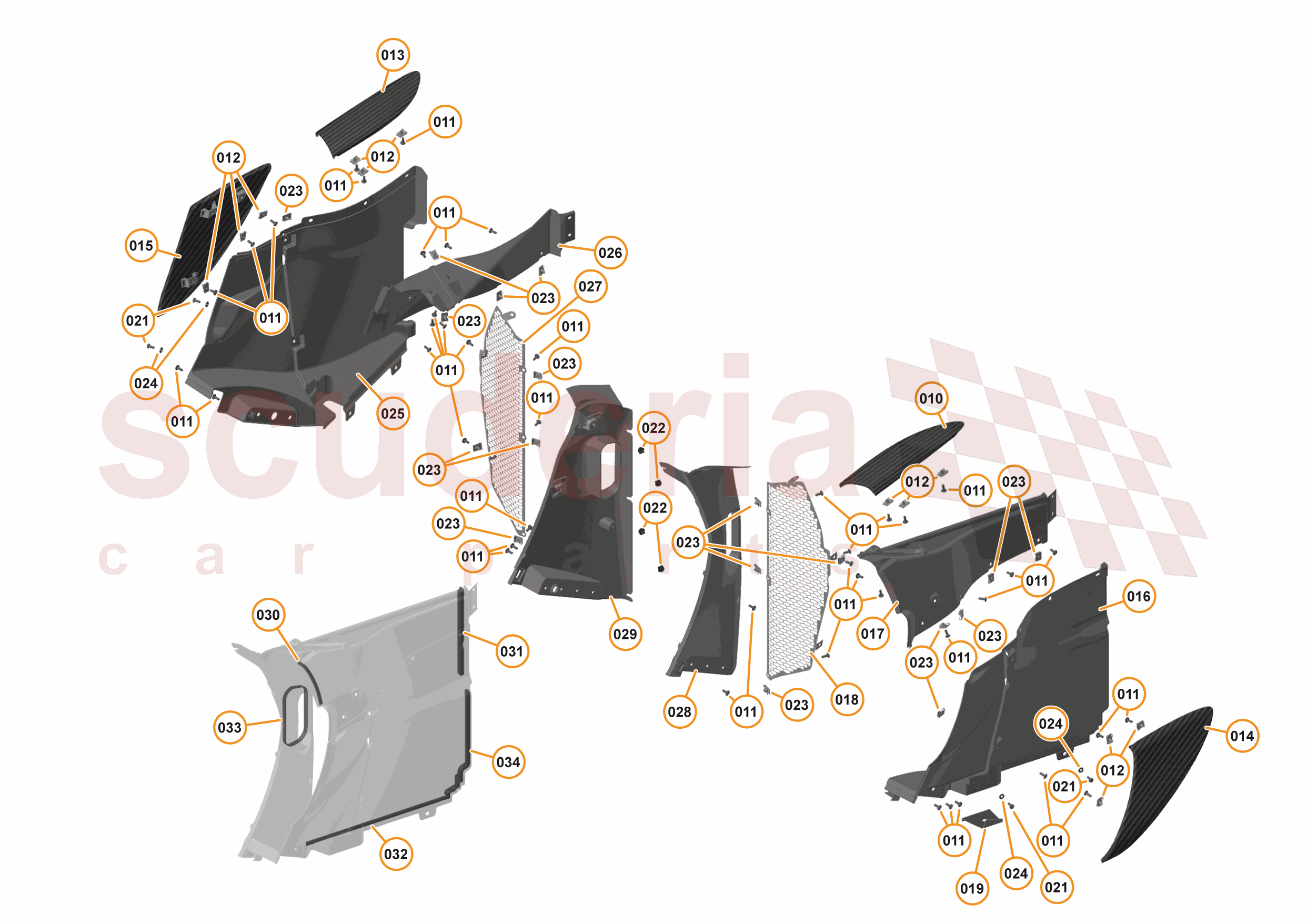

12 - DUCTS, VENTS & FLOORS - 12.2 - SIDE DUCTS & VENTS of McLaren McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA684CP
Bodyside Panel - Radiator Intake Upper - LH
Row ID: ID_CCAQ0201_13AA684CP_ContPgHS; Resolution: Available; 		$437.44 1
010 13A5502CP
Bodyside Panel - Radiator Intake Upper - Carbon - LH
Row ID: ID_CCAQ0202_13A5502CP_ContPgHS; Resolution: Available; 		$1,368.26 1
010 13AA650MP
ASSY PNL BODYSIDE RAD INLET UPPER - LH - BLACK
Row ID: ID__13AA650MP_ContPgHS; Resolution: Available; 		$197.05 1
011 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID_CCAQ0203_00RA409_ContPgHS; Resolution: Available; 		- 44 Enquire
012 00RB183
CLIP - U-NUT - M6
Row ID: ID_CCAQ0204_00RB183_ContPgHS; Resolution: Available; 		- 12 Enquire
013 13AA685CP
Bodyside Panel - Radiator Intake Upper - RH
Row ID: ID_CCAQ0205_13AA685CP_ContPgHS; Resolution: Available; 		$276.00 1
013 13A5501CP
Bodyside Panel - Radiator Intake Upper - Carbon - RH
Row ID: ID_CCAQ0206_13A5501CP_ContPgHS; Resolution: Available; 		$1,368.26 1
014 13A5386CP
Bodyside Panel - Radiator Intake - LH
Row ID: ID_CCAQ0207_13A5386CP_ContPgHS; Resolution: Available; 		$369.57 1
014 13A6055CP
Bodyside Panel - Radiator Intake - Carbon - LH
Row ID: ID_CCAQ0208_13A6055CP_ContPgHS; Resolution: Available; 		$2,093.34 1
015 13A5388CP
Bodyside Panel - Radiator Intake - RH
Row ID: ID_CCAQ0209_13A5388CP_ContPgHS; Resolution: Available; 		$369.57 1
015 13A6058CP
Bodyside Panel - Radiator Intake - Carbon - RH
Row ID: ID_CCAQ0210_13A6058CP_ContPgHS; Resolution: Available; 		$1,642.13 1
016 13A6527CP
Side Intake Duct - Outer - Lower - LH
Row ID: ID_CCAQ0211_13A6527CP_ContPgHS; Resolution: Available; 		$188.47 1
017 13A6486CP
Side Intake Duct - Outer - Upper - LH - For Lock Sensor
Row ID: ID_CCAQ0212_13A6486CP_ContPgHS; Resolution: Available; 		$109.82 1
017 13AA327CP
Side Intake Duct - Outer - Upper - LH - For Lock Switch
Row ID: ID_CCAQ0232_13AA327CP_ContPgHS; Resolution: Available; 		$95.84 1
018 13A6166CP
Grille - Side Intake Duct - LH
Row ID: ID_CCAQ0213_13A6166CP_ContPgHS; Resolution: Available; 		$239.51 1
019 11AA037CP
Foam - Duct - Radiator - HVAC Pipe - LH - MY2015
Row ID: ID_CCAQ0214_11AA037CP_ContPgHS; Resolution: Available; 		$13.07 1
021 00RA353
SCREW - 6X14 - THREADFORMING - TORX-FLANGE
Row ID: ID_CCAQ0216_00RA353_ContPgHS; Resolution: Available; 		- 4 Enquire
022 00RB166
Clip - Panel - Side Duct
Row ID: ID_CCAQ0217_00RB166_ContPgHS; Resolution: Available; 		- 4 Enquire
023 00RB194
CLIP - U NUT NPT - M6X0.5-4-MS-78
Row ID: ID_CCAQ0218_00RB194_ContPgHS; Resolution: Available; 		- 18 Enquire
024 00RC028
WASHER - M6 FORM C
Row ID: ID_CCAQ0219_00RC028_ContPgHS; Resolution: Available; 		- 4 Enquire
025 13A6528CP
Side Intake Duct - Outer - Lower - RH
Row ID: ID_CCAQ0220_13A6528CP_ContPgHS; Resolution: Available; 		$160.20 1
026 13A6487CP
Side Intake Duct - Outer - Upper - RH - For Lock Sensor
Row ID: ID_CCAQ0221_13A6487CP_ContPgHS; Resolution: Available; 		$109.82 1
026 13AA328CP
Side Intake Duct - Outer - Upper - RH - For Lock Switch
Row ID: ID_CCAQ0233_13AA328CP_ContPgHS; Resolution: Available; 		$95.84 1
027 13A6169CP
Grille - Side Intake Duct - RH
Row ID: ID_CCAQ0222_13A6169CP_ContPgHS; Resolution: Available; 		$239.51 1
028 13A6586CP
Side Intake Duct - Inner - LH
Row ID: ID_CCAQ0223_13A6586CP_ContPgHS; Resolution: Available; 		$314.06 1
028 13A4613CP
Side Intake Duct - Inner - LH - Carbon
Row ID: ID_CCAQ0225_13A4613CP_ContPgHS; Resolution: Available; 		$2,466.99 1
029 13A6587CP
Side Intake Duct - Inner - RH
Row ID: ID_CCAQ0224_13A6587CP_ContPgHS; Resolution: Available; 		$314.06 1
029 13A4622CP
Side Intake Duct - Inner - RH - Carbon
Row ID: ID_CCAQ0226_13A4622CP_ContPgHS; Resolution: Available; 		$2,466.99 1
030 13A6488CP
Seal - Side Duct - Upper
Row ID: ID_CCAQ0227_13A6488CP_ContPgHS; Resolution: Available; 		$3.63 2
031 13A4156CP
Foam - Side Duct Upper - Rear
Row ID: ID_CCAQ0228_13A4156CP_ContPgHS; Resolution: Available; 		$4.84 2
032 13A4307CP
Foam - Side Duct Outer - Lower
Row ID: ID_CCAQ0229_13A4307CP_ContPgHS; Resolution: Available; 		$15.84 2
033 13A3570CP
Foam - Seal - Side Duct
Row ID: ID_CCAQ0230_13A3570CP_ContPgHS; Resolution: Available; 		$15.20 2
034 13A3568CP
Foam - Side Duct Outer - Rear
Row ID: ID_CCAQ0231_13A3568CP_ContPgHS; Resolution: Available; 		$12.28 2
