16 - F1 - Power Unit - 16.6 - 01 - Power Unit - Oil Filter Assembly + Oil Pump

McLaren McLaren 12C Spider

Find Your Part

McLaren McLaren 12C Spider - 16 - F1 - POWER UNIT - 16.6 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0825CP Gasket - Turbocharger - Oil Return Hose $7.05 To Order
11F2806CP O -RING - OIL DRAIN - TURBO - 16X2 $7.09 To Order
11F2172CP Nut - Oil Pump Sprocket $18.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0725CP Vee Module Assy - Engine - inc. Seals $557.95 To Order
11F2171CP Seal Set - Cooler to Vee Module $100.98 To Order
Photo Part No Description Price (each) Stock
11F0107CP Oil Filter - Engine $45.67 To Order
Photo Part No Description Price (each) Stock
11F2382CP Oil Filter Cap Assy - Engine $41.90 To Order
Photo Part No Description Price (each) Stock
11F2804CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $174.67 To Order
View All

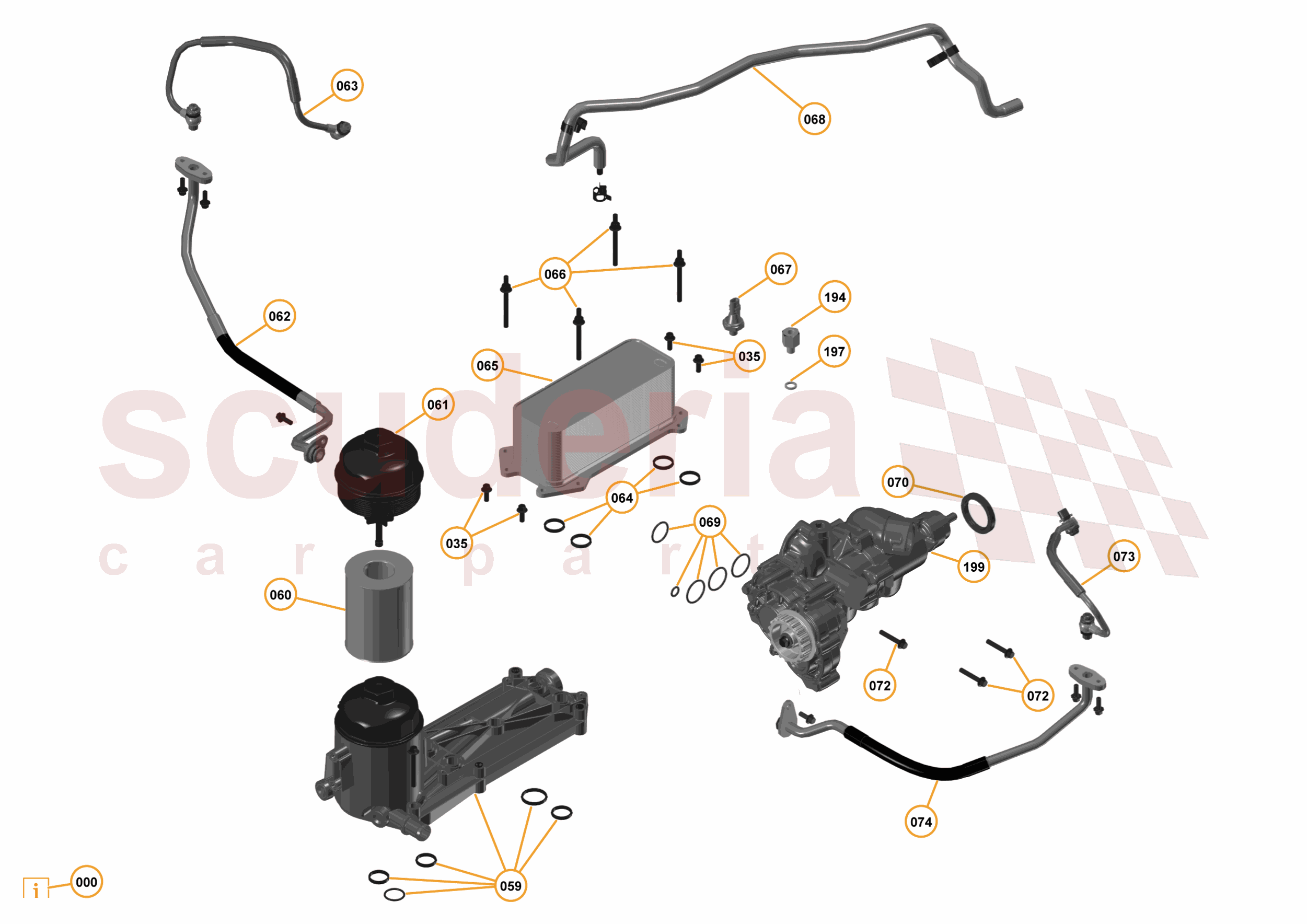

16 - F1 - POWER UNIT - 16.6 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP of McLaren McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 13F0825CP
Gasket - Turbocharger - Oil Return Hose
Row ID: ID_E0F101N4_13F0825CP_ContPgHS; Resolution: Available; 		$7.05 1
000 11F2806CP
O -RING - OIL DRAIN - TURBO - 16X2
Row ID: ID_E0F101P1_11F2806CP_ContPgHS; Resolution: Available; 		$7.09 2
000 11F2172CP
Nut - Oil Pump Sprocket
Row ID: ID_E0F101S9_11F2172CP_ContPgHS; Resolution: Available; 		$18.07 1
000 11F0690CP
Seal - Engine Oil Pump
Row ID: ID__11F0690CP_ContPgHS; Resolution: Available; 		$24.37 1
035 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_E0F10183_11F0822CP_ContPgHS; Resolution: Available; 		- 1 Enquire
059 11F0725CP
Vee Module Assy - Engine - inc. Seals
Row ID: ID_E0F101A8_11F0725CP_ContPgHS; Resolution: Available; 		$557.95 1
059 11F2171CP
Seal Set - Cooler to Vee Module
Row ID: ID_E0F101T0_11F2171CP_ContPgHS; Resolution: Available; 		$100.98 1
060 11F0107CP
Oil Filter - Engine
Row ID: ID_E0F101A9_11F0107CP_ContPgHS; Resolution: Available; 		$45.67 1
061 11F2382CP
Oil Filter Cap Assy - Engine
Row ID: ID_E0F101B0_11F2382CP_ContPgHS; Resolution: Available; 		$41.90 2
062 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Row ID: ID_E0F101C3_11F2804CP_ContPgHS; Resolution: Available; 		$174.67 1
