8 - B3 - Wheels And Tyres - 8.1 - 01 - Wheel Assembly

McLaren McLaren 12C Spider

Find Your Part

McLaren McLaren 12C Spider - 8 - B3 - WHEELS AND TYRES - 8.1 - 01 - WHEEL ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11B1517CP SCREW - TPMS - TYRE VALVE $9.41 To Order
Photo Part No Description Price (each) Stock
11B0194CP Tyre - Pirelli - 235-35R19 - Pzero - Front Enquire To Order
11B1331CP Tyre - Pirelli - 235-35R19 - Winter - Front $724.61 To Order
11B0200CP Tyre - Pirelli - 235-35R19 - Corsa - Front - Pre-MY15 Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11B0301CP Mount - Z-Bar $142.81 To Order
Photo Part No Description Price (each) Stock
11B0414CP Fixing Plate - Z-Bar $68.65 To Order
Photo Part No Description Price (each) Stock
00RA379 Bolt - Socket Cap - M14x60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA380 Bolt - M14x60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
11B0631CP Shim - Z-Bar $52.87 To Order
Photo Part No Description Price (each) Stock
11B0726CP Drop Link - Z-Bar - RH $1,215.59 To Order
Photo Part No Description Price (each) Stock
11B0728CP Boot - Rod End - Z-Bar $19.14 To Order
Photo Part No Description Price (each) Stock
11B0727CP Drop Link - Z-Bar - LH $1,215.59 To Order
Photo Part No Description Price (each) Stock
11B0729CP Spacer - Rod End - Z-Bar $48.37 To Order
Photo Part No Description Price (each) Stock
11B0620CP Bolt - Locking Wheel - Set - Silver $155.26 To Order
11B1001CP Bolt - Locking Wheel - Set - Black $155.26 To Order
Photo Part No Description Price (each) Stock
11B1273CP Wheel - S Variant - 19x8.5 - Front - MY2015 Enquire To Order
11B1274CP Wheel - S Variant - 20x11 - Rear - MY2015 Enquire To Order
Photo Part No Description Price (each) Stock
15QA094CP ACCESSORY - TYRE CRADLE SET $979.24 To Order
View All

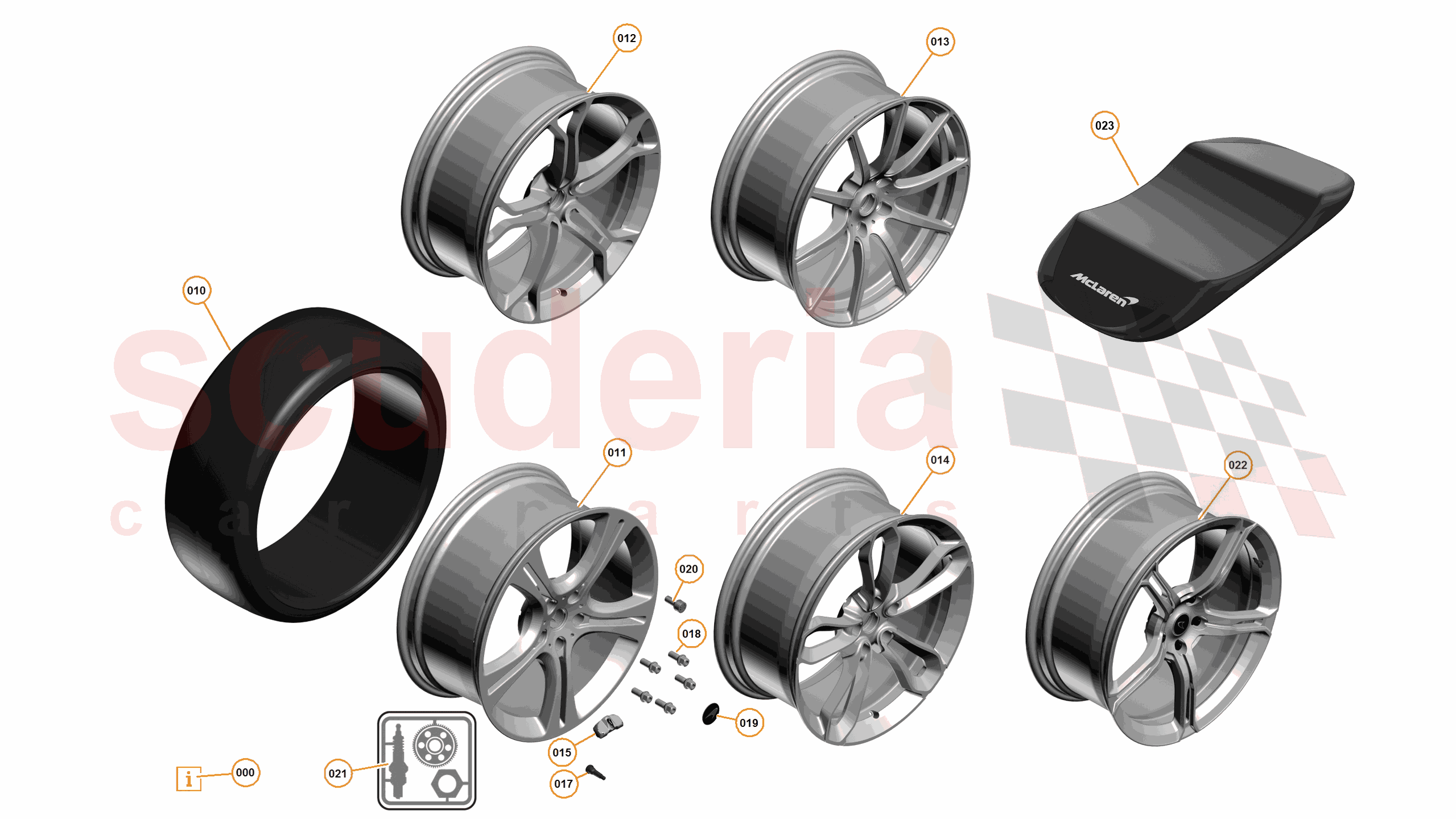

8 - B3 - WHEELS AND TYRES - 8.1 - 01 - WHEEL ASSEMBLY of McLaren McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B1517CP
SCREW - TPMS - TYRE VALVE
Row ID: ID_B0B30141_11B1517CP_ContPgHS; Resolution: Available; 		$9.41 1
010 11B0194CP
Tyre - Pirelli - 235-35R19 - Pzero - Front
Row ID: ID_B0B30101_11B0194CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 11B1331CP
Tyre - Pirelli - 235-35R19 - Winter - Front
Row ID: ID_B0B30102_11B1331CP_ContPgHS; Resolution: Available; 		$724.61 1
010 11B0200CP
Tyre - Pirelli - 235-35R19 - Corsa - Front - Pre-MY15
Row ID: ID_B0B30103_11B0200CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 11B1421CP
Tyre - Pirelli - 235-35R19 - Corsa - Front - MY15
Row ID: ID_B0B30140_11B1421CP_ContPgHS; Resolution: Available; 		$550.93 1
010 11B1169CP
Tyre - Pirelli - 235-35R19 - Trofeo - Front
Row ID: ID_B0B30142_11B1169CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14B0341CP
TYRE - PIRELLI - 245-35R19 - CORSA - FRONT
Row ID: ID__14B0341CP_ContPgHS; Resolution: Available; 		$1,091.64 -
010 14B0342CP
Tyre - Pirelli - 305-30R20 - Pzero - Rear
Row ID: ID_B0B30104_14B0342CP_ContPgHS; Resolution: Available; 		$1,219.01 1
010 11B1332CP
Tyre - Pirelli - 305-30R20 - Winter - Rear
Row ID: ID_B0B30105_11B1332CP_ContPgHS; Resolution: Available; 		$1,526.57 1
010 11B0198CP
Tyre - Pirelli - 305-30R20 - Corsa - Rear
Row ID: ID_B0B30106_11B0198CP_ContPgHS; Resolution: Available; 		$799.75 1
010 11B0300CP
Z-Bar
Row ID: ID_B0B20801_11B0300CP_ContPgHS; Resolution: Available; 		$574.75 1
011 11B0301CP
Mount - Z-Bar
Row ID: ID_B0B20802_11B0301CP_ContPgHS; Resolution: Available; 		$142.81 2
012 11B0414CP
Fixing Plate - Z-Bar
Row ID: ID_B0B20803_11B0414CP_ContPgHS; Resolution: Available; 		$68.65 2
013 00RA379
Bolt - Socket Cap - M14x60 - 10.9
Row ID: ID_B0B20804_00RA379_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RA380
Bolt - M14x60 - 10.9
Row ID: ID_B0B20805_00RA380_ContPgHS; Resolution: Available; 		- 1 Enquire
015 11B0631CP
Shim - Z-Bar
Row ID: ID_B0B20806_11B0631CP_ContPgHS; Resolution: Available; 		$52.87 4
016 11B0726CP
Drop Link - Z-Bar - RH
Row ID: ID_B0B20807_11B0726CP_ContPgHS; Resolution: Available; 		$1,215.59 1
017 11B0728CP
Boot - Rod End - Z-Bar
Row ID: ID_B0B20808_11B0728CP_ContPgHS; Resolution: Available; 		$19.14 2
018 11B0727CP
Drop Link - Z-Bar - LH
Row ID: ID_B0B20809_11B0727CP_ContPgHS; Resolution: Available; 		$1,215.59 1
019 11B0729CP
Spacer - Rod End - Z-Bar
Row ID: ID_B0B20810_11B0729CP_ContPgHS; Resolution: Available; 		$48.37 8
020 11B0641CP
Key - Locking Wheel Bolt - Code 7750
Row ID: ID_B0B30126_11B0641CP_ContPgHS; Resolution: Available; 		$107.43 1
021 11B0620CP
Bolt - Locking Wheel - Set - Silver
Row ID: ID_B0B30127_11B0620CP_ContPgHS; Resolution: Available; 		$155.26 1
021 11B1001CP
Bolt - Locking Wheel - Set - Black
Row ID: ID_B0B30135_11B1001CP_ContPgHS; Resolution: Available; 		$155.26 1
022 11B1273CP
Wheel - S Variant - 19x8.5 - Front - MY2015
Row ID: ID_B0B30138_11B1273CP_ContPgHS; 		- 2 Enquire
022 11B1274CP
Wheel - S Variant - 20x11 - Rear - MY2015
Row ID: ID_B0B30139_11B1274CP_ContPgHS; 		- 2 Enquire
023 15QA094CP
ACCESSORY - TYRE CRADLE SET
Row ID: ID__15QA094CP_ContPgHS; Resolution: Available; 		$979.24 -
