McLaren McLaren 12C Spider - 6 - B1 - FRONT SUSPENSION - 6.2 - 02 - FRONT SUSPENSION LH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11B0804CP Sleeve - Silicone - Protection - 130mm $67.80 To Order
11B0814CP Harness - Tenneco - Damper $79.74 To Order
11B1552CP BALL JOINT - GAITER - KIT $44.05 To Order
Photo Part No Description Price (each) Stock
11B1541CP Wishbone - Front - Lower - LH - M10 $2,532.50 To Order
Photo Part No Description Price (each) Stock
00RA065 Screw - M6x12-8.8 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
11B0975CP Link Rod - Sensor - Displacement - Ball Socket - Front $55.23 To Order
Photo Part No Description Price (each) Stock
00RC044 Spacer - M6xOD10-X4LG Enquire To Order
Photo Part No Description Price (each) Stock
11B0761CP Bracket - Sensor - Displacement - Front - LH $44.52 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $133.27 To Order
Photo Part No Description Price (each) Stock
11B0763CP Bracket - Sensor - Wishbone Displacement - Front - LH $85.15 To Order
Photo Part No Description Price (each) Stock
11B0802CP Bolt - M10x85 - Damper Mounting - Front $113.98 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1538CP ACCUMULATOR SUSPENSION $345.26 To Order
Photo Part No Description Price (each) Stock
11B1393CP Suspension Unit - Tenneco - Front - LH - 625C $2,886.79 To Order
11B1397CP Suspension Unit - Tenneco - Front - LH - 650S Enquire To Order
11B1395CP Suspension Unit - Tenneco - Nose Lift - Front - LH - 625C Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11S5457CP Top Mount - Actuator - Kit $148.02 To Order
View All

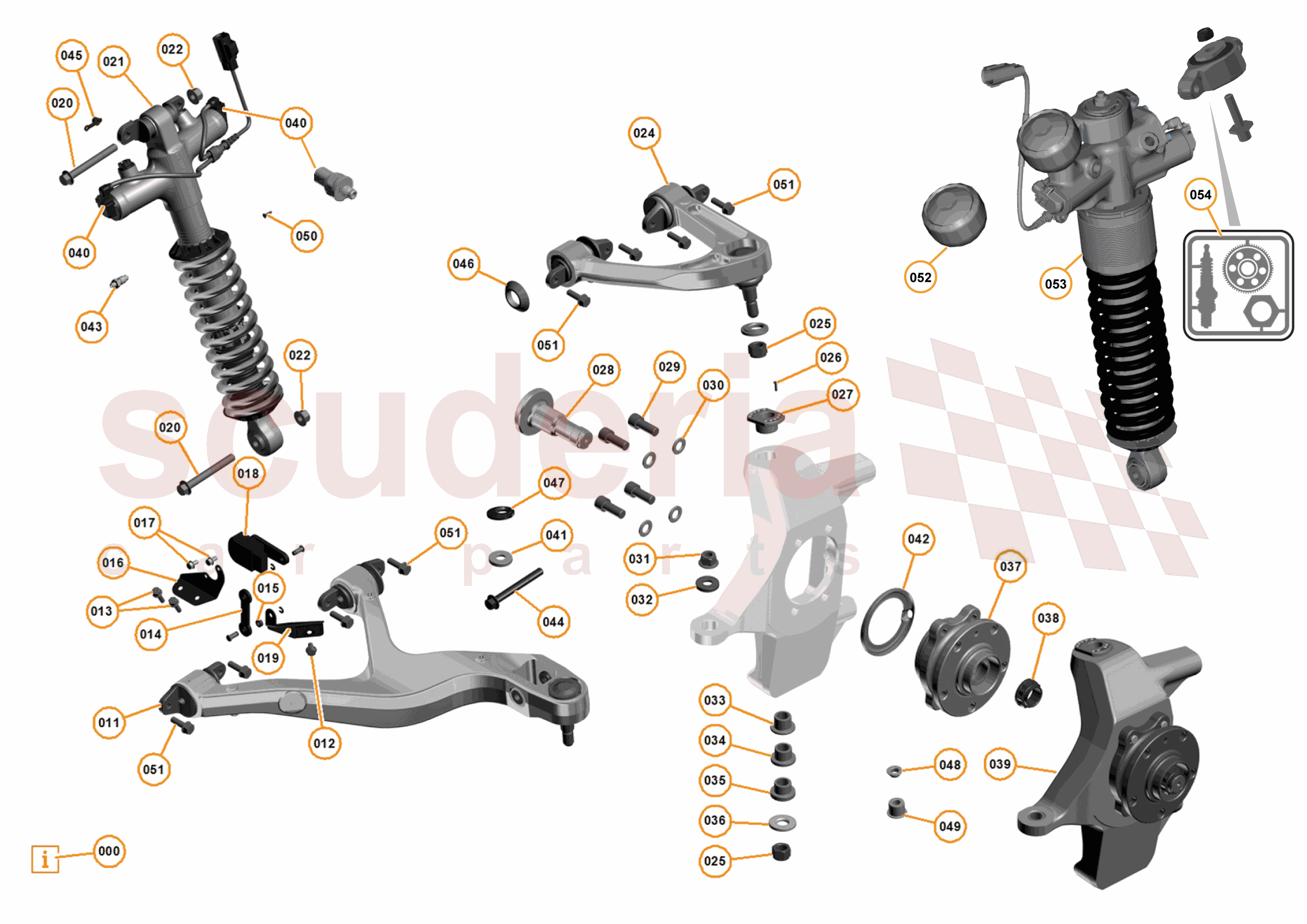

6 - B1 - FRONT SUSPENSION - 6.2 - 02 - FRONT SUSPENSION LH of McLaren McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B0804CP
Sleeve - Silicone - Protection - 130mm
Row ID: ID_B0B10239_11B0804CP_ContPgHS; Resolution: Available; 		$67.80 1
000 11B0814CP
Harness - Tenneco - Damper
Row ID: ID_B0B10240_11B0814CP_ContPgHS; Resolution: Available; 		$79.74 1
000 11B1552CP
BALL JOINT - GAITER - KIT
Row ID: ID_B0B10253_11B1552CP_ContPgHS; Resolution: Available; 		$44.05 2
011 11B1541CP
Wishbone - Front - Lower - LH - M10
Row ID: ID_B0B10244_11B1541CP_ContPgHS; Resolution: Available; 		$2,532.50 1
012 00RA065
Screw - M6x12-8.8 - Flange Hex
Row ID: ID_B0B10209_00RA065_ContPgHS; Resolution: Available; 		- 1 Enquire
013
Row ID: ID_B0B10210_00RA083_ContPgHS; Resolution: Available; 		- 4 Enquire
014 11B0975CP
Link Rod - Sensor - Displacement - Ball Socket - Front
Row ID: ID_B0B10211_11B0975CP_ContPgHS; Resolution: Available; 		$55.23 1
015 00RC044
Spacer - M6xOD10-X4LG
Row ID: ID_B0B10212_00RC044_ContPgHS; Resolution: Available; 		- 1 Enquire
016 11B0761CP
Bracket - Sensor - Displacement - Front - LH
Row ID: ID_B0B10213_11B0761CP_ContPgHS; Resolution: Available; 		$44.52 1
017 00RA087
SCREW - M5X10 - HEX
Row ID: ID_B0B10214_00RA087_ContPgHS; Resolution: Available; 		- 2 Enquire
018 11M0253CP
Sensor - Displacement
Row ID: ID_B0B10215_11M0253CP_ContPgHS; Resolution: Available; 		$133.27 1
019 11B0763CP
Bracket - Sensor - Wishbone Displacement - Front - LH
Row ID: ID_B0B10216_11B0763CP_ContPgHS; Resolution: Available; 		$85.15 1
020 11B0802CP
Bolt - M10x85 - Damper Mounting - Front
Row ID: ID_B0B10238_11B0802CP_ContPgHS; Resolution: Available; 		$113.98 2
051 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID_B0B10247_00RA457_ContPgHS; Resolution: Available; 		- 8 Enquire
052 11B1538CP
ACCUMULATOR SUSPENSION
Row ID: ID_B0B10256_11B1538CP_ContPgHS; Resolution: Available; 		$345.26 1
053 11B1393CP
Suspension Unit - Tenneco - Front - LH - 625C
Row ID: ID_B0B10248_11B1393CP_ContPgHS; Resolution: Available; 		$2,886.79 1
053 11B1397CP
Suspension Unit - Tenneco - Front - LH - 650S
Row ID: ID_B0B10249_11B1397CP_ContPgHS; Resolution: Available; 		- 1 Enquire
053 11B1395CP
Suspension Unit - Tenneco - Nose Lift - Front - LH - 625C
Row ID: ID_B0B10250_11B1395CP_ContPgHS; Resolution: Available; 		- 1 Enquire
053 11B1732CP
Suspension Unit - Tenneco - Nose Lift - Front - LH - 650S
Row ID: ID_B0B10251_11B1732CP_ContPgHS; Resolution: Available; 		$4,385.24 1
054 11S5457CP
Top Mount - Actuator - Kit
Row ID: ID_B0B10270_11S5457CP_ContPgHS; Resolution: Available; 		$148.02 1
055 14BA246CP
WISHBONE BUSH
Row ID: ID__14BA246CP_ContPgHS; Resolution: Available; 		- 1 Enquire
056 14BA255CP
WISHBONE BUSH - 3.5MM
Row ID: ID__14BA255CP_ContPgHS; Resolution: Available; 		- 1 Enquire
