Find Your Part

4 - A4 - PANELS, GLAZING, AND PAINT - 4.7 - 03 - SIDE INTAKE PANELS - 625C & 650S of McLaren McLaren McLaren 12C Spider

View All

McLaren McLaren 12C Spider - 4 - A4 - PANELS, GLAZING, AND PAINT - 4.7 - 03 - SIDE INTAKE PANELS - 625C & 650S

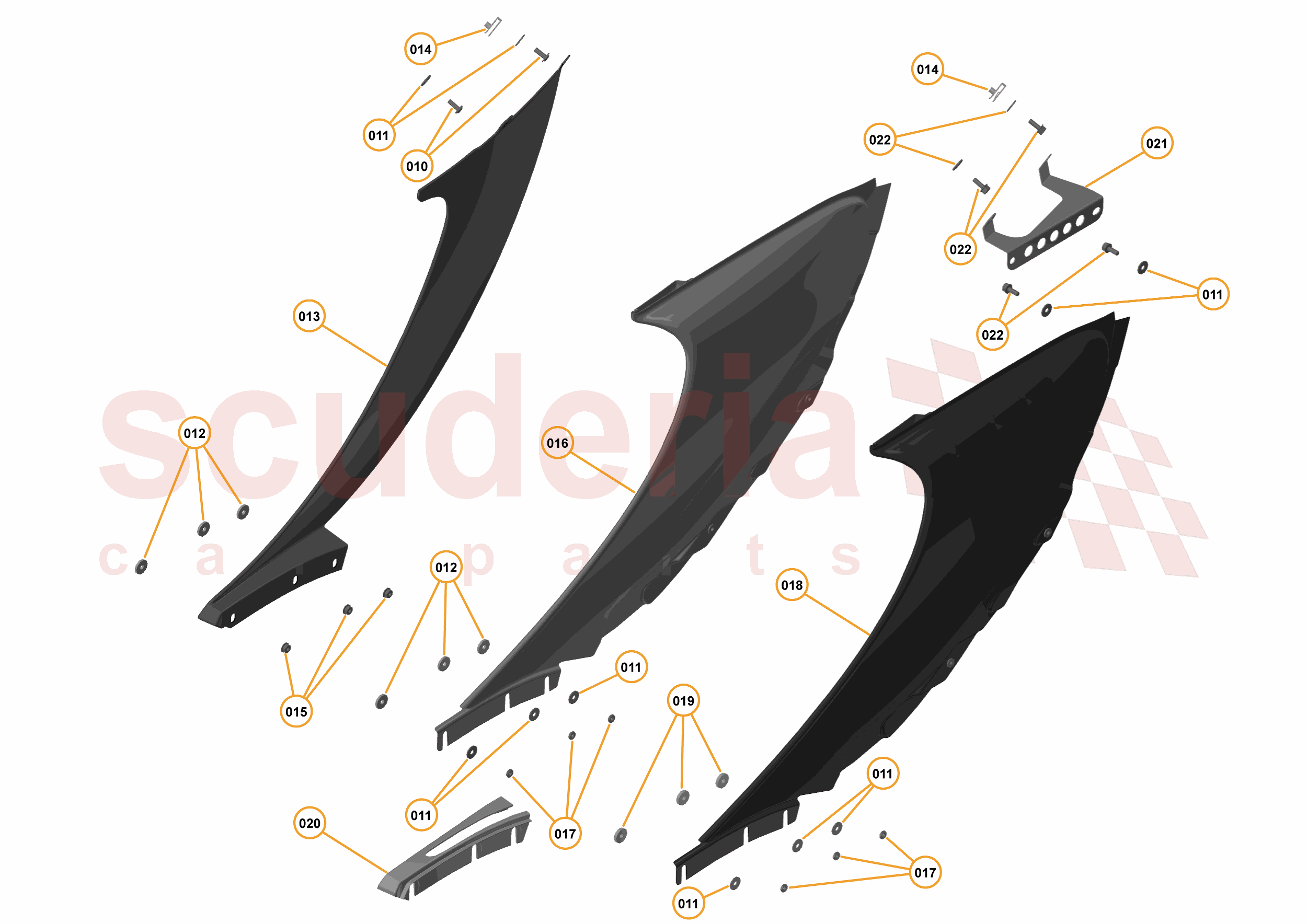

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA310	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC077	CONVERTIBLE ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC049	Washer - M6x3.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A6893CP	Side Tick Panel - LH - MY2015	$1,122.99	To Order
	11A7167CP	Side Tick Panel - Carbon - LH - 625 - MY2015	$3,473.67	To Order
	11A6895CP	Side Tick Panel - RH - MY2015	$1,122.99	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	00RA329	CLIP - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA309	NUT - M6-SS - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7045CP	Side Intake Duct - LH - MY2015 - Sport	$1,511.60	To Order
	11A7046CP	Side Intake Duct - RH - MY2015 - Sport	$1,511.60	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA328	Half Nut - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7047CP	Side Intake Duct - Carbon - LH - MY2015 - 650S	$4,374.76	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA310	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA310 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID_A0A40305_00RA310_ContPgHS; Resolution: Available;	-	4	Enquire
011	00RC077	CONVERTIBLE ROOF	00RC077 CONVERTIBLE ROOF Row ID: ID_A0A40314_00RC077_ContPgHS; Resolution: Available;	-	10	Enquire
012	00RC049	Washer - M6x3.0mm	00RC049 Washer - M6x3.0mm Row ID: ID_A0A40376_00RC049_ContPgHS; Resolution: Available;	-	12	Enquire
013	11A6893CP	Side Tick Panel - LH - MY2015	11A6893CP Side Tick Panel - LH - MY2015 Row ID: ID_A0A403N6_11A6893CP_ContPgHS; Resolution: Available;	$1,122.99	1
013	11A7167CP	Side Tick Panel - Carbon - LH - 625 - MY2015	11A7167CP Side Tick Panel - Carbon - LH - 625 - MY2015 Row ID: ID_A0A403N8_11A7167CP_ContPgHS; Resolution: Available;	$3,473.67	1
013	11A6895CP	Side Tick Panel - RH - MY2015	11A6895CP Side Tick Panel - RH - MY2015 Row ID: ID_A0A403N7_11A6895CP_ContPgHS; Resolution: Available;	$1,122.99	1
013	11A7168CP	Side Tick Panel - Carbon - RH - 625 - MY2015	11A7168CP Side Tick Panel - Carbon - RH - 625 - MY2015 Row ID: ID_A0A403N9_11A7168CP_ContPgHS; Resolution: Available;	$3,668.76	1
014	00RA329	CLIP - M6	00RA329 CLIP - M6 Row ID: ID_A0A403L4_00RA329_ContPgHS; Resolution: Available;	-	2	Enquire
015	00RA309	NUT - M6-SS - HEX	00RA309 NUT - M6-SS - HEX Row ID: ID_A0A40304_00RA309_ContPgHS; Resolution: Available;	-	6	Enquire
016	11A7045CP	Side Intake Duct - LH - MY2015 - Sport	11A7045CP Side Intake Duct - LH - MY2015 - Sport Row ID: ID_A0A403J8_11A7045CP_ContPgHS; Resolution: Available;	$1,511.60	1
016	11A7046CP	Side Intake Duct - RH - MY2015 - Sport	11A7046CP Side Intake Duct - RH - MY2015 - Sport Row ID: ID_A0A403J9_11A7046CP_ContPgHS; Resolution: Available;	$1,511.60	1
017	00RA328	Half Nut - M6	00RA328 Half Nut - M6 Row ID: ID_A0A403U0_00RA328_ContPgHS; Resolution: Available;	-	6	Enquire
018	11A7047CP	Side Intake Duct - Carbon - LH - MY2015 - 650S	11A7047CP Side Intake Duct - Carbon - LH - MY2015 - 650S Row ID: ID_A0A403K0_11A7047CP_ContPgHS; Resolution: Available;	$4,374.76	1
