3 - A3 -CLOSURES - 3.15 - 06 - CONVERTIBLE ROOF ASSEMBLY AND KINEMATIC parts for McLaren McLaren 12C Spider | Scuderia Car Parts

Find Your Part

3 - A3 -CLOSURES - 3.15 - 06 - CONVERTIBLE ROOF ASSEMBLY AND KINEMATIC of McLaren McLaren McLaren 12C Spider

View All

McLaren McLaren 12C Spider - 3 - A3 -CLOSURES - 3.15 - 06 - CONVERTIBLE ROOF ASSEMBLY AND KINEMATIC

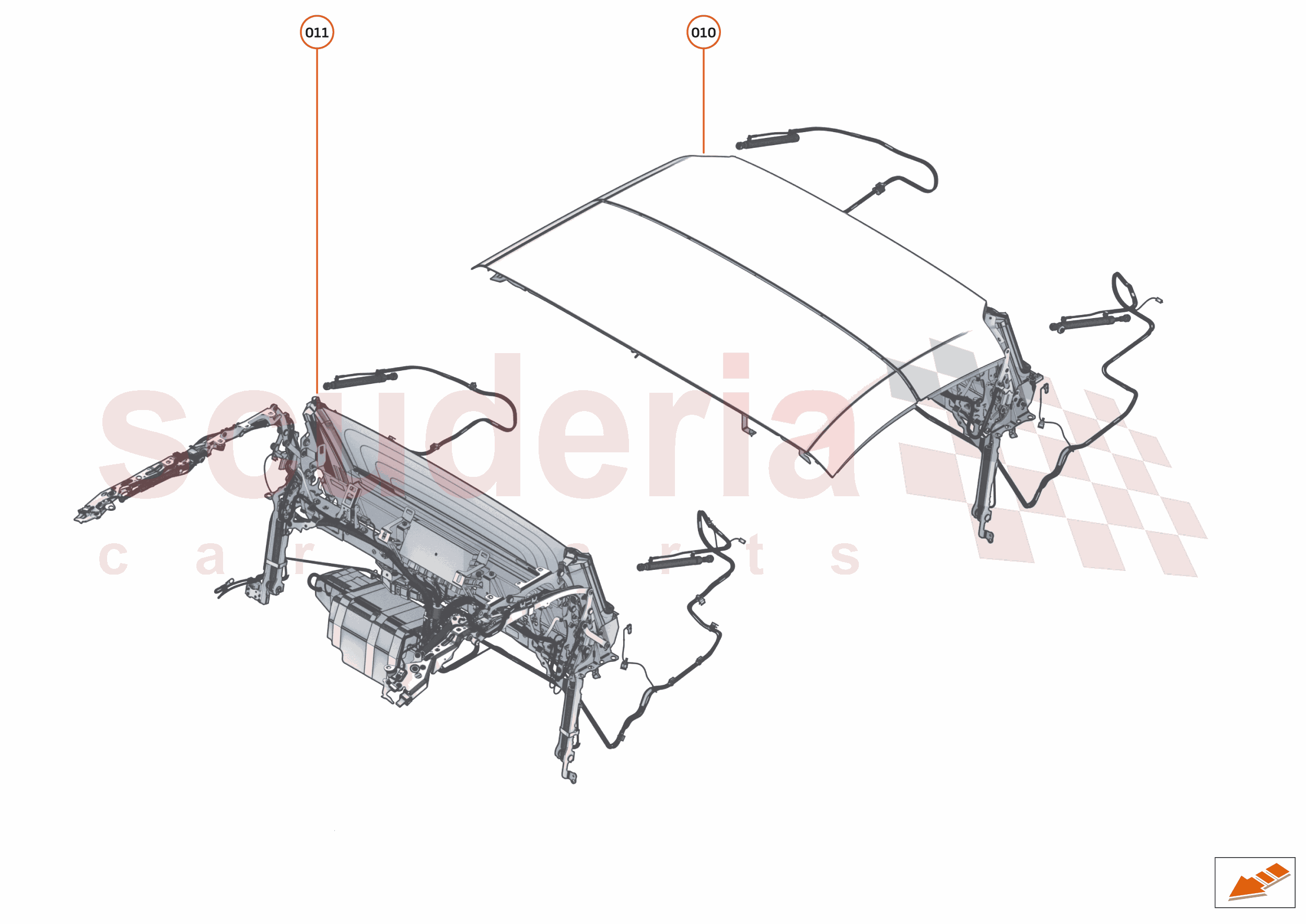

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A1886SP	RHT - Assy - Textile Headliner	Enquire	To Order
	11A1905SP	RHT - Assy - Alcantara Headliner	Enquire	To Order
	11A1934SP	RHT - Assy - Leather Semi Aniline - Black Head Lining	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A8269SP	ROOF KINEMATIC	$30,454.10	To Order

View All

3 - A3 -CLOSURES - 3.15 - 06 - CONVERTIBLE ROOF ASSEMBLY AND KINEMATIC of McLaren McLaren McLaren 12C Spider

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	11A1886SP	RHT - Assy - Textile Headliner	11A1886SP RHT - Assy - Textile Headliner Row ID: ID_A0A306C0_11A1886SP_ContPgHS;	-	1		Enquire
	010	11A1905SP	RHT - Assy - Alcantara Headliner	11A1905SP RHT - Assy - Alcantara Headliner Row ID: ID_A0A306C1_11A1905SP_ContPgHS;	-	1		Enquire
	010	11A1934SP	RHT - Assy - Leather Semi Aniline - Black Head Lining	11A1934SP RHT - Assy - Leather Semi Aniline - Black Head Lining Row ID: ID_A0A306D0_11A1934SP_ContPgHS;	-	1		Enquire
	010	11A1961SP	RHT - Assy - Leather Semi Aniline - Blue Head Lining	11A1961SP RHT - Assy - Leather Semi Aniline - Blue Head Lining Row ID: ID_A0A306D1_11A1961SP_ContPgHS;	-	1		Enquire
	010	11A1964SP	RHT - Assy - Leather Semi Aniline - Brown Head Lining	11A1964SP RHT - Assy - Leather Semi Aniline - Brown Head Lining Row ID: ID_A0A306D2_11A1964SP_ContPgHS;	-	1		Enquire
	010	11A8781SP	RHT - Assy - Nappa Head Lining	11A8781SP RHT - Assy - Nappa Head Lining Row ID: ID_A0A306D3_11A8781SP_ContPgHS;	-	1		Enquire
	011	11A8269SP	ROOF KINEMATIC	11A8269SP ROOF KINEMATIC Row ID: ID__11A8269SP_ContPgHS; Resolution: Available;	$30,454.10	1
