28 - N2 - Tunnel Console Assembly - 28.2 - 01 - Tunnel Console Assembly - Alcantara

McLaren McLaren 12C Coupe

Find Your Part

McLaren McLaren 12C Coupe - 28 - N2 - TUNNEL CONSOLE ASSEMBLY - 28.2 - 01 - TUNNEL CONSOLE ASSEMBLY - ALCANTARA

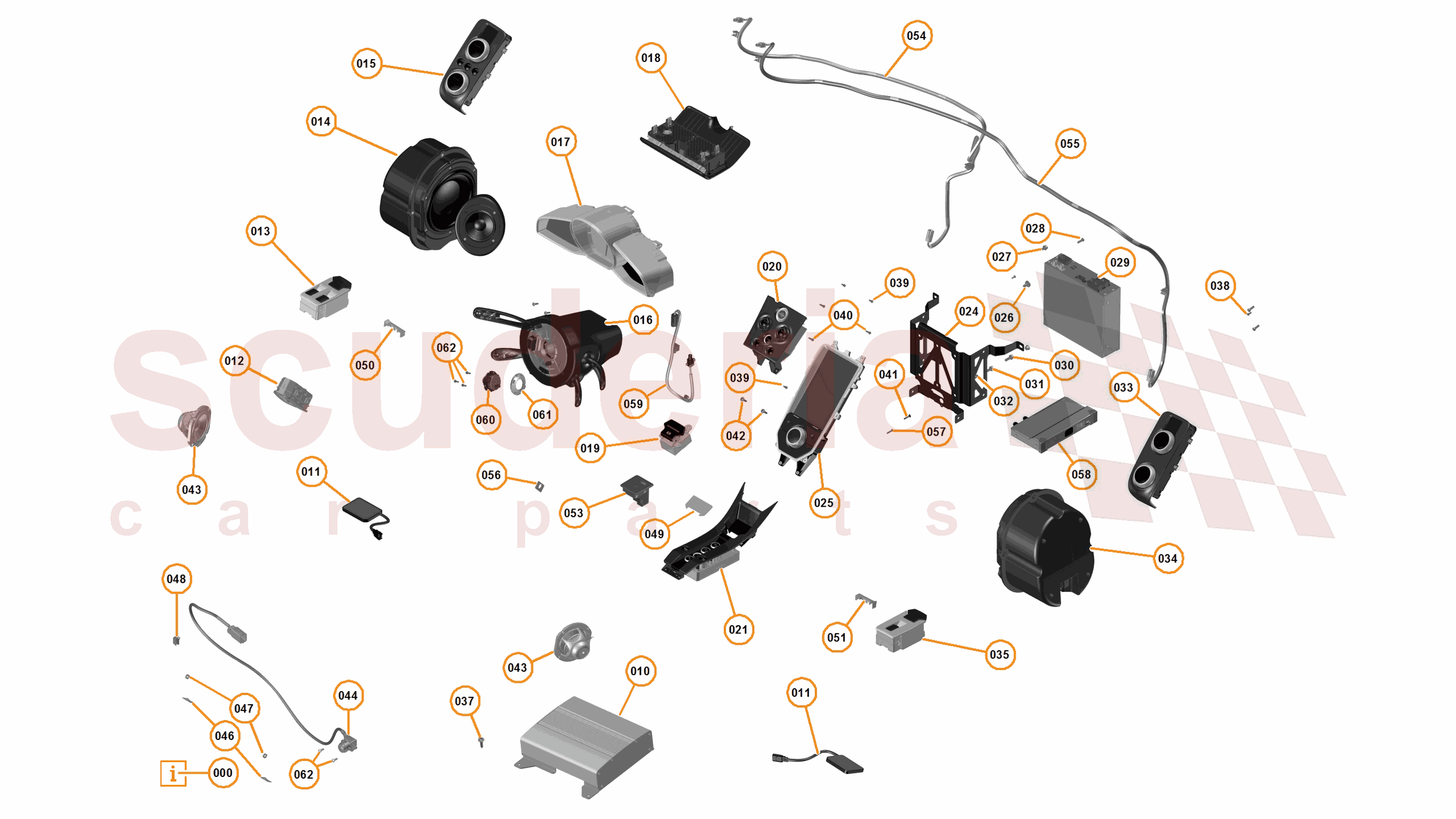

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M1419CP Ferrite - Harness - 7427 1221 $33.78 To Order
11M1420CP FERRITE - HARNESS - 74271111 $23.56 To Order
11M1422CP FERRITE - HARNESS - 7427 1733 $26.09 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11M3005CP Bracket - Head Unit - Mounting $302.96 To Order
Photo Part No Description Price (each) Stock
11M2921CP Display Panel - IRIS $8,632.39 To Order
Photo Part No Description Price (each) Stock
00RA143 SCREW - M6X12 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA138 Screw - DIA 4 x 14 - Torx Enquire To Order
Photo Part No Description Price (each) Stock
11M1430CP Head Unit - IRIS - High-Line $4,508.31 To Order
13M1453CP Head Unit - AIS - High-Line Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA129 Screw - NR8x16 Enquire To Order
Photo Part No Description Price (each) Stock
11M3137CP Switch Panel - HVAC - Passenger $3,174.17 To Order
11M3139CP Switch Panel - HVAC - Carbon - Passenger $12,243.22 To Order
11M3232CP Switch Panel - HVAC - TFT - Service - No Facia - Passenger $3,174.17 To Order
Photo Part No Description Price (each) Stock
11M0362CP Door Speaker - RH $463.16 To Order
Photo Part No Description Price (each) Stock
11M1252CP Switch - Window & Door - Passenger $1,360.36 To Order
11M2421CP Window & Door Switch - Passenger - Carbon Fibre $7,591.13 To Order
Photo Part No Description Price (each) Stock
00RA057 Screw - NR6x16 - Flange Enquire To Order
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA296 SCREW-EJOT ALTRAC-WN5152-M3X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA297 Screw - M3x15 - Ejot Altrac Enquire To Order
Photo Part No Description Price (each) Stock
00RA300 Screw - M3x16 - Button Enquire To Order
Photo Part No Description Price (each) Stock
00RA330 SCREW - NR8X19 - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
11M0705CP Speaker - Surround Sound $220.47 To Order
Photo Part No Description Price (each) Stock
11M0778CP VEHICLE CAMERA - INTERNAL - REAR VIEW $1,328.63 To Order
Photo Part No Description Price (each) Stock
00RL014 Tie Wrap Block - 25*13 - TC105A Enquire To Order
Photo Part No Description Price (each) Stock
00RL015 CABLE TIE - SF100 - 18X - 110MM Enquire To Order
Photo Part No Description Price (each) Stock
11M1282CP Edge Clip - Cable Tie - Harness - 7247-7608-30 $1.80 To Order
Photo Part No Description Price (each) Stock
11M1123CP Cover - EPB Bowl $35.46 To Order
Photo Part No Description Price (each) Stock
11M1121CP Cover - Window Lift - Screw - LH $16.10 To Order
Photo Part No Description Price (each) Stock
11M1122CP Cover - Window Lift - Screw - RH $16.10 To Order
Photo Part No Description Price (each) Stock
11M2827CP Interface Panel - USB $379.09 To Order
Photo Part No Description Price (each) Stock
11M1928CP Cable Extension - Antenna - Satellite Tracking - RF - RHD $167.20 To Order
Photo Part No Description Price (each) Stock
11M1929CP Cable Extension - Antenna - Satellite Tracking - RF - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11N2635CP Shim - Auxiliary Switch $16.71 To Order
Photo Part No Description Price (each) Stock
00RA437 Screw - Torx - M3x16 - T10 Enquire To Order
Photo Part No Description Price (each) Stock
11M2555CP AM/FM Tuner Unit $1,508.88 To Order
11M2932CP AM/FM Tuner Unit - AIS $2,173.03 To Order
13M1558CP AM/FM/DAB Tuner Unit $1,864.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11M2867CP Harness - GPS - Extension - AIS $144.71 To Order
Photo Part No Description Price (each) Stock
11M3130CP Switch - Electric Column Adjust $256.95 To Order
Photo Part No Description Price (each) Stock
11M2991CP COVER - SWITCH - ELECTRIC STEERING COLUMN $22.15 To Order
Photo Part No Description Price (each) Stock
00RA524 Screw - Torx - 4x10 Enquire To Order
View All
28 - N2 - TUNNEL CONSOLE ASSEMBLY - 28.2 - 01 - TUNNEL CONSOLE ASSEMBLY - ALCANTARA of McLaren McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11M1419CP
Ferrite - Harness - 7427 1221
Row ID: ID_M0M40153_11M1419CP_ContPgHS; Resolution: Available; 		$33.78 2
000 11M1420CP
FERRITE - HARNESS - 74271111
Row ID: ID_M0M40154_11M1420CP_ContPgHS; Resolution: Available; 		$23.56 1
000 11M1422CP
FERRITE - HARNESS - 7427 1733
Row ID: ID_M0M40155_11M1422CP_ContPgHS; Resolution: Available; 		$26.09 3
000 11M1287CP
CLIP - SWITCHPACK - DOOR - USB INTERFACE
Row ID: ID_M0M40117_11M1287CP_ContPgHS; Resolution: Available; 		$7.09 1
000 11M1288CP
Clip - Control Panel - Roof Mounted
Row ID: ID_M0M40118_11M1288CP_ContPgHS; Resolution: Available; 		$8.52 1
000 11M3031CP
Antenna - Sirius
Row ID: ID_M0M40181_11M3031CP_ContPgHS; Resolution: Available; 		$218.89 1
000 11M3320CP
Bracket - Sirius Antenna
Row ID: ID_M0M40182_11M3320CP_ContPgHS; Resolution: Available; 		$59.90 1
000 11M3038CP
Harness - Sirius Antenna to Tuner
Row ID: ID_M0M40183_11M3038CP_ContPgHS; Resolution: Available; 		$120.14 1
000 11M3220CP
Service Kit - HVAC - Clip Kit
Row ID: ID_M0M40185_11M3220CP_ContPgHS; Resolution: Available; 		$0.74 1
000 11MA022CP
AIS Upgrade Kit - Rest of World - 12C
Row ID: ID__11MA022CP_ContPgHS; Resolution: Available; 		$8,934.70 1
000 11MA023CP
AIS Upgrade Kit - Federal - 12C
Row ID: ID__11MA023CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 11MA021CP
Upgrade Kit - AIS - Camera - Federal - 12C
Row ID: ID__11MA021CP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 11MA017CP
Upgrade Kit - AIS - Camera - Sirius - 12C
Row ID: ID__11MA017CP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 11M2419CP
Lower Control Panel - Coupe - Carbon Fibre
Row ID: ID_M0M40137_11M2419CP_ContPgHS; Resolution: Available; 		$3,045.41 1
024 11M3005CP
Bracket - Head Unit - Mounting
Row ID: ID_M0M40138_11M3005CP_ContPgHS; Resolution: Available; 		$302.96 1
025 11M2921CP
Display Panel - IRIS
Row ID: ID_M0M40139_11M2921CP_ContPgHS; Resolution: Available; 		$8,632.39 1
026 00RA143
SCREW - M6X12 - TORX
Row ID: ID_M0M40140_00RA143_ContPgHS; Resolution: Available; 		- 2 Enquire
027 00RA165
BOLT - M5X8 - HEX
Row ID: ID_M0M40141_00RA165_ContPgHS; Resolution: Available; 		- 4 Enquire
028 00RA138
Screw - DIA 4 x 14 - Torx
Row ID: ID_M0M40142_00RA138_ContPgHS; Resolution: Available; 		- 10 Enquire
029 11M1430CP
Head Unit - IRIS - High-Line
Row ID: ID_M0M40156_11M1430CP_ContPgHS; Resolution: Available; 		$4,508.31 1
029 13M1453CP
Head Unit - AIS - High-Line
Row ID: ID_M0M40173_13M1453CP_ContPgHS; Resolution: Available; 		- 1 Enquire
030 00RA063
Screw - M5x16 - Hex
Row ID: ID_M0M40145_00RA063_ContPgHS; Resolution: Available; 		- 6 Enquire
031 00RA064
BOLT - M5X12 - HEX
Row ID: ID_M0M40146_00RA064_ContPgHS; Resolution: Available; 		- 6 Enquire
032 00RA129
Screw - NR8x16
Row ID: ID_M0M40147_00RA129_ContPgHS; Resolution: Available; 		- 7 Enquire
033 11M3137CP
Switch Panel - HVAC - Passenger
Row ID: ID_M0M40148_11M3137CP_ContPgHS; Resolution: Available; 		$3,174.17 1
033 11M3139CP
Switch Panel - HVAC - Carbon - Passenger
Row ID: ID_M0M40149_11M3139CP_ContPgHS; Resolution: Available; 		$12,243.22 1
033 11M3232CP
Switch Panel - HVAC - TFT - Service - No Facia - Passenger
Row ID: ID_M0M40187_11M3232CP_ContPgHS; Resolution: Available; 		$3,174.17 1
034 11M0362CP
Door Speaker - RH
Row ID: ID_M0M40150_11M0362CP_ContPgHS; Resolution: Available; 		$463.16 1
035 11M1252CP
Switch - Window & Door - Passenger
Row ID: ID_M0M40151_11M1252CP_ContPgHS; Resolution: Available; 		$1,360.36 1
035 11M2421CP
Window & Door Switch - Passenger - Carbon Fibre
Row ID: ID_M0M40152_11M2421CP_ContPgHS; Resolution: Available; 		$7,591.13 1
037 00RA057
Screw - NR6x16 - Flange
Row ID: ID_M0M40102_00RA057_ContPgHS; Resolution: Available; 		- 2 Enquire
038 00RA140
SCREW - 3X8 - TORX
Row ID: ID_M0M40103_00RA140_ContPgHS; Resolution: Available; 		- 1 Enquire
039 00RA296
SCREW-EJOT ALTRAC-WN5152-M3X10
Row ID: ID_M0M40104_00RA296_ContPgHS; Resolution: Available; 		- 4 Enquire
040 00RA297
Screw - M3x15 - Ejot Altrac
Row ID: ID_M0M40105_00RA297_ContPgHS; Resolution: Available; 		- 4 Enquire
041 00RA300
Screw - M3x16 - Button
Row ID: ID_M0M40106_00RA300_ContPgHS; Resolution: Available; 		- 8 Enquire
042 00RA330
SCREW - NR8X19 - FLANGE
Row ID: ID_M0M40107_00RA330_ContPgHS; Resolution: Available; 		- 2 Enquire
043 11M0705CP
Speaker - Surround Sound
Row ID: ID_M0M40108_11M0705CP_ContPgHS; Resolution: Available; 		$220.47 2
044 11M0778CP
VEHICLE CAMERA - INTERNAL - REAR VIEW
Row ID: ID_M0M40109_11M0778CP_ContPgHS; Resolution: Available; 		$1,328.63 2
046 00RL014
Tie Wrap Block - 25*13 - TC105A
Row ID: ID_M0M40111_00RL014_ContPgHS; Resolution: Available; 		- 2 Enquire
047 00RL015
CABLE TIE - SF100 - 18X - 110MM
Row ID: ID_M0M40112_00RL015_ContPgHS; Resolution: Available; 		- 2 Enquire
048 11M1282CP
Edge Clip - Cable Tie - Harness - 7247-7608-30
Row ID: ID_M0M40113_11M1282CP_ContPgHS; Resolution: Available; 		$1.80 1
049 11M1123CP
Cover - EPB Bowl
Row ID: ID_M0M40114_11M1123CP_ContPgHS; Resolution: Available; 		$35.46 1
050 11M1121CP
Cover - Window Lift - Screw - LH
Row ID: ID_M0M40115_11M1121CP_ContPgHS; Resolution: Available; 		$16.10 1
051 11M1122CP
Cover - Window Lift - Screw - RH
Row ID: ID_M0M40116_11M1122CP_ContPgHS; Resolution: Available; 		$16.10 1
053 11M2827CP
Interface Panel - USB
Row ID: ID_M0M40157_11M2827CP_ContPgHS; Resolution: Available; 		$379.09 1
054 11M1928CP
Cable Extension - Antenna - Satellite Tracking - RF - RHD
Row ID: ID_M0M40158_11M1928CP_ContPgHS; Resolution: Available; 		$167.20 1
055 11M1929CP
Cable Extension - Antenna - Satellite Tracking - RF - LHD
Row ID: ID_M0M40159_11M1929CP_ContPgHS; Resolution: Available; 		- 1 Enquire
056 11N2635CP
Shim - Auxiliary Switch
Row ID: ID_M0M40160_11N2635CP_ContPgHS; Resolution: Available; 		$16.71 1
057 00RA437
Screw - Torx - M3x16 - T10
Row ID: ID_M0M40161_00RA437_ContPgHS; Resolution: Available; 		- 8 Enquire
058 11M2555CP
AM/FM Tuner Unit
Row ID: ID_M0M40169_11M2555CP_ContPgHS; Resolution: Available; 		$1,508.88 1
058 11M2932CP
AM/FM Tuner Unit - AIS
Row ID: ID_M0M40170_11M2932CP_ContPgHS; Resolution: Available; 		$2,173.03 1
058 13M1558CP
AM/FM/DAB Tuner Unit
Row ID: ID_M0M40174_13M1558CP_ContPgHS; Resolution: Available; 		$1,864.94 1
058 11M3010CP
AM/FM/XM Tuner Unit
Row ID: ID_M0M40175_11M3010CP_ContPgHS; Resolution: Available; 		- 1 Enquire
059 11M2867CP
Harness - GPS - Extension - AIS
Row ID: ID_M0M40172_11M2867CP_ContPgHS; Resolution: Available; 		$144.71 1
060 11M3130CP
Switch - Electric Column Adjust
Row ID: ID_M0M40178_11M3130CP_ContPgHS; Resolution: Available; 		$256.95 1
061 11M2991CP
COVER - SWITCH - ELECTRIC STEERING COLUMN
Row ID: ID_M0M40179_11M2991CP_ContPgHS; Resolution: Available; 		$22.15 1
062 00RA524
Screw - Torx - 4x10
Row ID: ID_M0M40180_00RA524_ContPgHS; Resolution: Available; 		- 5 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
