REAR PARCEL SHELF of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

View All

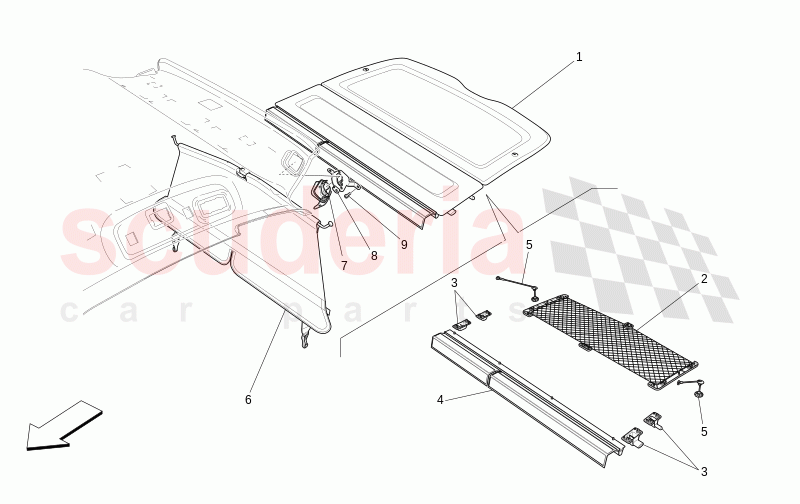

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - REAR PARCEL SHELF (09461)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B012740SB001	WARRANTY MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004758	NET KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004759	PINS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673006255	FLAP KIT	Enquire	To Order
	673004760	FLAP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004761	TIE-RODS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B953515A	STEERING COLUMN UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B953562A	STEERING COLUMN UPPER COVER RH	Enquire	To Order
	47B953561A	STEERING COLUMN UPPER COVER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034597	LH BRACKET	Enquire	To Order
	670034596	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000732	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B012740SB001	WARRANTY MANUAL	47B012740SB001 WARRANTY MANUAL Bespoke Assembly Number 6087717 - 6110974; Not available with: ZEGNA EDITION INTERIORS, ALCANTARA ROOFLINING, GTS, GT, TRIM LUXURY, TROFEO;	-	1	Enquire
2	673004758	NET KIT	673004758 NET KIT Net Kit not provided as standard but can be ordered later; Bespoke Assembly Number 6043561 - 99999999;	-	1	Enquire
3	673004759	PINS KIT	673004759 PINS KIT	-	2	Enquire
4	673006255	FLAP KIT	673006255 FLAP KIT Available with: ALCANTARA ROOFLINING ;	-	1	Enquire
4	673004760	FLAP KIT	673004760 FLAP KIT WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106768; Not available with: ALCANTARA ROOFLINING;	-	1	Enquire
5	673004761	TIE-RODS KIT	673004761 TIE-RODS KIT	-	1	Enquire
6	47B953515A	STEERING COLUMN UPPER COVER	47B953515A STEERING COLUMN UPPER COVER IF THE CAR DOES NOT HAVE THE PN 670049152 (LUGGAGE CONTAINER), PLEASE ORDER THIS TOO; Available with: CARGO NET FOR REAR TRUNK ;	-	1	Enquire
7	47B953562A	STEERING COLUMN UPPER COVER RH	47B953562A STEERING COLUMN UPPER COVER RH	-	1	Enquire
7	47B953561A	STEERING COLUMN UPPER COVER LH	47B953561A STEERING COLUMN UPPER COVER LH	-	1	Enquire
8	670034597	LH BRACKET	670034597 LH BRACKET	-	1	Enquire
8	670034596	RH BRACKET	670034596 RH BRACKET	-	1	Enquire
9	675000732	SCREW	675000732 SCREW	-	6	Enquire
